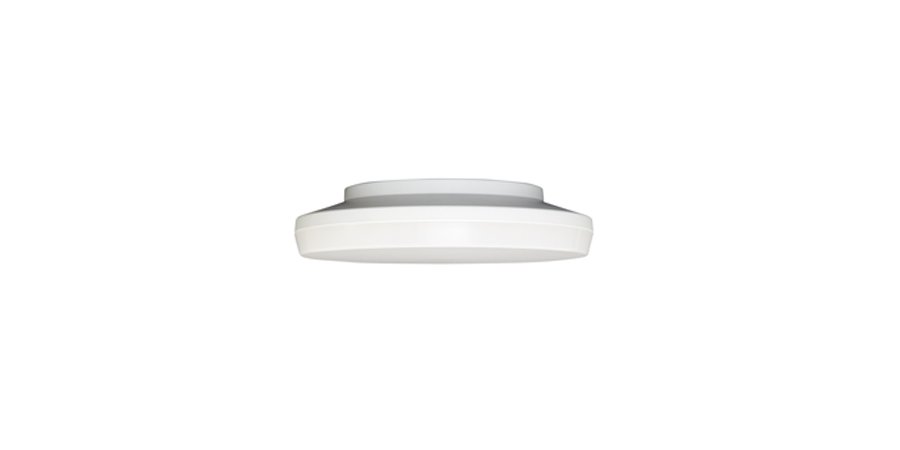

SML330 CEILING LIGHT

Overview

Product Details

  • 4 outputs available
  • 3000K or 4000K
  • CRI >80
  • Die cast aluminium base powdercoated
  • Injection moulded polycarbonate lens
  • Available in white, black or silver base (custom colours available upon request)
  • Made in Australia
  • IPX4 version available

Colour Finish

  • white WH
  • silver SIL
  • black BLK
  • custom powdercoat colour

IPX4 VERSION

To specify the product as IPX4 add .IP to the end of the part code

Codes & Downloads

SML330 LED

Non DimmableTrailing Edge DImmableDALI DimmableCCTLumensWattsLm/W
SML330.14.3000.61SML330.14.3000.63SML330.14.3000.663000K13501496lm/w
SML330.14.4000.61SML330.14.4000.63SML330.14.4000.664000K148514106lm/w
SML330.20.3000.61SML330.20.3000.63SML330.20.3000.663000K19362096lm/w
SML330.20.4000.61SML330.20.4000.63SML330.20.4000.664000K212920106lm/w
SML330.27.3000.61SML330.27.3000.63SML330.27.3000.663000K26822799lm/w
SML330.27.4000.61SML330.27.4000.63SML330.27.4000.664000K395027109lm/w
SML330.35.3000.61SML330.35.3000.63SML330.35.3000.663000K32853593lm/w
SML330.35.4000.61SML330.35.4000.63SML330.35.4000.664000K361335103lm/w

For more details, download the SML330 CEILING LIGHT Information Sheet

Download the IES file for SML330 CEILING LIGHT
