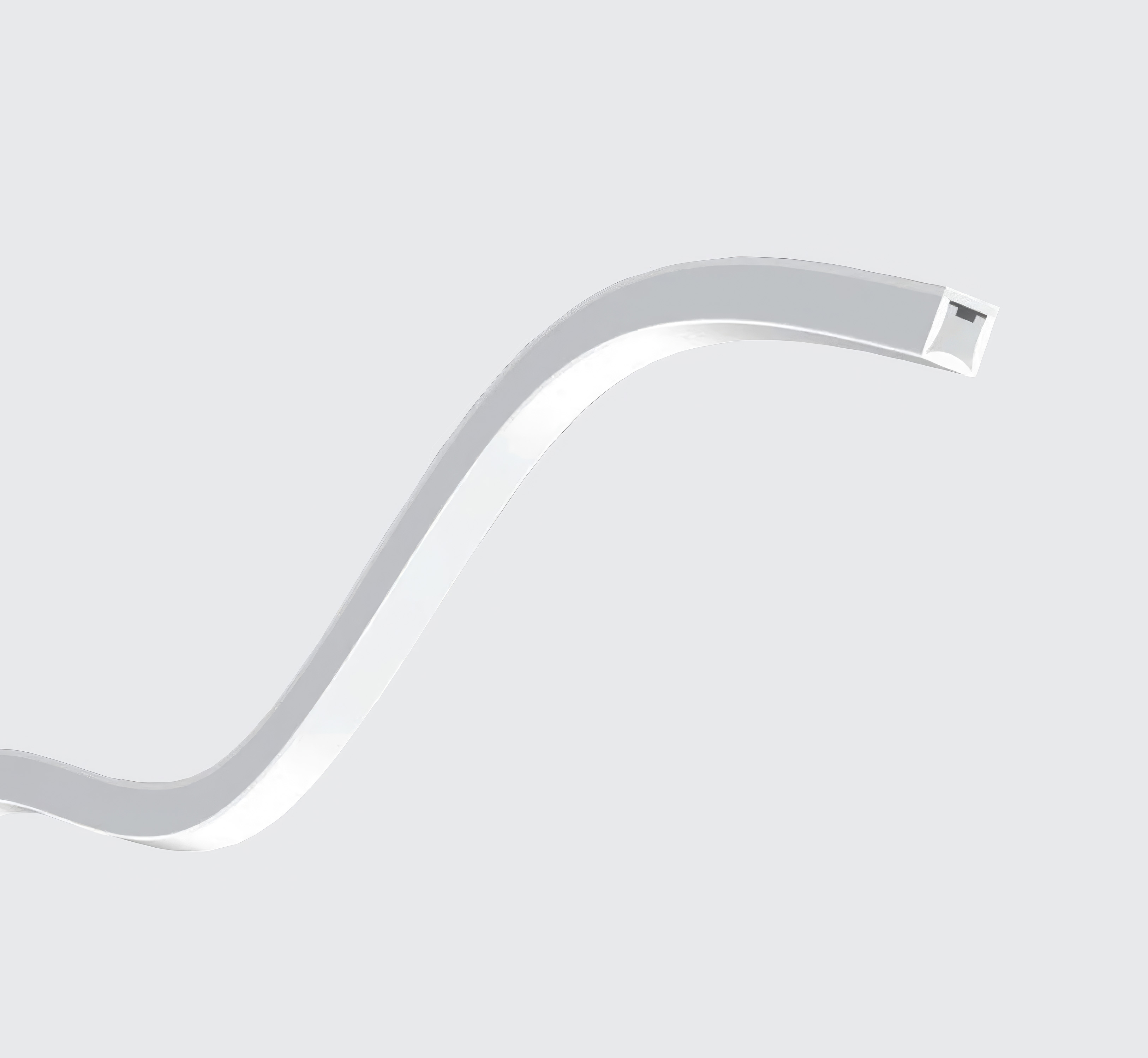

    ARCHI 10
    NEW

    AR10

    Product Details

    Absolute luminous flux (lm)
    550 - 694 lm
    Power (W)
    14W
    CRI
    90+
    CCT
    2700K / 3000K / 3500K / 4000K
    Colour deviation
    3 SDCM
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L70 > 70,000 hours
    Driver
    Remote
    Input voltage
    24V
    Housing material
    Silicone
    IP rating
    IP67
    Warranty
    5 years

    Configurator

    How to specify

    Select from the available options to configure luminaire

    AR10.___.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Type
    HB   Horizontal Bend
    VB   Vertical Bend
    Height & Length
    1000   1000 mm
    Output
    9
      14W
      550 - 694 lm
    CRI CCT
    927   90+ 2700K
    93   90+ 3000K
    935   90+ 3500K
    94   90+ 4000K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Options
    1B   1 Bottom Cable Entry
    1D   1 Direct End Cable Entry
    1L   1 Left Cable Entry
    1R   1 Right Cable Entry
    Accessories
    AR10.FIXED CHANNEL   AR10 Fixed Mounting Channel
    AR10.FLEXIBLE CHANNEL   AR10 Flexible Mounting Channel
    AR10.INDIVIDUAL CLIPS   AR10 Individual Mounting Clips

    Accessories

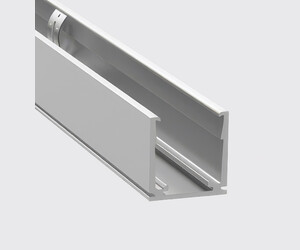

    AR10 Fixed Mounting Channel
    AR10.FIXED CHANNEL

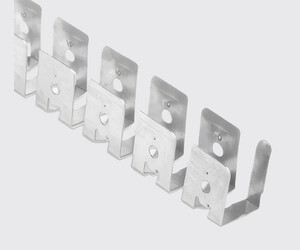

    AR10 Flexible Mounting Channel
    AR10.FLEXIBLE CHANNEL

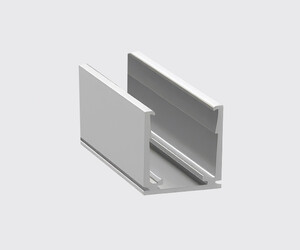

    AR10 Individual Mounting Clips
    AR10.INDIVIDUAL CLIPS

    Technical Specifications

    Dimensions
