    ARCHI 16 RGBW
    NEW

    AR16RGBW

    Product Details

    Absolute luminous flux (lm)
    90 - 118 lm
    Power (W)
    20W
    CCT
    RGB 3000K / RGB 4000K
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L70 > 70,000 hours
    Driver
    Remote
    Input voltage
    24V
    Housing material
    Silicone
    Optic material
    Silicone
    IP rating
    IP67
    Warranty
    5 years

    Configurator

    How to specify

    Select from the available options to configure luminaire

    AR16.___.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Type
    HB   Horizontal Bend

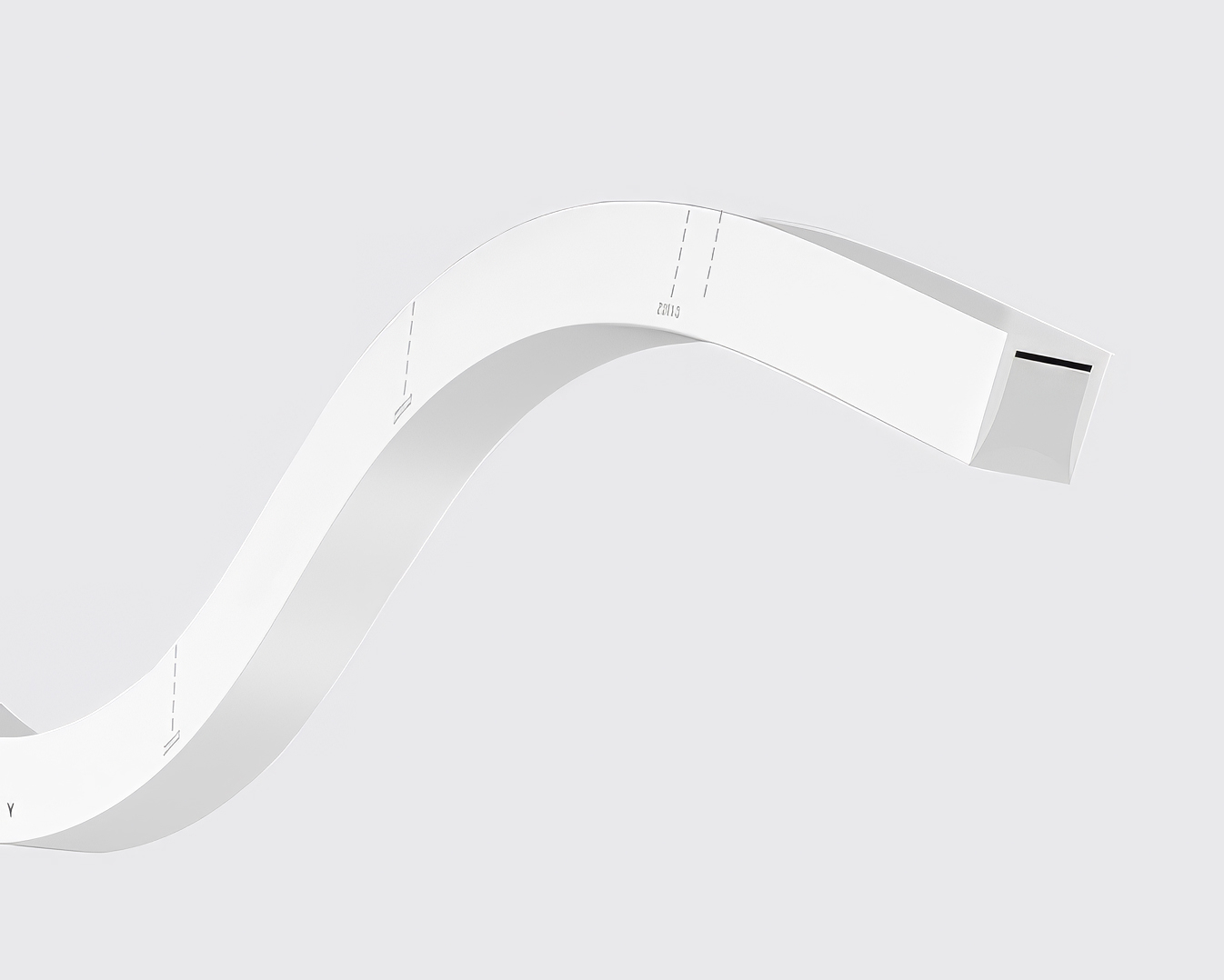

    VB   Vertical Bend
    Height & Length
    1000   1000 mm
    Output
    20
      20W
      90 - 118 lm
    CRI CCT
    RGBW3   RGBW - 3000K
    RGBW4   RGBW - 4000K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Options
    1B   1 Bottom Cable Entry
    1D   1 Direct End Cable Entry
    1L   1 Left Cable Entry
    1R   1 Right Cable Entry
    Accessories
    AR16.FIXED CHANNEL   Fixed Mounting Channel
    AR16.FLEXIBLE CHANNEL   Flexible Mounting Channel
    AR16.INDIVIDUAL CLIPS   Individual Mounting Clips

    Accessories

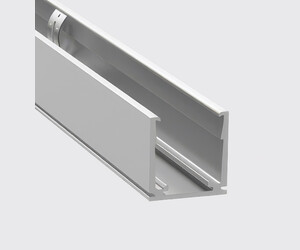

    Fixed Mounting Channel
    AR16.FIXED CHANNEL

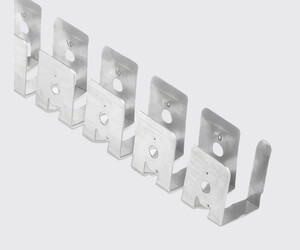

    Flexible Mounting Channel
    AR16.FLEXIBLE CHANNEL

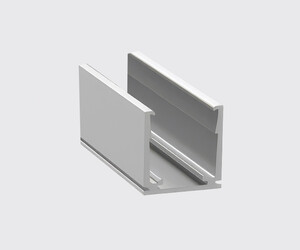

    Individual Mounting Clips
    AR16.INDIVIDUAL CLIPS

    Technical Specifications

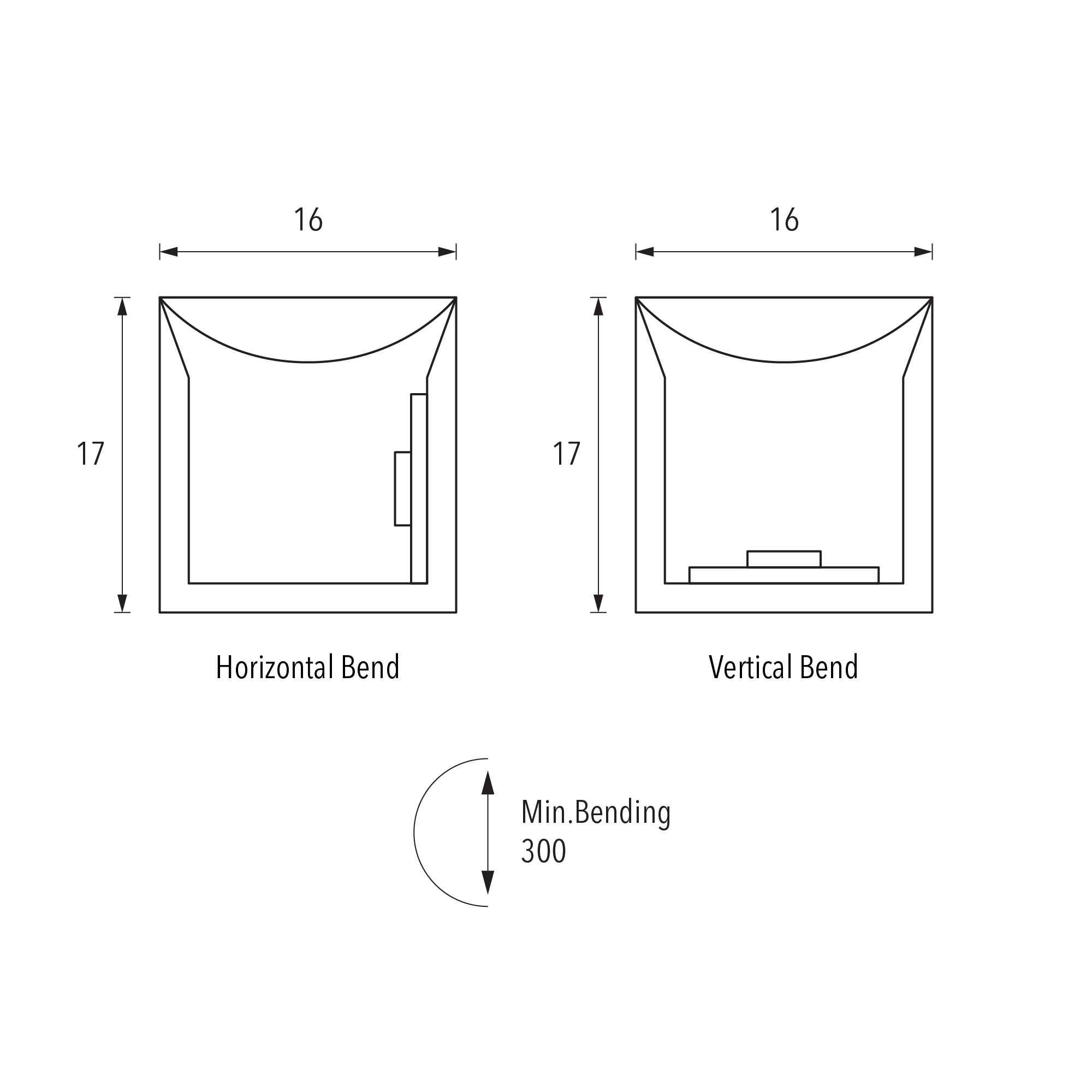

    Dimensions
