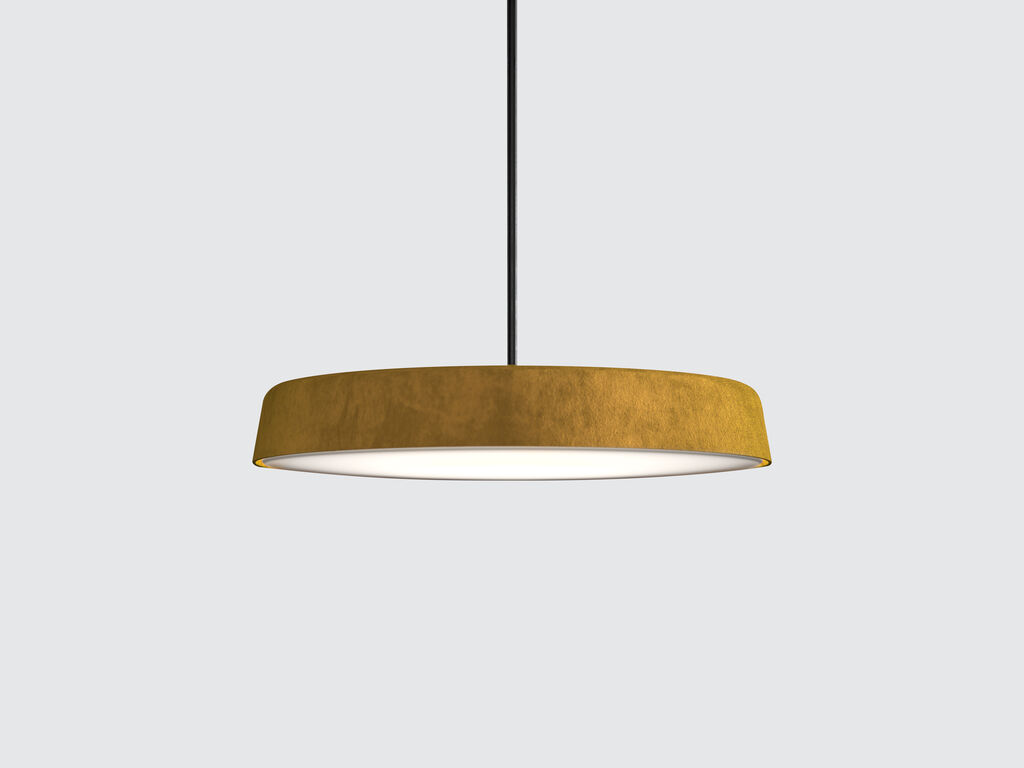

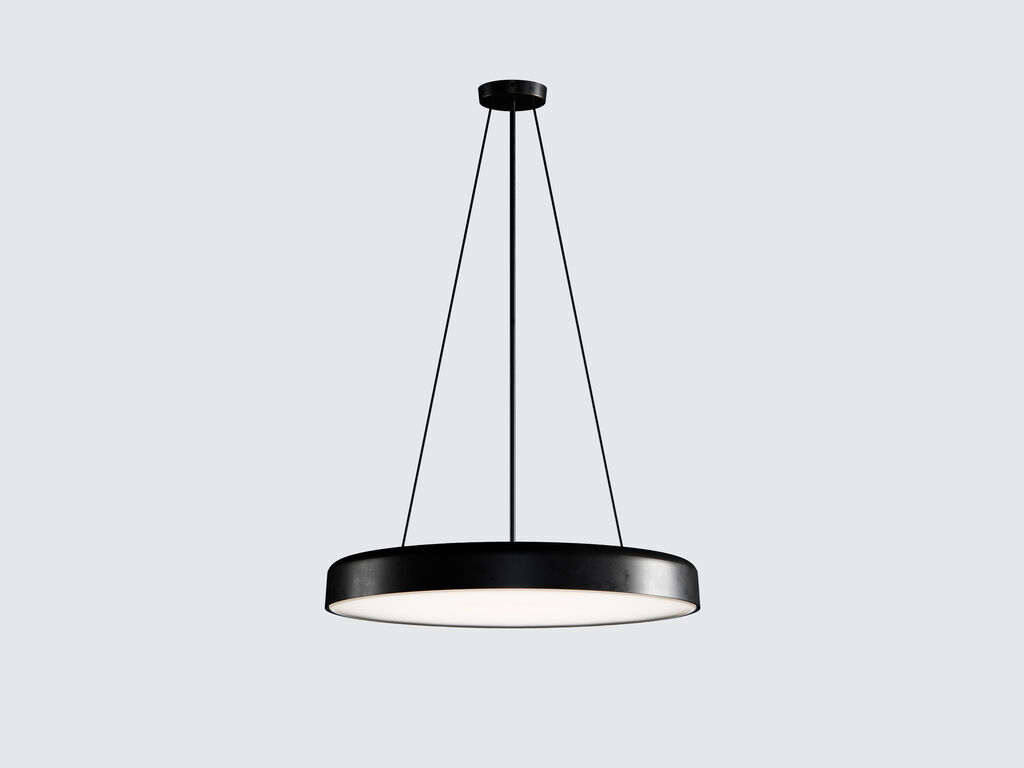

CIRCULITE 840 Pendant
CL840P
Product Details
Absolute luminous flux (lm)
3120 - 17365 lm / 1300 - 1800 lm (UP)
Power (W)
30 - 154W / 15 - 20W (UP)
CRI
90+
CCT
3000K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L80B10 > 72,000 hours
Driver
Integral
Input voltage
240v
Housing material
Aluminium
Optic material
Opal Acrylic
Suspension
Rod suspended 1m
Warranty
7 years
Country of origin
Australia
Configurator
How to specify
Select from the available options to configure luminaire
CL840P.___.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Output
200
30W
3120 - 3307 lm
400
60W
6492 - 6883 lm
600
91W
9834 - 10425 lm
800
122W
13177 - 13969 lm
1000
154W
16380 - 17365 lm
Output - UP
600
15W
1300 - 1360 lm
800
20W
1700 - 1800 lm
CRI CCT
93 90+ 3000K
94 90+ 4000K
Dimming
61 Non Dim
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
X Custom
Colour Options
Housing colour

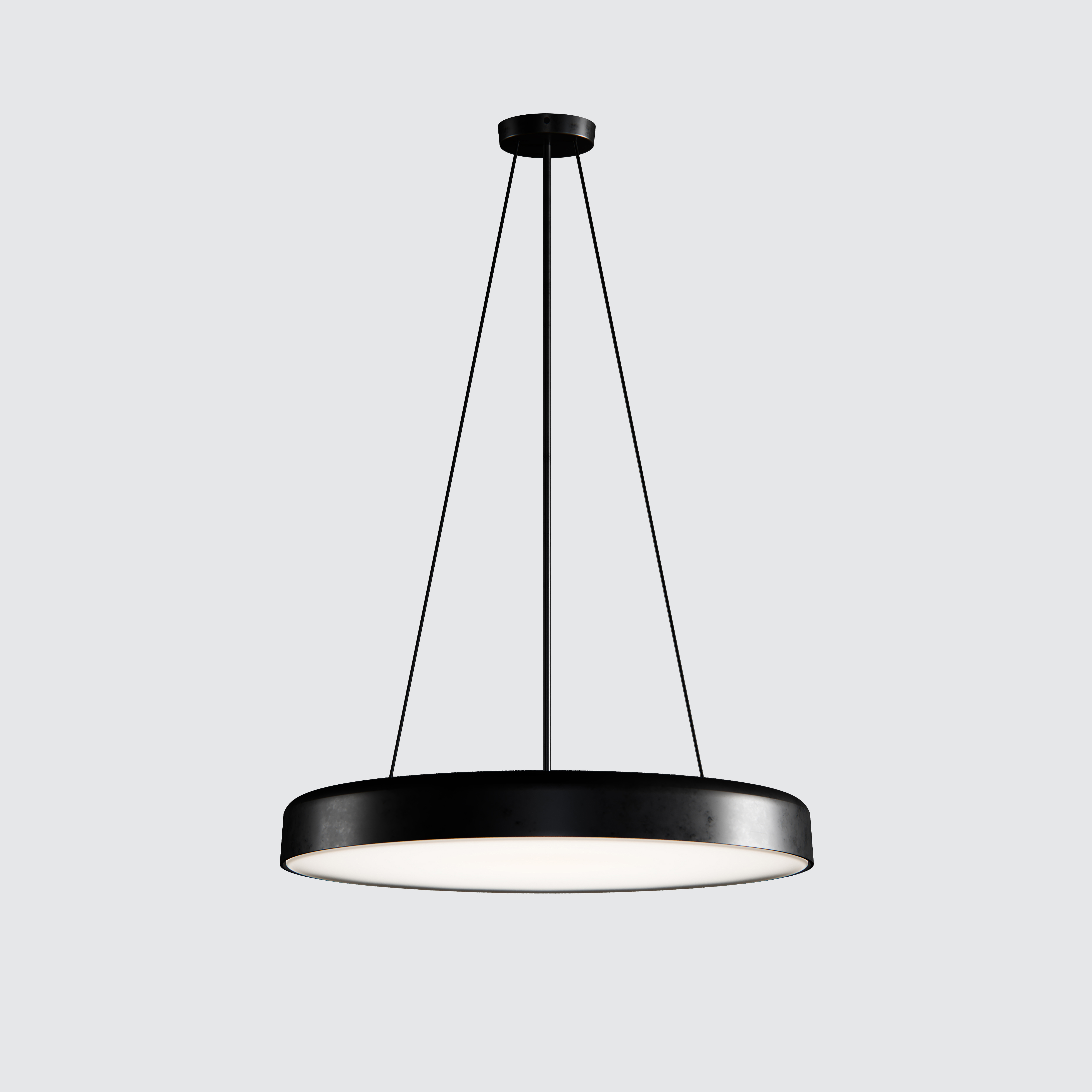

Black
B

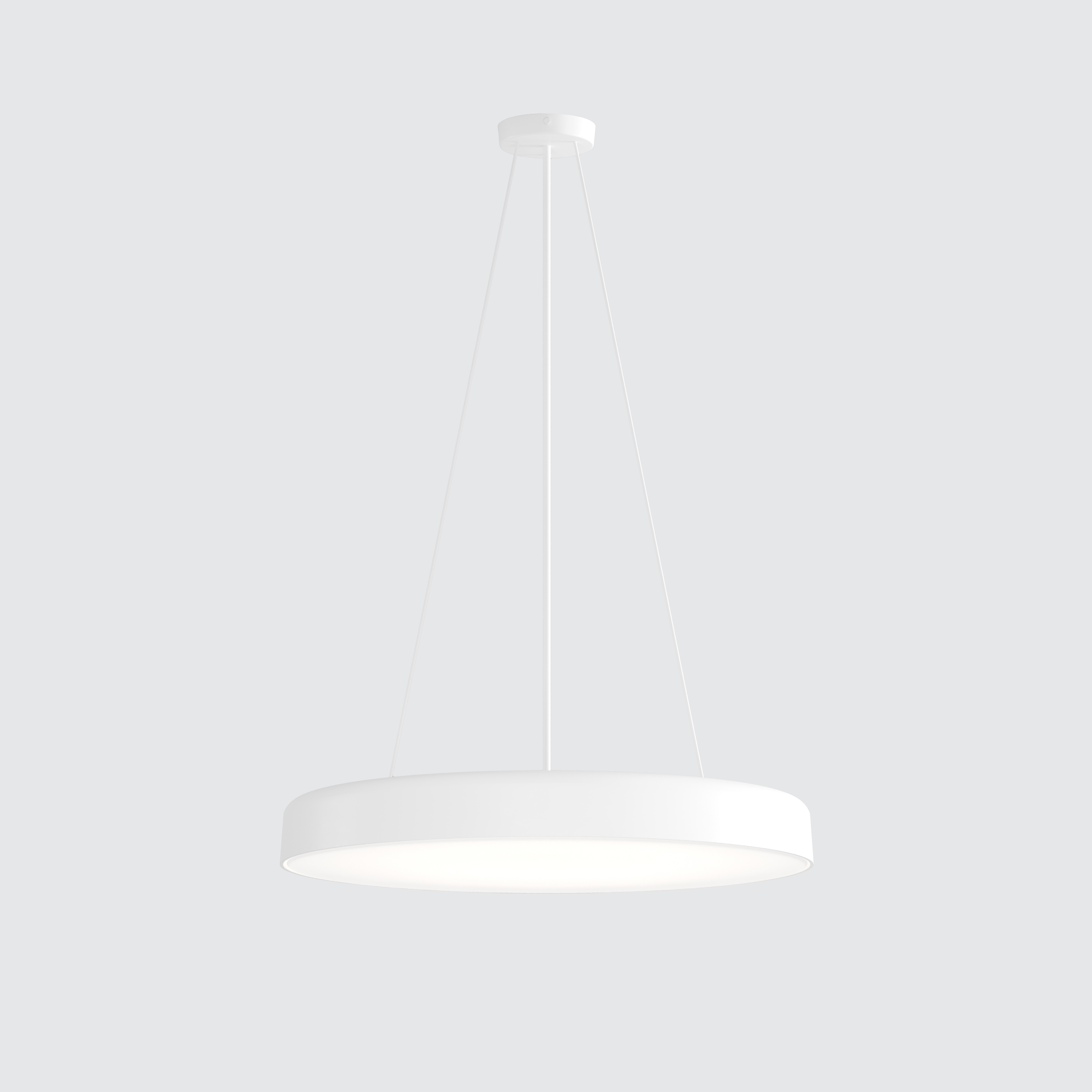

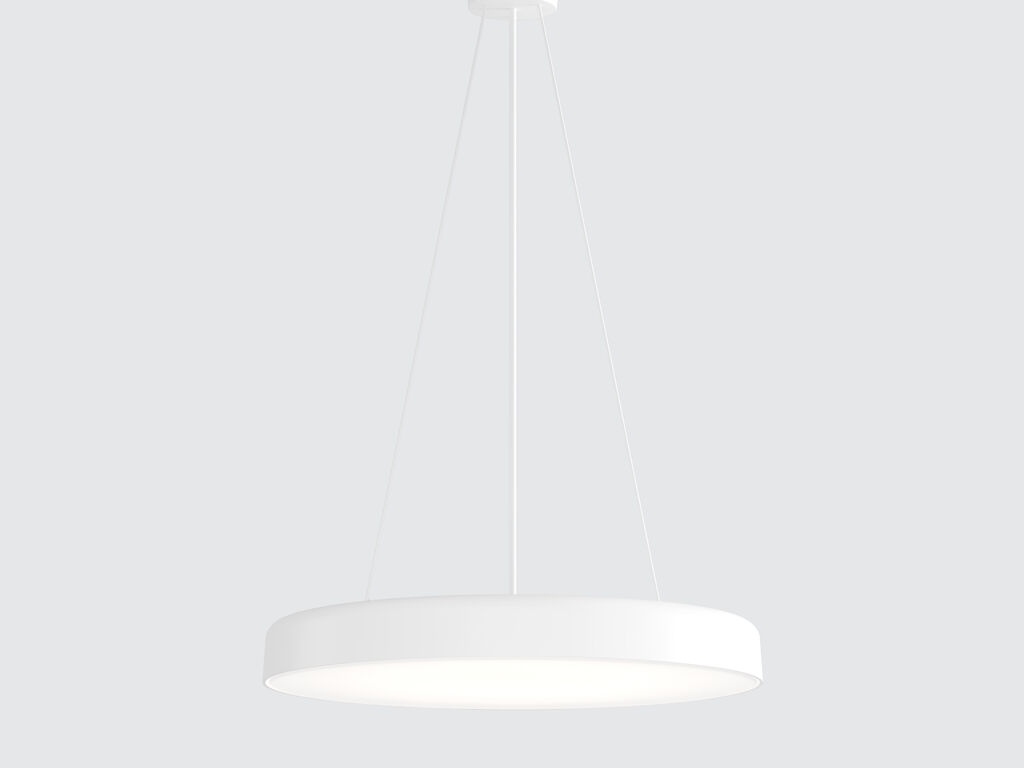

White
W
Custom
X
Technical Specifications
Dimensions
