ECLIPSE 200 Round
ECR200
Product Details
Absolute luminous flux (lm)
634 - 926 lm
Power (W)
9 - 13W
CRI
90+
CCT
2700K / 3000K / 3500K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L90B10 > 60,000 hours
Driver
Integral
Input voltage
240v
Housing material
Aluminium
Warranty
7 years
Country of origin
Australia
Configurator
How to specify
Select from the available options to configure luminaire
ECR200.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Output
250
9W
634 - 693 lm
350
13W
845 - 926 lm
CRI CCT
927 90+ 2700K
93 90+ 3000K
935 90+ 3500K
94 90+ 4000K
Dimming
61 Non Dim
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
X Custom
Colour Options
Housing colour
Black
B
White
W
Custom
X
Technical Specifications

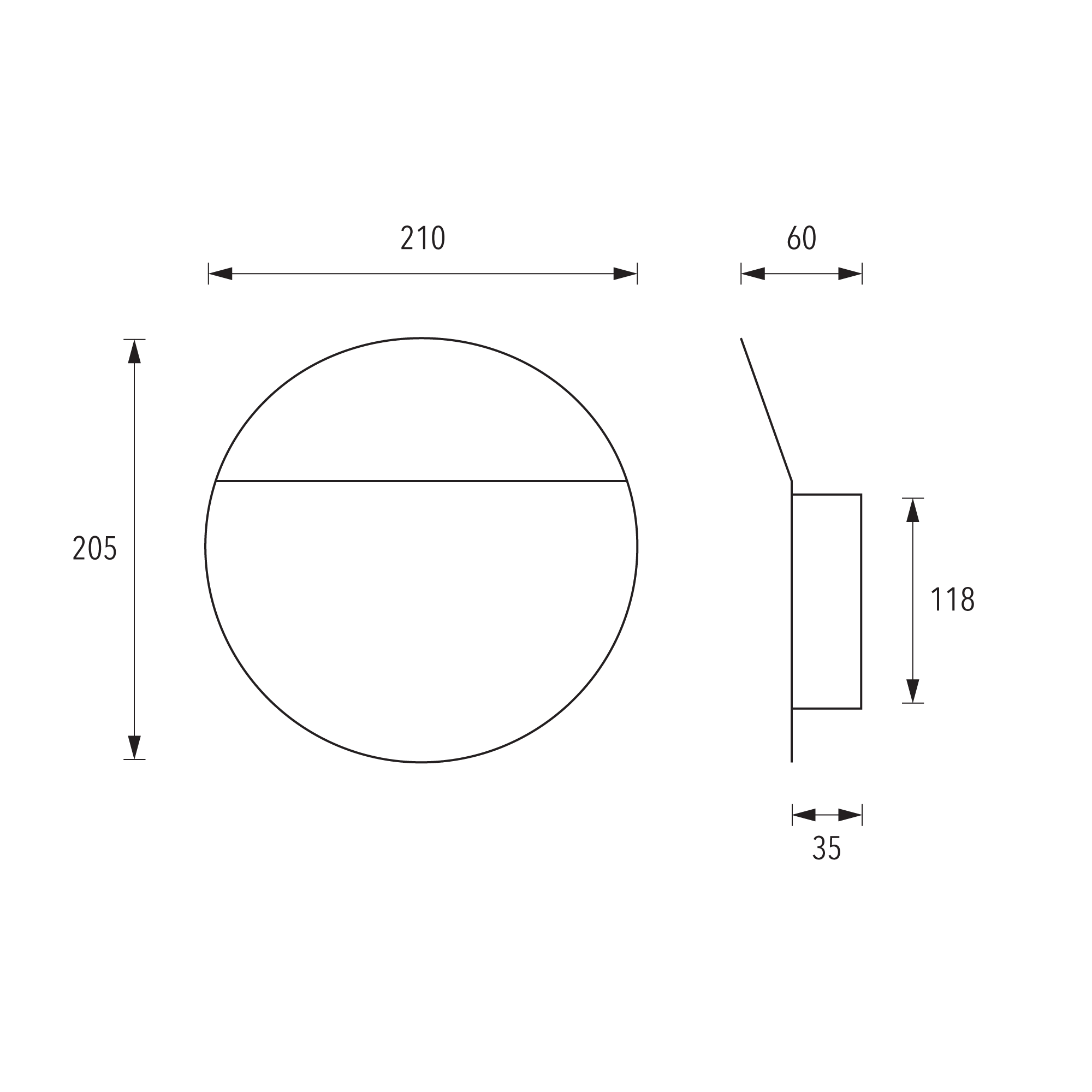

Dimensions
