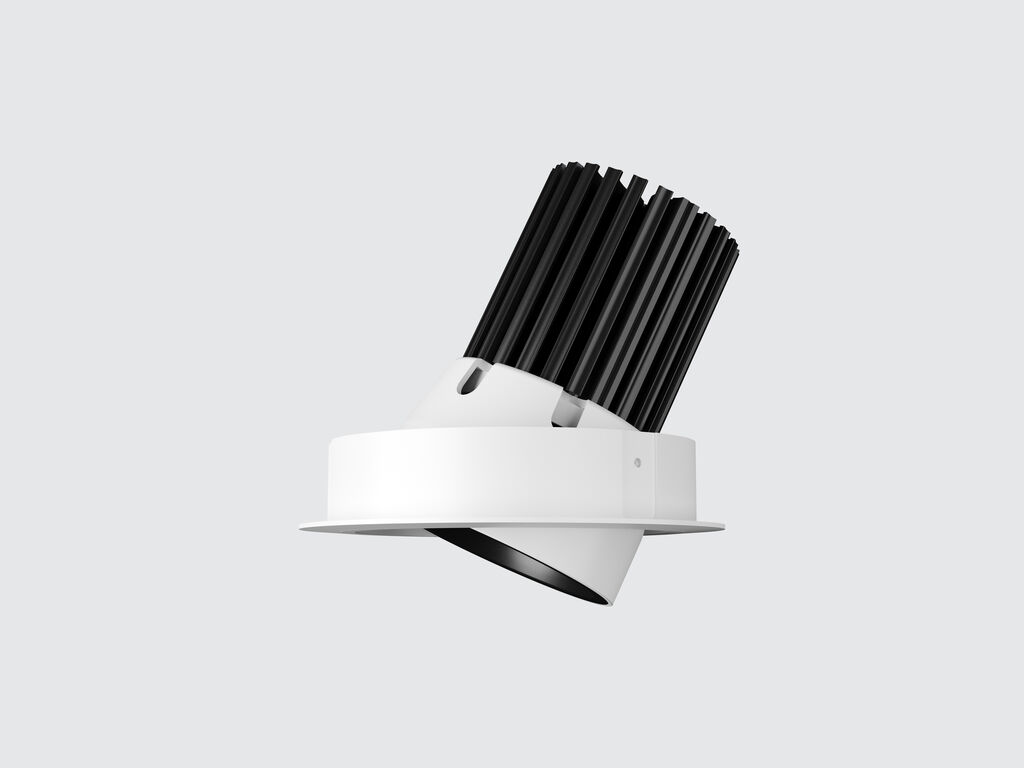

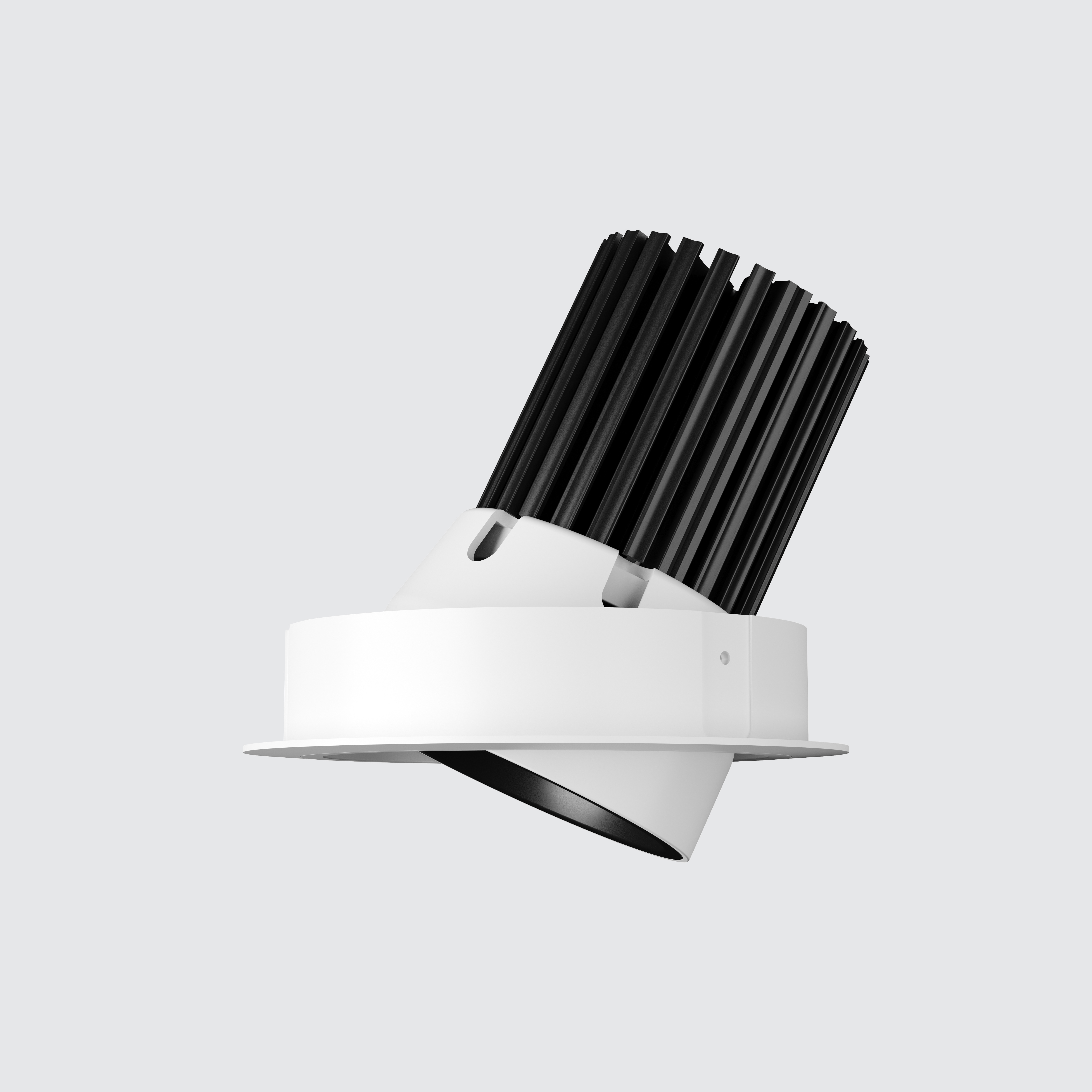

FLEX 50 Adjustable
FAL50
Product Details
Absolute luminous flux (lm)
483 - 1115 lm
Power (W)
6 - 10W
Optic options
16° / 24° / 33° / 55° / Linear / Oval
CRI
90+
CCT
2700K / 3000K / 3500K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / Trailing Edge / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L90B10 > 90,000 hours
Driver
Remote
Input voltage
240v
Housing material
Aluminium
Optic material
PMMA Clear Lens
Warranty
7 years
Country of origin
Australia
Cut out size
Ø85mm
Configurator
How to specify
Select from the available options to configure luminaire
FAL50.___.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Output
150
6W
483 - 718 lm
200
8W
642 - 959 lm
250
10W
763 - 1115 lm
Optic
16 16°
24 24°
33 33°
55 55°
LN Linear
OV Oval
CRI CCT
927 90+ 2700K
93 90+ 3000K
935 90+ 3500K
94 90+ 4000K
Dimming
61 Non Dim
63 Trailing Edge
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
X Custom
Accessories
FAL50.HONEYCOMB Honeycomb Louvre
FAL50.COLOUR.XXX Specialty Colour Filter
Accessories

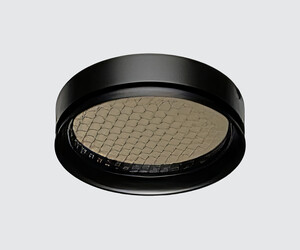

Honeycomb Louvre
FAL50.HONEYCOMB
FAL50.HONEYCOMB
Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.

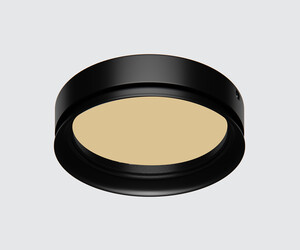

Specialty Colour Filter
FAL50.COLOUR.XXX
FAL50.COLOUR.XXX
High quality borosilicate glass filters for premium colourfast performance. Available in a selection of colours. Easily installed by placing behind the luminaire baffle.
Colour Options
Housing colour
Black
B
White
W
Custom
X
Technical Specifications

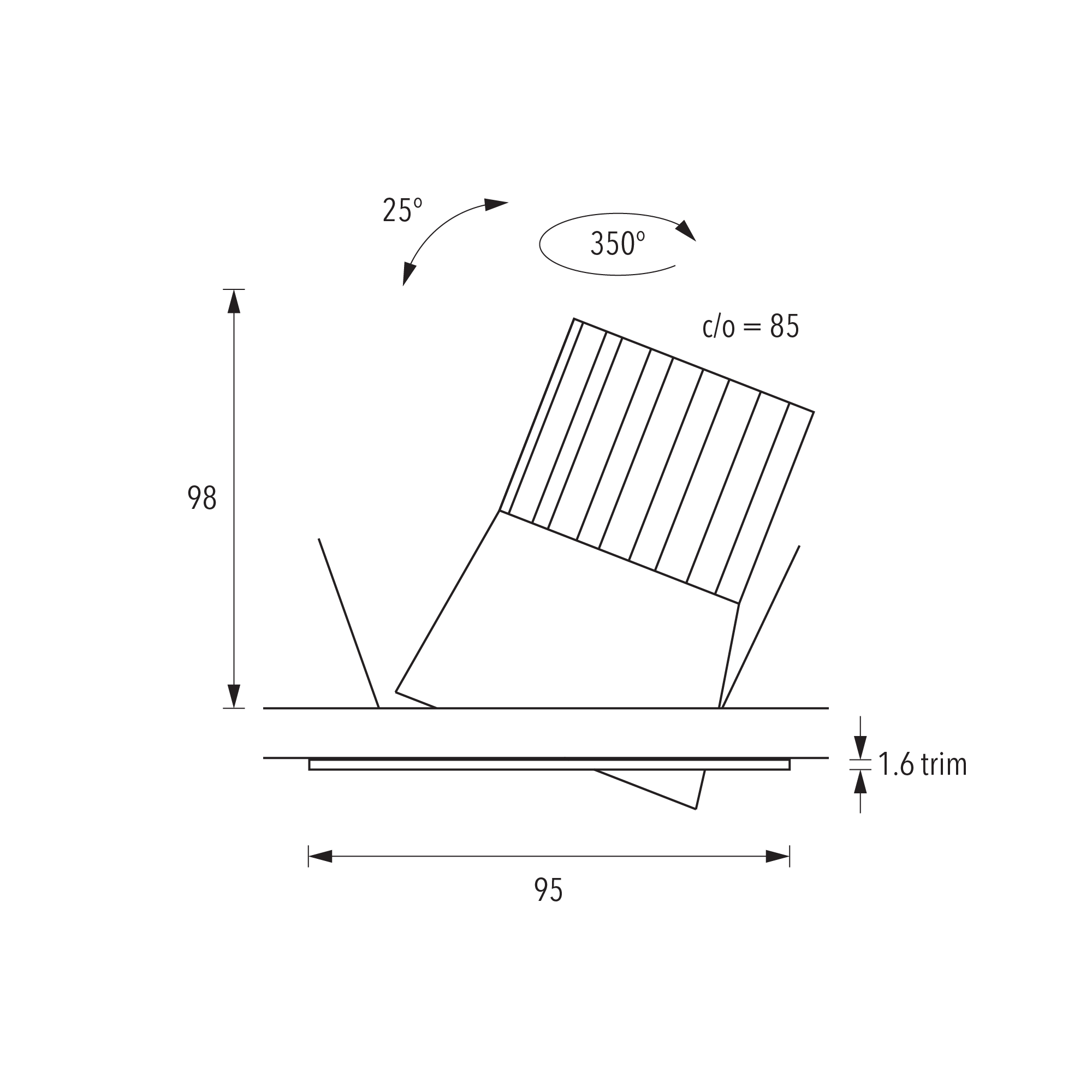

Dimensions
