• Products
    • /
  • WALL LIGHTS
    • / FLEX 70 Adjustable Surface

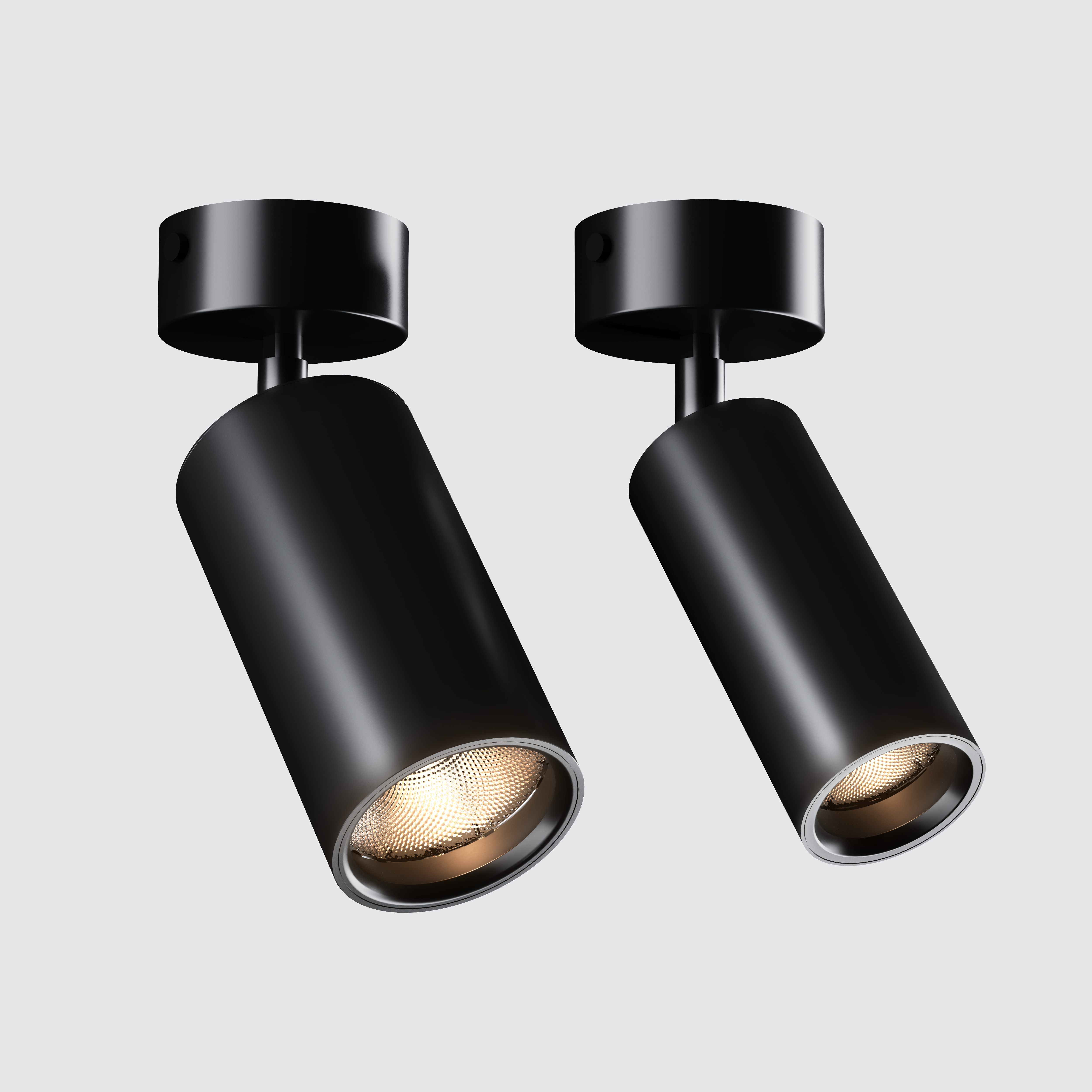

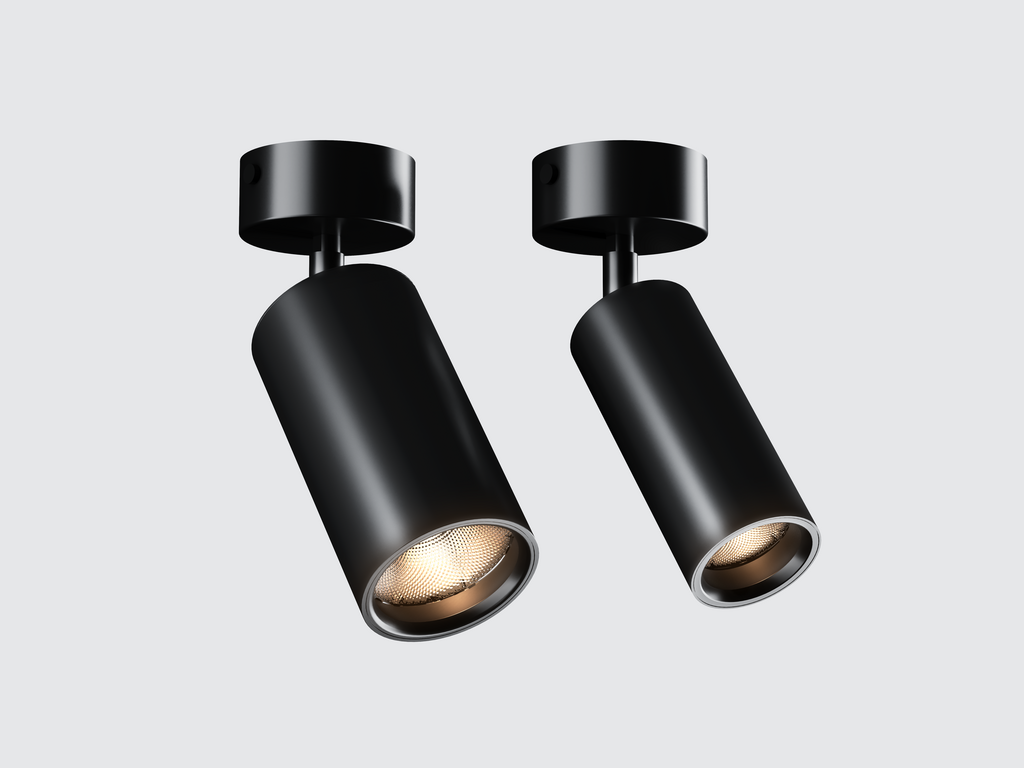

    FLEX 70 Adjustable Surface
    NEW

    FAS70

    Product Details

    Absolute luminous flux (lm)
    770 - 1615 lm
    Power (W)
    8 - 14W
    Optic options
    25° / 34° / 54° / 80°
    CRI
    90+
    CCT
    2700K / 3000K / 3500K / 4000K
    Colour deviation
    3 SDCM
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L90B10 > 90,000 hours
    Driver
    Integral
    Input voltage
    240v
    Housing material
    Aluminium
    Optic material
    PMMA Clear Lens
    Warranty
    7 years
    Country of origin
    Australia

    Configurator

    How to specify

    Select from the available options to configure luminaire

    FAS70.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Output
    200
      8W
      770 - 945 lm
    250
      10W
      955 - 1172 lm
    300
      12W
      1137 - 1395 lm
    350
      14W
      1317 - 1615 lm
    Optic
    25   25°
    34   34°
    54   54°
    80   80°
    CRI CCT
    927   90+ 2700K
    93   90+ 3000K
    935   90+ 3500K
    94   90+ 4000K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Housing colour
    X   Custom
    BLK   Black
    WH   White
    Accessories
    FAS70.HONEYCOMB   Honeycomb Louvre

    Accessories

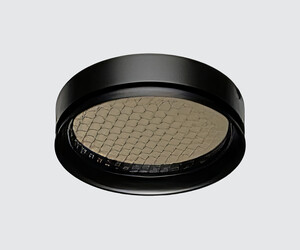

    Honeycomb Louvre
    FAS70.HONEYCOMB

    Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.

    Colour Options

    Housing colour

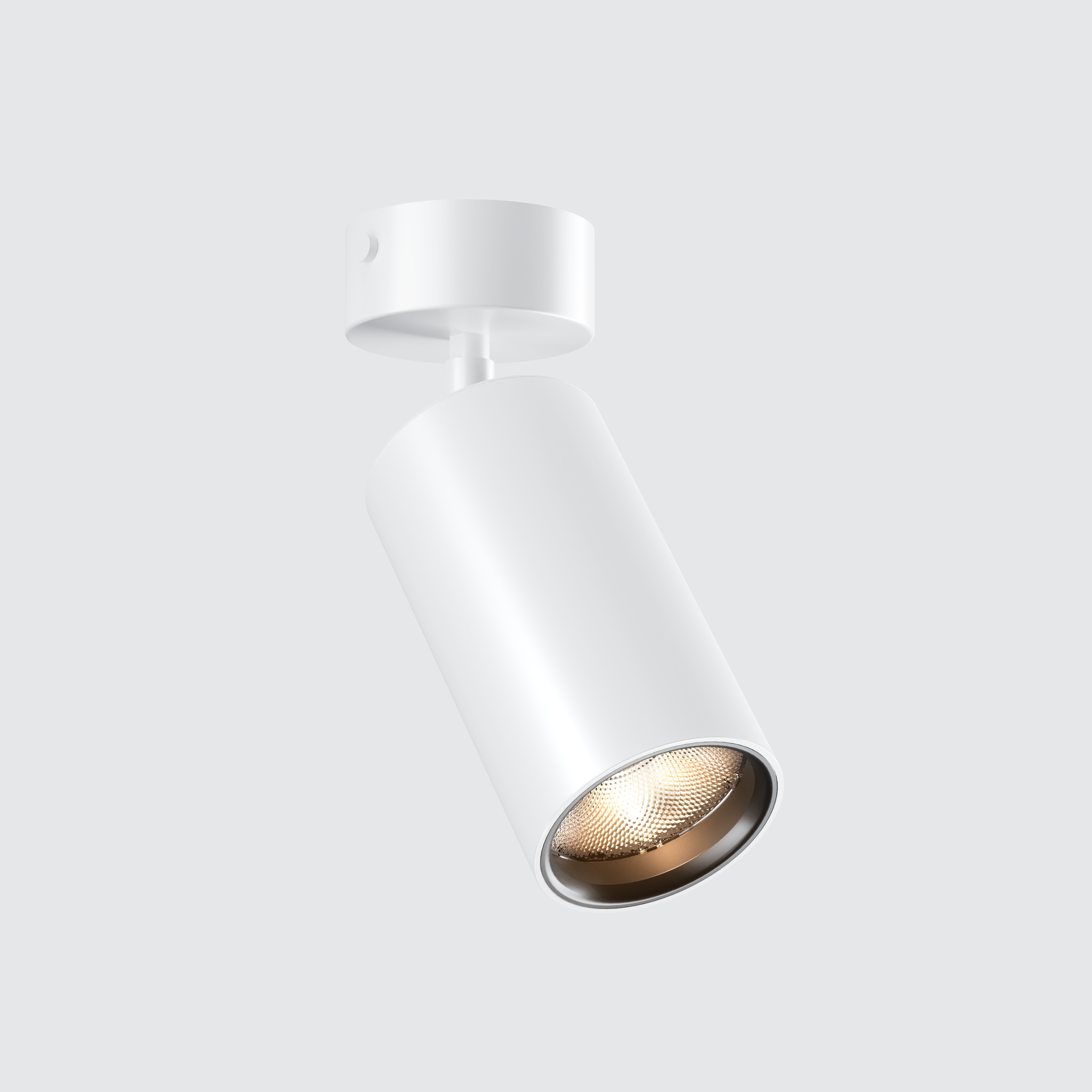

    White
    WH
    Black
    BLK
    Custom
    X

    Technical Specifications

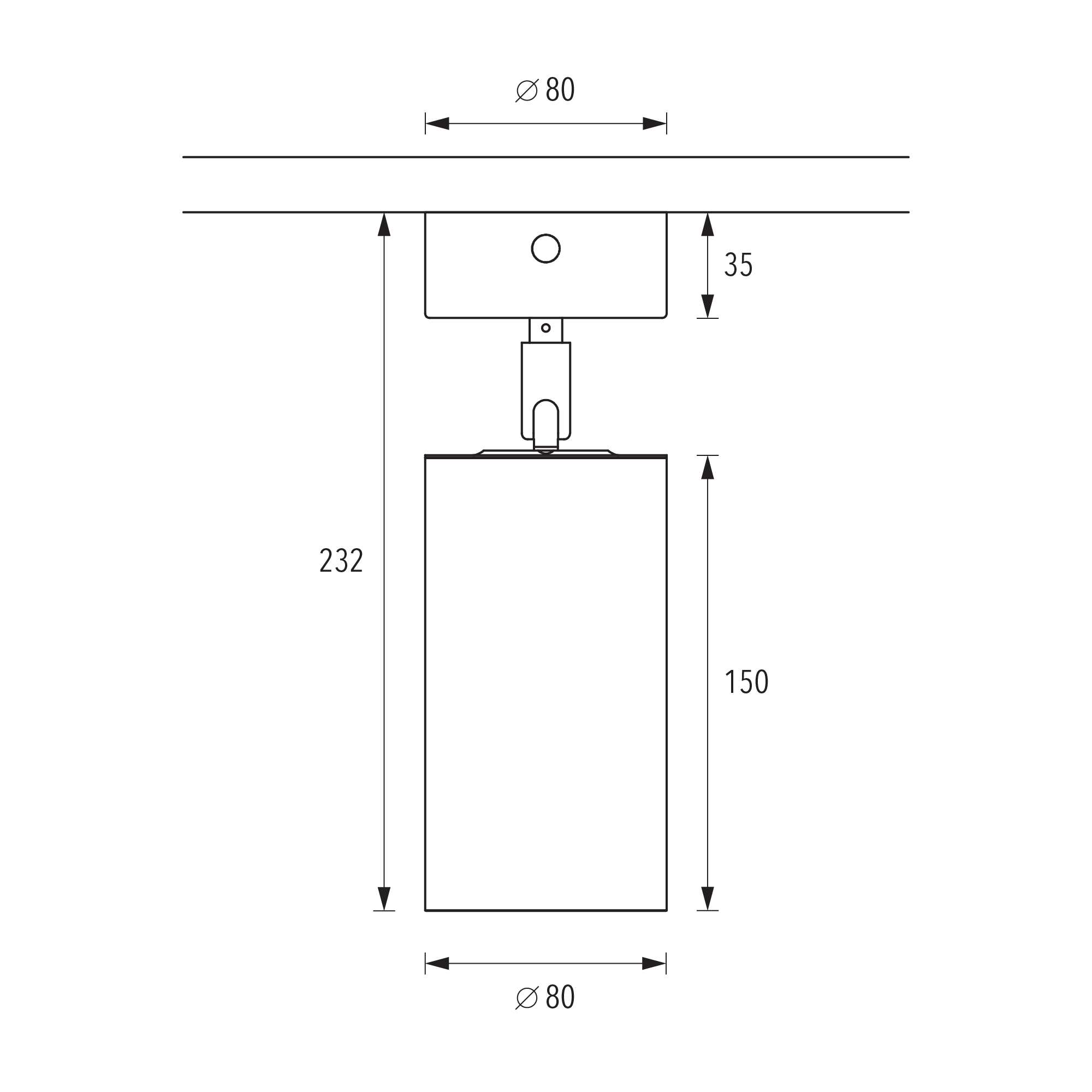

    Dimensions
