• Products
    • /
  • RECESSED DOWNLIGHTS
    • / FLEX 150

    FLEX 150
    NEW

    FFL150

    Product Details

    Absolute luminous flux (lm)
    1015 - 4008 lm
    Power (W)
    10 - 36W
    Optic options
    66° / 80° / Oval
    CRI
    90+
    CCT
    2700K / 3000K / 3500K / 4000K
    Colour deviation
    3 SDCM
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L90B10 > 90,000 hours
    Driver
    Remote
    Input voltage
    240v
    Housing material
    Aluminium
    Optic material
    PMMA Clear Lens
    Warranty
    7 years
    Country of origin
    Australia
    Cut out size
    Ø150 mm
    Weight
    1.6 kg

    Configurator

    How to specify

    Select from the available options to configure luminaire

    FFL150.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Output
    250
      10W
      1015 - 1172 lm
    350
      14W
      1394 - 1613 lm
    500
      20W
      1919 - 2262 lm
    700
      26W
      2589 - 3041 lm
    950
      36W
      3539 - 4008 lm
    Optic
    66   66°
    80   80°
    OV   Oval
    CRI CCT
    927   90+ 2700K
    93   90+ 3000K
    935   90+ 3500K
    94   90+ 4000K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Housing colour
    W   White
    B   Black
    X   Custom

    Colour Options

    Housing colour

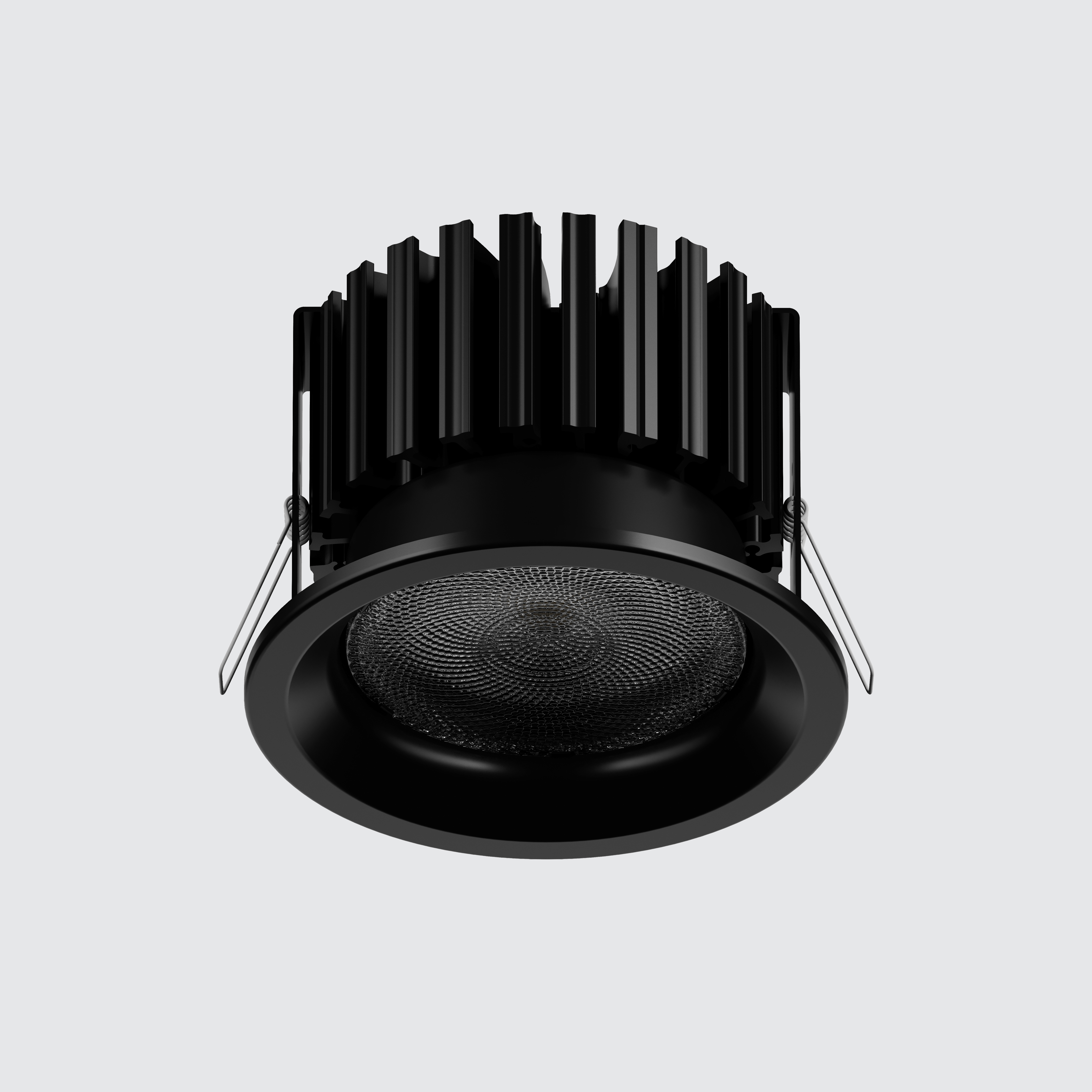

    Black
    B

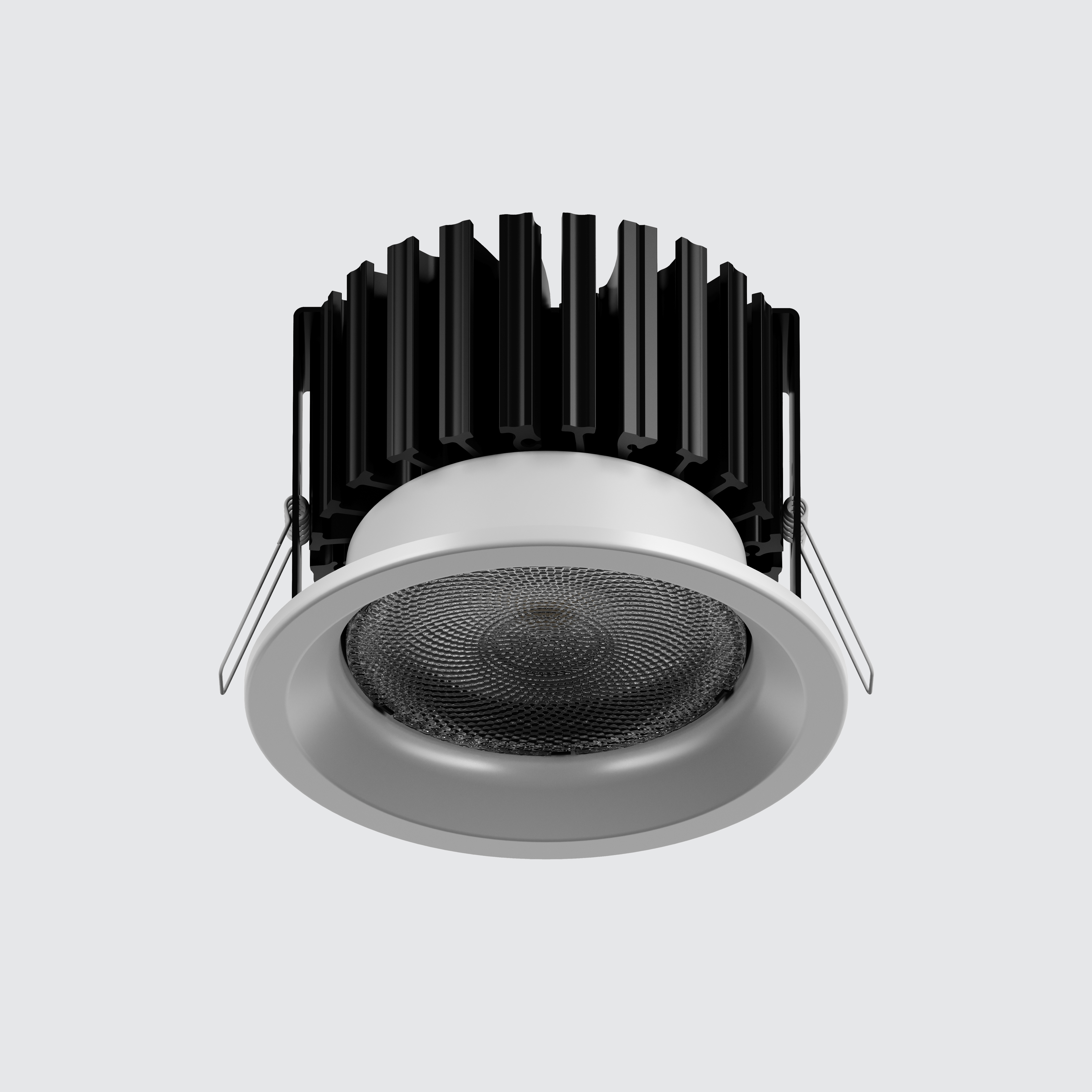

    White
    W
    Custom
    X

    Technical Specifications

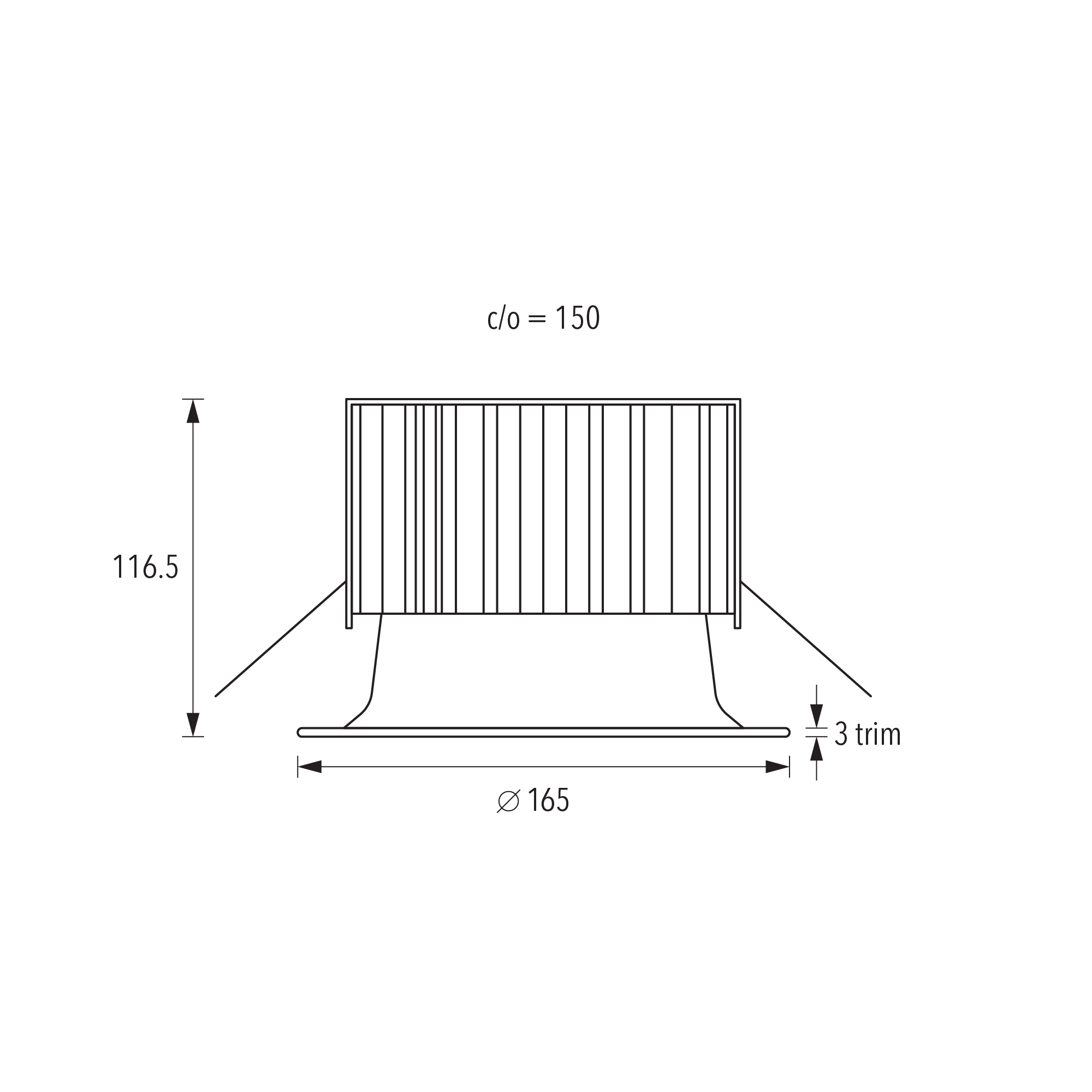

    Dimensions
