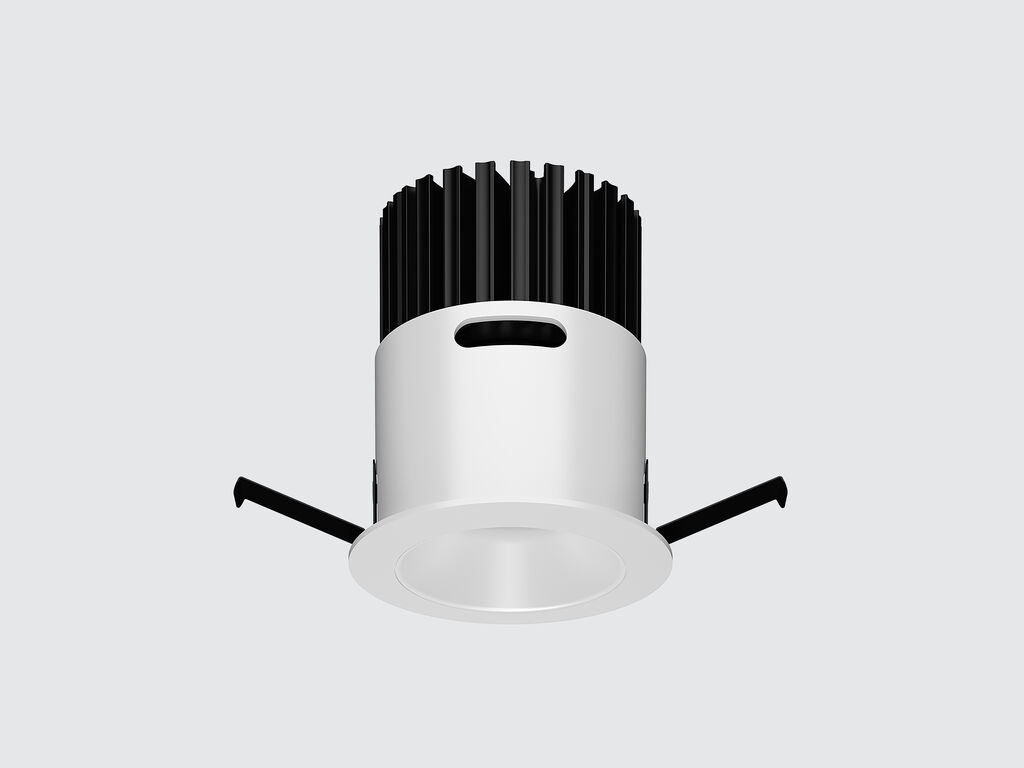

FLEX 35
FFL35
Product Details
Absolute luminous flux (lm)
320 - 800 lm
Power (W)
5 - 9W
Optic options
19° / 24° / 25° / 33° / 47° / 51°
CRI
90+
CCT
2700K / 3000K / 3500K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L90B10 > 90,000 hours
Driver
Remote
Input voltage
240v
Housing material
Aluminium
Optic material
PMMA Clear Lens
Warranty
7 years
Country of origin
Australia
Cut out size
Ø56mm
Configurator
How to specify
Select from the available options to configure luminaire
FFL35.___.___.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Output
100
5W
320 - 424 lm
150
7W
470 - 617 lm
200
9W
605 - 800 lm
Optic
19 19°
24 24°
25 25°
33 33°
47 47°
51 51°
CRI CCT
927 90+ 2700K
93 90+ 3000K
935 90+ 3500K
94 90+ 4000K
Dimming
61 Non Dim
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
X Custom
Options

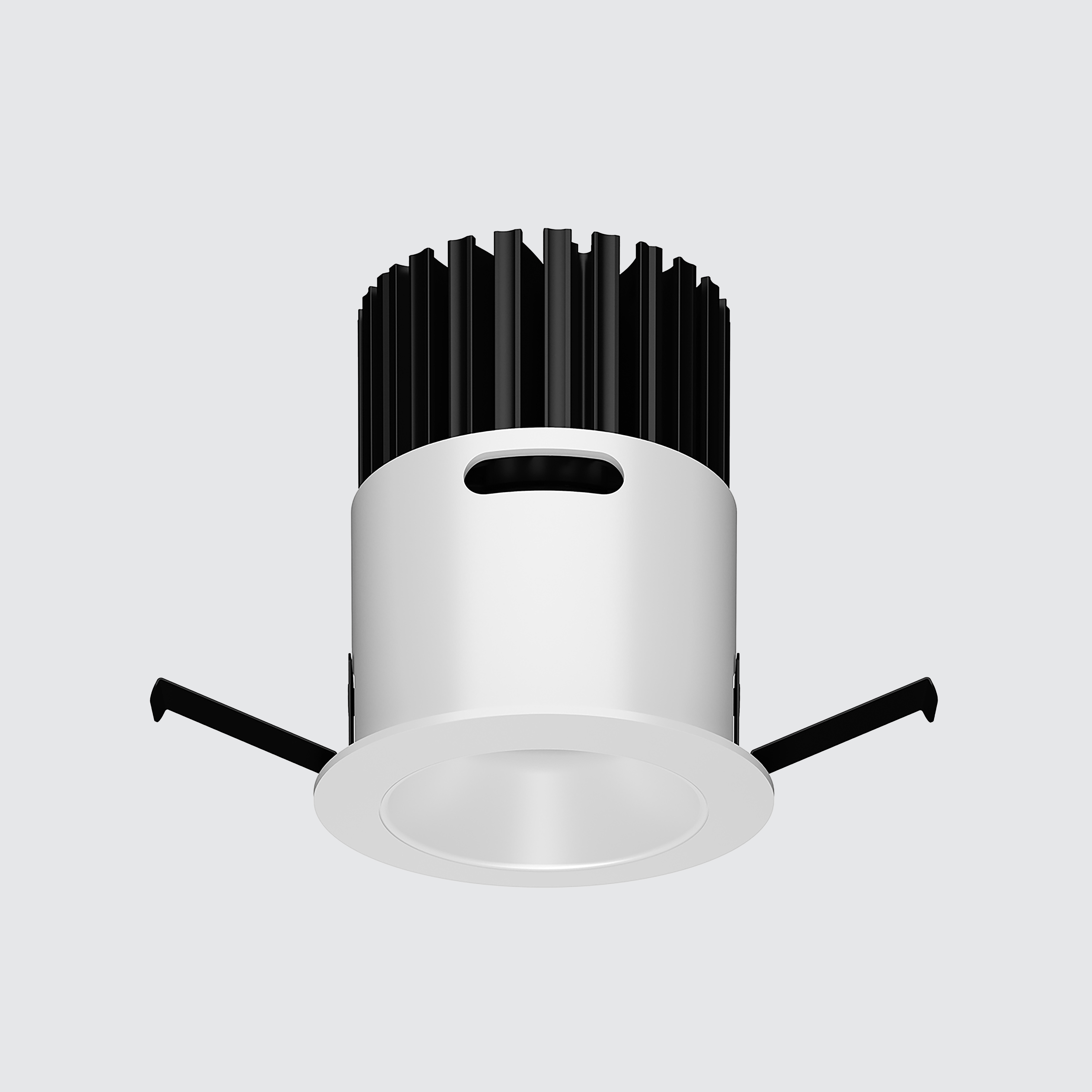

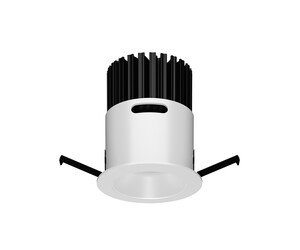

WB White Baffle

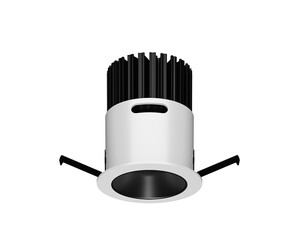

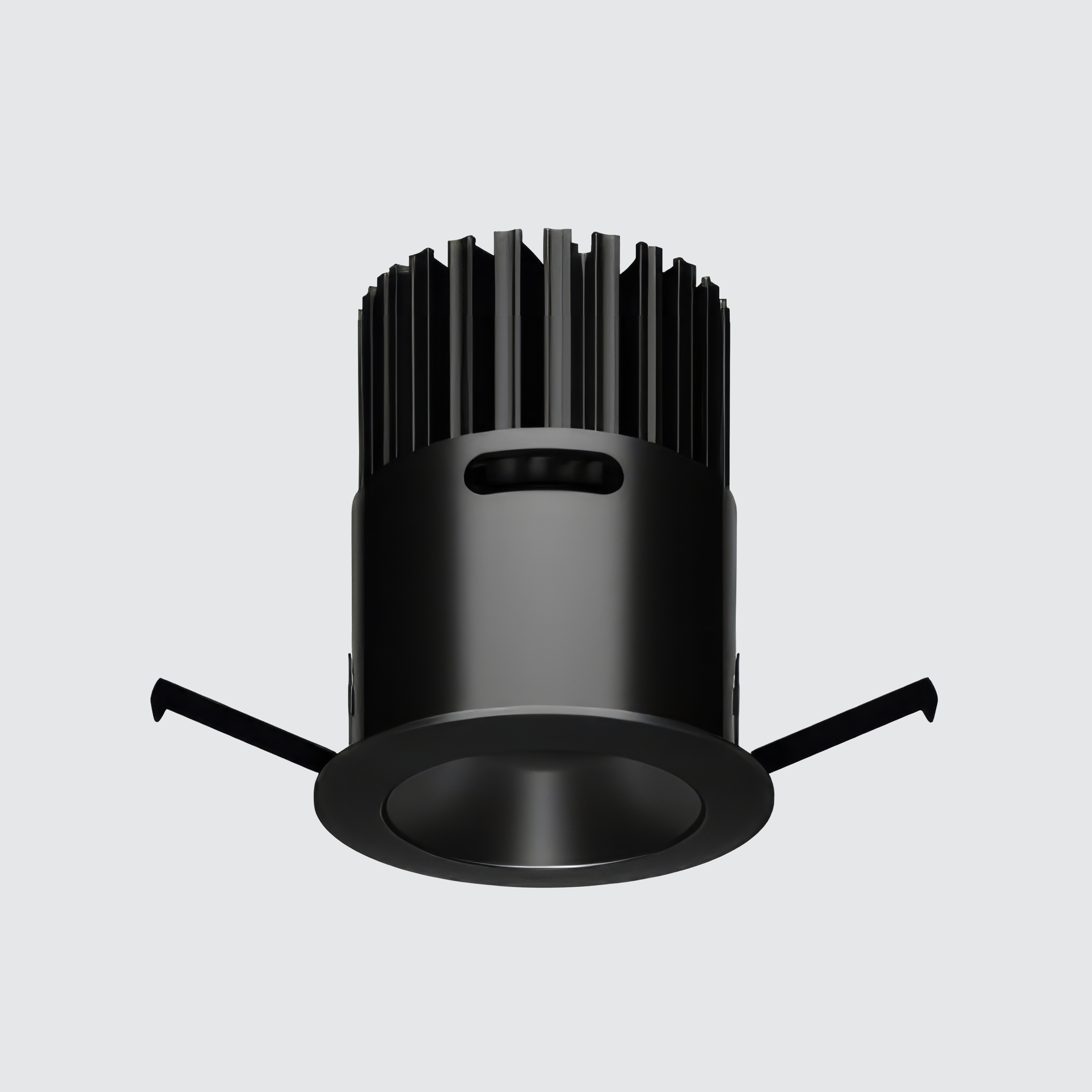

BB Black Baffle
XX Custom Baffle
Colour Options
Housing colour
White
W
Black
B
Custom
X
Options
White Baffle
WB
Black Baffle
BB
Technical Specifications

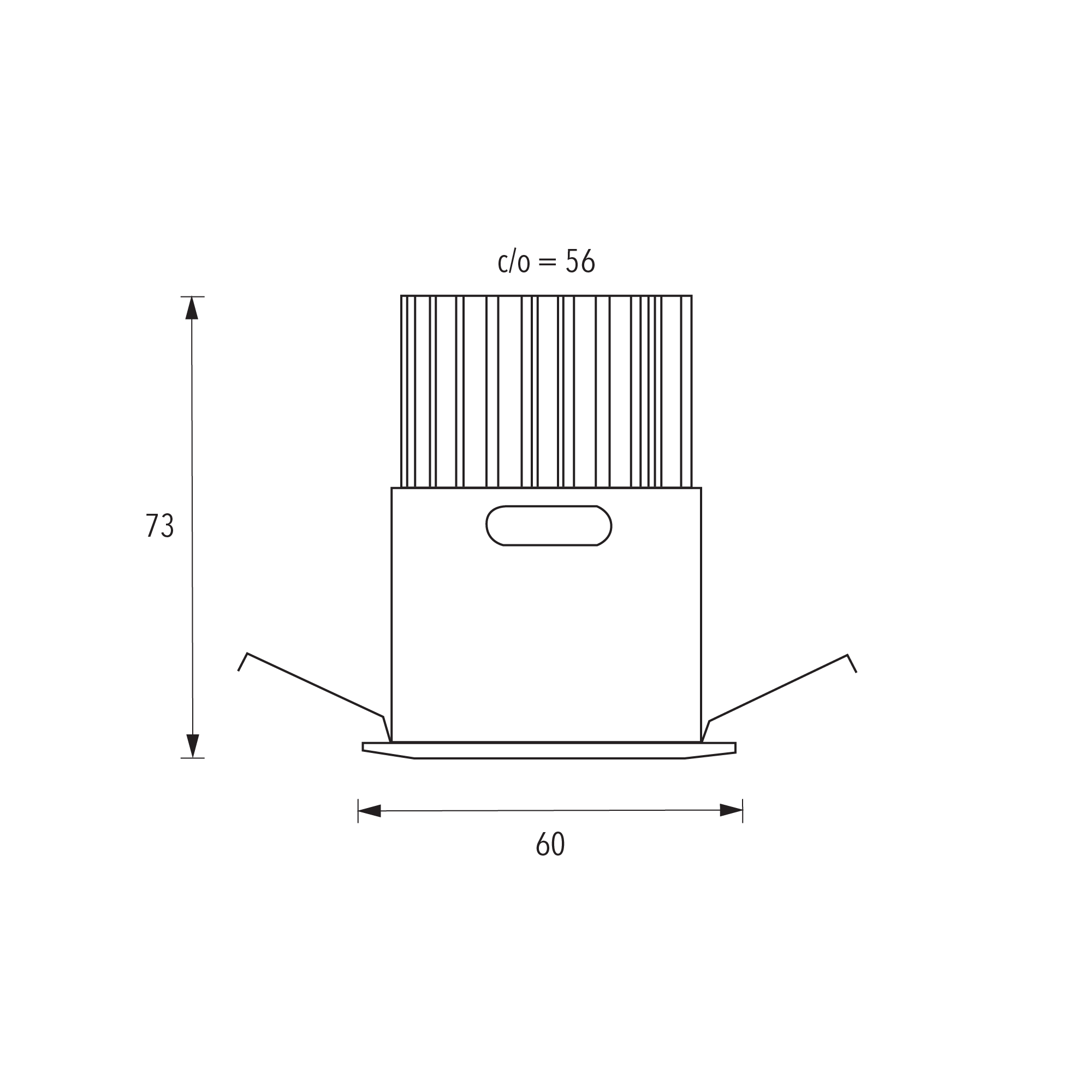

Dimensions
