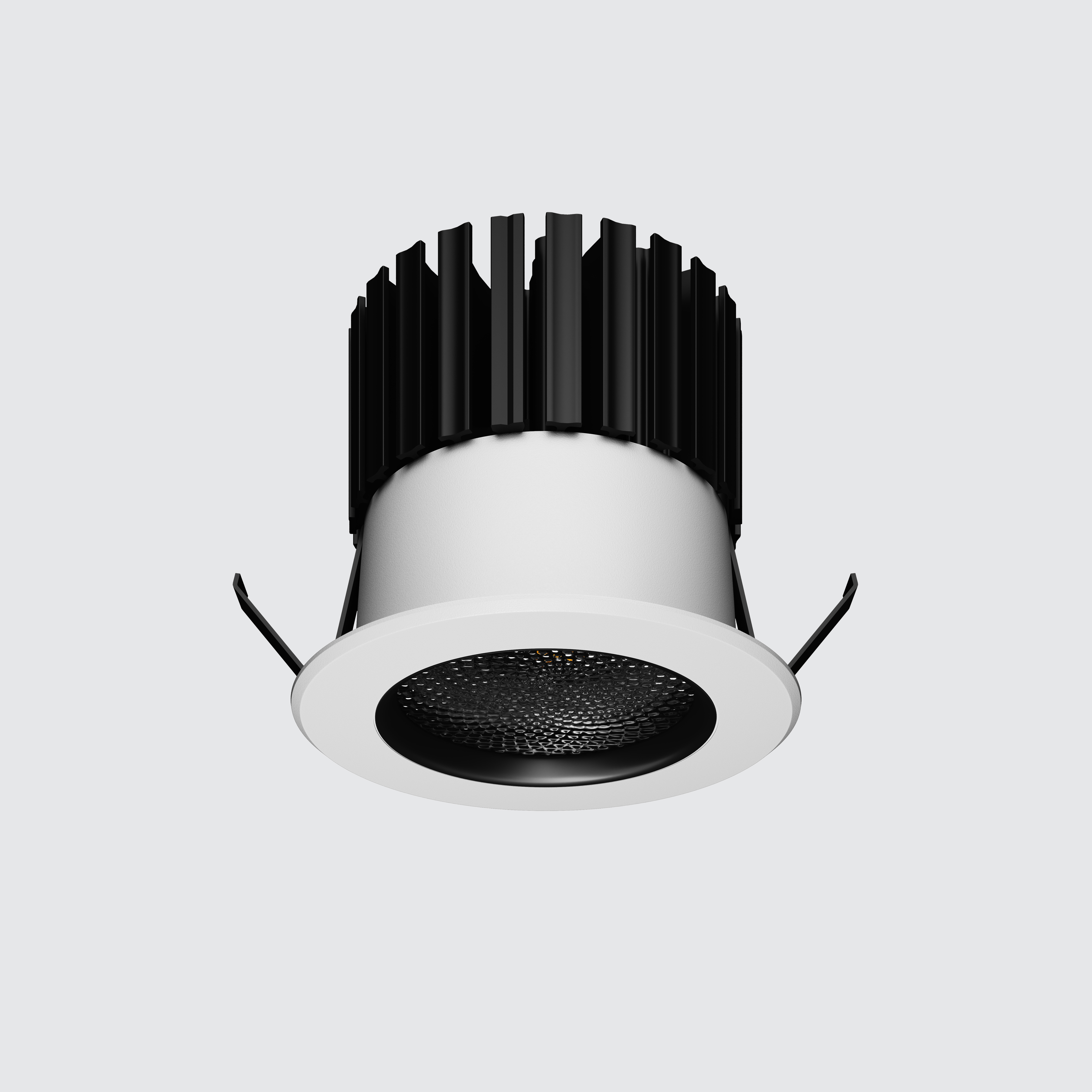

FLEX 50
FFL50
Product Details
Absolute luminous flux (lm)
549 - 1115 lm
Power (W)
6 - 10W
Optic options
16° / 24° / 33° / 55° / Linear / Oval / Zoom
CRI
90+
CCT
2700K / 3000K / 3500K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L90B10 > 90,000 hours
Driver
Remote
Input voltage
240v
Housing material
Aluminium
Optic material
PMMA Clear Lens
Warranty
7 years
Country of origin
Australia
Cut out size
Ø74mm
Configurator
How to specify
Select from the available options to configure luminaire
FFL50.___.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Output
150
6W
549 - 718 lm
200
8W
642 - 959 lm
250
10W
763 - 1115 lm
Optic
16 16°
24 24°
33 33°
55 55°
LN Linear
OV Oval
ZM Zoom
CRI CCT
927 90+ 2700K
93 90+ 3000K
935 90+ 3500K
94 90+ 4000K
Dimming
61 Non Dim
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
X Custom
Accessories
FFL50.HONEYCOMB Honeycomb Louvre
FFL50.COLOUR.XXX Specialty Colour Filter
FFL50.IPX4 IPX4 Lens
FFL50.HALO RING Halo Ring
Accessories

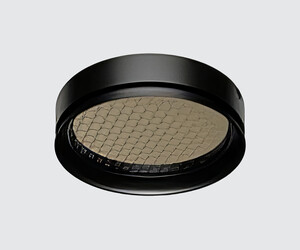

Honeycomb Louvre
FFL50.HONEYCOMB
FFL50.HONEYCOMB
Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.

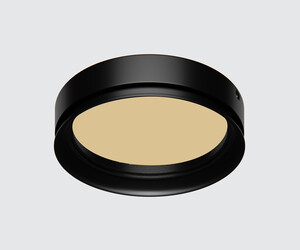

Specialty Colour Filter
FFL50.COLOUR.XXX
FFL50.COLOUR.XXX
High quality borosilicate glass filters for premium colourfast performance. Available in a selection of colours. Easily installed by placing behind the luminaire baffle.
IPX4 Lens
FFL50.IPX4
FFL50.IPX4
A clear IPX4 lens. Required to be installed at time of manufacture.

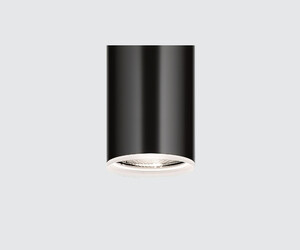

Halo Ring
FFL50.HALO RING
FFL50.HALO RING
A discreet glowing ring attachment that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.
Colour Options
Housing colour
White
W
Black
B
Custom
X
Technical Specifications

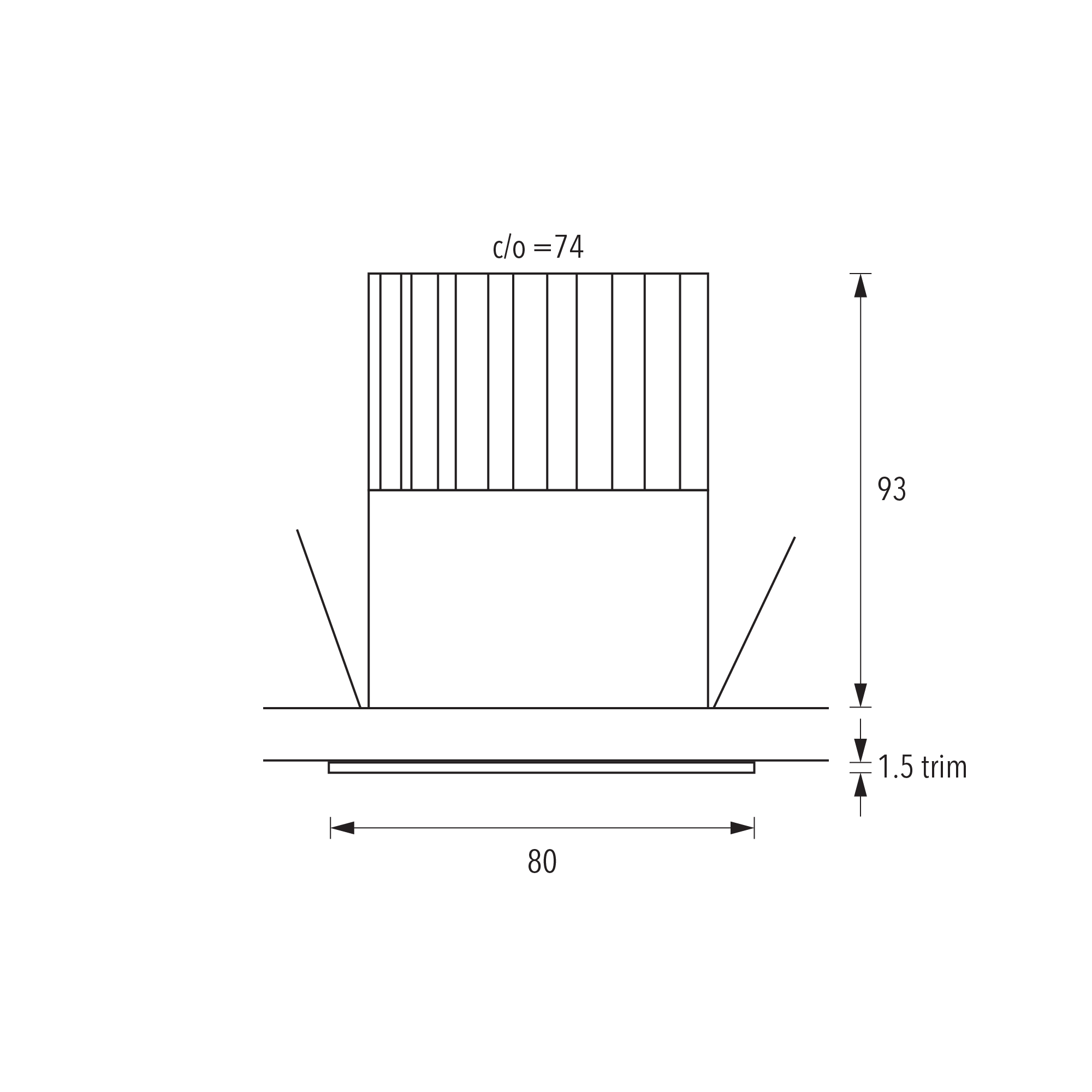

Dimensions
