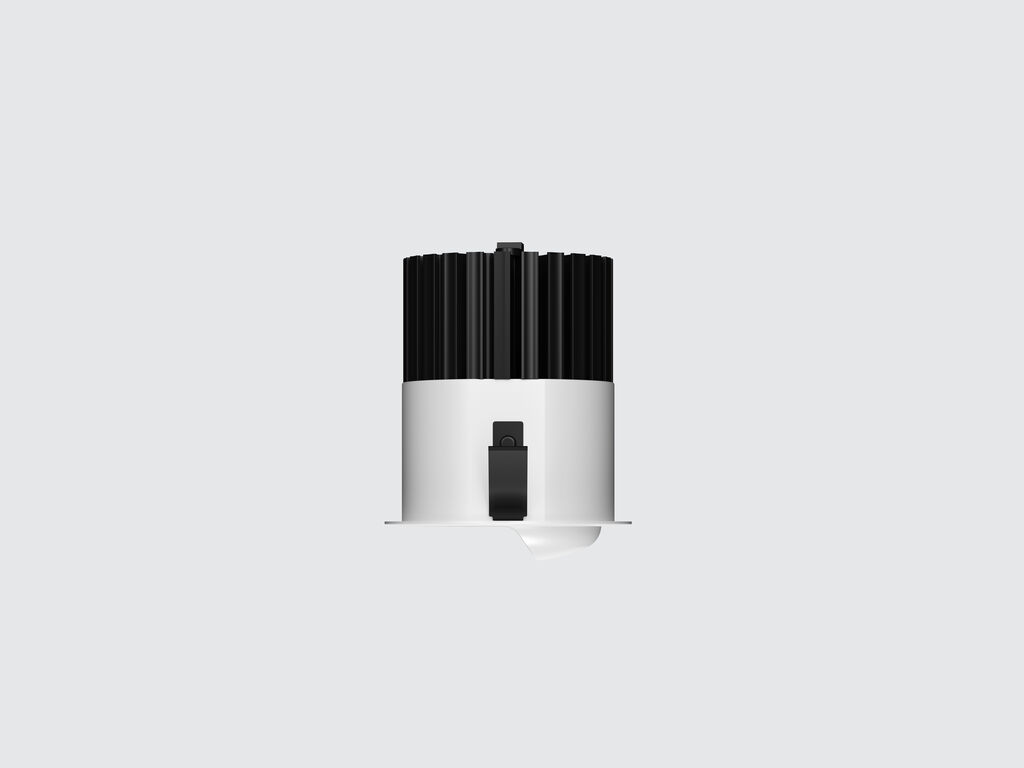

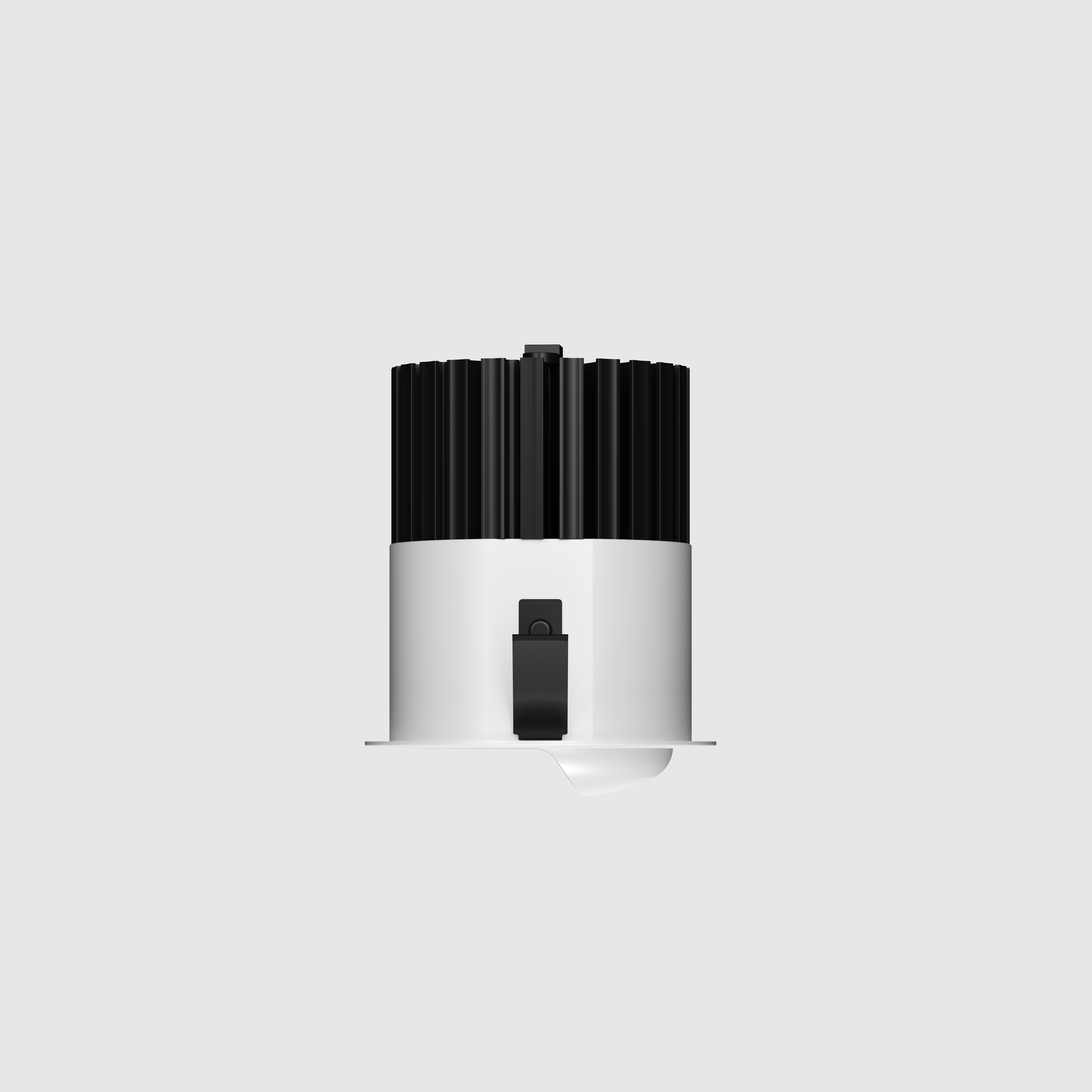

    FLEX 50 Wall wash

    FFL50WW

    Product Details

    Absolute luminous flux (lm)
    465 - 844 lm
    Power (W)
    6 - 10W
    Optic options
    Asymmetric
    CRI
    90+
    CCT
    2700K / 3000K / 3500K / 4000K
    Colour deviation
    3 SDCM
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L90B10 > 90,000 hours
    Driver
    Remote
    Input voltage
    240v
    Housing material
    Aluminium
    Optic material
    PMMA Clear Lens
    Warranty
    7 years
    Country of origin
    Australia
    Cut out size
    Ø74mm

    Configurator

    How to specify

    Select from the available options to configure luminaire

    FFL70.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Output
    150
      6W
      465 - 537 lm
    200
      8W
      593 - 684 lm
    250
      10W
      737 - 844 lm
    Optic
    AS   Asymmetric
    CRI CCT
    927   90+ 2700K
    93   90+ 3000K
    935   90+ 3500K
    94   90+ 4000K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Housing colour
    W   White
    B   Black
    X   Custom

    Colour Options

    Housing colour
    White
    W
    Black
    B
    Custom
    X

    Technical Specifications

    Dimensions

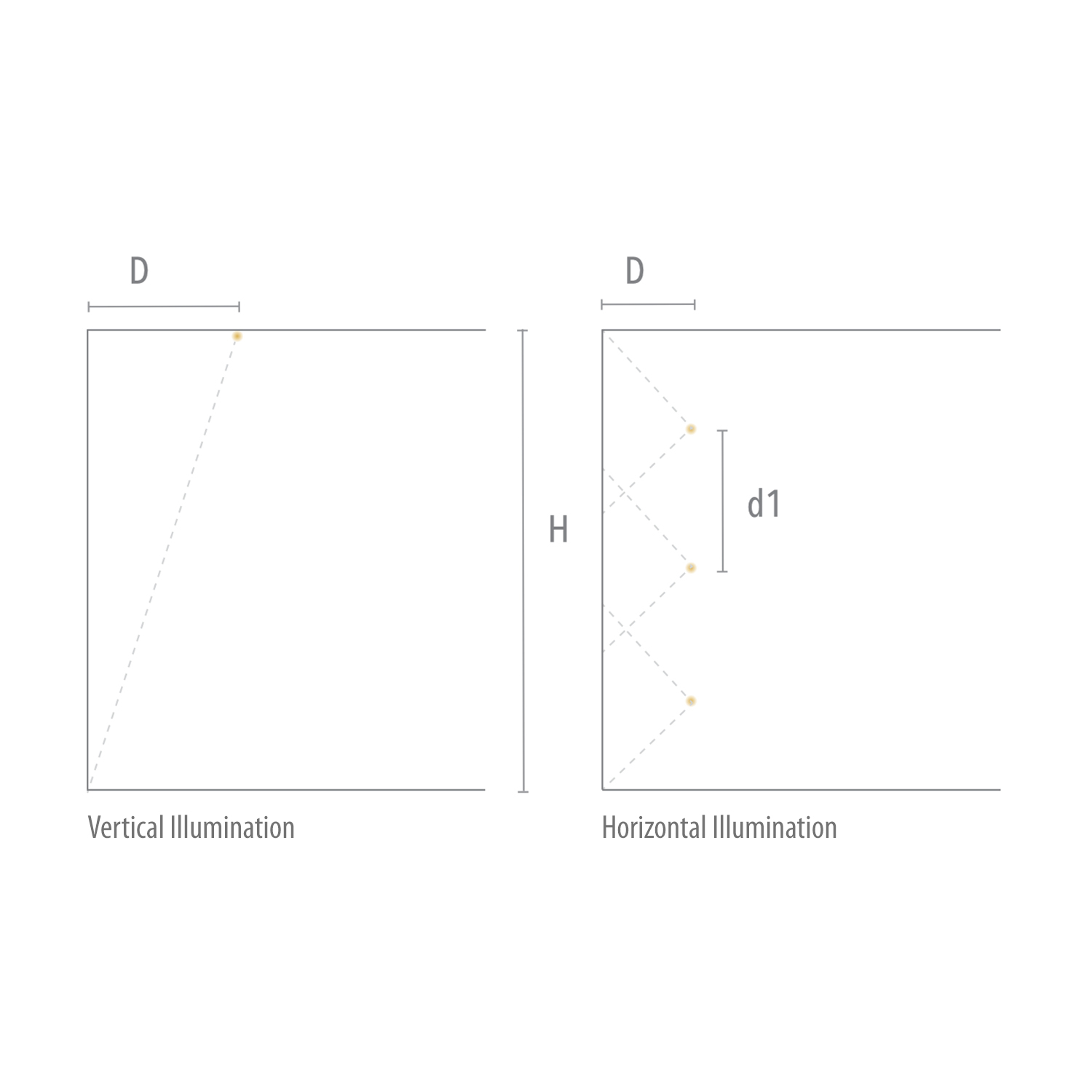

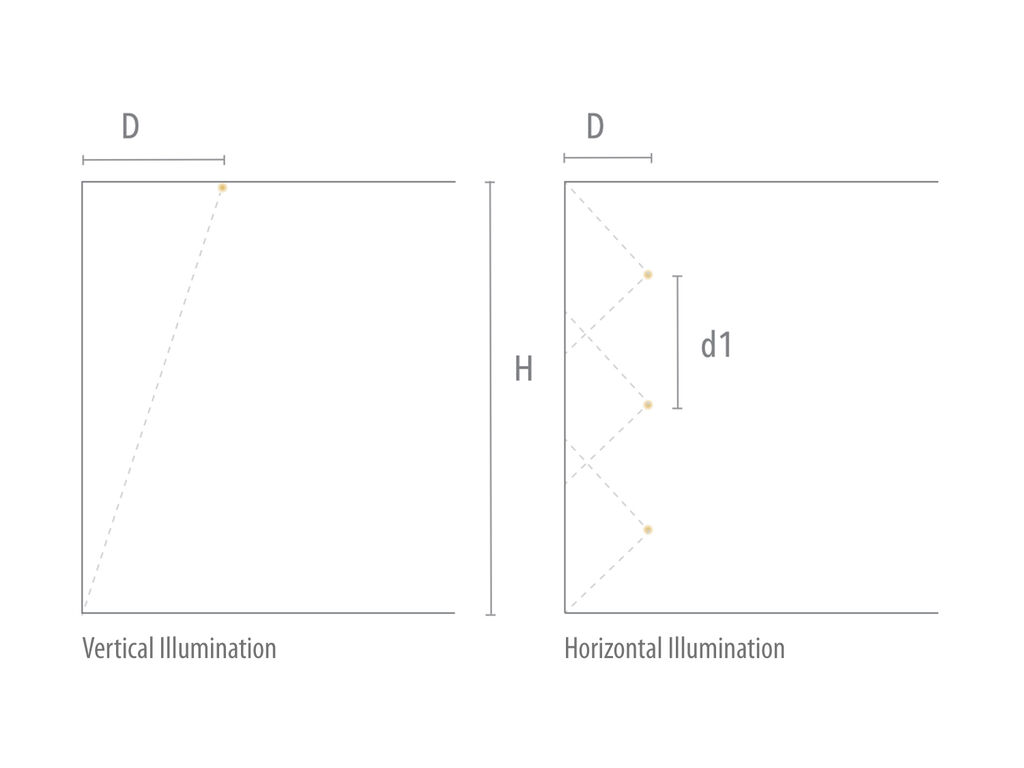

    Best Practice Spacing & Placement Guide

    D = Offset distance
    H = height of room/wall height
    d1 = Luminaire spacing

    Vertical Illumination
    For uniform vertical illumination, wall washers should have a setback (D) from the wall of 0.3 time the height of your room (h)
    Offset distance: D=0.3 x H

    Horizontal Illumination
    For uniform horizontal illumination, wall washers should use an on-centre fixture spacing (d1) ratio or two times the offset from the wall (D)
    Luminaire spacing distance: d1=2 x D

    Quick Luminaire Spacing Guide

    Mounting HeightLuminaire OffsetLuminaire SpacingSpacing to Offset RatioUniformityAv. LuxLuminaire version
    2.4m0.7m1.5m2:1<3134200mA / 8W
    2.7m0.8m1.6m2:1<3112200mA / 8W
    3.0m0.9m1.8m2:1<3112250mA / 10W
    3.3m1.0m2m2:1<3106300mA / 12W
    3.6m1.1m2.2m2:1<3106350mA / 14W

    The table provides a quick reference guide to which Flex wall washer luminaire to use along with offset and spacing recommendations at various heights. Listed is the optimum spacing when there are no on-site constraints and luminaire can be mounted as per optimum design requirements. These spacing guide achieves under the recommended uniformity of 3:1 av/min. at approx. 100lx av. on the wall.
