FLEX 70
FFL70
Product Details
Absolute luminous flux (lm)
429.5 - 2649 lm
Power (W)
8 - 24W
Optic options
25° / 34° / 54° / 7° / 80° / Linear / Oval / Zoom
CRI
90+
CCT
2700K / 3000K / 3500K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / Trailing Edge / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L90B10 > 90,000 hours
Driver
Remote
Input voltage
240v
Housing material
Aluminium
Optic material
PMMA Clear Lens
Warranty
7 years
Country of origin
Australia
Cut out size
Ø87mm
Configurator
How to specify
Select from the available options to configure luminaire
FFL70.___.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Output
200
8W
429.5 - 945 lm
250
10W
474 - 1172 lm
300
12W
1137 - 1395 lm
350
14W
1317 - 1615 lm
400
16W
1493 - 1832 lm
450
18W
1667 - 2046 lm
500
20W
1819 - 2230 lm
550
22W
2086 - 2443 lm
600
24W
2147 - 2649 lm
Optic
25 25°
34 34°
54 54°
7 7°
80 80°
LN Linear
OV Oval
ZM Zoom
CRI CCT
927 90+ 2700K
93 90+ 3000K
935 90+ 3500K
94 90+ 4000K
Dimming
61 Non Dim
63 Trailing Edge
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
X Custom
Accessories
FFL70.HONEYCOMB Honeycomb Louvre
FFL70.COLOUR.XXX Specialty Colour Filter
FFL70.IPX4 IPX4 Lens
FFL70.HALO RING Halo Ring
Accessories
Honeycomb Louvre
FFL70.HONEYCOMB
FFL70.HONEYCOMB
Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.
Specialty Colour Filter
FFL70.COLOUR.XXX
FFL70.COLOUR.XXX
High quality borosilicate glass filters for premium colourfast performance. Available in a selection of colours. Easily installed by placing behind the luminaire baffle.

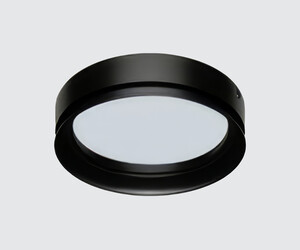

IPX4 Lens
FFL70.IPX4
FFL70.IPX4
A clear IPX4 lens. Required to be installed at time of manufacture.

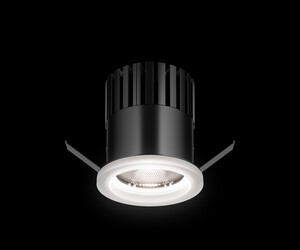

Halo Ring
FFL70.HALO RING
FFL70.HALO RING
A discreet glowing ring attachment that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.
Colour Options
Housing colour
White
W
Black
B
Custom
X
Technical Specifications
Dimensions
