    FUJI Juni Flex

    FJF

    Product Details

    Absolute luminous flux (lm)
    1274 - 3142 lm
    Power (W)
    16 - 32W
    Optic options
    13° / 25° / 34° / 54° / 80°
    CRI
    90+
    CCT
    2700K / 3000K / 3500K / 4000K
    Colour deviation
    3 SDCM
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L90B10 > 90,000 hours
    Driver
    Integral
    Input voltage
    240v
    Housing material
    Aluminium / PET
    Optic material
    PMMA Clear Lens
    Acoustic material
    100% PET (64% post-consumer recycled)
    Warranty
    7 years
    Country of origin
    Australia

    Configurator

    How to specify

    Select from the available options to configure luminaire

    FJF.___.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Output
    200
      16W
      1274 - 1732 lm
    250
      20W
      1566 - 2072 lm
    300
      24W
      1850 - 2472 lm
    350
      28W
      2138 - 2838 lm
    400
      32W
      2410 - 3142 lm
    Optic
    13   13°
    25   25°
    34   34°
    54   54°
    80   80°
    CRI CCT
    927   90+ 2700K
    93   90+ 3000K
    935   90+ 3500K
    94   90+ 4000K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Housing colour
    W   White
    B   Black
    X   Custom
    Acoustic cover colour
    420   Cream (Lower) / Black (Upper)
    550   Black
    908   Cream
    Accessories
    FUJI.BLANK.WH   Blanking Cover WH
    FUJI.BLANK.BL   Blanking Cover BL
    FJF.HONEYCOMB   Honeycomb Louvre

    Accessories

    Blanking Cover WH
    FUJI.BLANK.WH
    Blanking Cover BL
    FUJI.BLANK.BL

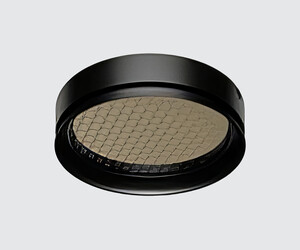

    Honeycomb Louvre
    FJF.HONEYCOMB

    Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.

    Colour Options

    Housing colour
    White
    W
    Black
    B
    Custom
    X
    Acoustic cover colour
    Cream
    908
    Cream (Lower) / Black (Upper)
    420
    Black
    550

    Technical Specifications

    Dimensions

    Dimensions: JUNI 560mm x 1160mm x 90mm (+ / - 3mm)
    Overall depth of system: 199 mm (+ / - 3mm)

    Performance indicies

    awClassSAANRC
    0.8B0.760.8

    Fire test
    BS EN 13501.1: Classification B – s1, d0
    ISO 9705: Group 2
    GB 8624 B1
    ASTM E84 Unadhered: Class 1 or A

    Hood emissions
    ASTM D5116: TVOC Emissions Rate: <0.046mg/m²/hr (7 days)
    CDPH Standard Method v1.2: TVOC Emissions Rate: <0.020mg/m³
    Formaldehyde Emissions Rate: <1?g/m³
