FUJI Ku Gatsu
FKG
Product Details
Absolute luminous flux (lm)
496 - 960 lm
Power (W)
5.5 - 10W
CRI
90+
CCT
2700K / 3000K / 3500K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L90B10 > 72,000 hours
Driver
Integral
Input voltage
240v
Housing material
Aluminium / PET
Optic material
Opal Acrylic
Acoustic material
100% PET (64% post-consumer recycled)
Warranty
7 years
Country of origin
Australia
Configurator
How to specify
Select from the available options to configure luminaire
FKG.___.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Output
100
5.5W
496 - 556 lm
150
8W
668 - 730 lm
200
10W
900 - 960 lm
CRI CCT
927 90+ 2700K
93 90+ 3000K
935 90+ 3500K
94 90+ 4000K
Dimming
61 Non Dim
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
X Custom
Acoustic cover colour
420 Cream (Lower) / Black (Upper)
550 Black
908 Cream
Accessories
FUJI.BLANK.WH Blanking Cover WH
FUJI.BLANK.BL Blanking Cover BL
Accessories
Colour Options
Housing colour
White
W
Black
B
Custom
X
Acoustic cover colour
Cream
908
Cream (Lower) / Black (Upper)
420
Black
550
Technical Specifications

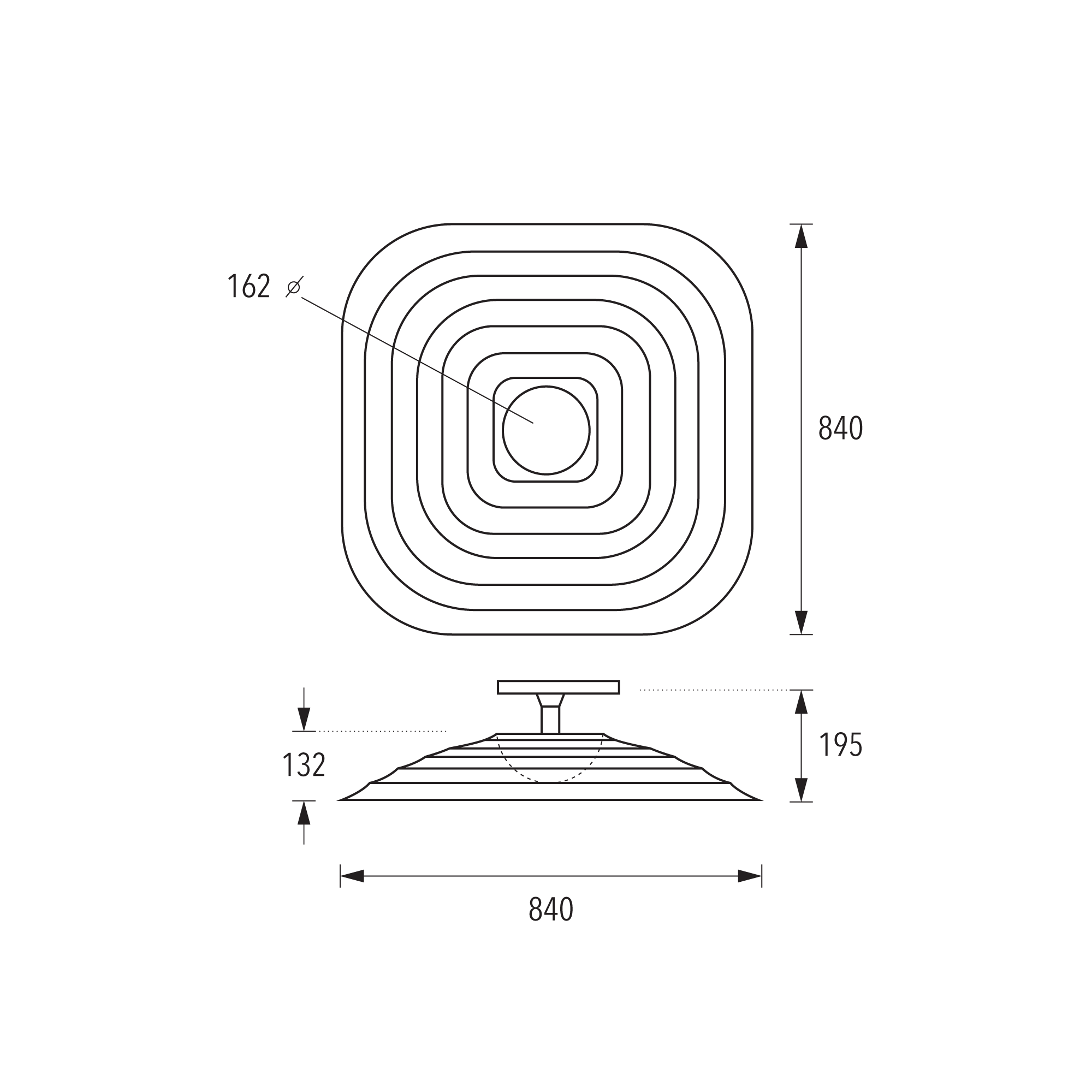

Dimensions
Dimensions: KU 840mm x 840mm x 132mm (+ / - 3mm)
Overall depth of system: 241 mm (+ / - 3mm)
Performance indicies
| aw | Class | SAA | NRC |
|---|---|---|---|
| 0.8 | B | 0.74 | 0.75 |
Fire test
BS EN 13501.1: Classification B – s1, d0
ISO 9705: Group 2
GB 8624 B1
ASTM E84 Unadhered: Class 1 or A
Hood emissions
ASTM D5116: TVOC Emissions Rate: <0.046mg/m²/hr (7 days)
CDPH Standard Method v1.2: TVOC Emissions Rate: <0.020mg/m³
Formaldehyde Emissions Rate: <1?g/m³
