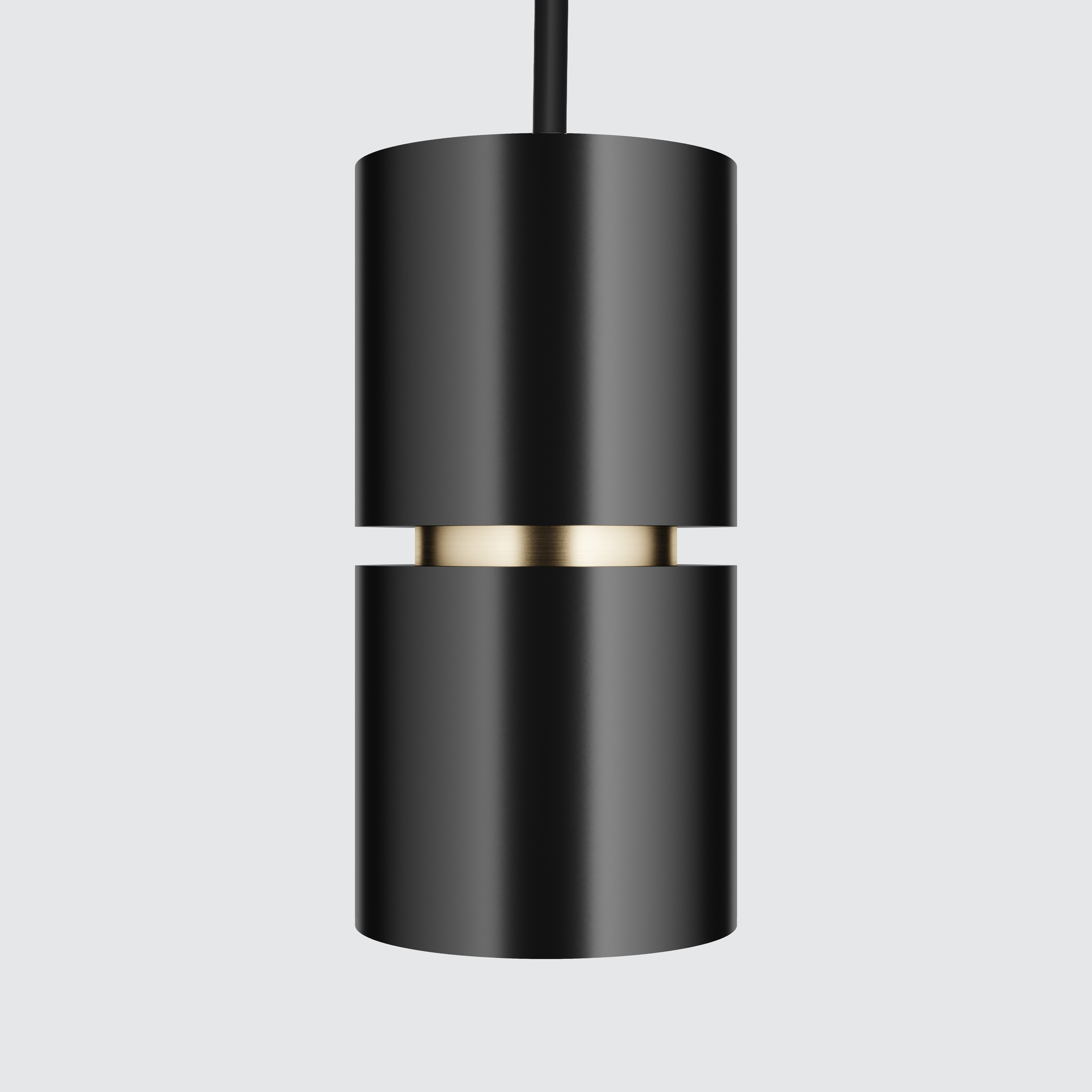

    FLEX 70 Pendant Double

    FPDL70

    Product Details

    Optic options
    25° / 34° / 54° / 80° / Forward Throw / Linear / Oval / Zoom
    CRI
    90+
    CCT
    2700K / 3000K / 3500K / 4000K
    Colour deviation
    3 SDCM
    Dimming methods
    Non Dim / Trailing Edge / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L90B10 > 90,000 hours
    Driver
    Remote
    Input voltage
    240v
    Housing material
    Aluminium
    Optic material
    PMMA Clear Lens
    Suspension
    Clear flex 1m
    Warranty
    7 years
    Country of origin
    Australia

    Configurator

    How to specify

    Select from the available options to configure luminaire

    FPDL70.___.___.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Output
    200
    250
    300
    350
    Optic
    25   25°
    34   34°
    54   54°
    80   80°
    FT   Forward Throw
    LN   Linear
    OV   Oval
    Optic - UP
    25   25°
    34   34°
    54   54°
    FT   Forward Throw
    LN   Linear
    OV   Oval
    ZM   Zoom
    CRI CCT
    927   90+ 2700K
    93   90+ 3000K
    935   90+ 3500K
    94   90+ 4000K
    Dimming
    61   Non Dim
    63   Trailing Edge
    66   DALI
    68   Bluetooth (Casambi)
    Housing colour
    W   White
    B   Black
    X   Custom
    Options
    Cloth
    3C.BLK   Cloth Cable - 3 Core - Black
    3C.WH   Cloth Cable - 3 Core - White
    5C.BLK   Cloth Cable - 5 Core - Black
    5C.WH   Cloth Cable - 5 Core - White
    Accessories
    FPDL70.HONEYCOMB   Honeycomb Louvre
    FPDL70.COLOUR.XXX   Specialty Colour Filter

    Accessories

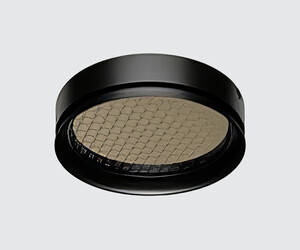

    Honeycomb Louvre
    FPDL70.HONEYCOMB

    Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.

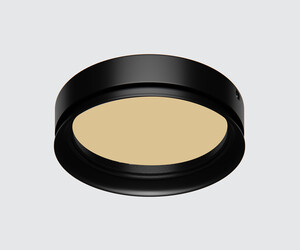

    Specialty Colour Filter
    FPDL70.COLOUR.XXX

    High quality borosilicate glass filters for premium colourfast performance. Available in a selection of colours. Easily installed by placing behind the luminaire baffle.

    Colour Options

    Housing colour
    White
    W
    Black
    B
    Custom
    X

    Options

    Cloth Cable - 3 Core - Black
    3C.BLK
    Cloth Cable - 3 Core - White
    3C.WH
    Cloth Cable - 5 Core - Black
    5C.BLK
    Cloth Cable - 5 Core - White
    5C.WH

    Technical Specifications

    Dimensions
