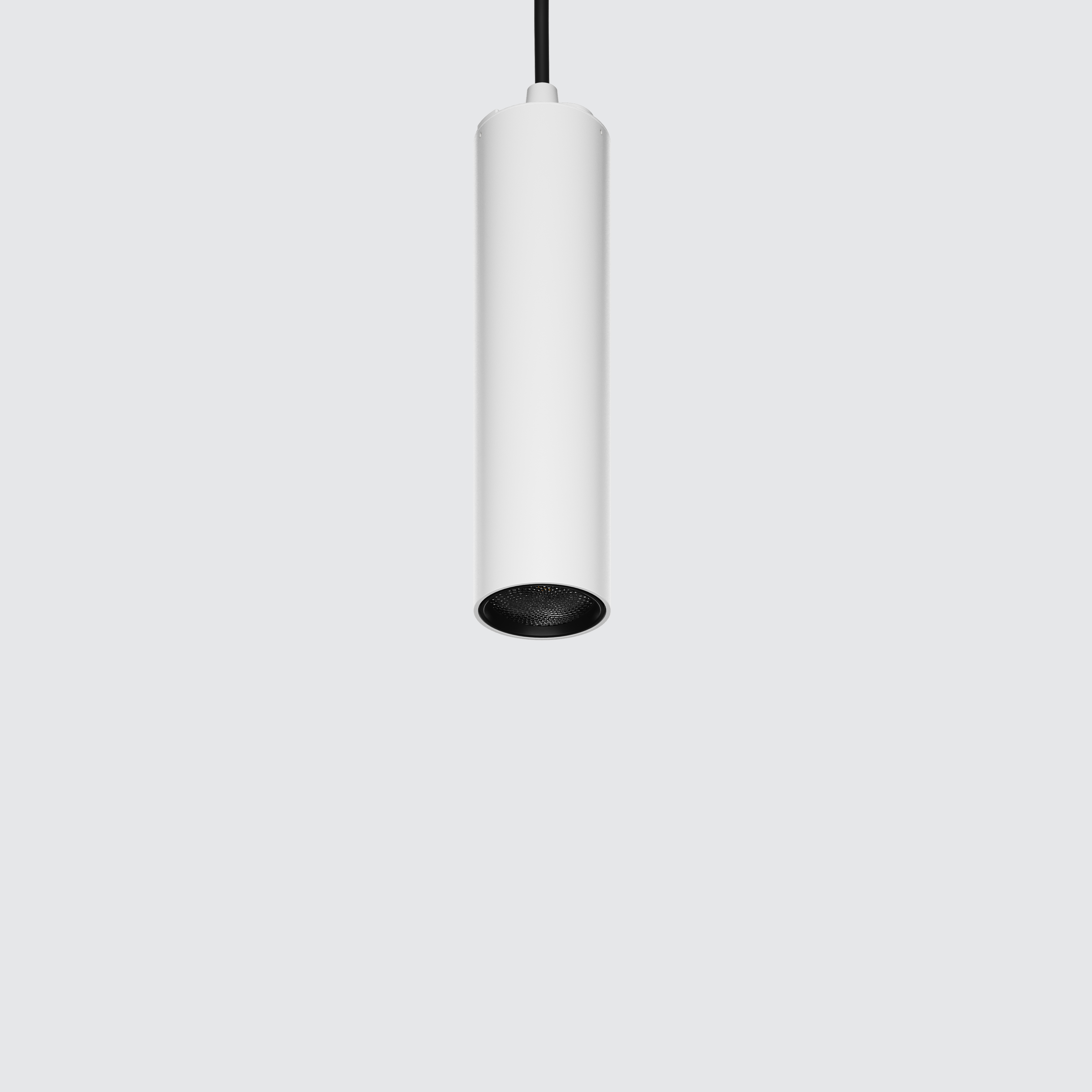

FLEX 50 Pendant

FPL50

Product Details

Absolute luminous flux (lm)

483 - 1115 lm

Power (W)

6 - 10W

Optic options

16° / 24° / 33° / 55° / Linear / Oval

CRI

90+

CCT

2700K / 3000K / 3500K / 4000K

Colour deviation

3 SDCM

Dimming methods

Non Dim / DALI / Bluetooth (Casambi)

Lumen maintenance (hours)

L90B10 > 90,000 hours

Driver

Integral

Input voltage

240v

Housing material

Aluminium

Optic material

PMMA Clear Lens

Suspension

Clear flex 1m

Warranty

7 years

Country of origin

Australia

Configurator

How to specify

Select from the available options to configure luminaire

FPL50.___.___.___.___.___.___

Configured IES files

Configured Datasheet

Download all

Reset

Select configuration

No IES file

Project name:

Type number:

Quantity:

Date:

Output

150

483 - 718 lm

200

640 - 959 lm

250

10W

759 - 1115 lm

Optic

16 16°

24 24°

33 33°

55 55°

LN Linear

OV Oval

CRI CCT

927 90+ 2700K

93 90+ 3000K

935 90+ 3500K

94 90+ 4000K

Dimming

61 Non Dim

66 DALI

68 Bluetooth (Casambi)

Housing colour

W White

B Black

X Custom

Options

Cloth

3C.BLK Cloth Cable - 3 Core - Black

3C.WH Cloth Cable - 3 Core - White

5C.BLK Cloth Cable - 5 Core - Black

5C.WH Cloth Cable - 5 Core - White

Accessories

FPL50.HONEYCOMB Honeycomb Louvre

FPL50.COLOUR.XXX Specialty Colour Filter

FPL50.XLB XL Baffle

FPL50.HALO RING Halo Ring

ROD.KIT.1000.B Rod Kit 1000 mm - Black

ROD.KIT.1000.W Rod Kit 1000mm - White

ROD.KIT.500.B Rod Kit 500mm - Black

ROD.KIT.500.W Rod Kit 500mm - White

Accessories

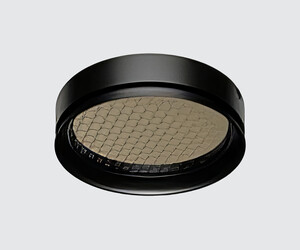

Honeycomb Louvre
FPL50.HONEYCOMB

Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.

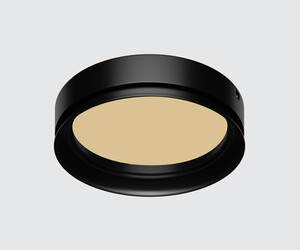

Specialty Colour Filter
FPL50.COLOUR.XXX

High quality borosilicate glass filters for premium colourfast performance. Available in a selection of colours. Easily installed by placing behind the luminaire baffle.

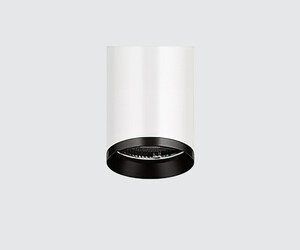

XL Baffle
FPL50.XLB

A deep 17mm baffle to provide extra visual comfort in sensititve areas. Supplied in black as standard. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

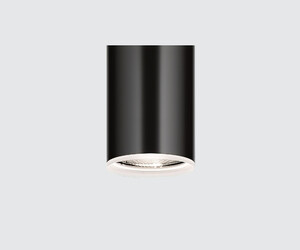

Halo Ring
FPL50.HALO RING

A discreet glowing ring attachment that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.
