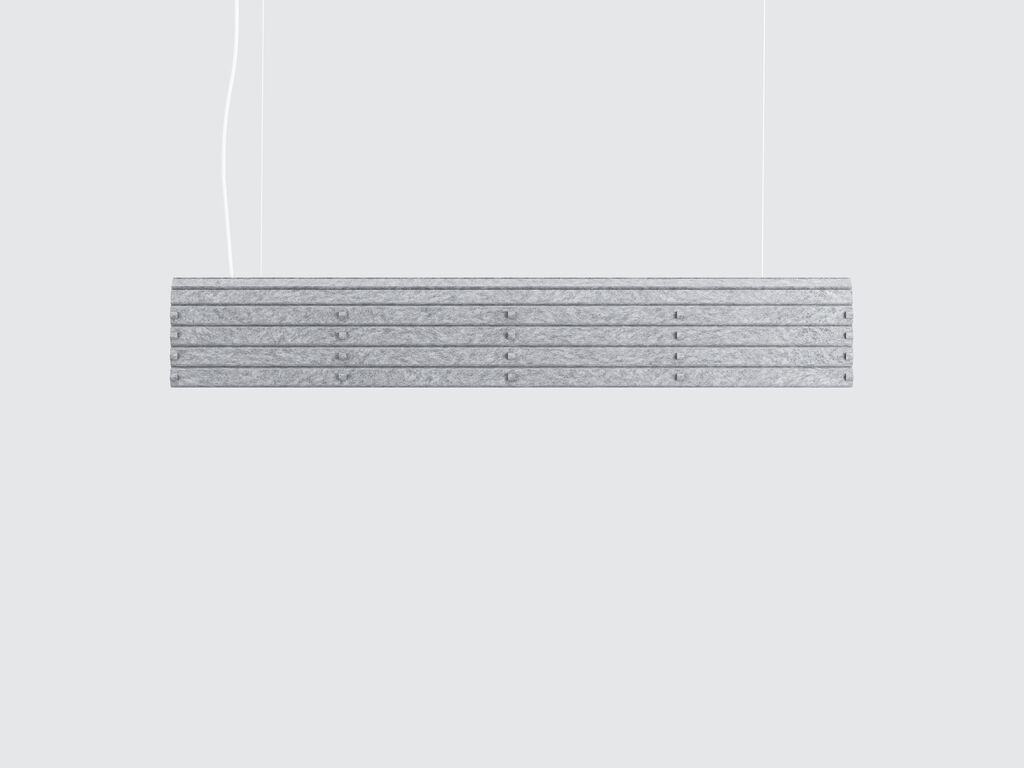

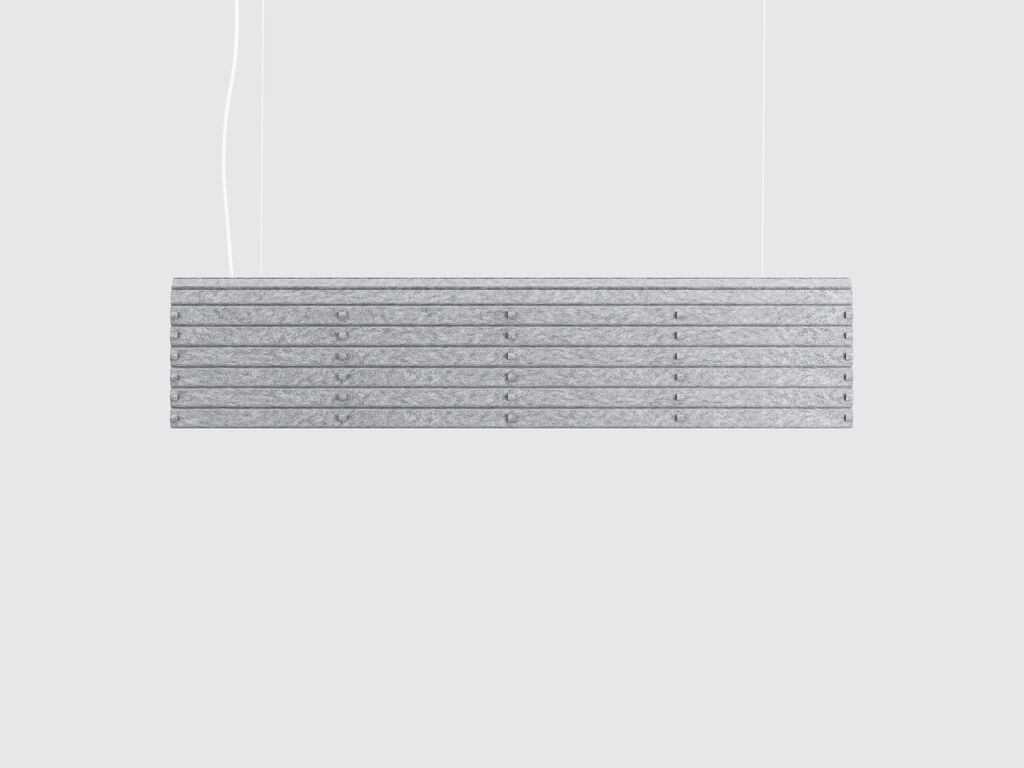

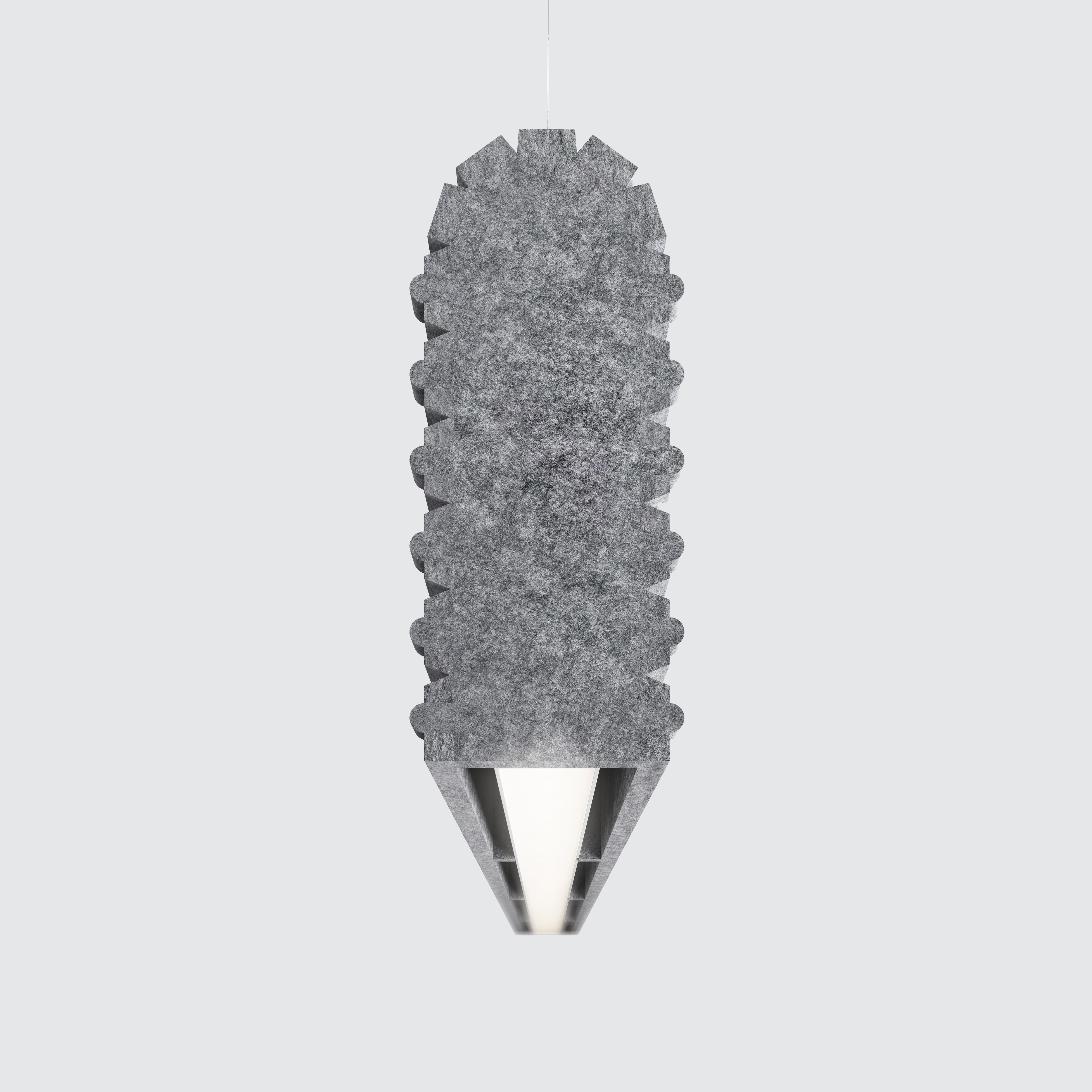

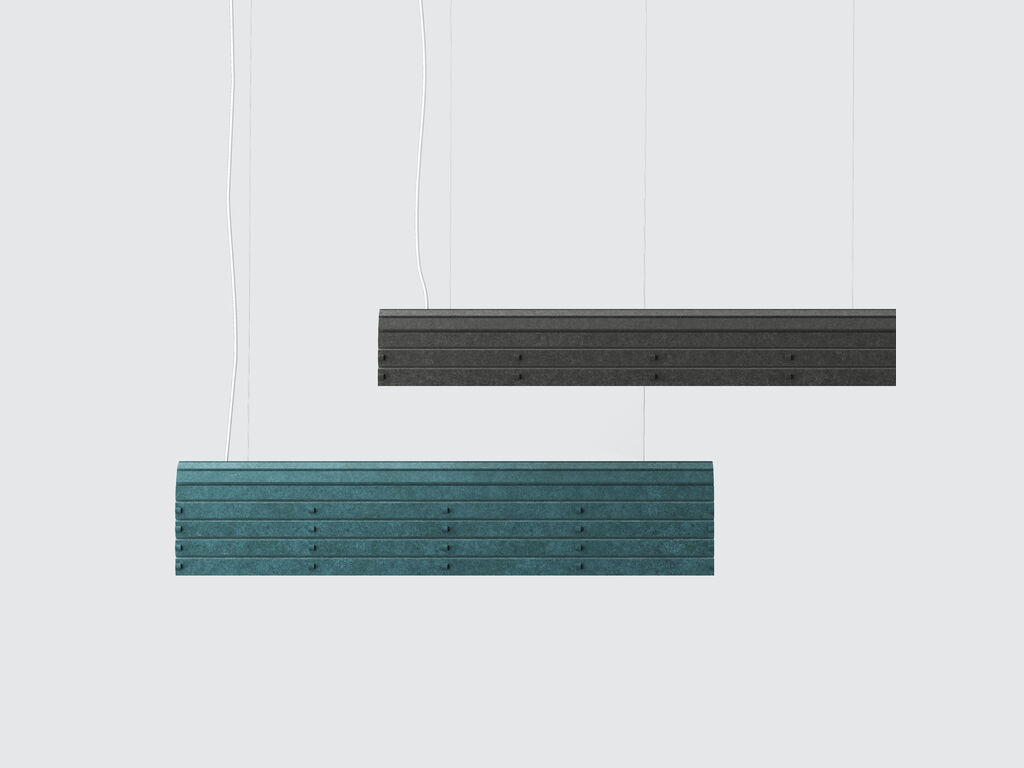

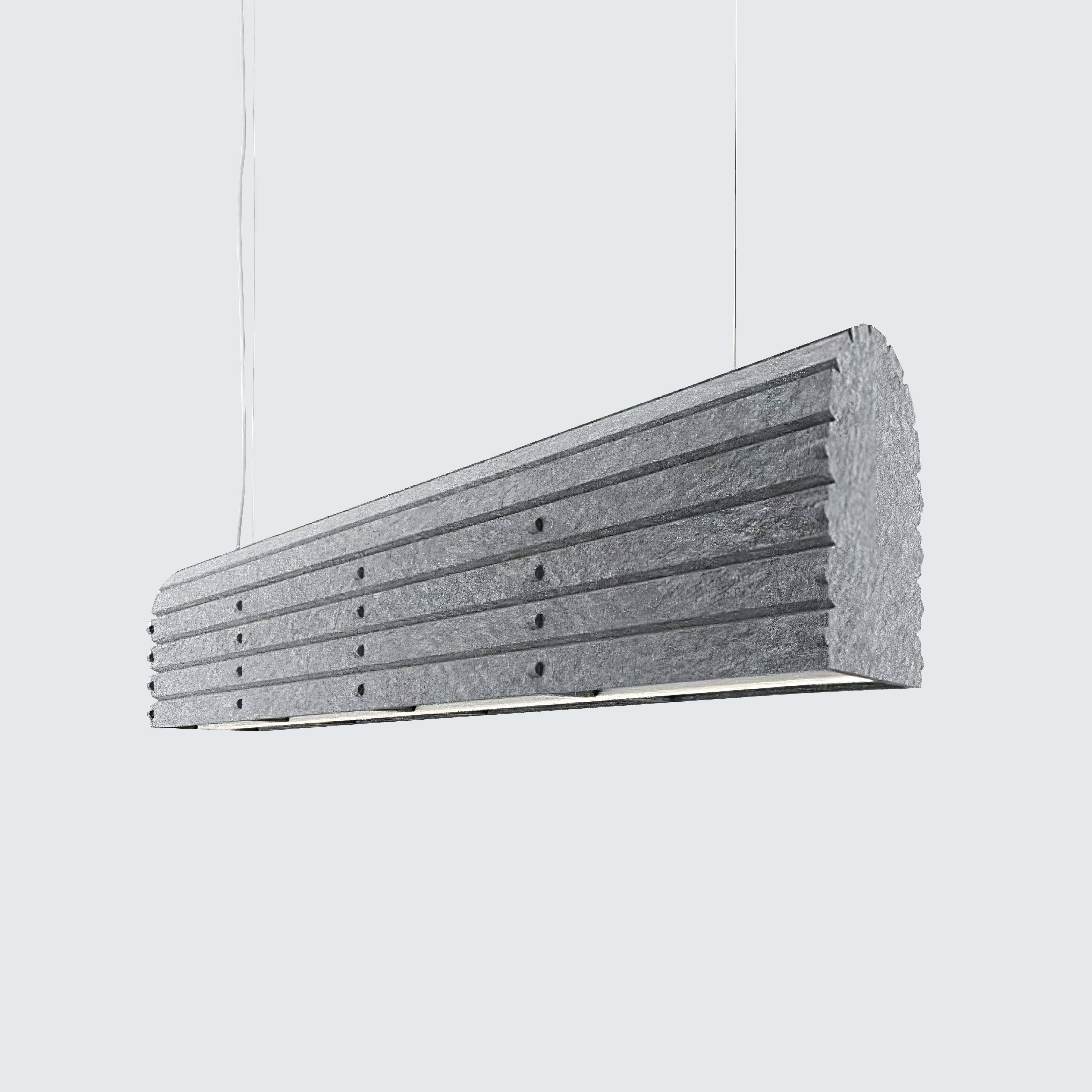

    FUSE 100 Linear

    FSL100

    Product Details

    Absolute luminous flux (lm)
    1550 - 3317 lm / 477 - 509 lm (UP)
    Power (W)
    18 - 28W / 6W (UP)
    Optic options
    65° / 80° / Asymmetric / Flat Diffuser
    CRI
    90+
    CCT
    3000K / 4000K
    Colour deviation
    3 SDCM
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L80B10 > 72,000 hours
    Driver
    Integral
    Input voltage
    240v
    Housing material
    PET
    Optic material
    Opal Polycarbonate
    Suspension
    Wire suspension 3m
    Acoustic material
    100% PET (80% post-consumer recycled)
    Warranty
    7 years
    Country of origin
    Australia

    Configurator

    How to specify

    Specify SKU #1 for the acoustic qualities and SKU #2 for the luminaire qualities. Please ensure that the lengths match for both.

    FSL100.___.___.___.___
    Reset
    Project name:
    Type number:
    Quantity:
    Date:
    Height & Length
    190.1120   190 mm - 1120 mm
    190.XXXX   190 mm - Custom Length divisible by 280 mm
    260.1120   260 mm - 1120 mm
    260.XXXX   260 mm - Custom Length divisible by 280 mm
    365.1120   365 mm - 1120 mm
    365.XXXX   365 mm - Custom Length divisible by 280 mm
    575.1120   575 mm - 1120 mm
    575.XXXX   575 mm - Custom Length divisible by 280 mm
    Acoustic cover colour

    See colour swatches. Type the short code name to select it.

    101   Frost
    106   Butter Yellow
    124   Ochre
    167   Terracotta
    193   Rouge
    269   Red Wine
    274   Orchid
    289   Laguna - NEW
    295   Mandarin
    330   Ivy
    338   Jade Green
    349   Vineyard
    365   Navy Blue
    381   L/Splice
    384   Olive Green
    402   Pebble
    442   Grey
    444   Smoke Grey
    447   Slate
    454   Mushroom
    468   Vanilla
    481   Latte - NEW
    484   Cayenne
    487   Blush
    495   Dusk
    500   Off White
    542   Charcoal
    550   Black
    551   Duck Egg
    573   Mint
    579   Pistachio
    580   Sage
    633   Pacific
    660   Coronet
    721   Nutmeg
    908   Cream
    Connector colour

    See colour swatches. Type the short code name to select it.

    101   Frost
    106   Butter Yellow
    124   Ochre
    167   Terracotta
    193   Rouge
    269   Red Wine
    274   Orchid
    289   Laguna - NEW
    295   Mandarin
    330   Ivy
    338   Jade Green
    349   Vineyard
    365   Navy Blue
    381   L/Splice
    384   Olive Green
    402   Pebble
    442   Grey
    444   Smoke Grey
    447   Slate
    454   Mushroom
    468   Vanilla
    481   Latte - NEW
    484   Cayenne
    487   Blush
    495   Dusk
    500   Off White
    542   Charcoal
    550   Black
    551   Duck Egg
    573   Mint
    579   Pistachio
    580   Sage
    633   Pacific
    660   Coronet
    721   Nutmeg
    908   Cream
    Options
    Cloth
    3C.BLK   Cloth Cable - 3 Core - Black
    3C.WH   Cloth Cable - 3 Core - White
    5C.BLK   Cloth Cable - 5 Core - Black
    5C.WH   Cloth Cable - 5 Core - White
    UD45.___.___.___.___.___.___.___.___.___.___
      Configured IES files
      Configured Datasheet
    Reset
    Select configuration
    Acoustic cover colour and Connector colour must be selected (both or neither)
    No IES file
    Type
    P   Pendant
    S   Surface Mount
    W   Wall Mount
    Height & Length
    1120   1120 mm
    XXXX   Custom Length divisible by 280 mm
    Output
    18
      18W
      1550 - 2254 lm
    23
      23W
      1830 - 2795 lm
    28
      28W
      2116 - 3317 lm
    Output - UP
    5
      6W
      477 - 509 lm
    Optic
    65   65°
    80   80°
    AS   Asymmetric
    F   Flat Diffuser
    Optic - UP
    F   Flat Diffuser
    CRI CCT
    93   90+ 3000K
    94   90+ 4000K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Housing colour
    W   White
    B   Black
    X   Custom
    Options
    Louvre
    W   White Louvre
    B   Black Louvre

    Colour Options

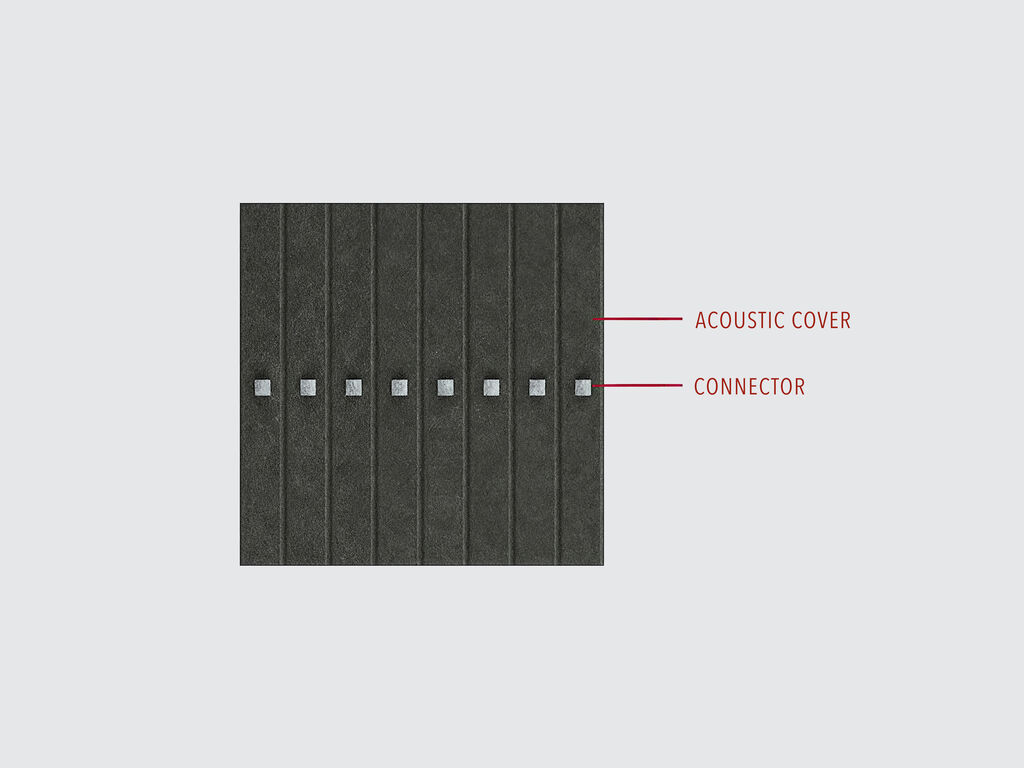

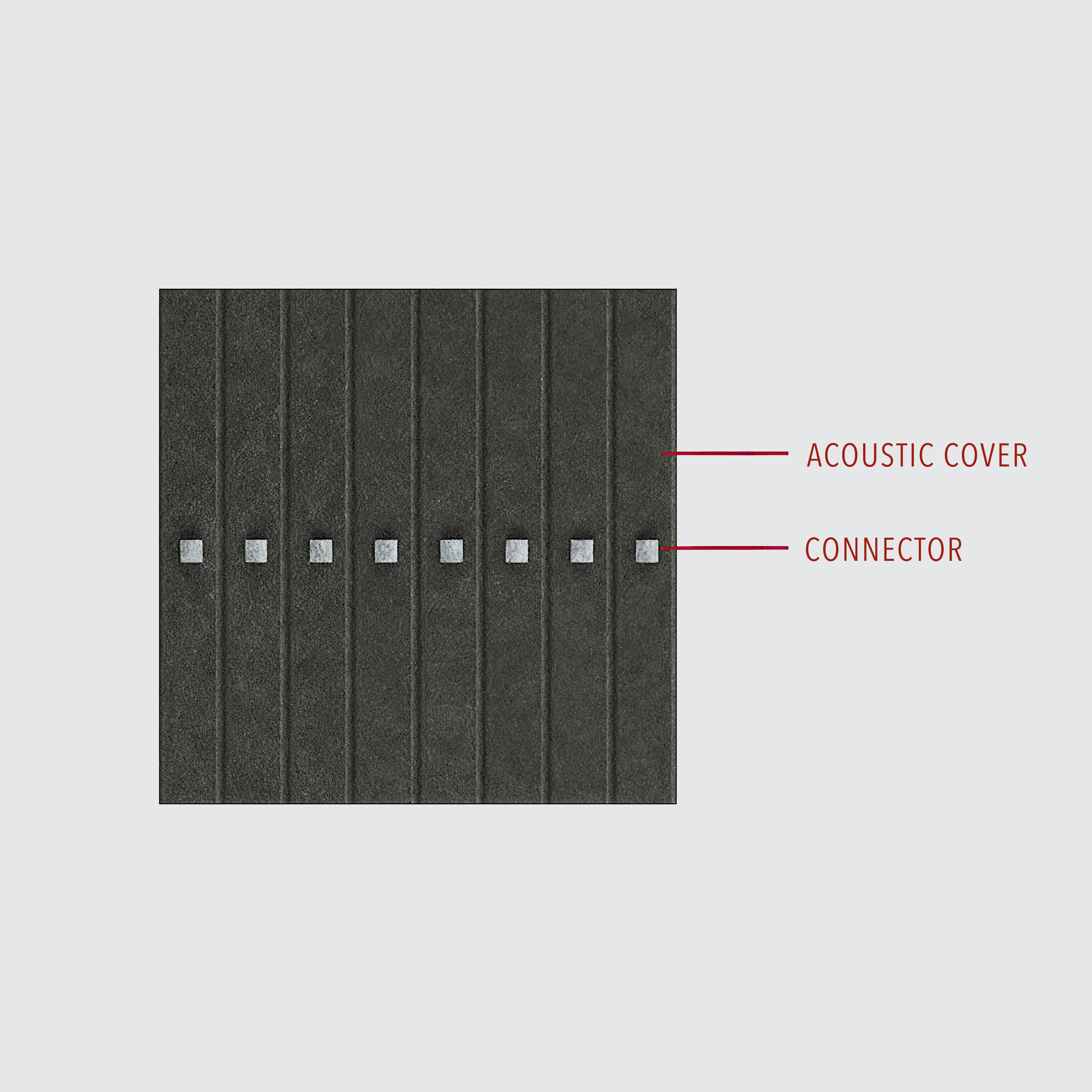

    Acoustic cover colour & Connector colour
    Frost
    101
    Butter Yellow
    106
    Ochre
    124
    Terracotta
    167
    Rouge
    193
    Red Wine
    269
    Orchid
    274
    Laguna - NEW
    289
    Mandarin
    295
    Ivy
    330
    Jade Green
    338
    Vineyard
    349
    Navy Blue
    365
    L/Splice
    381
    Olive Green
    384
    Pebble
    402
    Grey
    442
    Smoke Grey
    444
    Slate
    447
    Mushroom
    454
    Vanilla
    468
    Latte - NEW
    481
    Cayenne
    484
    Blush
    487
    Dusk
    495
    Off White
    500
    Charcoal
    542
    Black
    550
    Duck Egg
    551
    Mint
    573
    Pistachio
    579
    Sage
    580
    Pacific
    633
    Coronet
    660
    Nutmeg
    721
    Cream
    908

    Options

    Cloth Cable - 3 Core - Black
    3C.BLK
    Cloth Cable - 3 Core - White
    3C.WH
    Cloth Cable - 5 Core - Black
    5C.BLK
    Cloth Cable - 5 Core - White
    5C.WH

    Technical Specifications

    Dimensions

    Testing based on smallest size – 100mm X 190mm X 1200mm long

    Acoustic Properties

    Frequency HzSound Absorption Coefficient
    2500.23
    5000.42
    10000.46
    20000.63
    40000.74

    All testing carried out is compliant to the following Australian Standards.

    AS ISO 354-2006 (R2016) Acoustics—Measurement of sound absorption in a reverberation room
    AS ISO 11654—2002 Rating of sound absorption—Materials and systems
    ASTM C423-17 Standard Test Method for Sound Absorption and Sound Absorption Coefficients by the Reverberation Room Method
    ASTM E795-16 Standard Practices for Mounting Test Specimens During Sound Absorption Tests
    ISO 20189 Screens, furniture and single objects intended for interior use – Rating of sound absorption and sound reduction of elements based on laboratory measurements.
