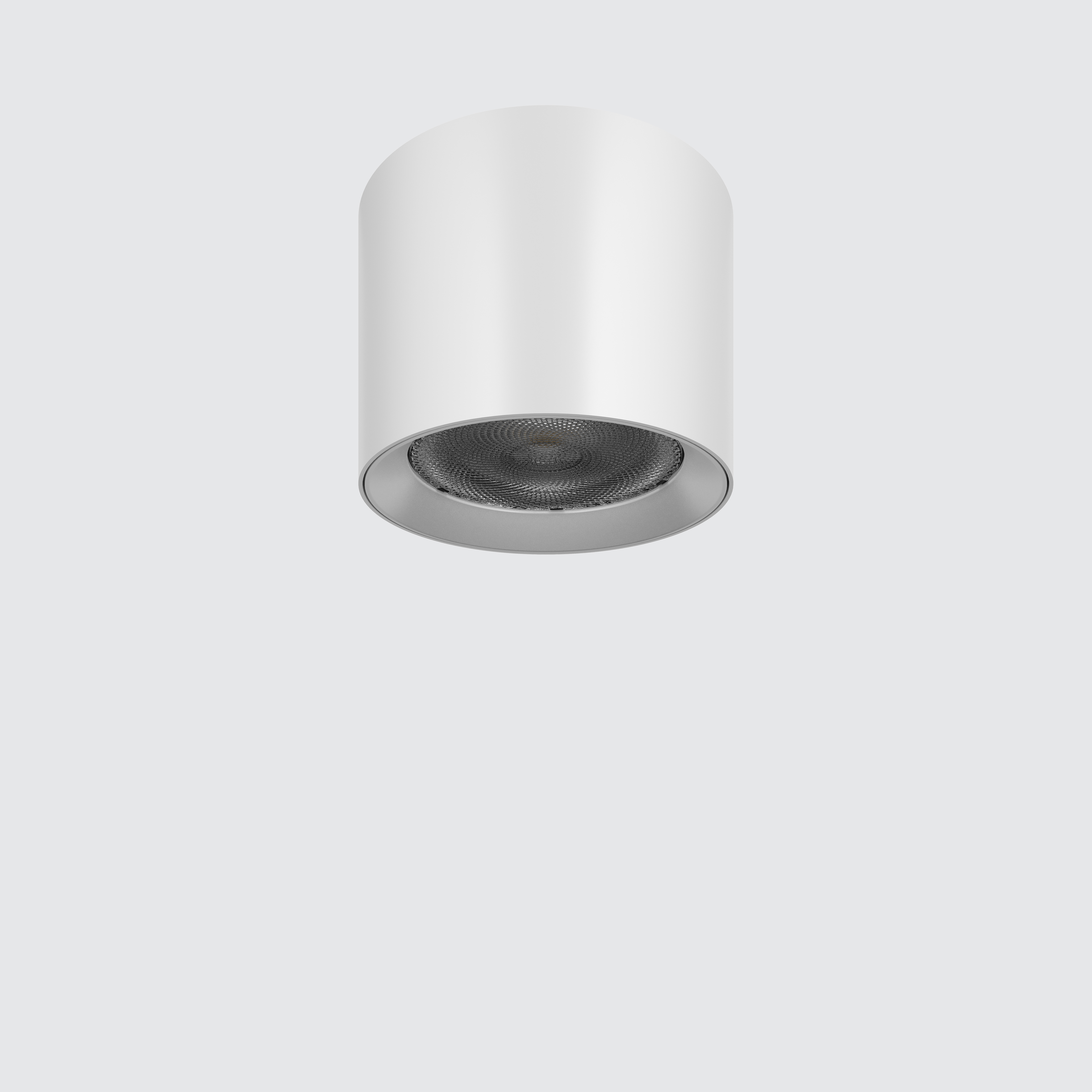

FLEX 150 Surface Mini
FSL150M
Product Details
Absolute luminous flux (lm)
1229 - 2692 lm
Power (W)
14 - 28W
Optic options
18° / 24° / 35° / 60°
CRI
90+
CCT
2700K / 3000K / 3500K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L90B10 > 90,000 hours
Driver
Integral
Input voltage
240v
Housing material
Aluminium
Optic material
PMMA Clear Lens
Warranty
7 years
Country of origin
Australia
Configurator
How to specify
Select from the available options to configure luminaire
FSL150M.___.___.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Output
350
14W
1229 - 1472 lm
500
20W
1679 - 2014 lm
700
28W
2252 - 2692 lm
Optic
18 18°
24 24°
35 35°
60 60°
CRI CCT
927 90+ 2700K
93 90+ 3000K
935 90+ 3500K
94 90+ 4000K
Dimming
61 Non Dim
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
X Custom
Options
WB White Baffle
BB Black Baffle
XX Custom Baffle
Colour Options
Housing colour
White
W
Black
B
Custom
X
Options
Black Baffle
BB
White Baffle
WB
Technical Specifications
Dimensions
