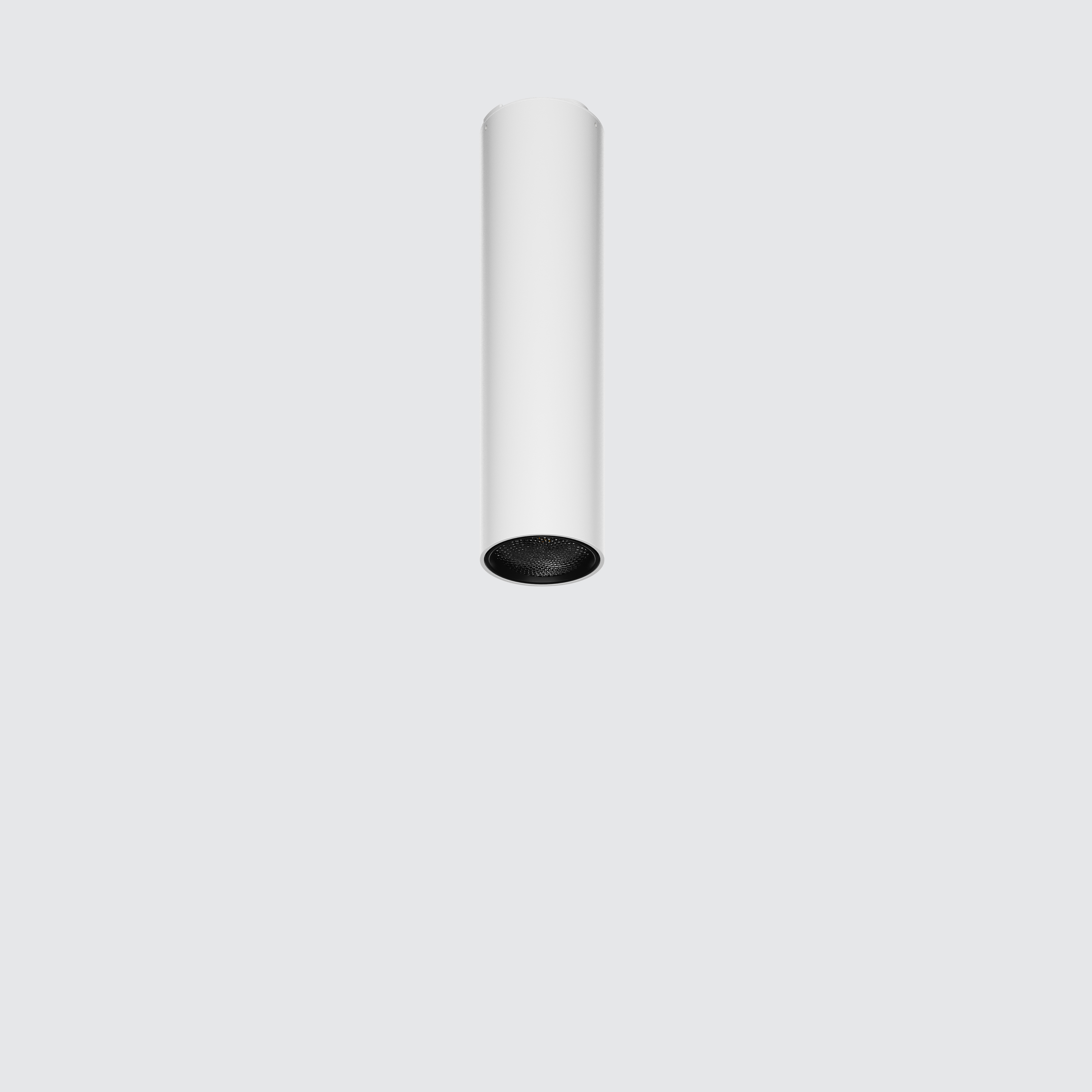

    FLEX 50 Surface

    FSL50

    Product Details

    Absolute luminous flux (lm)
    483 - 1115 lm
    Power (W)
    6 - 10W
    Optic options
    16° / 24° / 33° / 55° / Linear / Oval
    CRI
    90+
    CCT
    2700K / 3000K / 3500K / 4000K
    Colour deviation
    3 SDCM
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L90B10 > 90,000 hours
    Driver
    Integral
    Input voltage
    240v
    Housing material
    Aluminium
    Optic material
    PMMA Clear Lens
    Warranty
    7 years
    Country of origin
    Australia

    Configurator

    How to specify

    Select from the available options to configure luminaire

    FSL50.___.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Output
    150
      6W
      483 - 718 lm
    200
      8W
      640 - 959 lm
    250
      10W
      759 - 1115 lm
    Optic
    16   16°
    24   24°
    33   33°
    55   55°
    LN   Linear
    OV   Oval
    CRI CCT
    927   90+ 2700K
    93   90+ 3000K
    935   90+ 3500K
    94   90+ 4000K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Housing colour
    W   White
    B   Black
    X   Custom
    Options
    IP
    IP   IPX4
    Accessories
    FSL50.HONEYCOMB   Honeycomb Louvre
    FSL50.COLOUR.XXX   Specialty Colour Filter
    FSL50.IPX4   IPX4 Lens
    FSL50.XLB   XL Baffle
    FSL50.HALO RING   Halo Ring

    Accessories

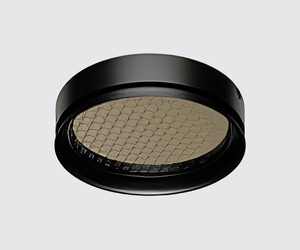

    Honeycomb Louvre
    FSL50.HONEYCOMB

    Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.

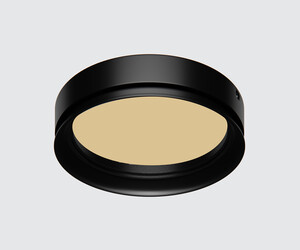

    Specialty Colour Filter
    FSL50.COLOUR.XXX

    High quality borosilicate glass filters for premium colourfast performance. Available in a selection of colours. Easily installed by placing behind the luminaire baffle.

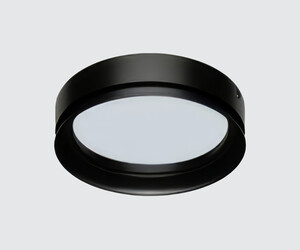

    IPX4 Lens
    FSL50.IPX4

    A clear IPX4 lens. Required to be installed at time of manufacture.

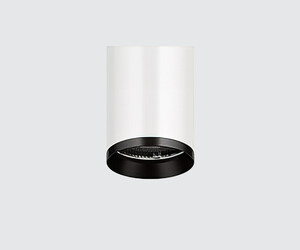

    XL Baffle
    FSL50.XLB

    A deep 17mm baffle to provide extra visual comfort in sensititve areas. Supplied in black as standard. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

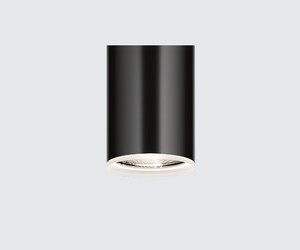

    Halo Ring
    FSL50.HALO RING

    A discreet glowing ring attachment that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

    Colour Options

    Housing colour
    White
    W
    Black
    B
    Custom
    X

    Technical Specifications

    Dimensions
