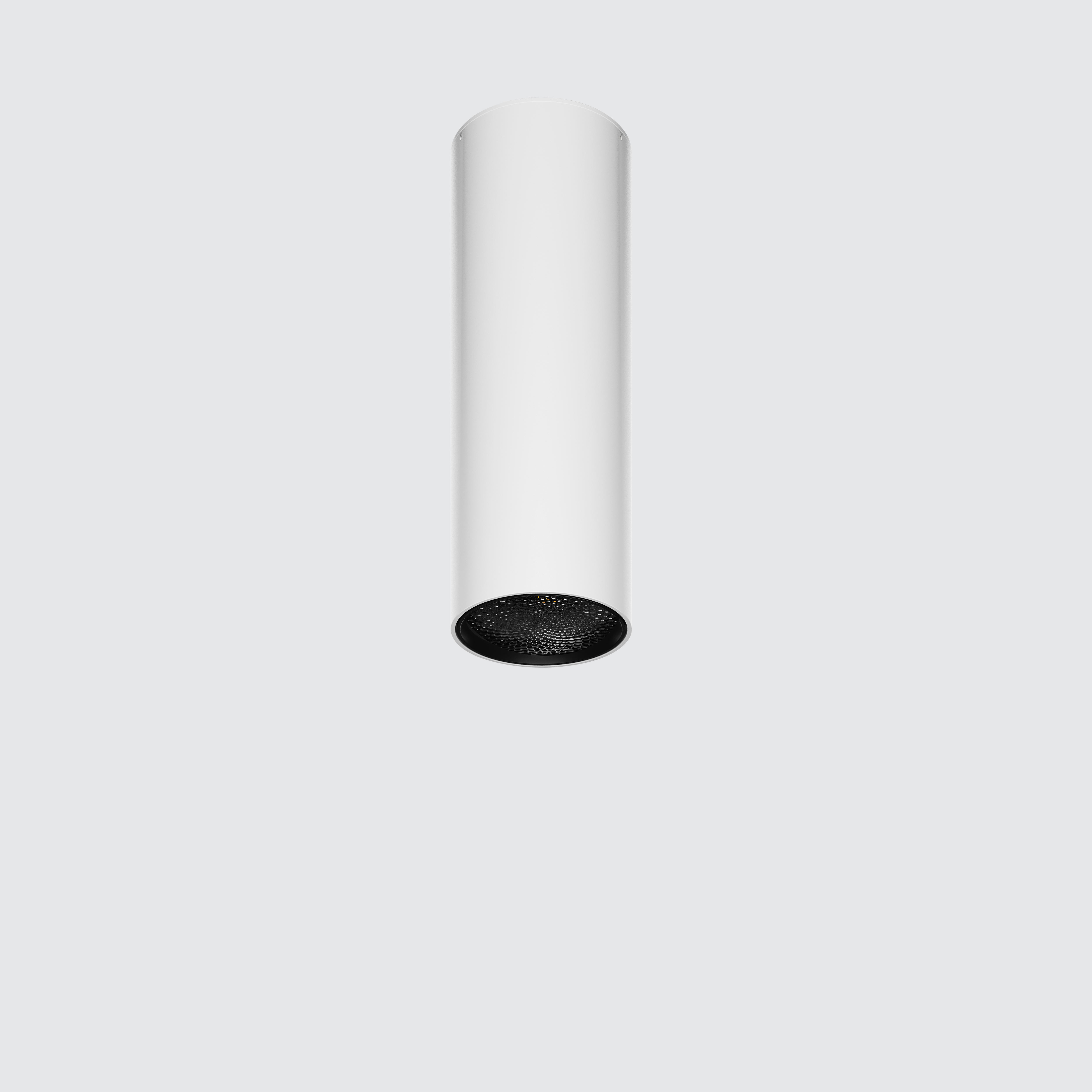

FLEX 70 Surface

FSL70

Product Details

Absolute luminous flux (lm)

770 - 1615 lm

Power (W)

8 - 14W

Optic options

25° / 34° / 54° / 80° / Linear / Oval

CRI

90+

CCT

2700K / 3000K / 3500K / 4000K

Colour deviation

3 SDCM

Dimming methods

Non Dim / DALI / Bluetooth (Casambi)

Lumen maintenance (hours)

L90B10 > 90,000 hours

Driver

Integral

Input voltage

240v

Housing material

Aluminium

Optic material

PMMA Clear Lens

Warranty

7 years

Country of origin

Australia

Configurator

How to specify

Select from the available options to configure luminaire

FSL70.___.___.___.___.___.___

Configured IES files

Configured Datasheet

Download all

Reset

Select configuration

No IES file

Project name:

Type number:

Quantity:

Date:

Output

200

770 - 945 lm

250

10W

955 - 1172 lm

300

12W

1137 - 1395 lm

350

14W

1317 - 1615 lm

Optic

25 25°

34 34°

54 54°

80 80°

LN Linear

OV Oval

CRI CCT

927 90+ 2700K

93 90+ 3000K

935 90+ 3500K

94 90+ 4000K

Dimming

61 Non Dim

66 DALI

68 Bluetooth (Casambi)

Housing colour

W White

B Black

X Custom

Options

IP IPX4

Accessories

FSL70.XLB XL Baffle

FSL70.HONEYCOMB Honeycomb Louvre

FSL70.COLOUR.XXX Specialty Colour Filter

FSL70.HALO RING Halo Ring

FSL70.IPX4 IPX4 Lens

Accessories

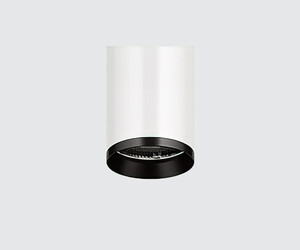

XL Baffle
FSL70.XLB

A deep 17mm baffle to provide extra visual comfort in sensititve areas. Supplied in black as standard. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

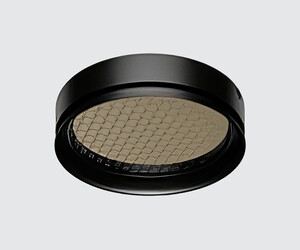

Honeycomb Louvre
FSL70.HONEYCOMB

Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.

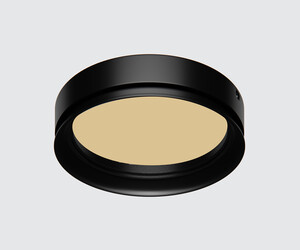

Specialty Colour Filter
FSL70.COLOUR.XXX

High quality borosilicate glass filters for premium colourfast performance. Available in a selection of colours. Easily installed by placing behind the luminaire baffle.

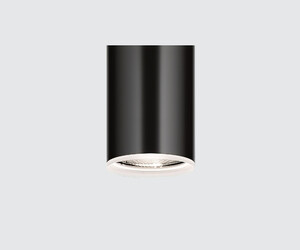

Halo Ring
FSL70.HALO RING

A discreet glowing ring attachment that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.
