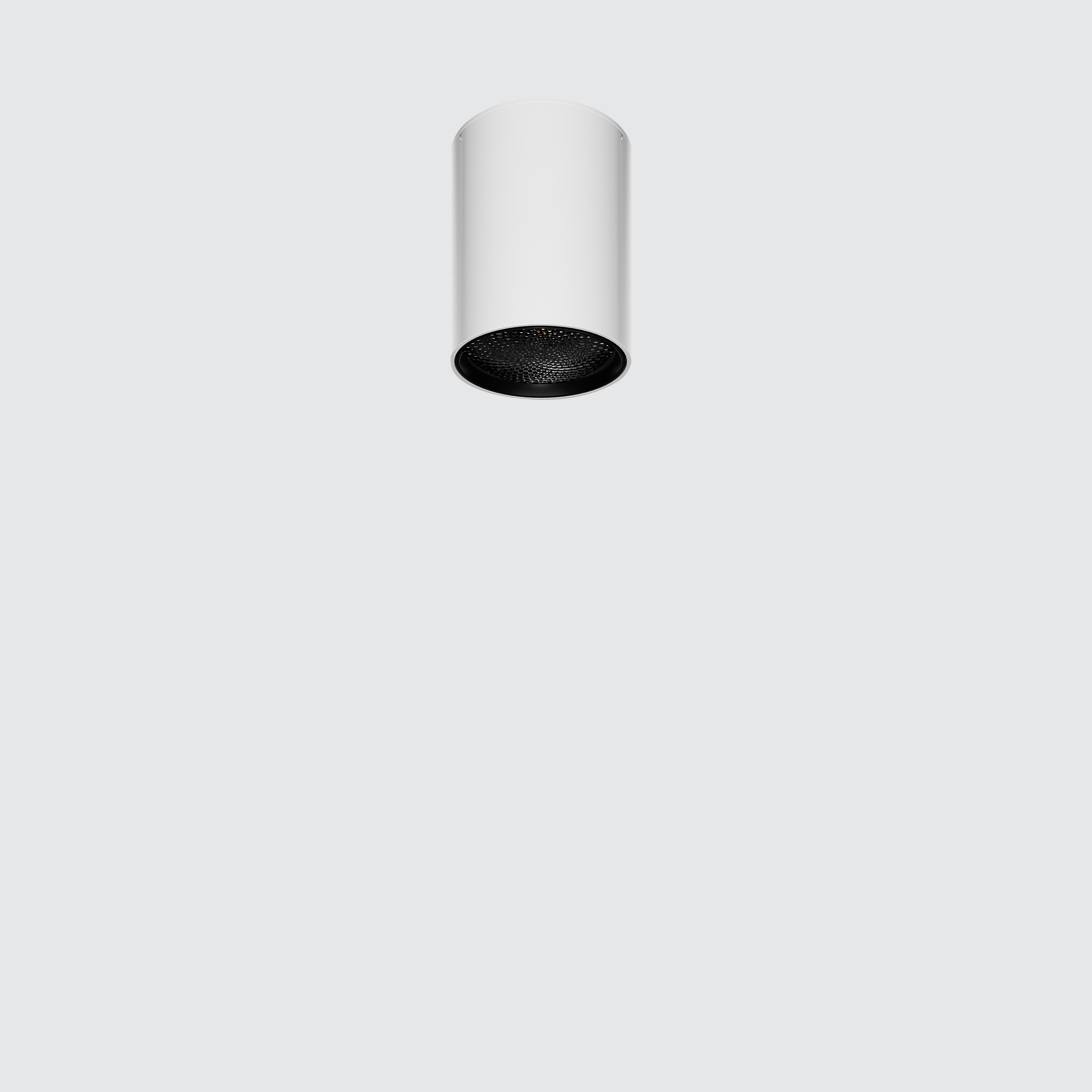

    FLEX 70 Surface Mini

    FSL70M

    Product Details

    Absolute luminous flux (lm)
    770 - 1615 lm
    Power (W)
    8 - 14W
    Optic options
    25° / 34° / 54° / 80° / Linear / Oval
    CRI
    90+
    CCT
    2700K / 3000K / 3500K / 4000K
    Colour deviation
    3 SDCM
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L90B10 > 90,000 hours
    Driver
    Integral
    Input voltage
    240v
    Housing material
    Aluminium
    Optic material
    PMMA Clear Lens
    Warranty
    7 years
    Country of origin
    Australia

    Configurator

    How to specify

    Select from the available options to configure luminaire

    FSL70M.___.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Output
    200
      8W
      770 - 945 lm
    250
      10W
      955 - 1172 lm
    300
      12W
      1137 - 1395 lm
    350
      14W
      1317 - 1615 lm
    Optic
    25   25°
    34   34°
    54   54°
    80   80°
    LN   Linear
    OV   Oval
    CRI CCT
    927   90+ 2700K
    93   90+ 3000K
    935   90+ 3500K
    94   90+ 4000K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Housing colour
    W   White
    B   Black
    X   Custom
    Options
    IP
    IP   IPX4
    Accessories
    FSL70M.HONEYCOMB   Honeycomb Louvre
    FSL70M.COLOUR.XXX   Specialty Colour Filter
    FSL70M.XLB   XL Baffle
    FSL70M.HALO RING   Halo Ring
    FSL70.IPX4   IPX4 Lens
    FSL70M.IP54   IP54 Lens

    Accessories

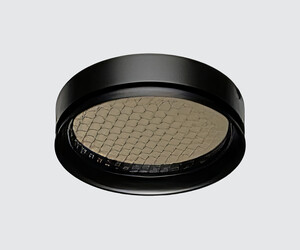

    Honeycomb Louvre
    FSL70M.HONEYCOMB

    Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.

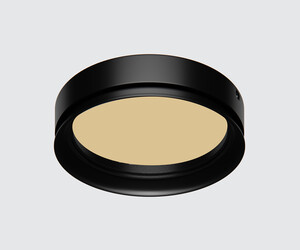

    Specialty Colour Filter
    FSL70M.COLOUR.XXX

    High quality borosilicate glass filters for premium colourfast performance. Available in a selection of colours. Easily installed by placing behind the luminaire baffle.

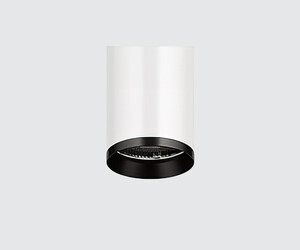

    XL Baffle
    FSL70M.XLB

    A deep 17mm baffle to provide extra visual comfort in sensititve areas. Supplied in black as standard. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

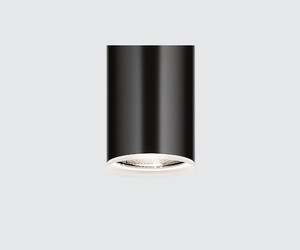

    Halo Ring
    FSL70M.HALO RING

    A discreet glowing ring attachment that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

    IPX4 Lens
    FSL70.IPX4

    A clear IPX4 lens. Required to be installed at time of manufacture.

    IP54 Lens
    FSL70M.IP54

    A clear IP54 lens. Required to be installed at time of manufacture. Not available in 18W version.

    Colour Options

    Housing colour
    White
    W
    Black
    B
    Custom
    X

    Technical Specifications

    Dimensions
