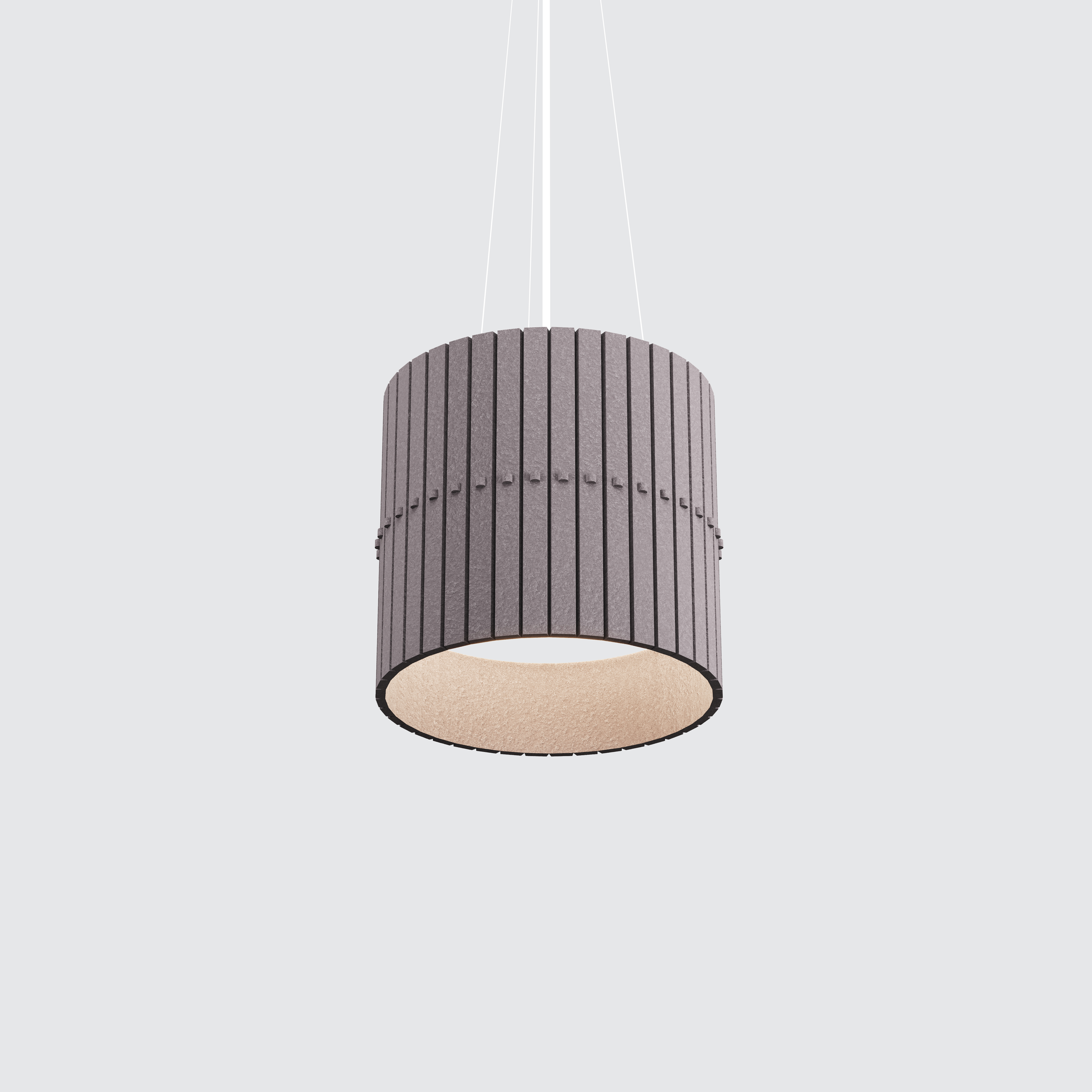

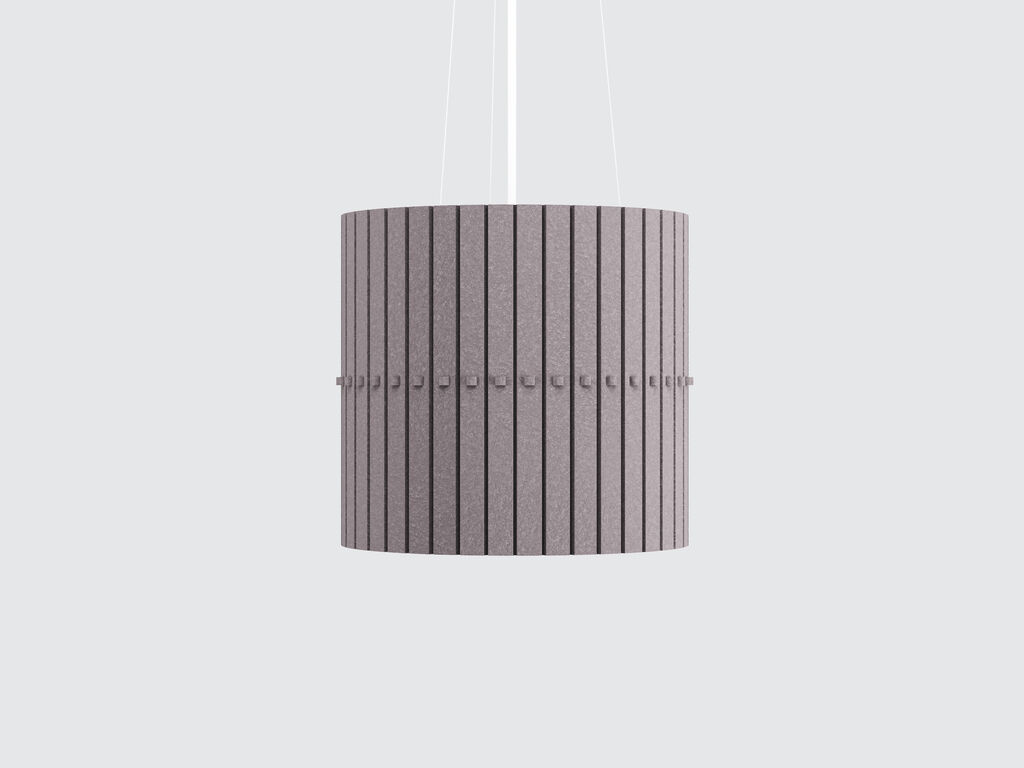

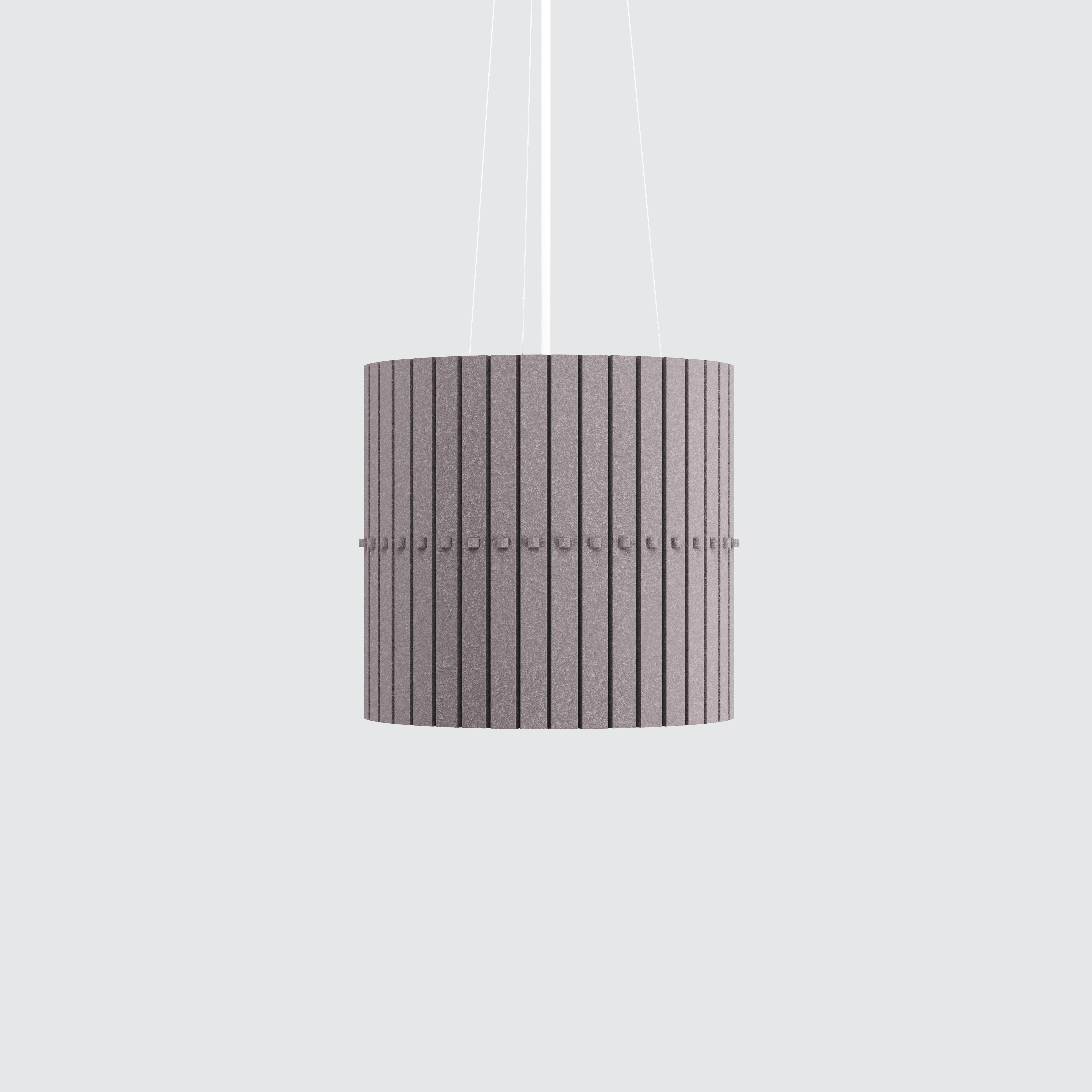

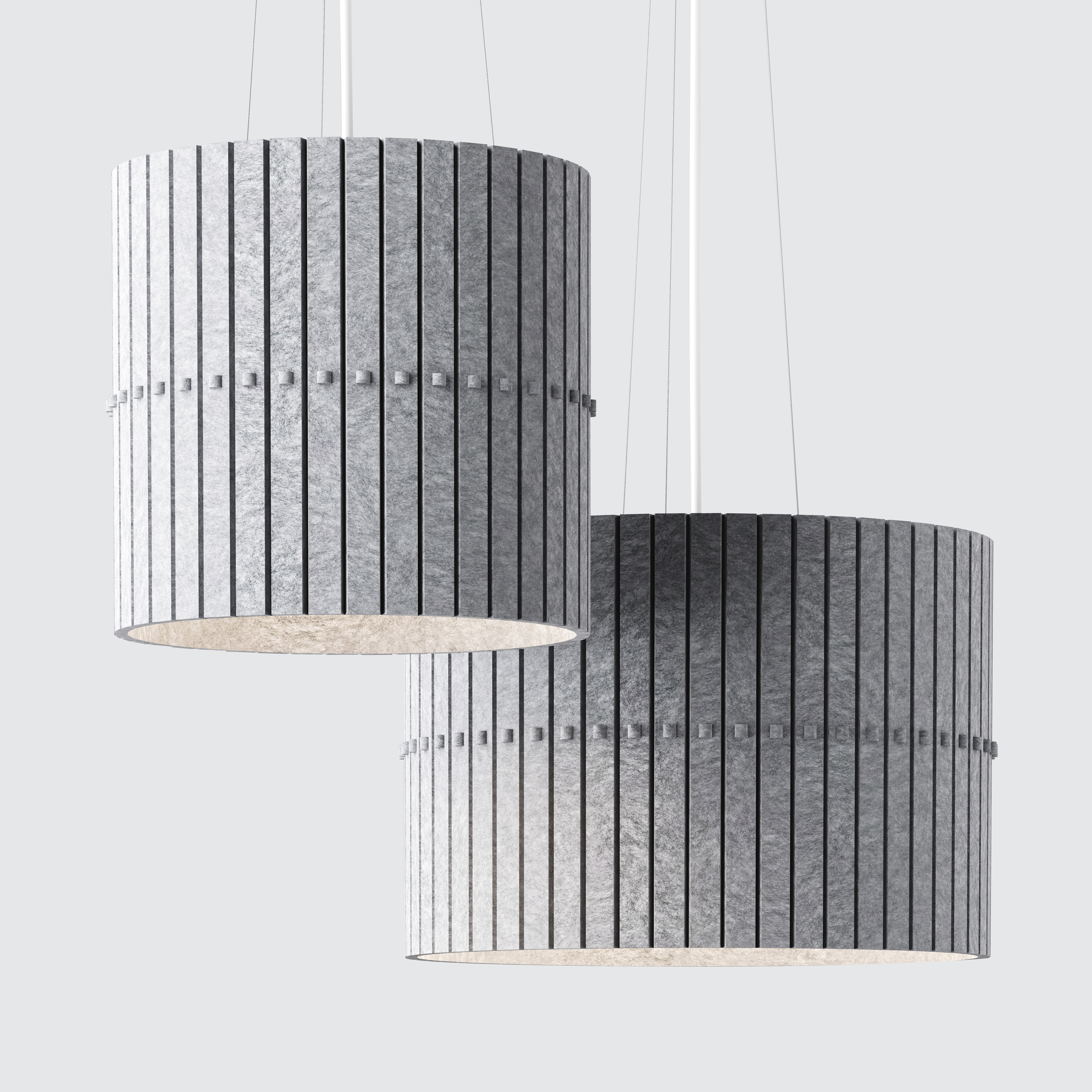

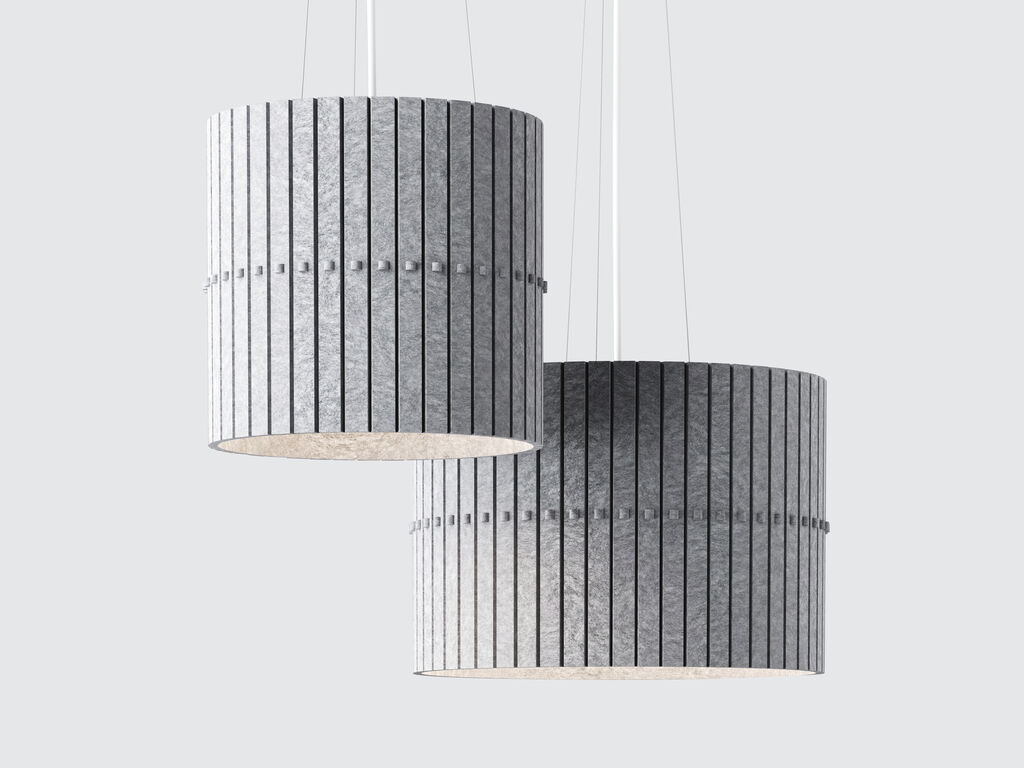

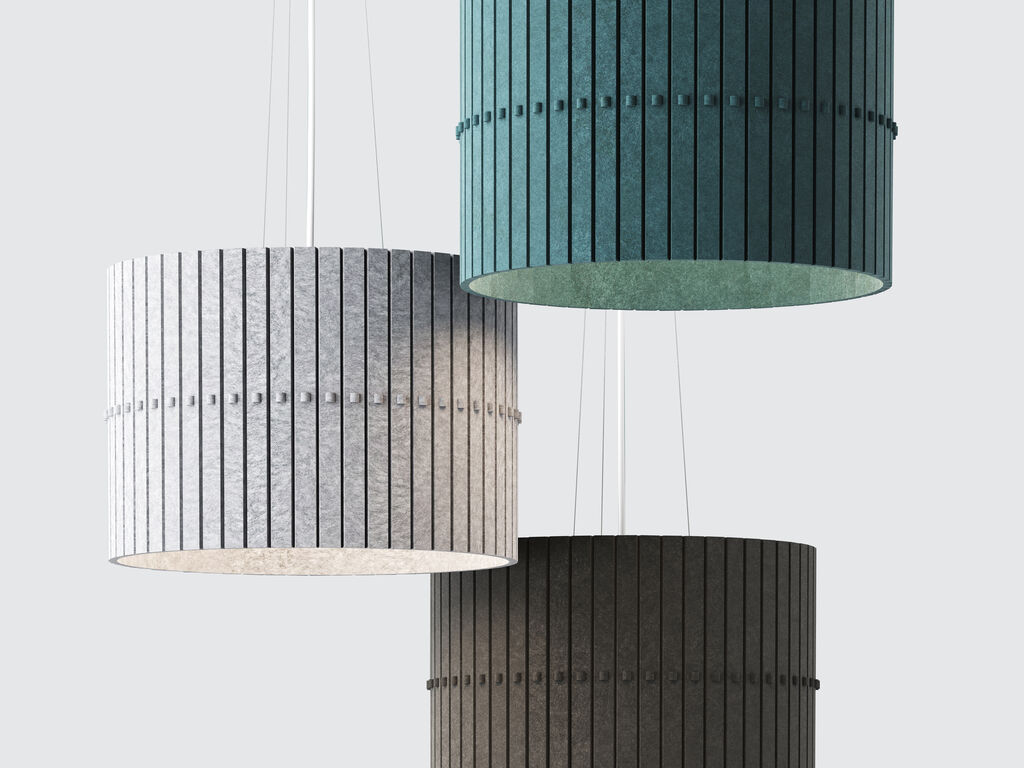

    FUSE 440 Round

    FSR440

    Product Details

    Absolute luminous flux (lm)
    1379 - 2562 lm / 558 - 746 lm (UP)
    Power (W)
    19 - 34W / 8 - 10W (UP)
    CRI
    90+
    CCT
    2700K / 3000K / 3500K / 4000K
    Colour deviation
    3 SDCM
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L80B10 > 72,000 hours
    Driver
    Integral
    Input voltage
    240v
    Housing material
    PET
    Optic material
    Opal Acrylic
    Suspension
    Wire suspension 1m
    Acoustic material
    100% PET (80% post-consumer recycled)
    Warranty
    7 years
    Country of origin
    Australia

    Configurator

    How to specify

    Select from the available options to configure luminaire

    FSR440.___.___.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    Acoustic cover colour and Connector colour must be selected (both or neither)
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Output
    500
      19W
      1379 - 1436 lm
    700
      27W
      1903 - 2003 lm
    900
      34W
      2400 - 2562 lm
    Output - UP
    150
      8 - 10W
      558 - 574 lm
    200
      10W
      728 - 746 lm
    CRI CCT
    927   90+ 2700K
    93   90+ 3000K
    935   90+ 3500K
    94   90+ 4000K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Acoustic cover colour

    See colour swatches. Type the short code name to select it.

    101   Light Grey
    106   Light Beige
    124   Gold Beige
    167   Terracotta
    193   Maroon
    269   Deep Maroon
    274   Lavender Gray
    295   Burnt Orange
    330   Navy Blue
    338   Teal Green
    349   Greyish Green
    365   Dark Gray
    381   Yellowish Green
    384   Olive Green
    402   Muted Gray
    442   Muted Gray
    444   Gray
    447   Dark Gray
    454   Speckled Gray
    468   Beige
    484   Brownish Gray
    487   Peach
    495   Taupe
    500   Plain
    542   Dark Gray
    550   Black
    551   Grayish Blue
    573   Sage Green
    579   Light Olive Green
    580   Plain Gray
    633   Sea Blue
    660   Light Slate Blue
    721   Light Brownish Tan
    908   Cream
    Connector colour

    See colour swatches. Type the short code name to select it.

    101   Light Grey
    106   Light Beige
    124   Gold Beige
    167   Terracotta
    193   Maroon
    269   Deep Maroon
    274   Lavender Gray
    295   Burnt Orange
    330   Navy Blue
    338   Teal Green
    349   Greyish Green
    365   Dark Gray
    381   Yellowish Green
    384   Olive Green
    402   Muted Gray
    442   Muted Gray
    444   Gray
    447   Dark Gray
    454   Speckled Gray
    468   Beige
    484   Brownish Gray
    487   Peach
    495   Taupe
    500   Plain
    542   Dark Gray
    550   Black
    551   Grayish Blue
    573   Sage Green
    579   Light Olive Green
    580   Plain Gray
    633   Sea Blue
    660   Light Slate Blue
    721   Light Brownish Tan
    908   Cream
    Options
    Cloth
    3C.BLK   Cloth Cable - 3 Core - Black
    3C.WH   Cloth Cable - 3 Core - White
    5C.BLK   Cloth Cable - 5 Core - Black
    5C.WH   Cloth Cable - 5 Core - White

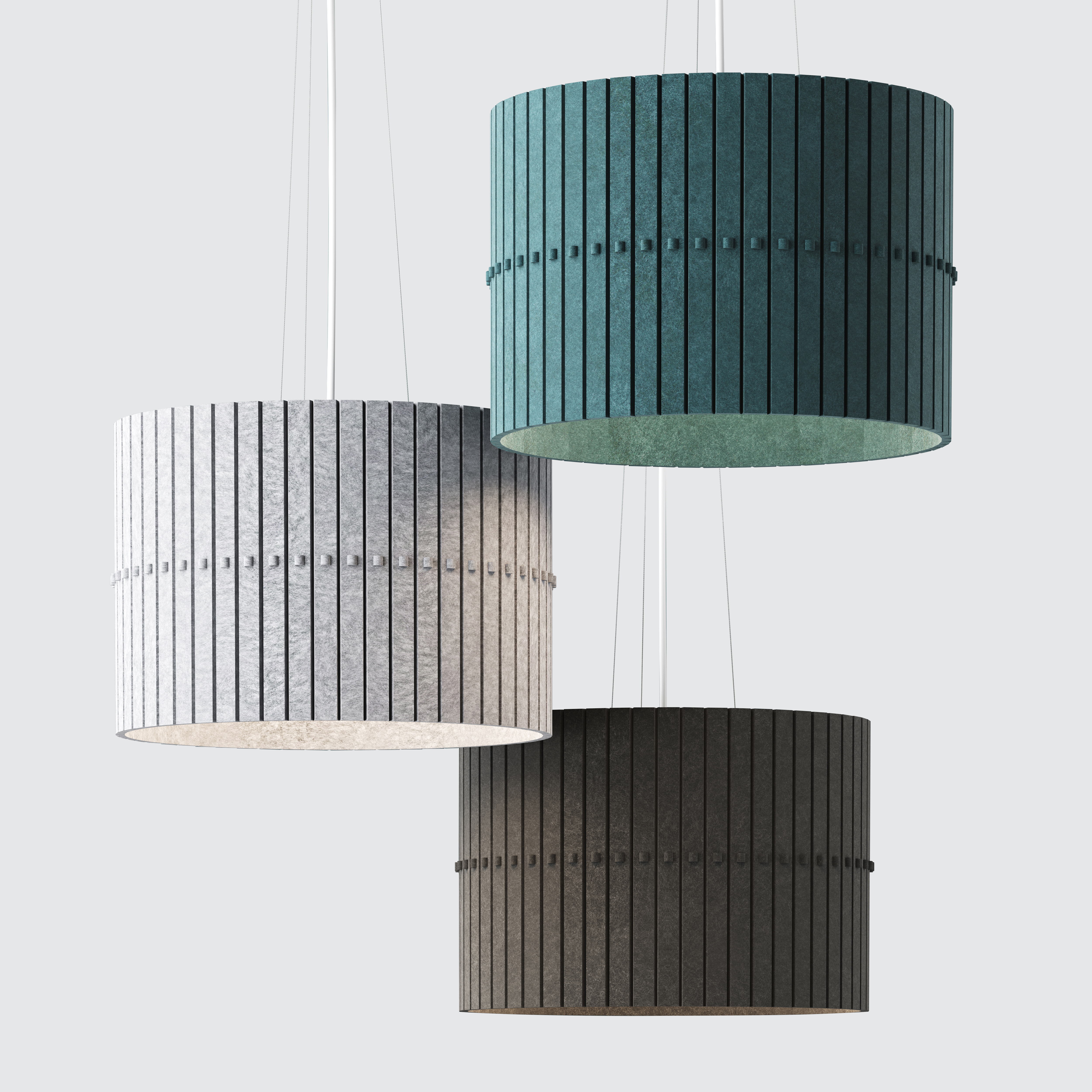

    Colour Options

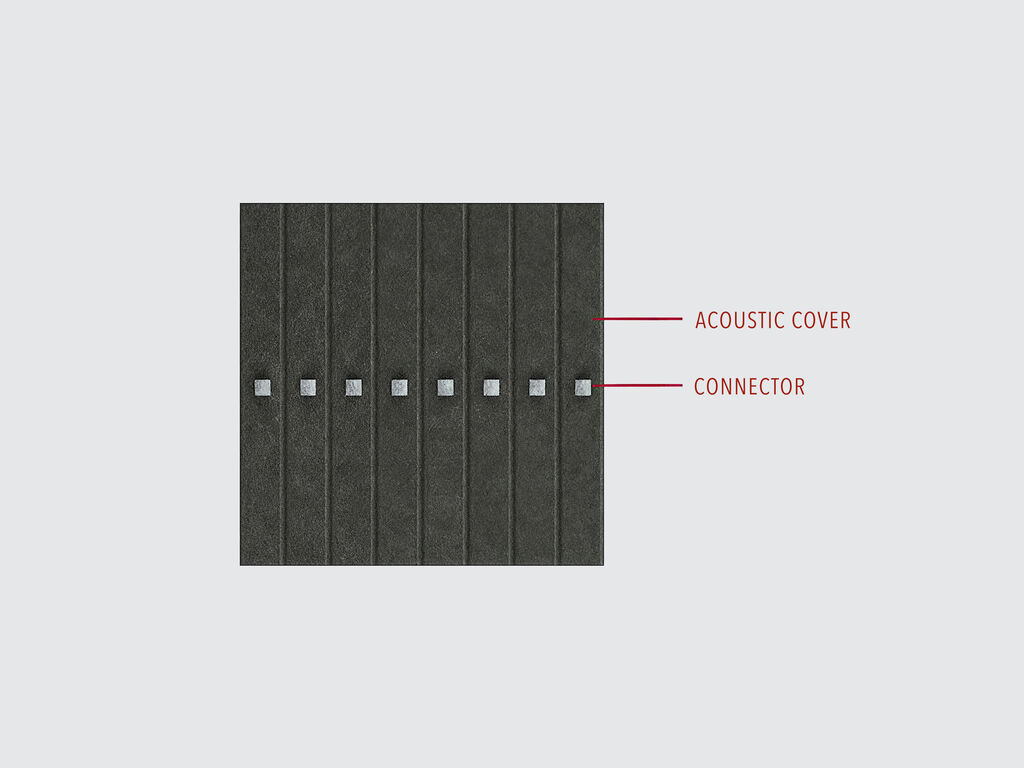

    Acoustic cover colour & Connector colour
    Light Grey
    101
    Light Beige
    106
    Gold Beige
    124
    Terracotta
    167
    Maroon
    193
    Deep Maroon
    269
    Lavender Gray
    274
    Burnt Orange
    295
    Navy Blue
    330
    Teal Green
    338
    Greyish Green
    349
    Dark Gray
    365
    Yellowish Green
    381
    Olive Green
    384
    Muted Gray
    402
    Muted Gray
    442
    Gray
    444
    Dark Gray
    447
    Speckled Gray
    454
    Beige
    468
    Brownish Gray
    484
    Peach
    487
    Taupe
    495
    Plain
    500
    Dark Gray
    542
    Black
    550
    Grayish Blue
    551
    Sage Green
    573
    Light Olive Green
    579
    Plain Gray
    580
    Sea Blue
    633
    Light Slate Blue
    660
    Light Brownish Tan
    721
    Cream
    908

    Options

    Cloth Cable - 3 Core - Black
    3C.BLK
    Cloth Cable - 3 Core - White
    3C.WH
    Cloth Cable - 5 Core - Black
    5C.BLK
    Cloth Cable - 5 Core - White
    5C.WH

    Technical Specifications

    Dimensions
    Acoustic Properties

    Frequency HzSound Absorption Coefficient
    2500.60
    5000.58
    10000.62
    20000.79
    40000.81

    All testing carried out is compliant to the following Australian Standards.

    AS ISO 354-2006 (R2016) Acoustics—Measurement of sound absorption in a reverberation room
    AS ISO 11654—2002 Rating of sound absorption—Materials and systems
    ASTM C423-17 Standard Test Method for Sound Absorption and Sound Absorption Coefficients by the Reverberation Room Method
    ASTM E795-16 Standard Practices for Mounting Test Specimens During Sound Absorption Tests
    ISO 20189 Screens, furniture and single objects intended for interior use – Rating of sound absorption and sound reduction of elements based on laboratory measurements.
