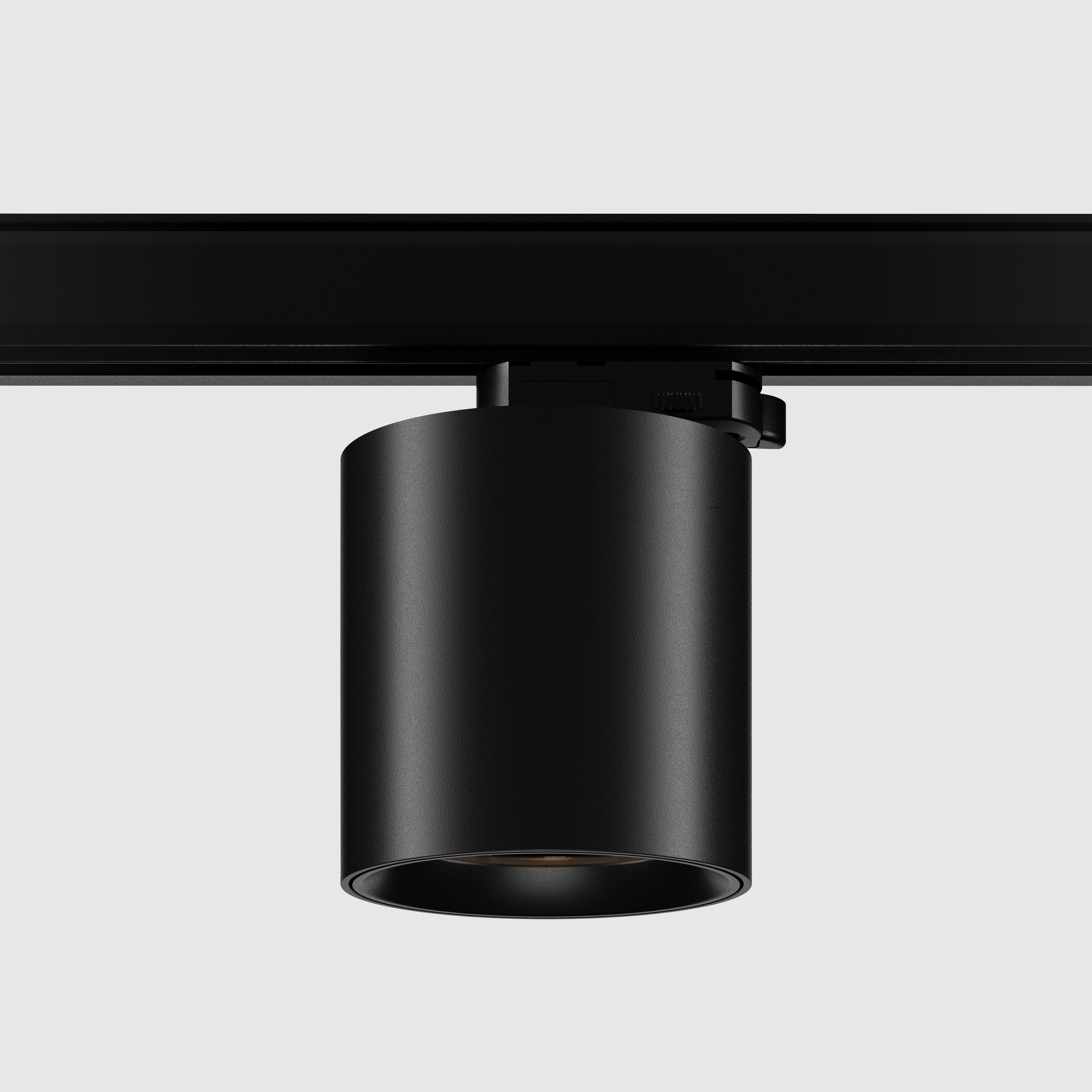

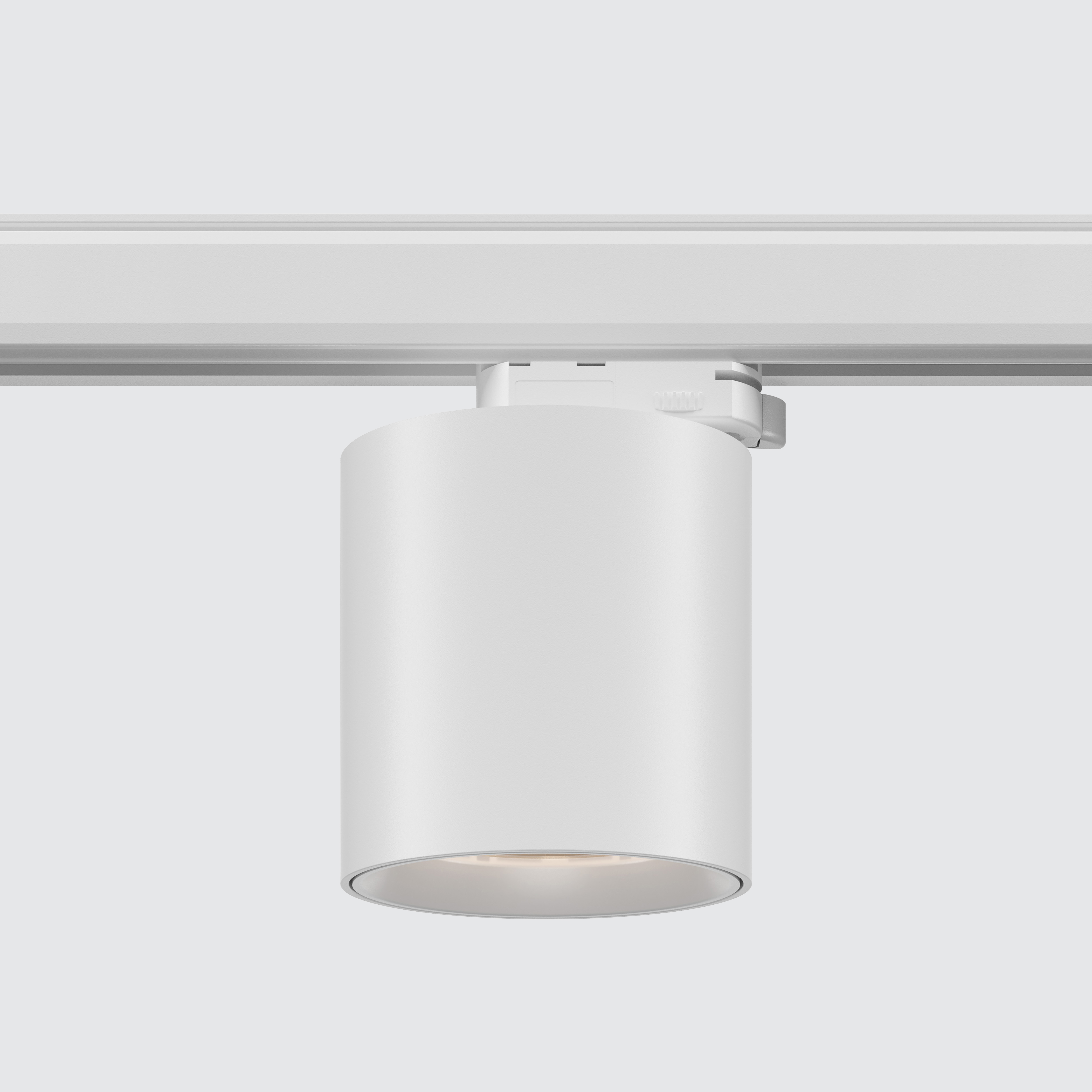

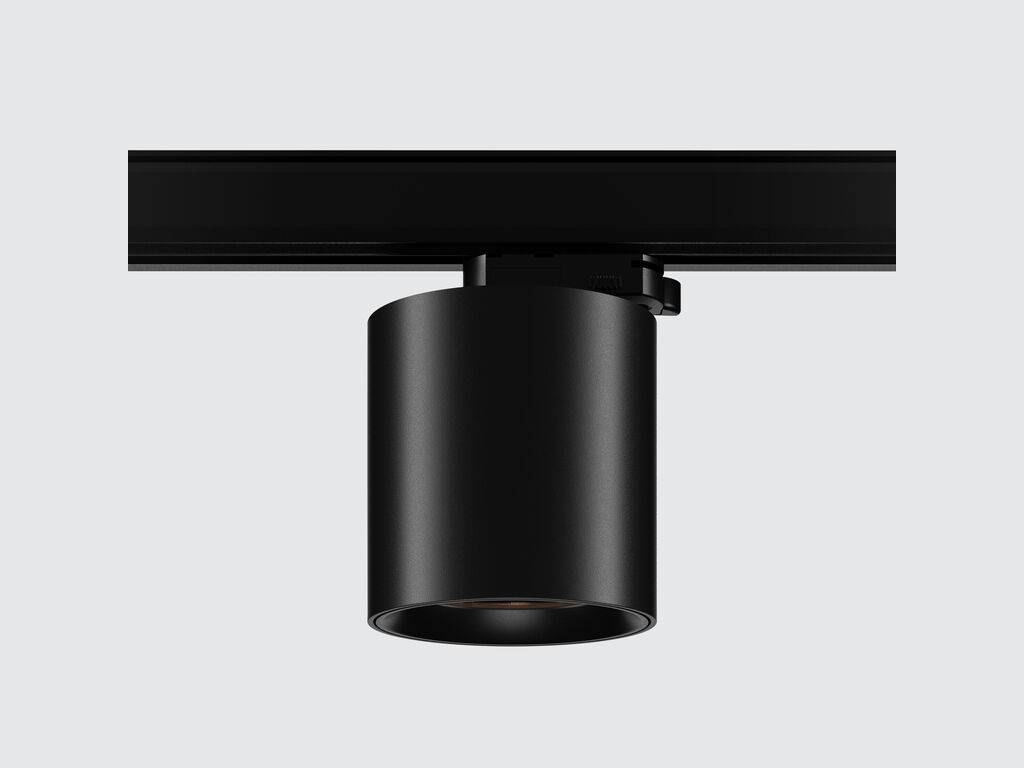

FLEX 100 Mini Track Downlight
FTL100M
Product Details
Absolute luminous flux (lm)
770 - 2046 lm
Power (W)
8 - 17W
Optic options
13° / 25° / 34° / 54° / 80°
CRI
90+
CCT
2700K / 3000K / 3500K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L90B10 > 90,000 hours
Driver
Integral
Input voltage
240v
Housing material
Aluminium
Optic material
PMMA Clear Lens
Warranty
7 years
Country of origin
Australia
Configurator
How to specify
Select from the available options to configure luminaire
FTL100M.___.___.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Output
200
8W
770 - 945 lm
250
10W
955 - 1172 lm
300
12W
1137 - 1395 lm
350
14W
1317 - 1615 lm
400
15.5W
1493 - 1832 lm
450
17W
1667 - 2046 lm
Optic
13 13°
25 25°
34 34°
54 54°
80 80°
CRI CCT
927 90+ 2700K
93 90+ 3000K
935 90+ 3500K
94 90+ 4000K
Dimming
61 Non Dim
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
X Custom
Options
WB White Baffle
BB Black Baffle
XX Custom Baffle
Accessories

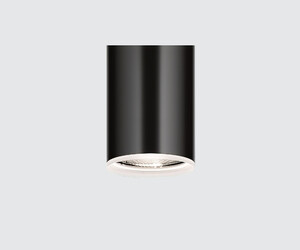

FTL100M.HALO RING Halo ring
Accessories
Colour Options
Housing colour
White
W
Black
B
Custom
X
Options
Black Baffle
BB
White Baffle
WB
Technical Specifications
Dimensions
