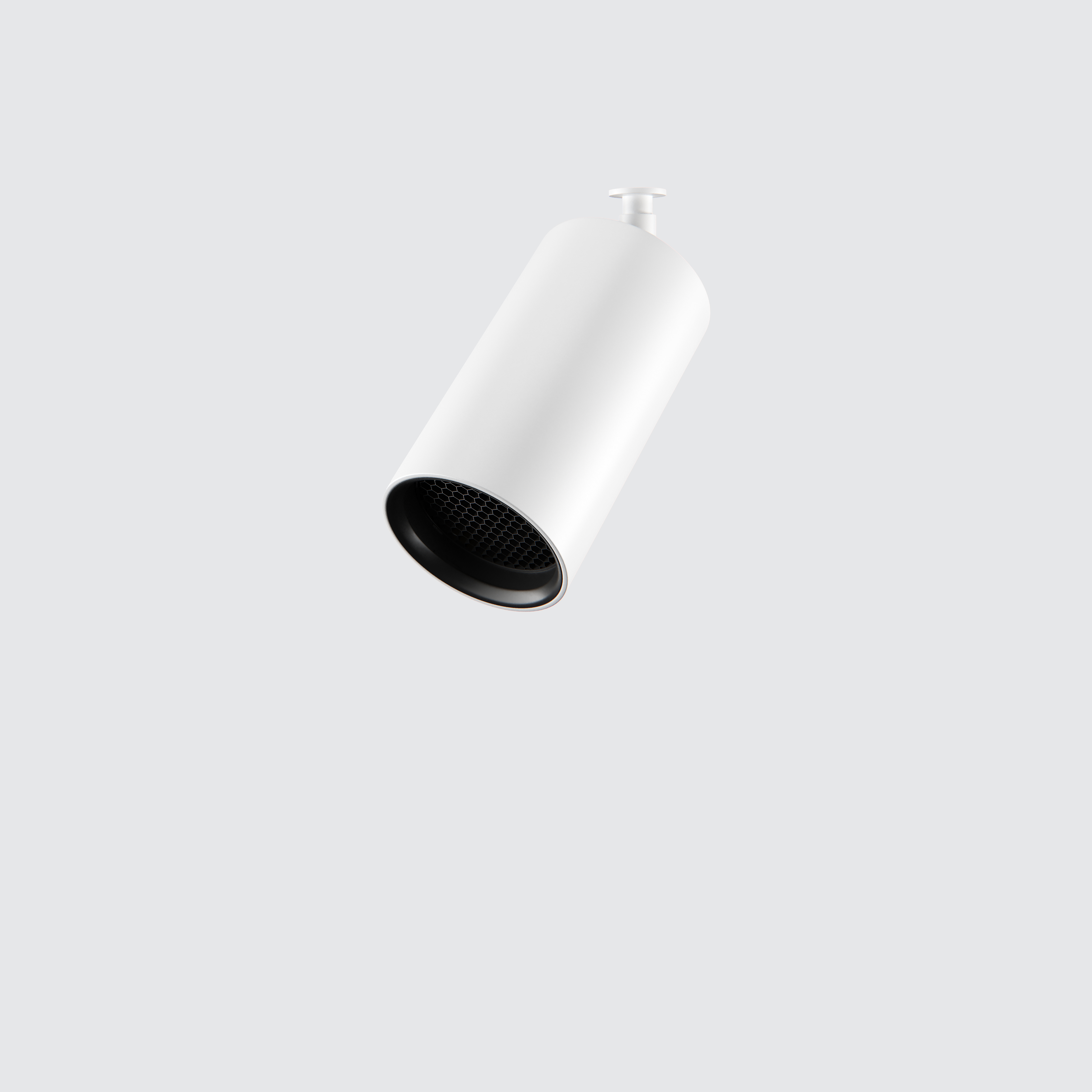

    FLEX 50 Trackspot

    FTL50

    Product Details

    Absolute luminous flux (lm)
    572 - 1115 lm
    Power (W)
    6 - 10W
    Optic options
    16° / 24° / 33° / 55° / Linear / Oval / Zoom
    CRI
    90+
    CCT
    2700K / 3000K / 3500K / 4000K
    Colour deviation
    3 SDCM
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L90B10 > 90,000 hours
    Driver
    Integral
    Input voltage
    240v
    Housing material
    Aluminium
    Optic material
    PMMA Clear Lens
    Warranty
    7 years
    Country of origin
    Australia

    Configurator

    How to specify

    Select from the available options to configure luminaire

    FTL50.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Output
    150
      6W
      572 - 718 lm
    200
      8W
      764 - 959 lm
    250
      10W
      842 - 1115 lm
    Optic
    16   16°
    24   24°
    33   33°
    55   55°
    LN   Linear
    OV   Oval
    ZM   Zoom
    CRI CCT
    927   90+ 2700K
    93   90+ 3000K
    935   90+ 3500K
    94   90+ 4000K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Housing colour
    W   White
    B   Black
    X   Custom
    Accessories
    FTL50.HALO RING   Halo Ring
    FTL50.HONEYCOMB   Honeycomb Louvre
    FTL50.COLOUR.XXX   Specialty Colour Filter
    FTL50.XLB   XL Baffle
    FTL50.SNOOT   Snoot
    FTL50.ANGLE SNOOT   Angle Snoot

    Accessories

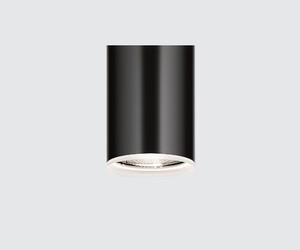

    Halo Ring
    FTL50.HALO RING

    A discreet glowing ring attachment that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

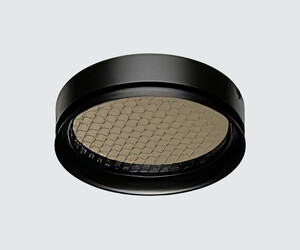

    Honeycomb Louvre
    FTL50.HONEYCOMB

    Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.

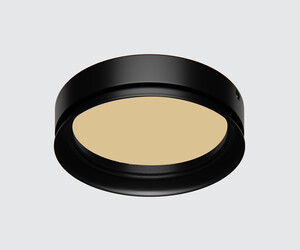

    Specialty Colour Filter
    FTL50.COLOUR.XXX

    High quality borosilicate glass filters for premium colourfast performance. Available in a selection of colours. Easily installed by placing behind the luminaire baffle.

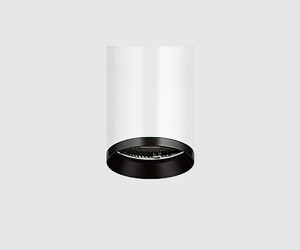

    XL Baffle
    FTL50.XLB

    A deep 17mm baffle to provide extra visual comfort in sensititve areas. Supplied in black as standard. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

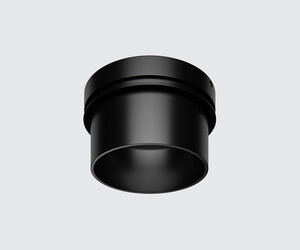

    Snoot
    FTL50.SNOOT

    Used to provide extra glare control or additional defined light control along with reducing beam distributions to a narrower spot.

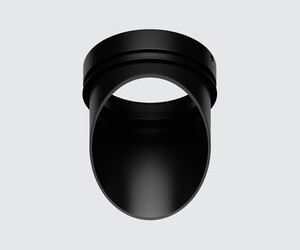

    Angle Snoot
    FTL50.ANGLE SNOOT

    Used to provide extra glare control or additional defined light control along with reducing beam distributions to a narrower spot.

    Colour Options

    Housing colour
    Black
    B
    White
    W
    Custom
    X

    Technical Specifications

    Dimensions
