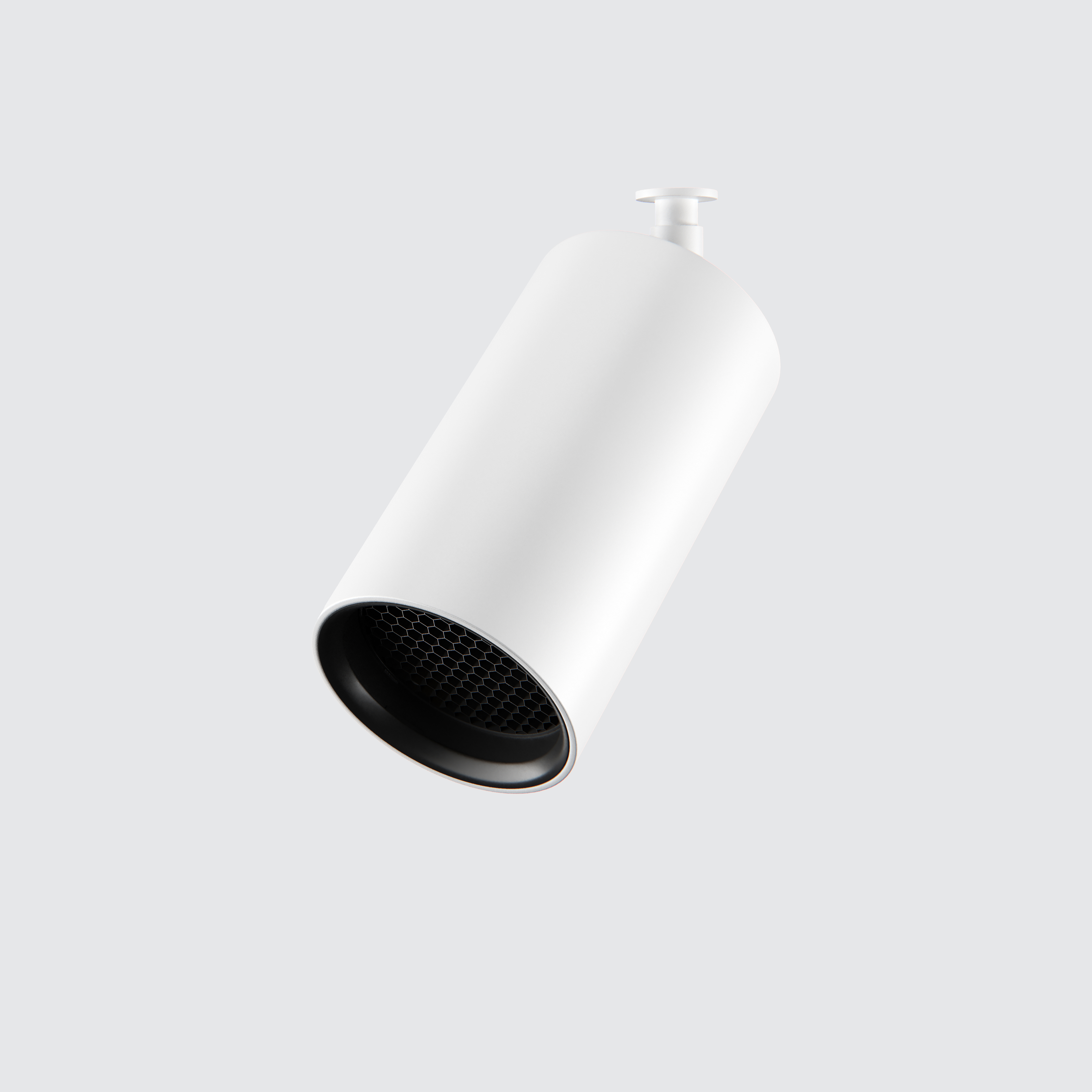

FLEX 70 Trackspot

FTL70

Product Details

Absolute luminous flux (lm)

429.5 - 2230 lm

Power (W)

8 - 20W

Optic options

7° / 25° / 34° / 54° / 80° / Linear / Oval / Zoom

CRI

90+

CCT

2700K / 3000K / 3500K / 4000K

Colour deviation

3 SDCM

Dimming methods

Non Dim / DALI / Bluetooth (Casambi)

Lumen maintenance (hours)

L90B10 > 90,000 hours

Driver

Integral

Input voltage

240v

Housing material

Aluminium

Optic material

PMMA Clear Lens

Warranty

7 years

Country of origin

Australia

Configurator

How to specify

Select from the available options to configure luminaire

FTL70.___.___.___.___.___

Configured IES files

Configured Datasheet

Download all

Reset

Select configuration

No IES file

Project name:

Type number:

Quantity:

Date:

Output

200

429.5 - 945 lm

250

10W

474 - 1172 lm

300

12W

1137 - 1395 lm

350

14W

1317 - 1615 lm

400

16W

1493 - 1832 lm

450

18W

1667 - 2046 lm

500

20W

1819 - 2230 lm

Optic

7 7°

25 25°

34 34°

54 54°

80 80°

LN Linear

OV Oval

ZM Zoom

CRI CCT

927 90+ 2700K

93 90+ 3000K

935 90+ 3500K

94 90+ 4000K

Dimming

61 Non Dim

66 DALI

68 Bluetooth (Casambi)

Housing colour

W White

B Black

X Custom

Accessories

FTL70.HONEYCOMB Honeycomb Louvre

FTL70.COLOUR.XXX Specialty Colour Filter

FTL70.XLB XL Baffle

FTL70.HALO RING Halo Ring

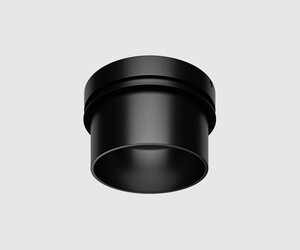

FTL70.SNOOT Snoot

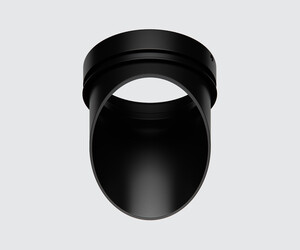

FTL70.ANGLE SNOOT Angle Snoot

Accessories

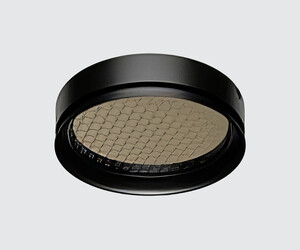

Honeycomb Louvre
FTL70.HONEYCOMB

Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.

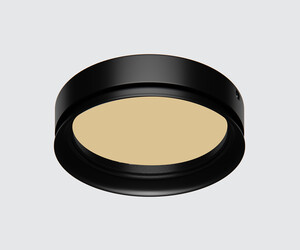

Specialty Colour Filter
FTL70.COLOUR.XXX

High quality borosilicate glass filters for premium colourfast performance. Available in a selection of colours. Easily installed by placing behind the luminaire baffle.

XL Baffle
FTL70.XLB

A deep 17mm baffle to provide extra visual comfort in sensititve areas. Supplied in black as standard. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

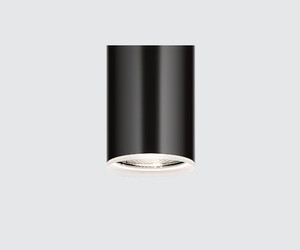

Halo Ring
FTL70.HALO RING

A discreet glowing ring attachment that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.
