    FLEX 50 Trimless

    FTM50

    Product Details

    Absolute luminous flux (lm)
    735 - 1275 lm
    Power (W)
    7 - 13W
    Optic options
    16° / 24° / 35° / 54°
    CRI
    90+
    CCT
    2700K / 3000K / 3500K / 4000K
    Colour deviation
    3 SDCM
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L90B10 > 90,000 hours
    Driver
    Remote
    Input voltage
    240v
    Housing material
    Aluminium
    Optic material
    PMMA Clear Lens
    Warranty
    7 years
    Country of origin
    Australia
    Cut out size
    Ø95mm

    Configurator

    How to specify

    Select from the available options to configure luminaire

    FTM50.___.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Output
    200
      7W
      735 - 780 lm
    250
      9W
      897 - 953 lm
    300
      11W
      1060 - 1120 lm
    350
      13W
      1214 - 1275 lm
    Optic
    16   16°
    24   24°
    35   35°
    54   54°
    CRI CCT
    927   90+ 2700K
    93   90+ 3000K
    935   90+ 3500K
    94   90+ 4000K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Housing colour
    W   White
    B   Black
    X   Custom
    Options
    IP
    IP   IPX4
    Accessories
    FTM50.IP44   IP44 Attachement

    Accessories

    IP44 Attachement
    FTM50.IP44

    A factory modification that creates an IP44 rating from below the ceiling. Cannot be retrofitted at a later date.

    Colour Options

    Housing colour

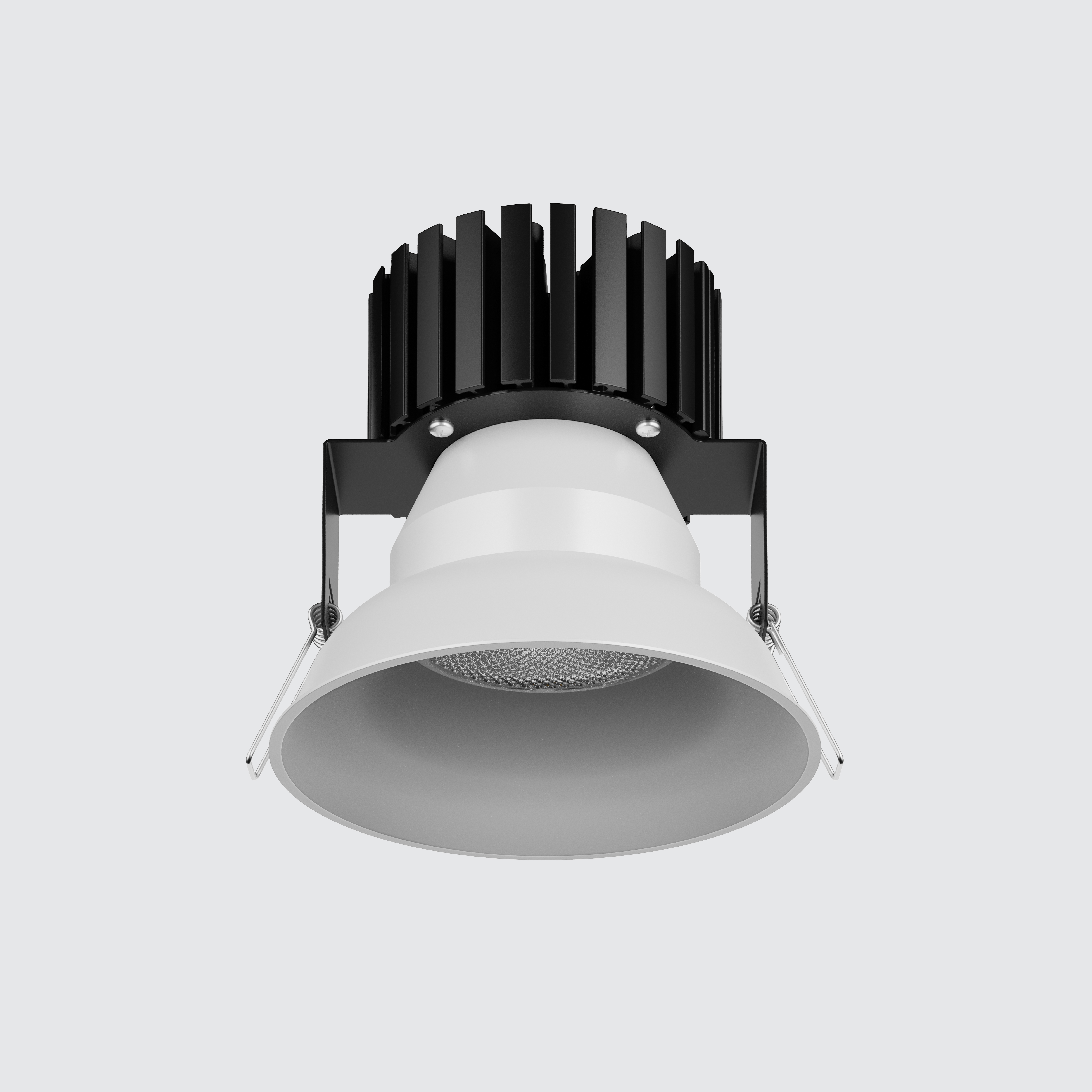

    White
    W

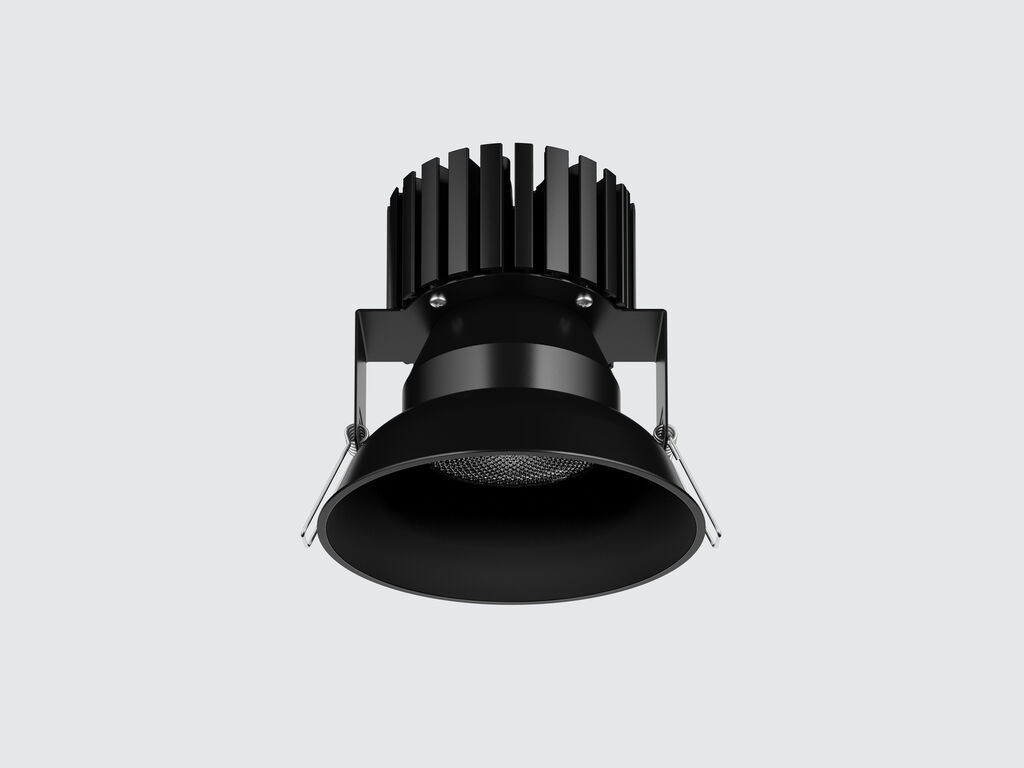

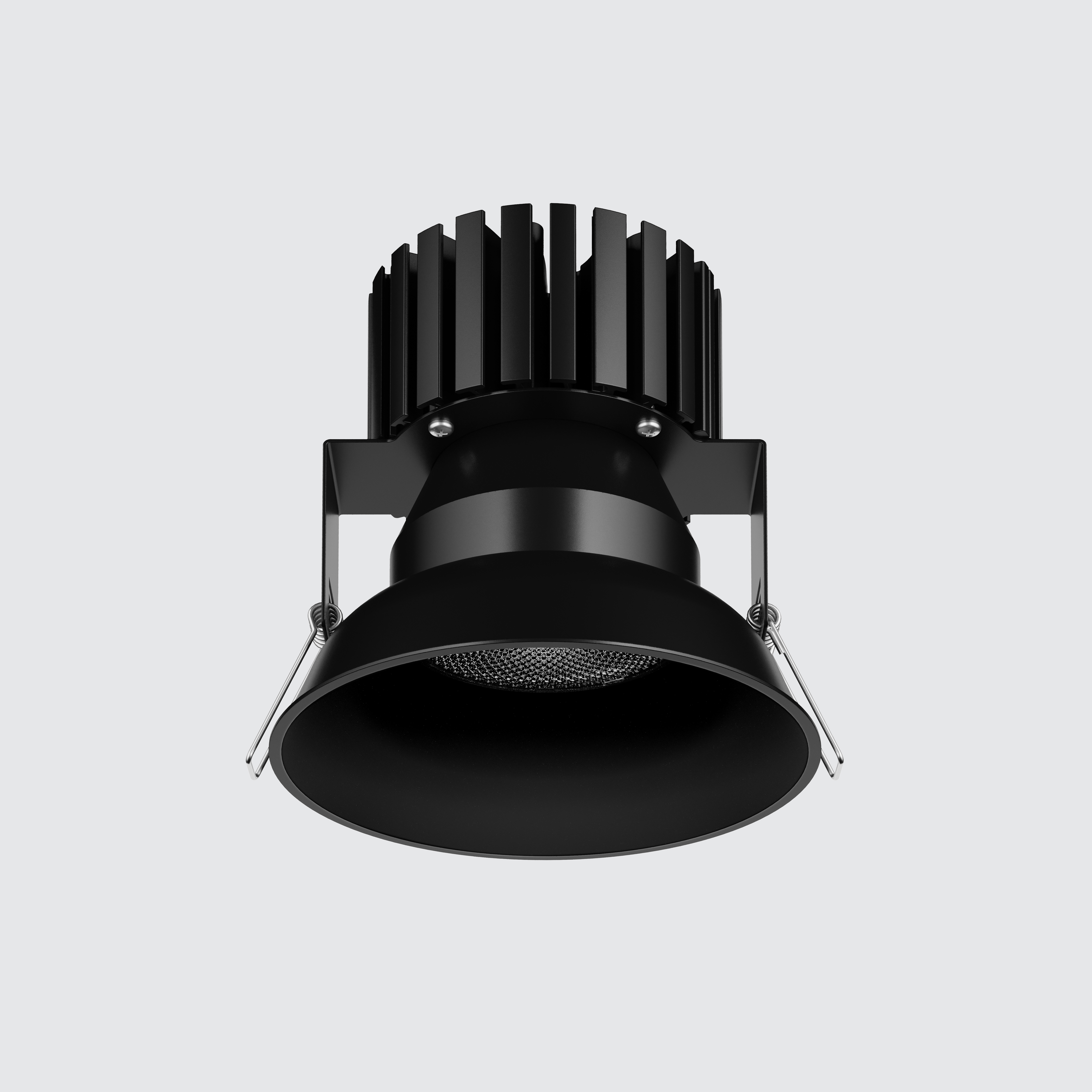

    Black
    B
    Custom
    X

    Technical Specifications

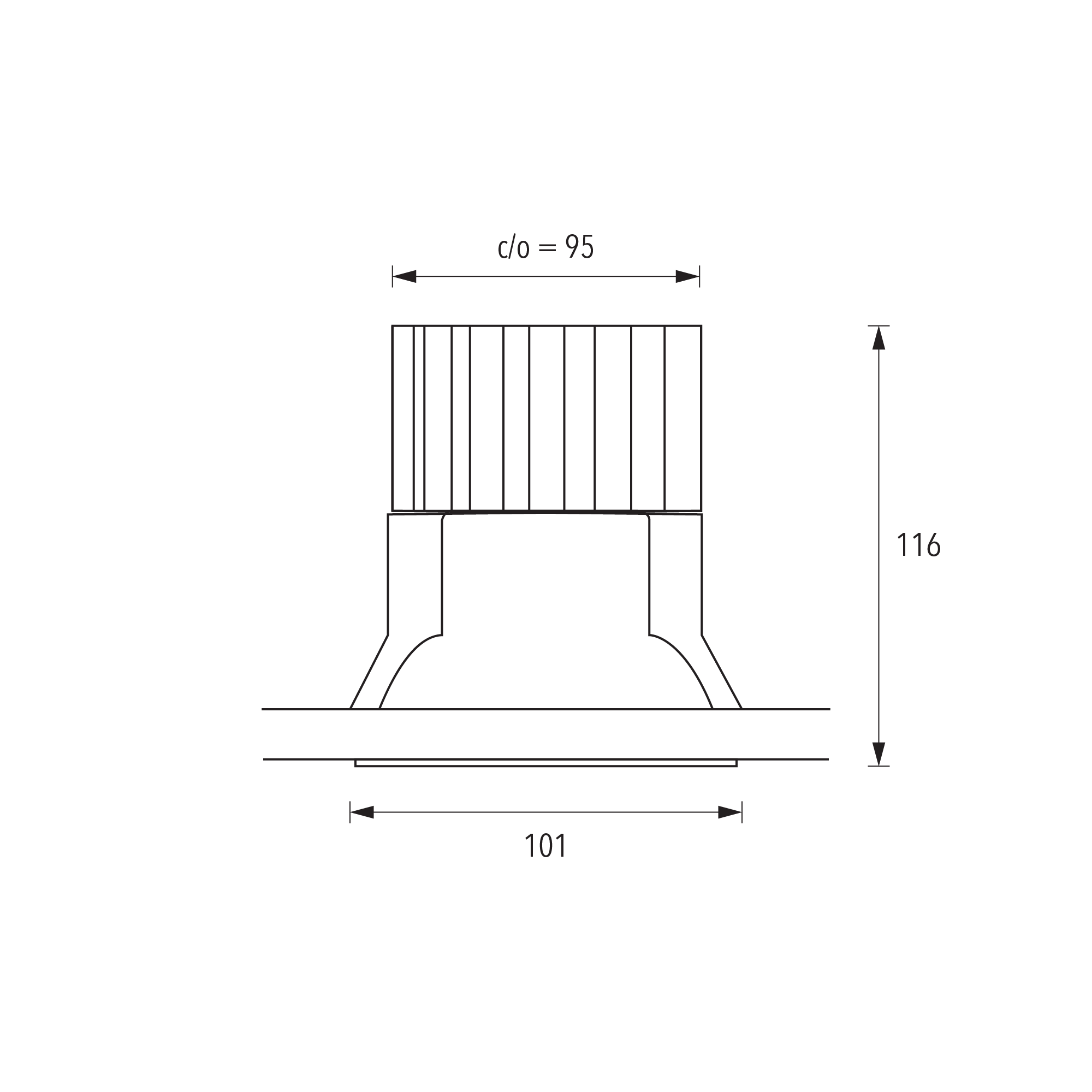

    Dimensions
