FLEX 70 Trimless
FTM70
Product Details
Absolute luminous flux (lm)
734 - 2017 lm
Power (W)
8 - 20W
Optic options
24° / 35° / 54° / 80°
CRI
90+
CCT
2700K / 3000K / 3500K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L90B10 > 90,000 hours
Driver
Remote
Input voltage
240v
Housing material
Aluminium
Optic material
PMMA Clear Lens
Warranty
7 years
Country of origin
Australia
Cut out size
Ø127mm
Configurator
How to specify
Select from the available options to configure luminaire
FTM70.___.___.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Output
200
8W
734 - 862 lm
250
10W
903 - 1062 lm
300
12W
1172 - 1257 lm
350
14W
1230 - 1448 lm
400
16W
1410 - 1631 lm
450
17 - 18W
1537 - 1823 lm
500
19 - 20W
1700 - 2017 lm
Optic
24 24°
35 35°
54 54°
80 80°
CRI CCT
927 90+ 2700K
93 90+ 3000K
935 90+ 3500K
94 90+ 4000K
Dimming
61 Non Dim
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
X Custom
Options
IP IPX4
Colour Options
Housing colour

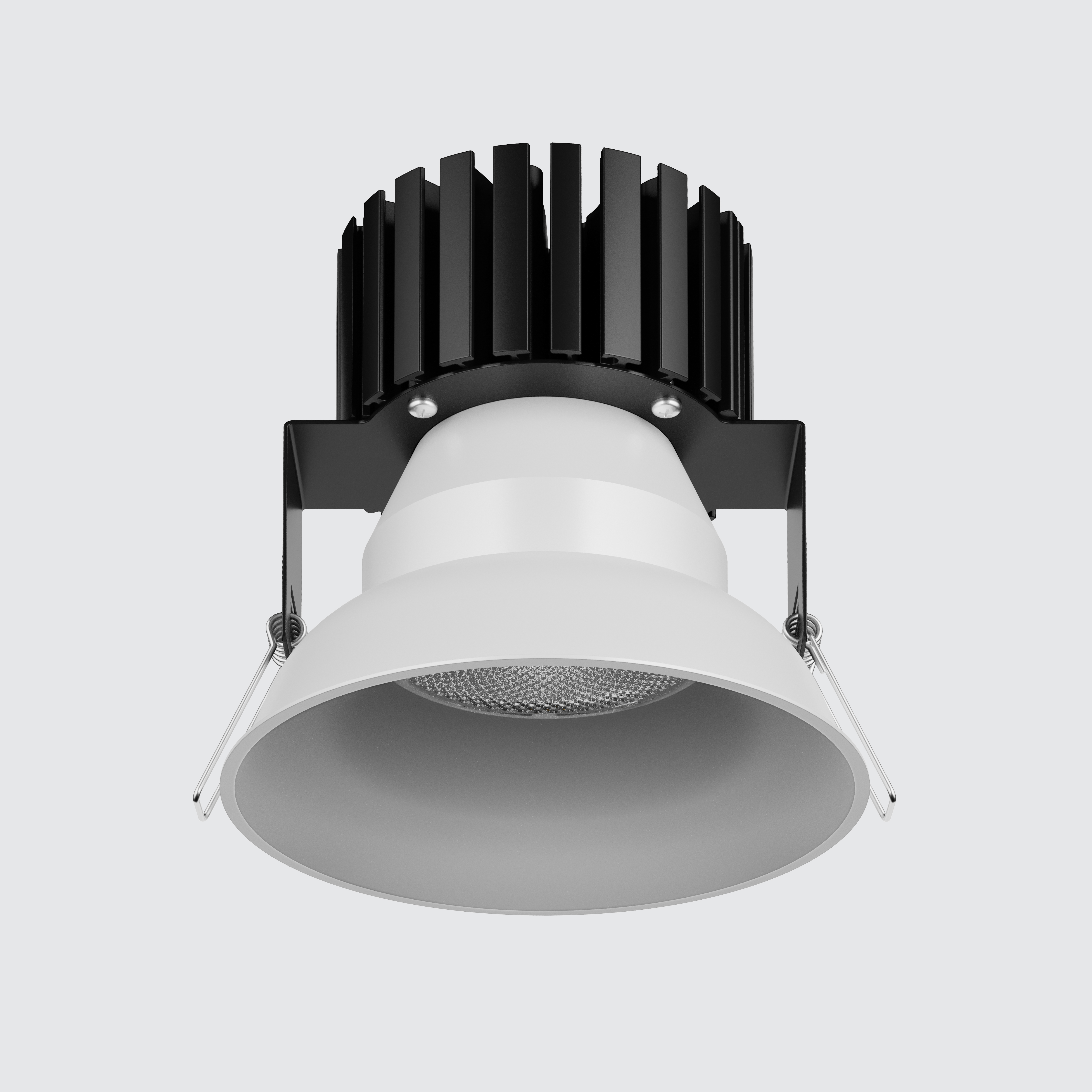

White
W

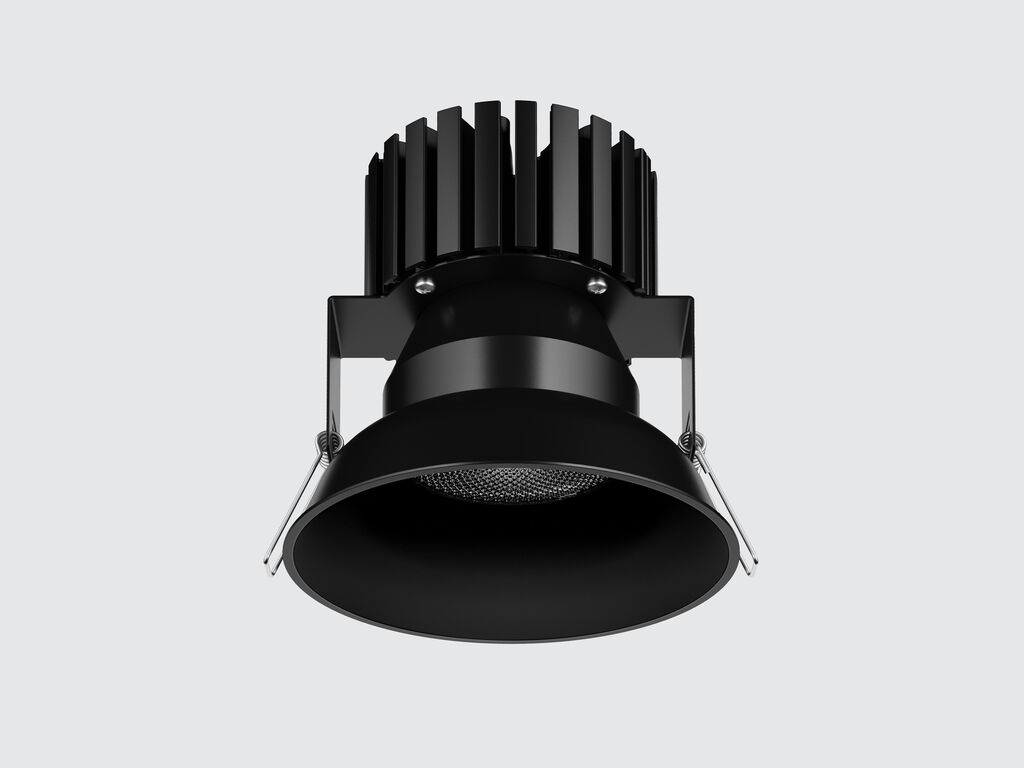

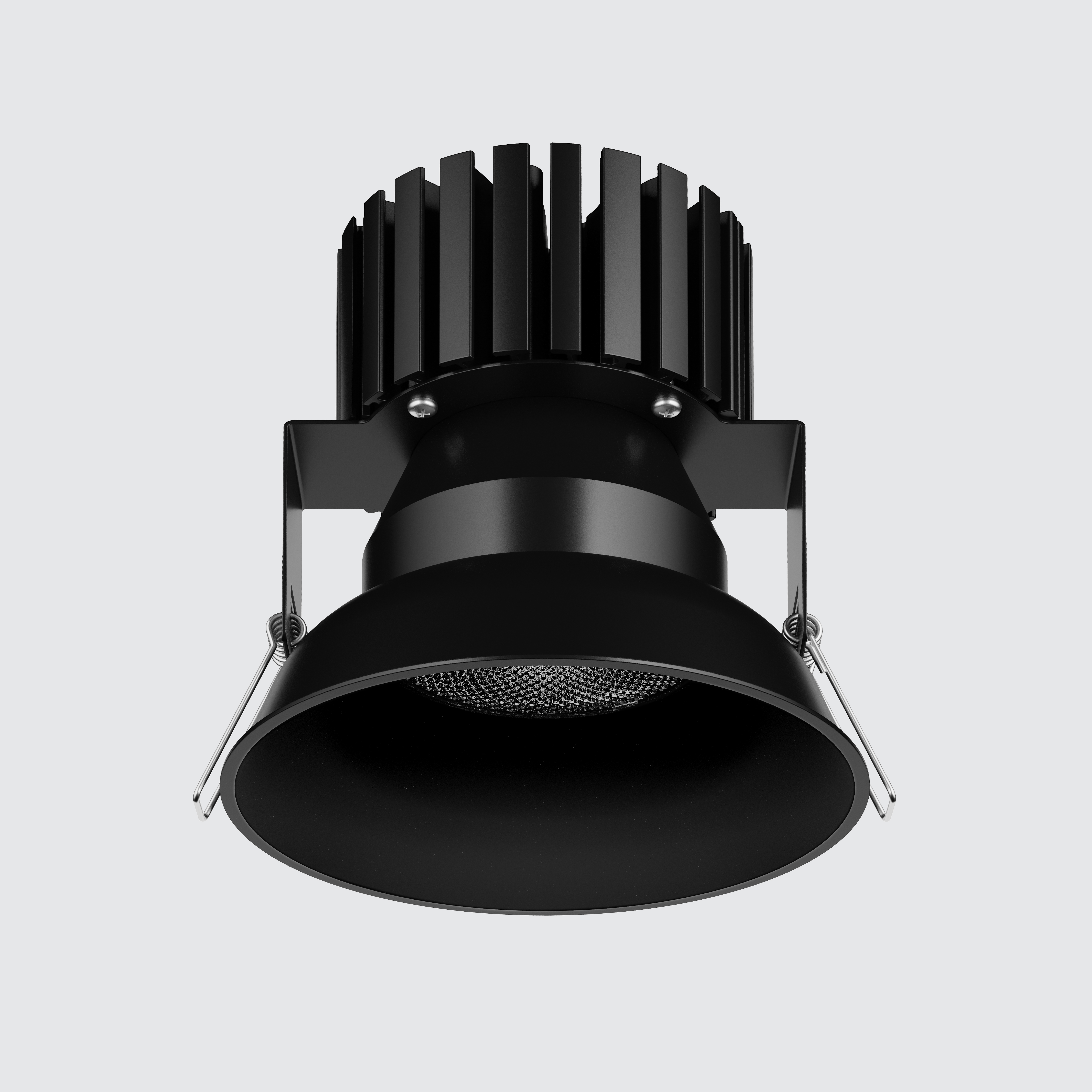

Black
B
Custom
X
Technical Specifications

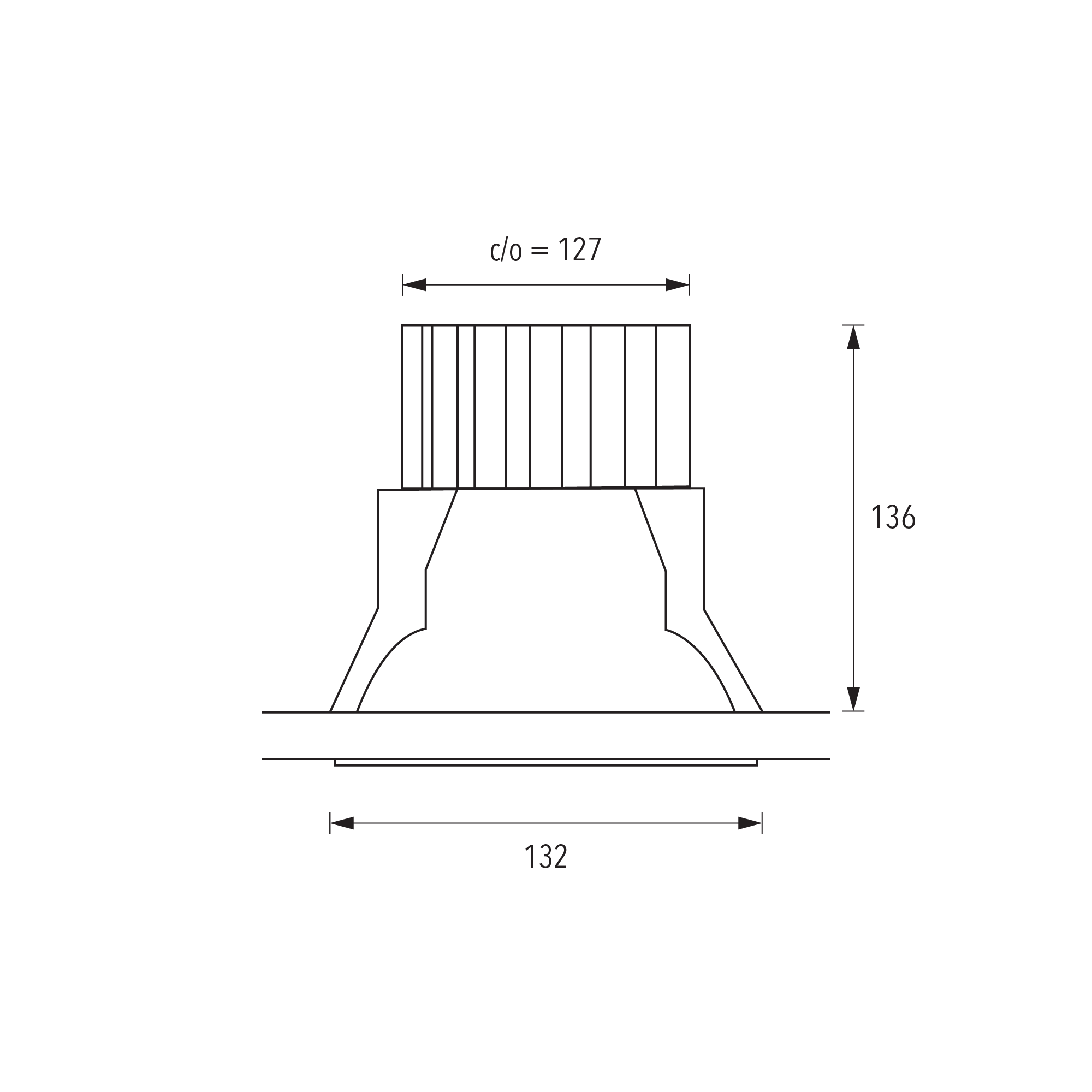

Dimensions
