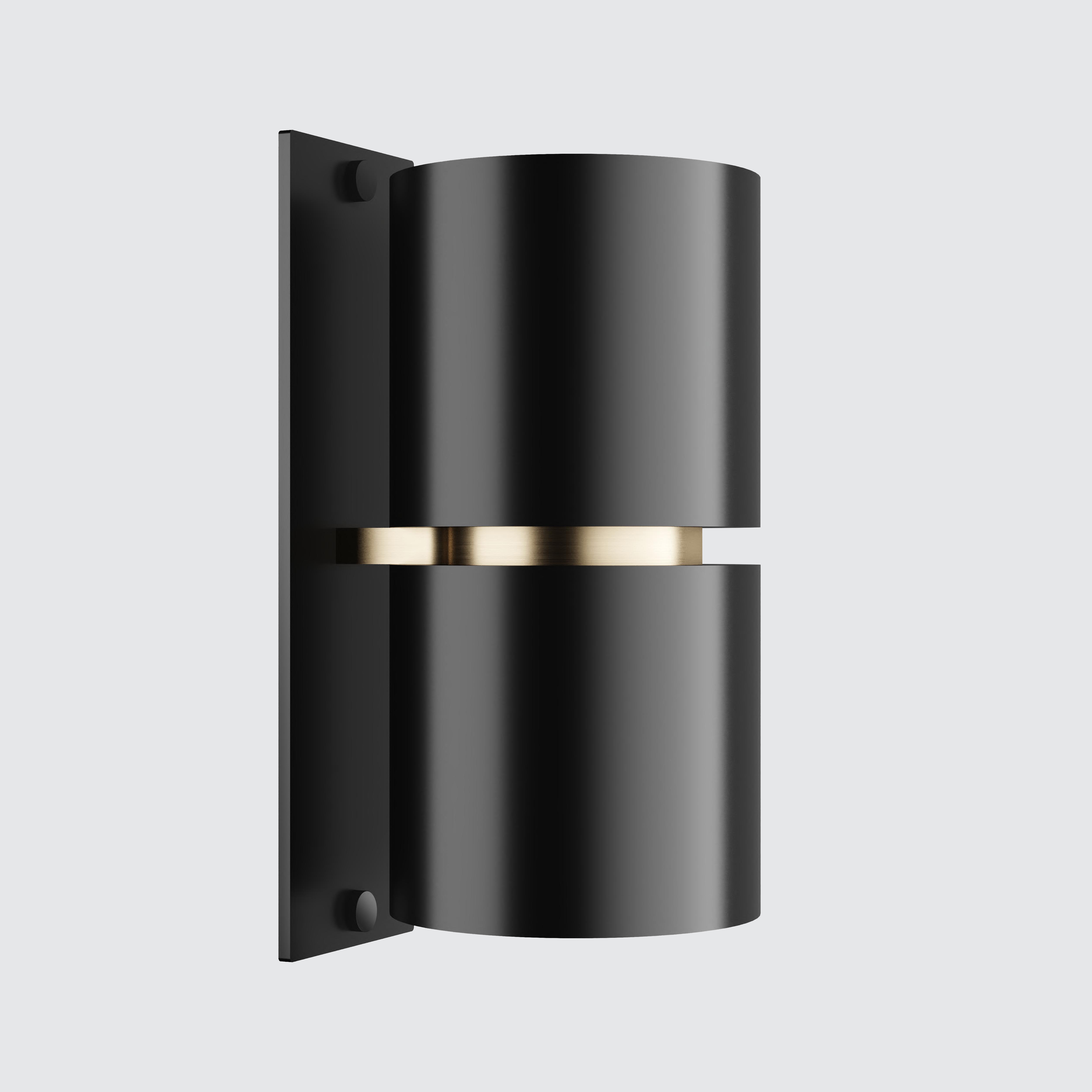

    FLEX 70 Wall Double

    FWDL70

    Product Details

    Optic options
    13° / 25° / 34° / 54° / Linear / Oval
    CRI
    90+
    CCT
    2700K / 3000K / 3500K / 4000K
    Colour deviation
    3 SDCM
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L90B10 > 90,000 hours
    Driver
    Integral
    Input voltage
    240v
    Housing material
    Aluminium
    Optic material
    PMMA Clear Lens
    IP rating
    IPX4
    Warranty
    7 years
    Country of origin
    Australia

    Configurator

    How to specify

    Select from the available options to configure luminaire

    FWDL70.___.___.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Output
    200
    250
    300
    350
    Optic
    13   13°
    25   25°
    34   34°
    54   54°
    LN   Linear
    OV   Oval
    Optic - UP
    13   13°
    25   25°
    34   34°
    54   54°
    LN   Linear
    OV   Oval
    CRI CCT
    927   90+ 2700K
    93   90+ 3000K
    935   90+ 3500K
    94   90+ 4000K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Housing colour
    W   White
    B   Black
    X   Custom
    Options
    I   Integral
    R   Remote

    Colour Options

    Housing colour
    Black
    B
    White
    W
    Custom
    X

    Technical Specifications

    Dimensions
