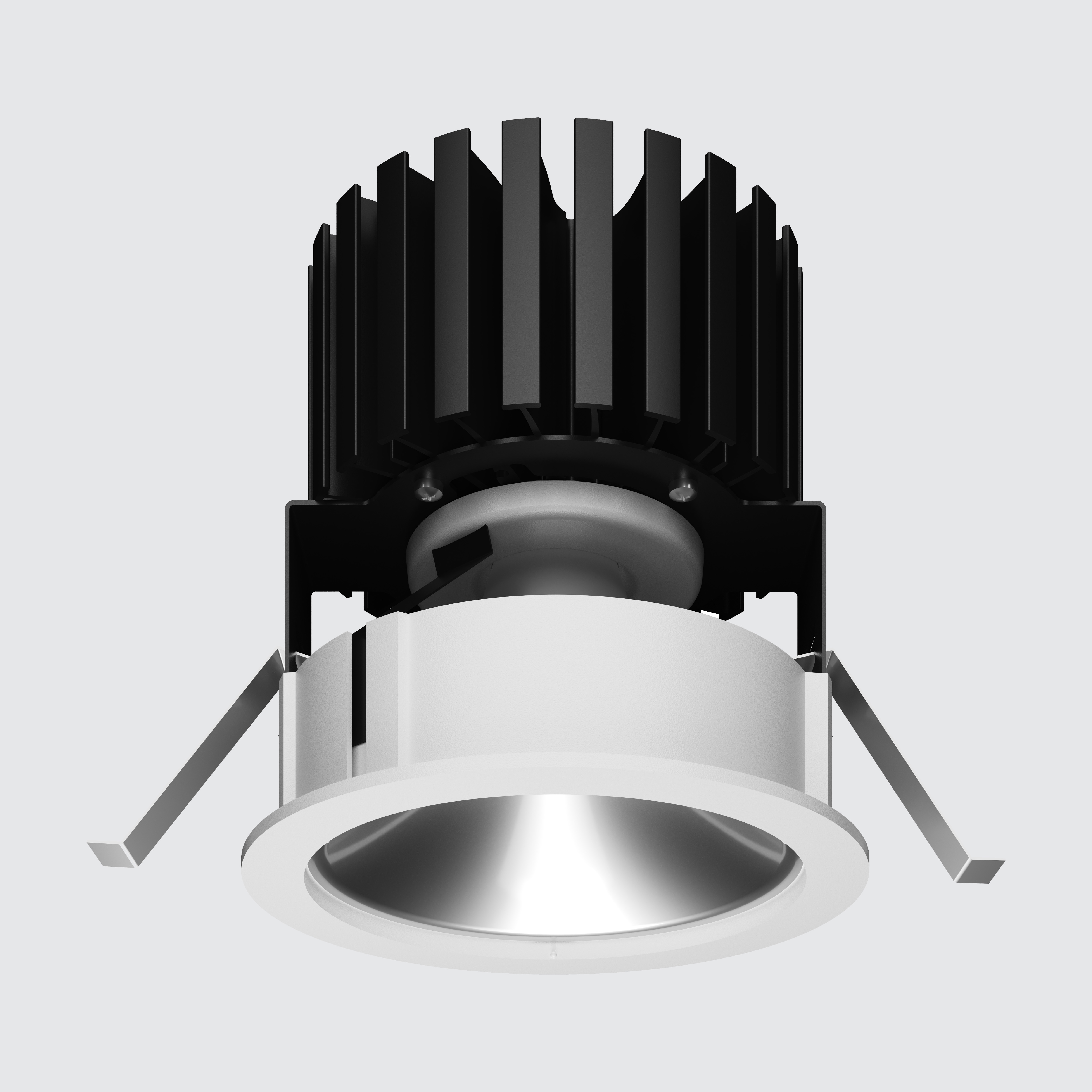

LUXIENT 125
LX125
Product Details
Absolute luminous flux (lm)
1775 - 3150 lm
Power (W)
19 - 28W
Optic options
45° / 93°
CRI
90+
CCT
3000K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / Trailing Edge / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L90B10 > 90,000 hours
Driver
Remote
Input voltage
240v
Housing material
Aluminium
Optic material
Aluminium Specular Reflector
Warranty
7 years
Country of origin
Australia
Cut out size
Ø116mm
Weight
0.75 kg
Configurator
How to specify
Select from the available options to configure luminaire
LX125.___.___.___.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Output
500
19W
1775 - 2280 lm
700
28W
2345 - 3150 lm
Optic
45 45°
93 93°
CRI CCT
93 90+ 3000K
94 90+ 4000K
Dimming
61 Non Dim
63 Trailing Edge
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
Options
IP IPX4

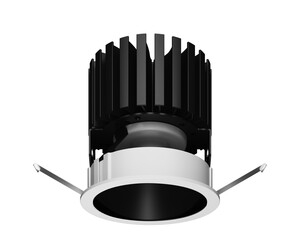

LX125-BL LX125 Black Reflector

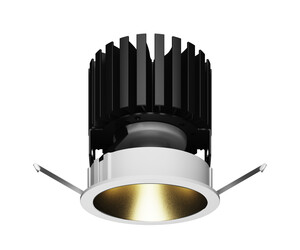

LX125-BR LX125 Brass Reflector

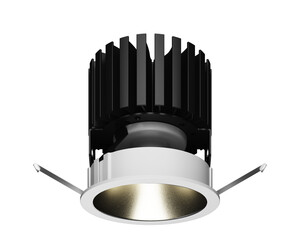

LX125-CR LX125 Champagne Reflector
LX125-GR LX125 Gold Reflector

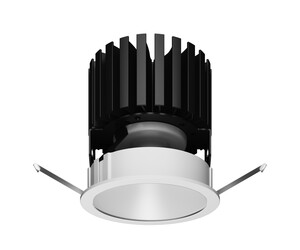

LX125-WR LX125 White Reflector
Colour Options
Housing colour
White
W
Black
B
Options
LX125 Black Reflector
LX125-BL
LX125 Brass Reflector
LX125-BR
LX125 Champagne Reflector
LX125-CR
LX125 Gold Reflector
LX125-GR
LX125 White Reflector
LX125-WR
Technical Specifications

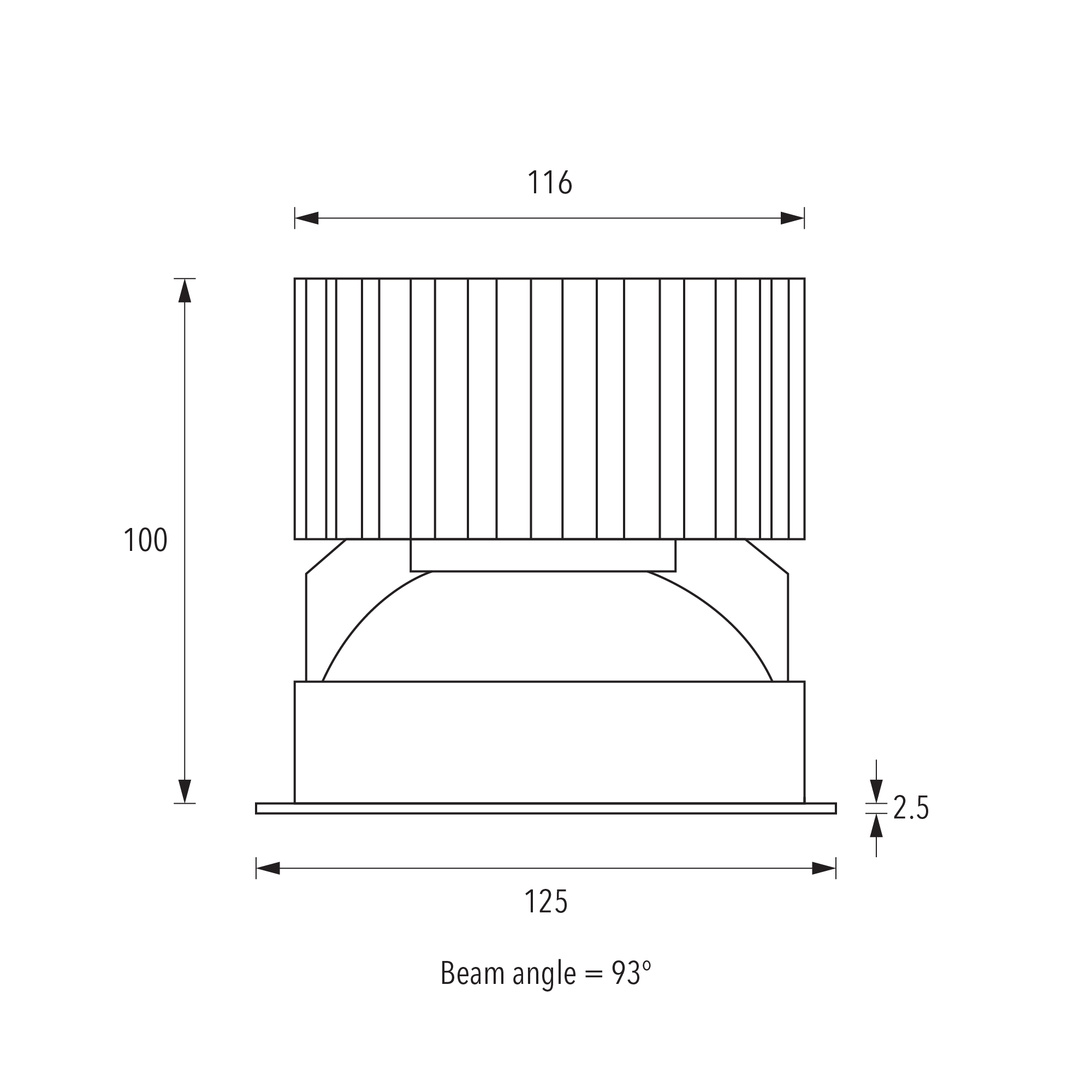

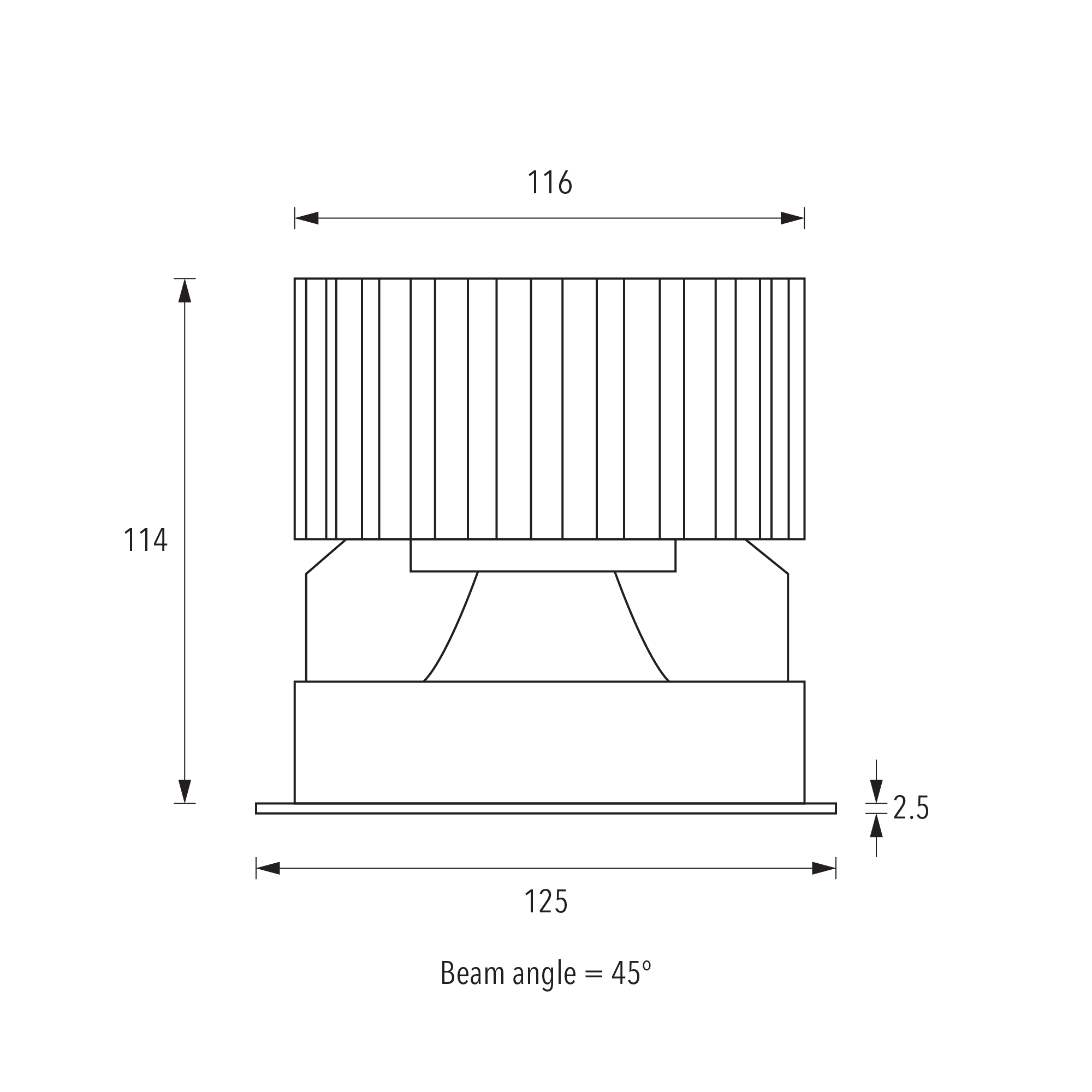

Dimensions
