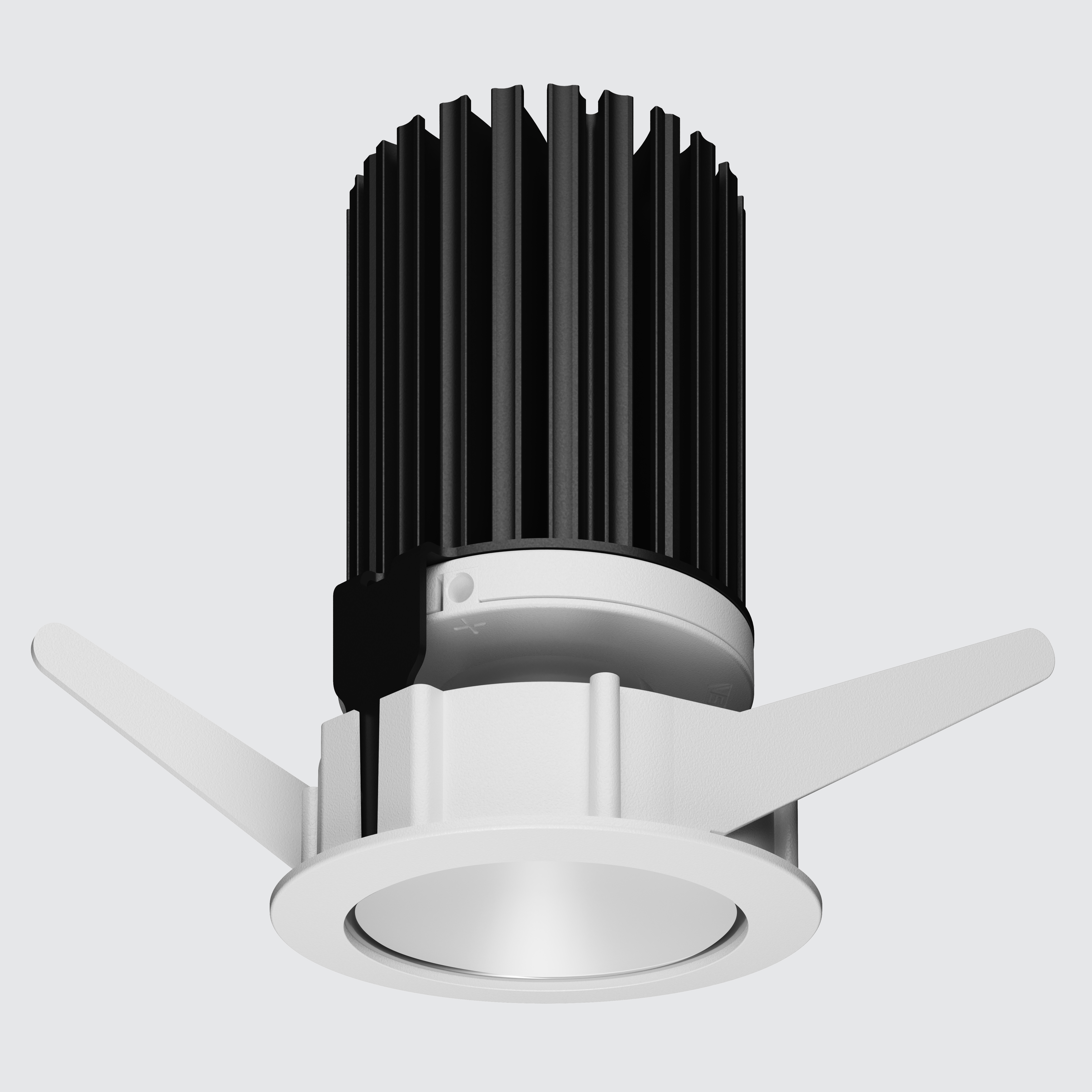

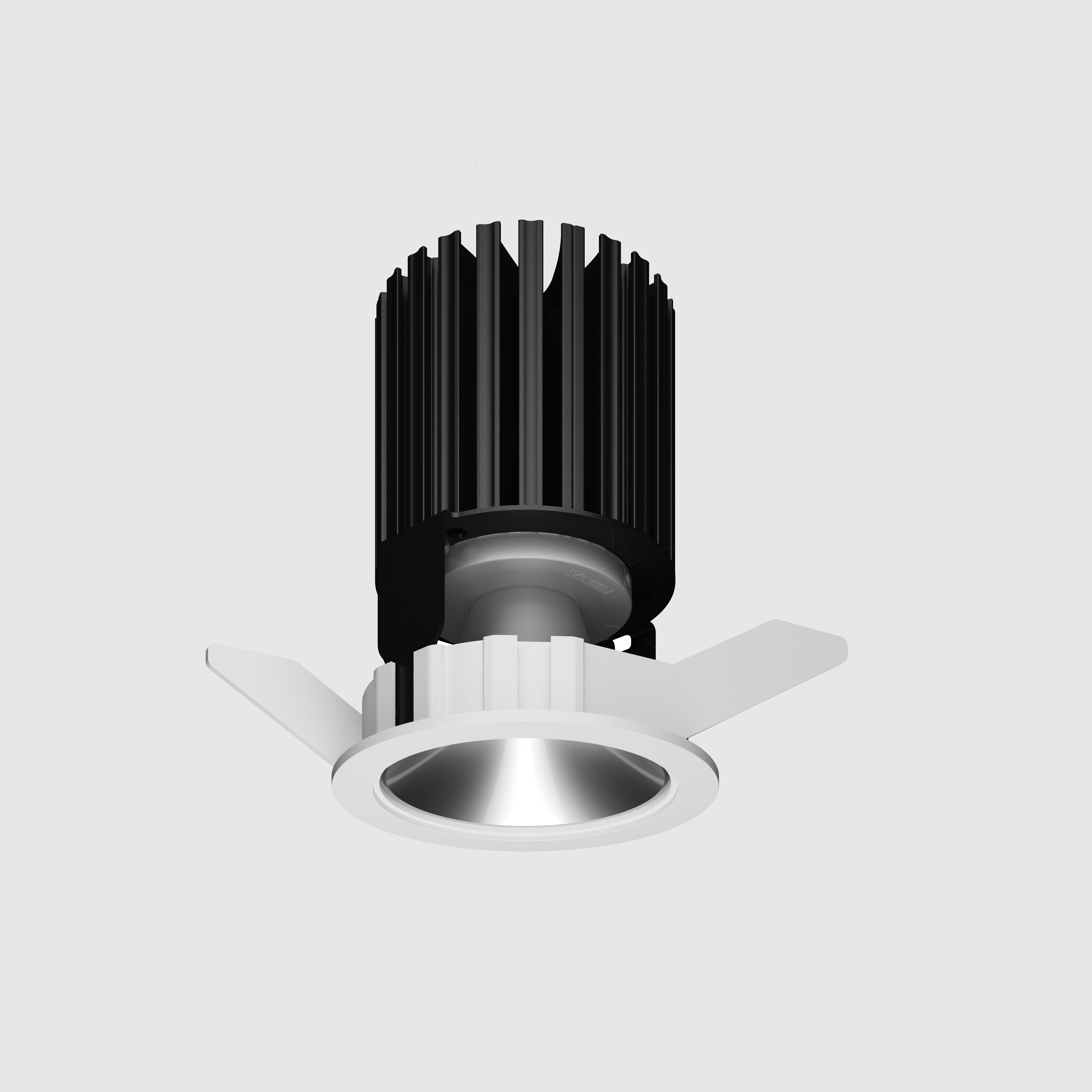

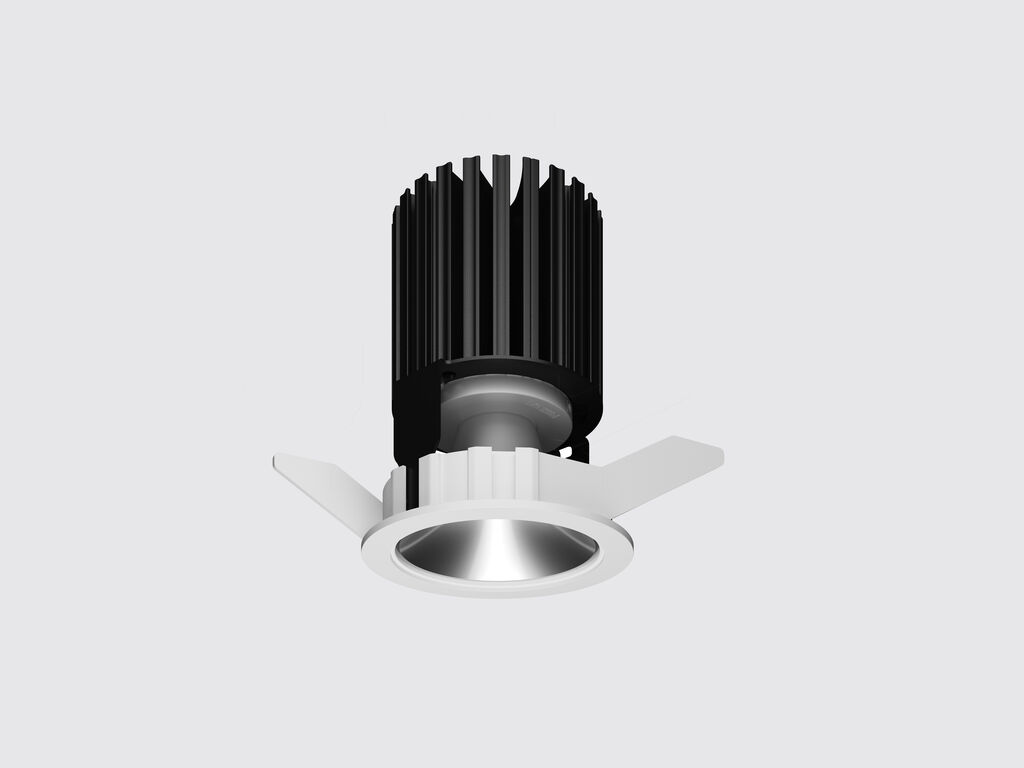

LUXIENT 66
LX66
Product Details
Absolute luminous flux (lm)
682 - 1136 lm
Power (W)
6.5 - 10W
Optic options
30° / 52°
CRI
90+
CCT
3000K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / Trailing Edge / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L90B10 > 90,000 hours
Driver
Remote
Input voltage
240v
Housing material
Aluminium
Optic material
Aluminium Specular Reflector
Warranty
7 years
Country of origin
Australia
Cut out size
Ø60mm
Weight
0.4kg
Configurator
How to specify
Select from the available options to configure luminaire
LX66.___.___.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Output
150
6.5W
682 - 706 lm
250
10W
1072 - 1136 lm
Optic
30 30°
52 52°
CRI CCT
93 90+ 3000K
94 90+ 4000K
Dimming
61 Non Dim
63 Trailing Edge
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
Options
LX66-BL LX66 Black Reflector
LX66-BR LX66 Brass Reflector
LX66-CR LX66 Champagne Reflector
LX66-GR LX66 Gold Reflector
LX66-WR LX66 White Reflector
Colour Options
Housing colour
Black
B
White
W
Options
LX66 Black Reflector
LX66-BL
LX66 Brass Reflector
LX66-BR
LX66 Champagne Reflector
LX66-CR
LX66 Gold Reflector
LX66-GR
LX66 White Reflector
LX66-WR
Technical Specifications

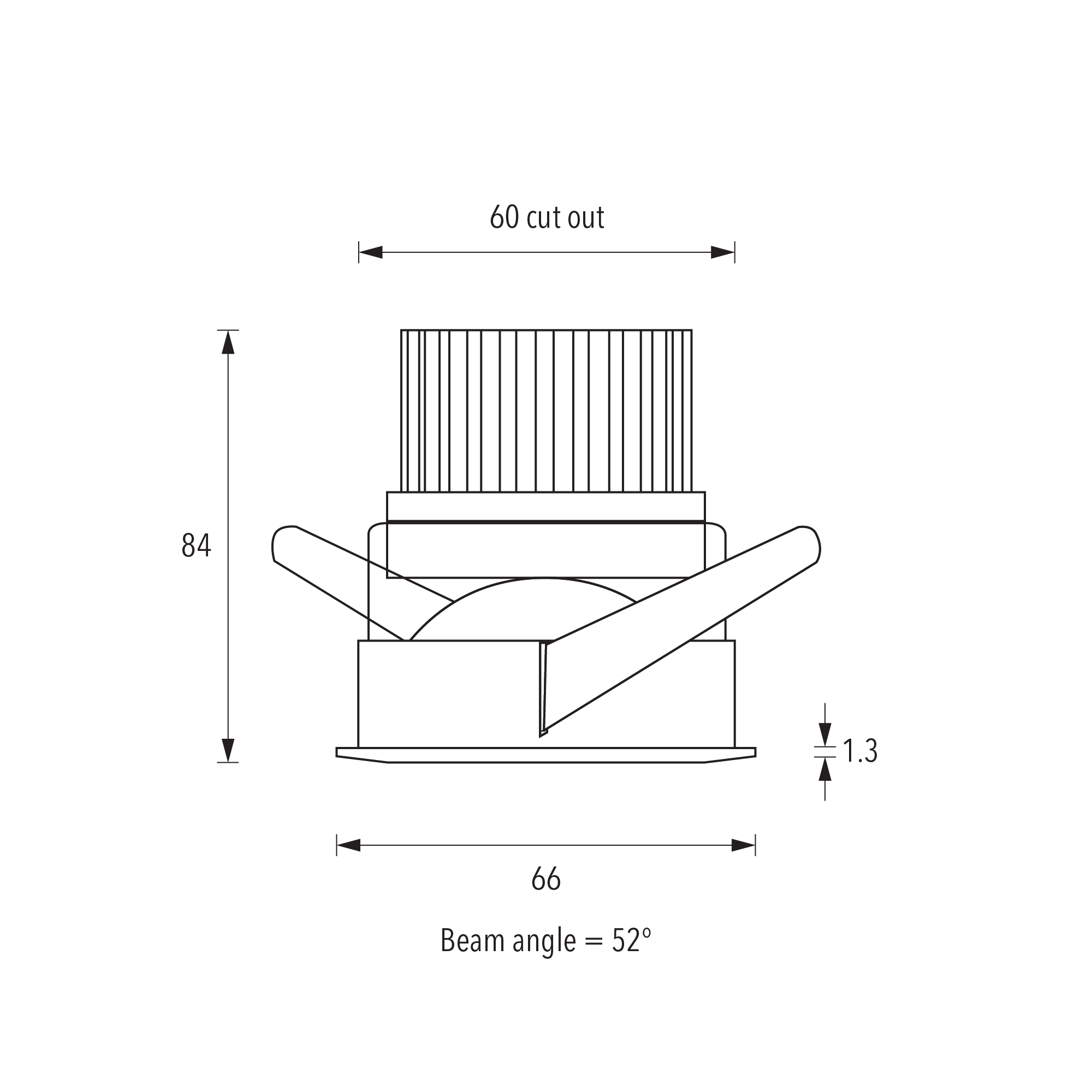

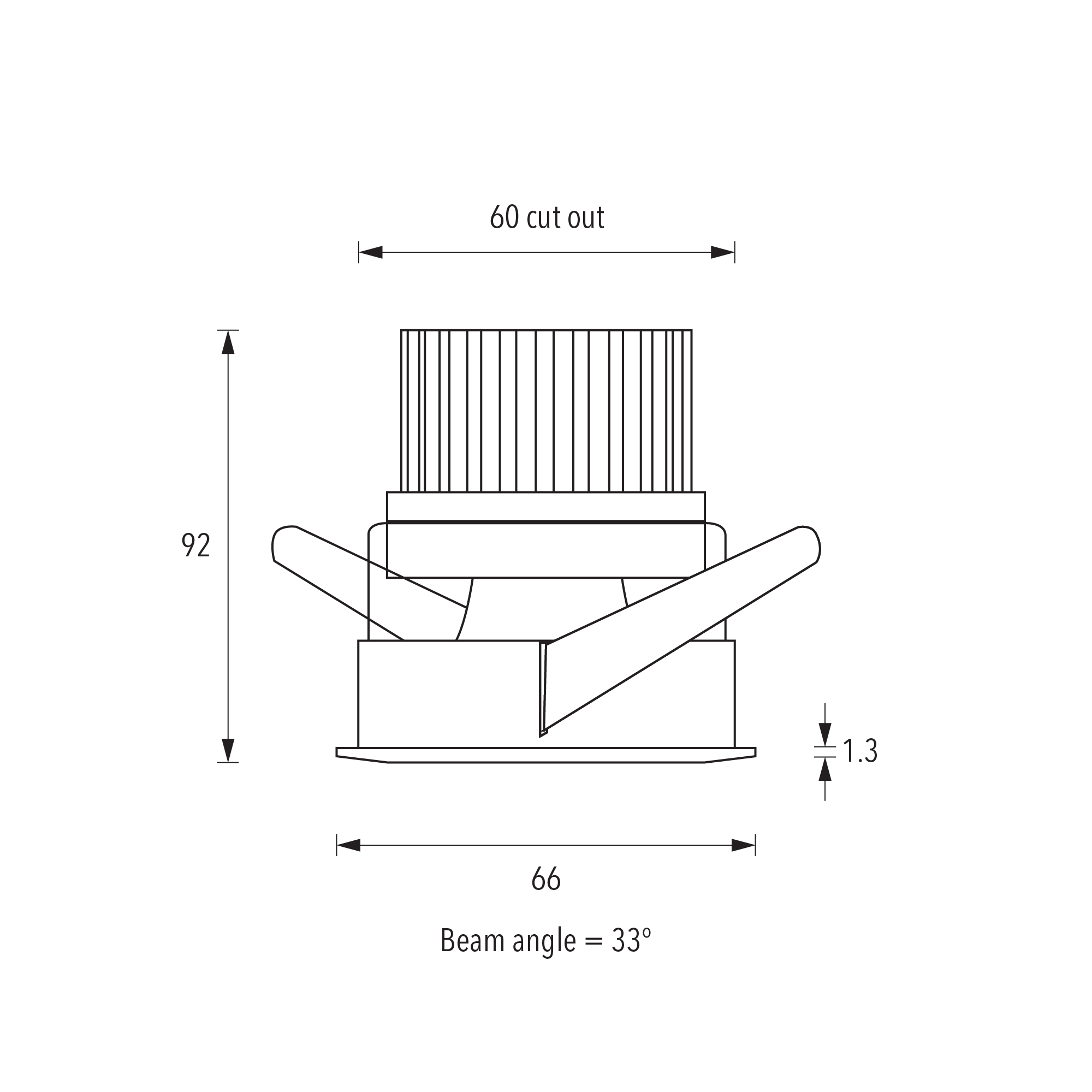

Dimensions
