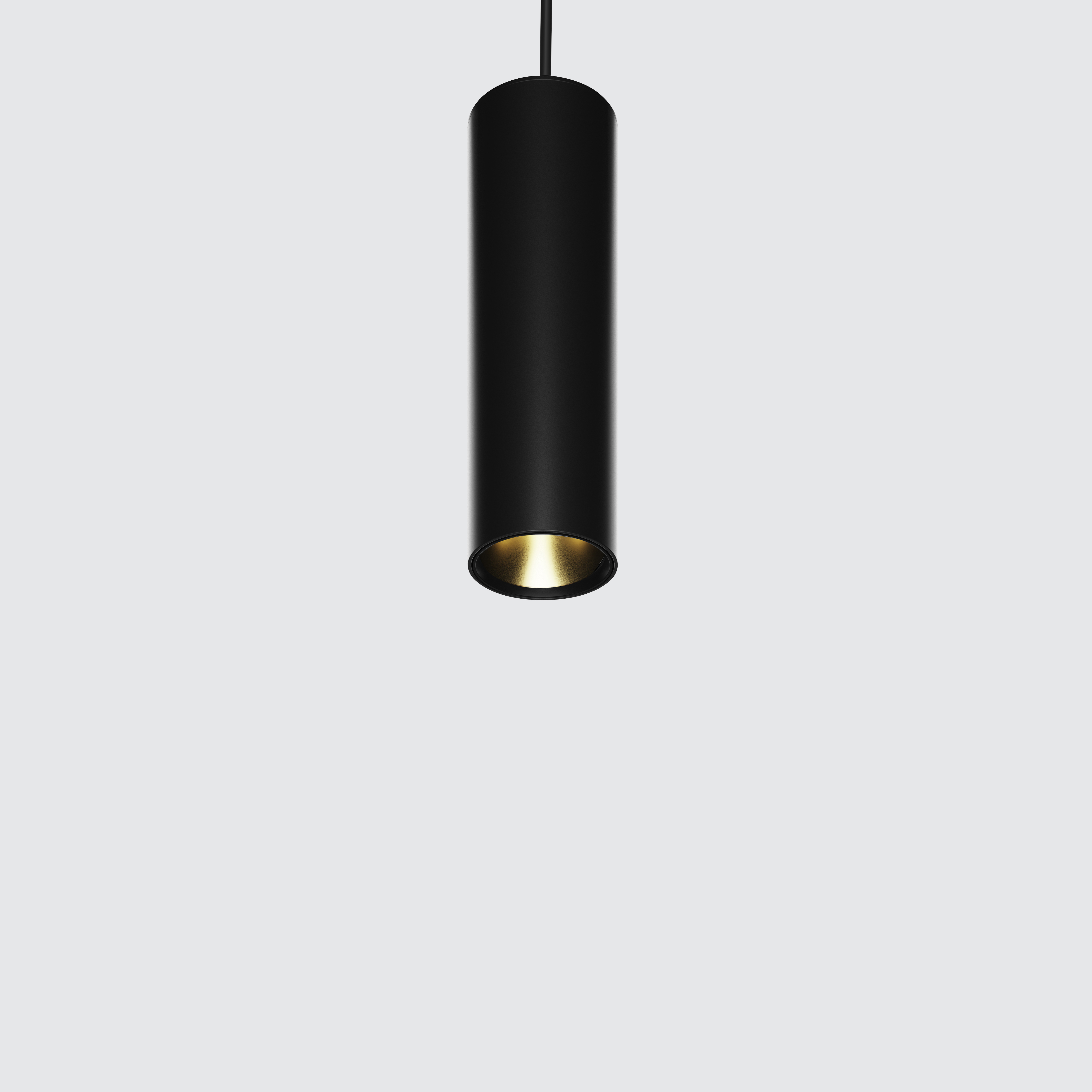

LUXIENT 66 Pendant
LX66P
Product Details
Absolute luminous flux (lm)
682 - 1136 lm
Power (W)
6.5 - 10W
Optic options
30° / 52°
CRI
90+
CCT
3000K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / Trailing Edge / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L90B10 > 90,000 hours
Driver
Integral
Input voltage
240v
Housing material
Aluminium
Optic material
Aluminium Reflector
Suspension
Clear flex 1m
Warranty
7 years
Country of origin
Australia
Weight
0.65 kg
Configurator
How to specify
Select from the available options to configure luminaire
LX66P.___.___.___.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Output
150
6.5W
682 - 706 lm
250
10W
1072 - 1136 lm
Optic
30 30°
52 52°
CRI CCT
93 90+ 3000K
94 90+ 4000K
Dimming
61 Non Dim
63 Trailing Edge
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
X Custom
Options
LX66-BL LX66 Black Reflector
LX66-BR LX66 Brass Reflector
LX66-CR LX66 Champagne Reflector
LX66-GR LX66 Gold Reflector
LX66-WR LX66 White Reflector
3C.BLK Cloth Cable - 3 Core - Black
3C.WH Cloth Cable - 3 Core - White
5C.BLK Cloth Cable - 5 Core - Black
5C.WH Cloth Cable - 5 Core - White
Colour Options
Housing colour
White
W
Black
B
Custom
X
Options
Cloth Cable - 3 Core - Black
3C.BLK
Cloth Cable - 3 Core - White
3C.WH
Cloth Cable - 5 Core - Black
5C.BLK
Cloth Cable - 5 Core - White
5C.WH
LX66 Black Reflector
LX66-BL
LX66 Brass Reflector
LX66-BR
LX66 Champagne Reflector
LX66-CR
LX66 Gold Reflector
LX66-GR
LX66 White Reflector
LX66-WR
Technical Specifications

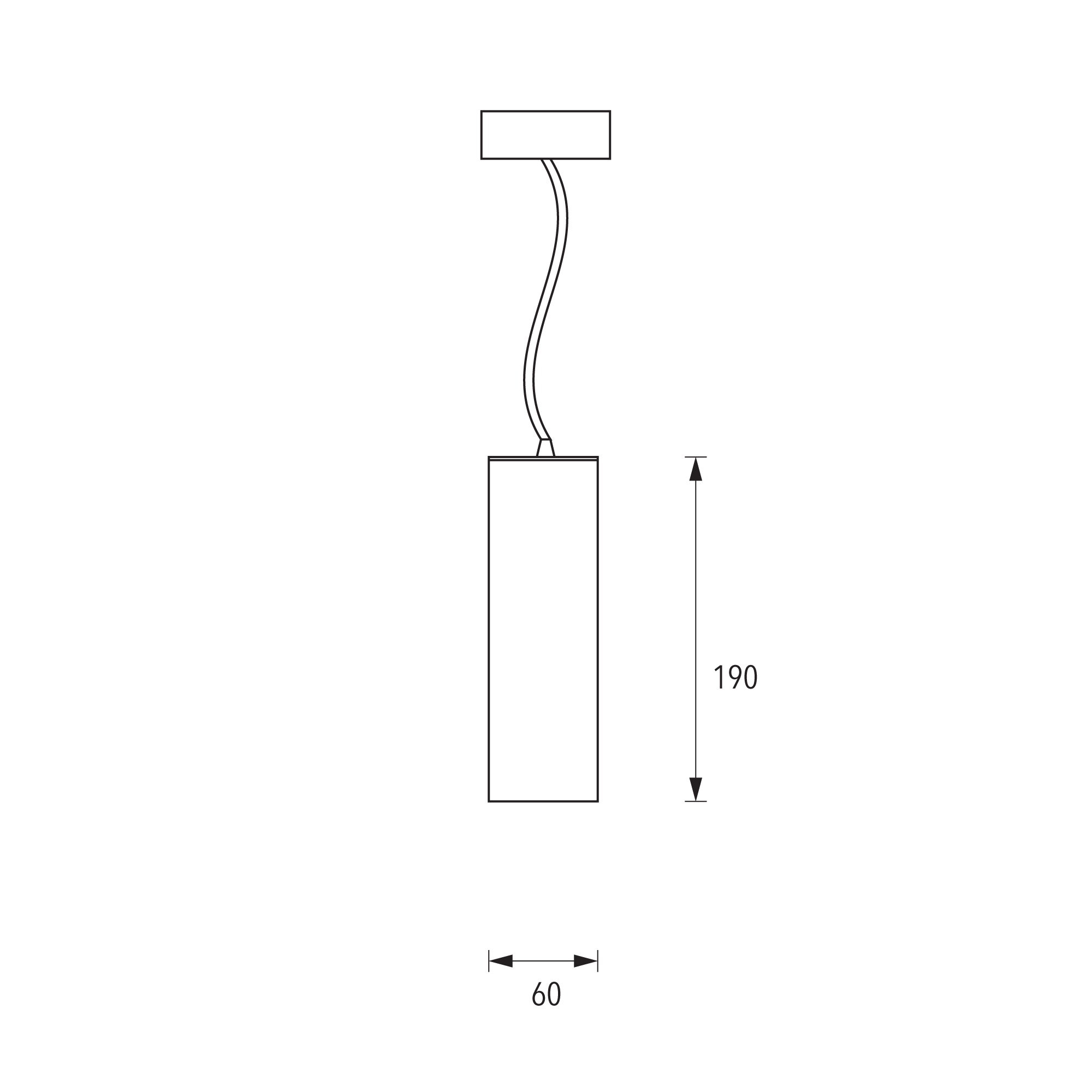

Dimensions
