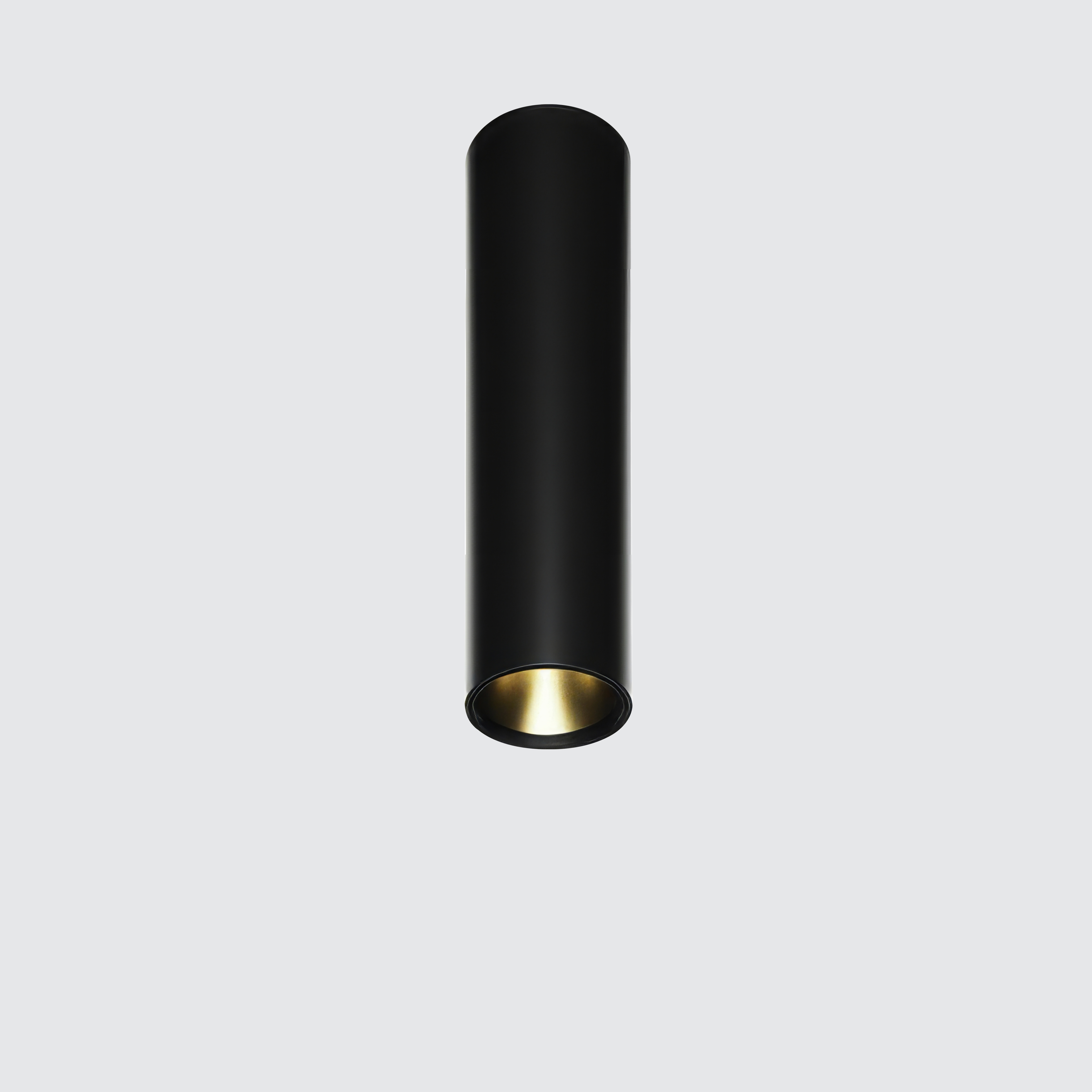

    LUXIENT 66 Surface

    LX66S

    Product Details

    Absolute luminous flux (lm)
    682 - 1136 lm
    Power (W)
    6.5 - 10W
    Optic options
    30° / 52°
    CRI
    90+
    CCT
    3000K / 4000K
    Colour deviation
    3 SDCM
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L90B10 > 90,000 hours
    Driver
    Integral
    Input voltage
    240v
    Housing material
    Aluminium
    Optic material
    Aluminium Reflector
    Warranty
    7 years
    Country of origin
    Australia
    Weight
    0.5 kg

    Configurator

    How to specify

    Select from the available options to configure luminaire

    LX66S.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Output
    150
      6.5W
      682 - 706 lm
    250
      10W
      1072 - 1136 lm
    Optic
    30   30°
    52   52°
    CRI CCT
    93   90+ 3000K
    94   90+ 4000K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Housing colour
    W   White
    B   Black

    Colour Options

    Housing colour
    White
    W
    Black
    B

    Technical Specifications

    Dimensions
