    NEBULA
    NEW

    NEB30

    Product Details

    Absolute luminous flux (lm)
    548 - 2346 lm (UP)
    Power (W)
    9 - 24W (UP)

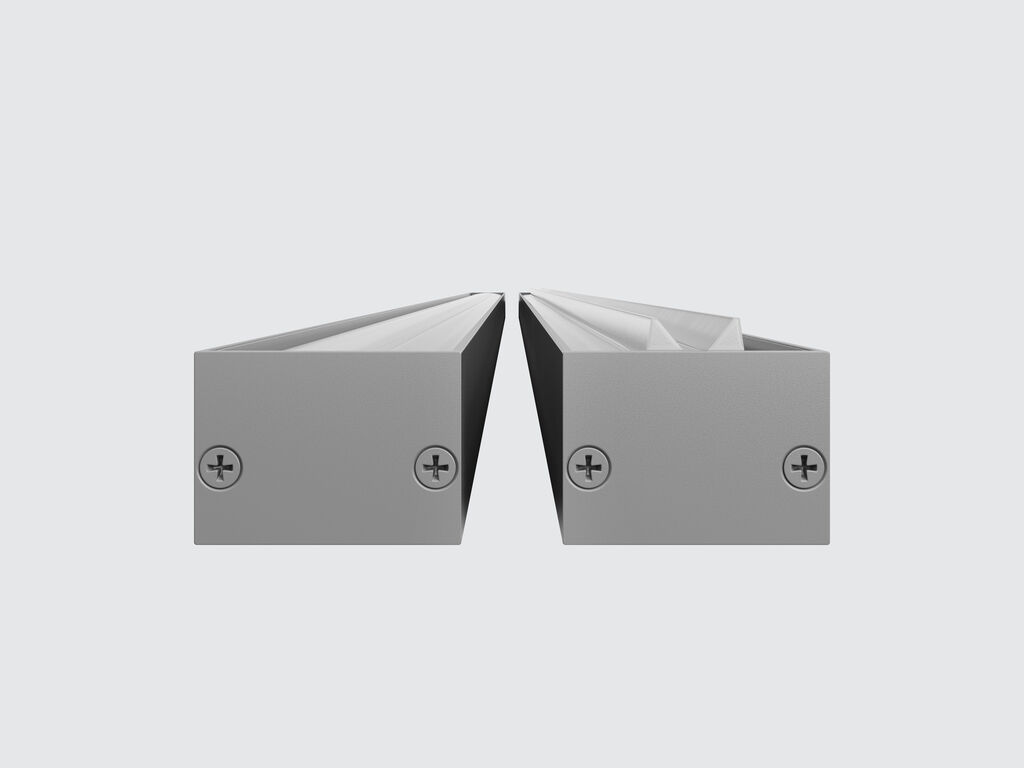

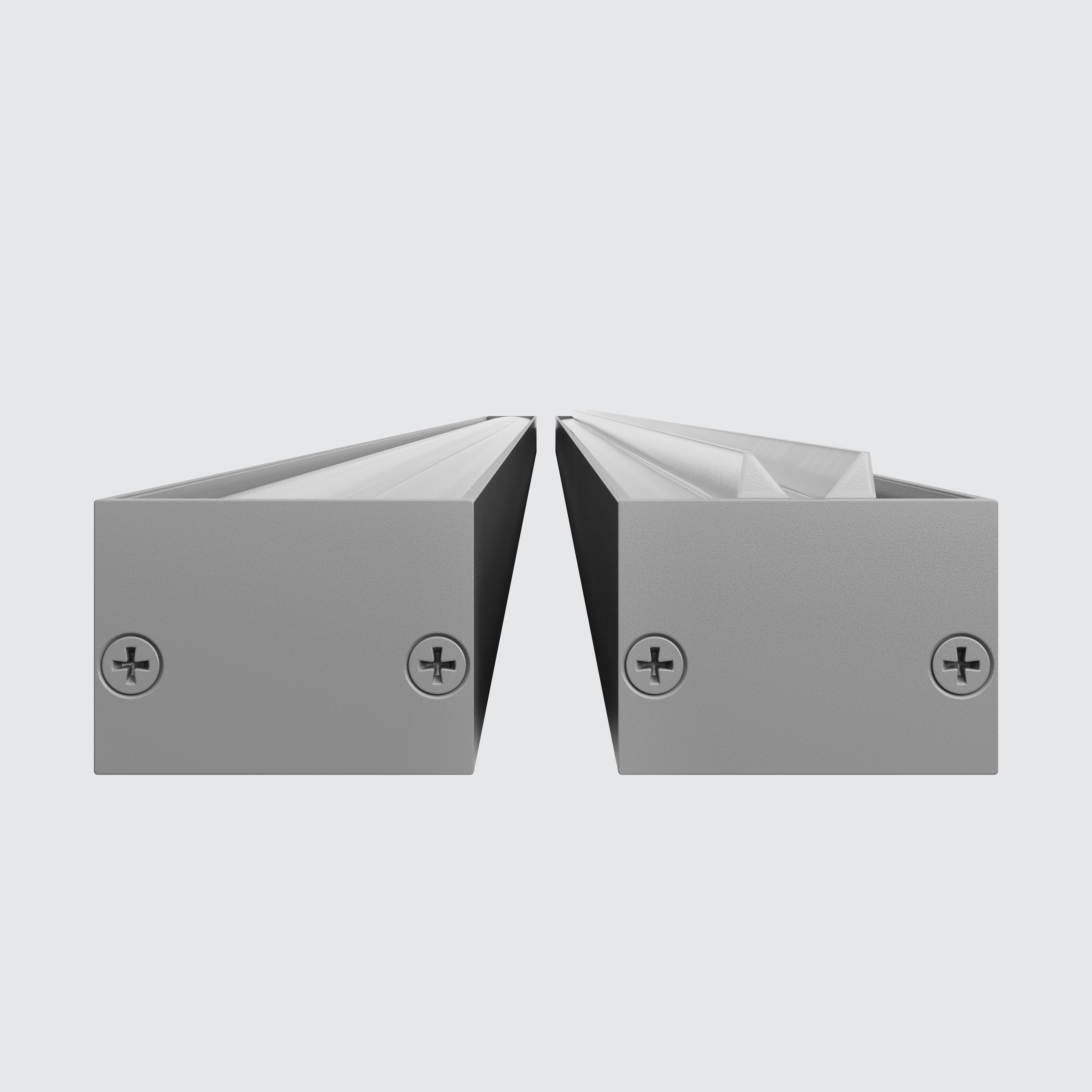

    Optic options
    Double Batwing / Single Batwing
    CRI
    90+ / 95+
    CCT
    3000K / 3500K / 4000K / 2700K
    Colour deviation
    3 SDCM / 2 SDCM
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L80B10 > 82000 hours
    Driver
    Remote
    Input voltage
    24V
    Housing material
    Aluminium
    Optic material
    PMMA Clear Lens
    Warranty
    7 years
    Weight
    0.75 kg

    Configurator

    How to specify

    Select from the available options to configure luminaire

    NEB30.___.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Height & Length
    1145   1145
    XXXX   Custom Length divisible by 50 mm
    Output - UP
    9
    11
    16
    24
    Optic

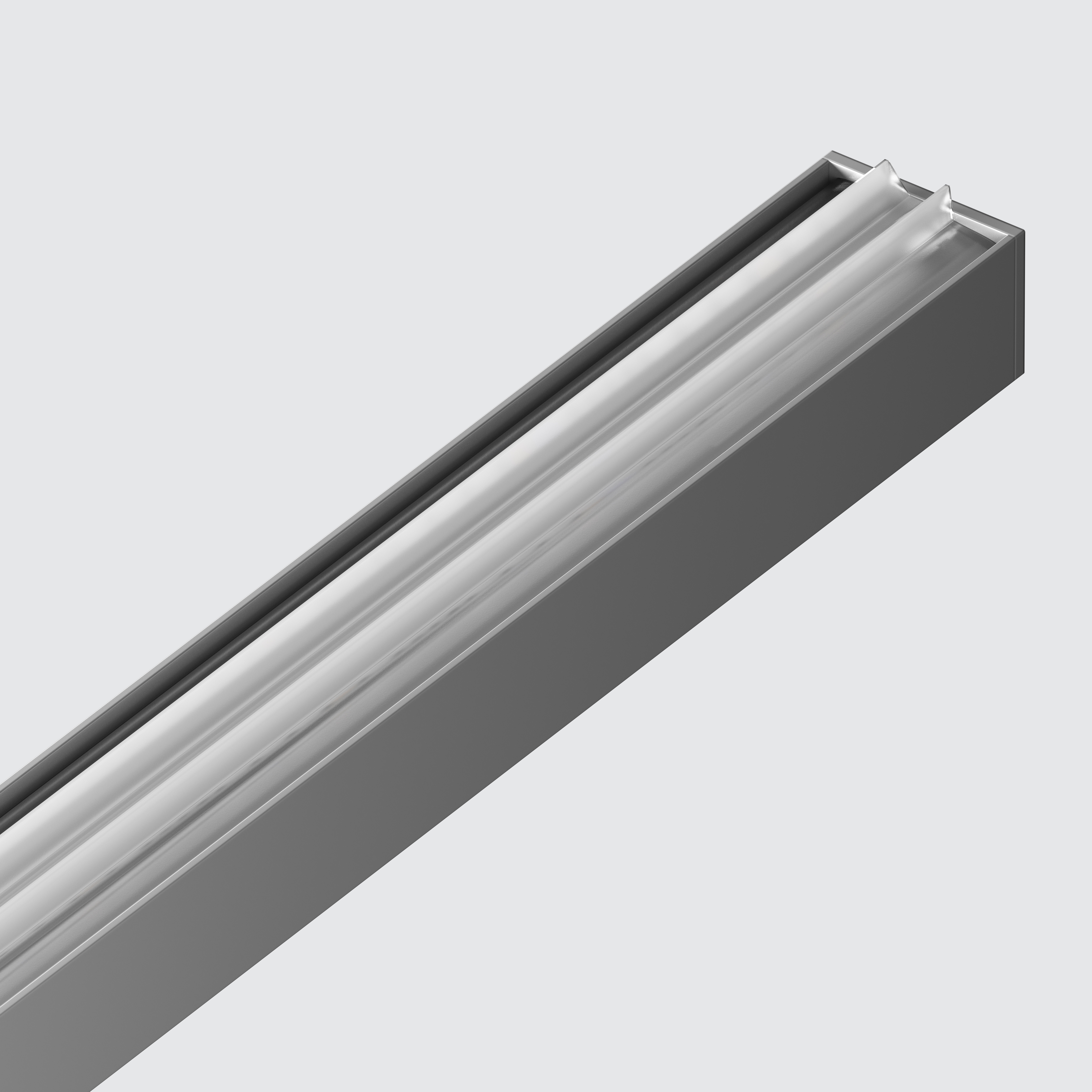

    D   Double Batwing

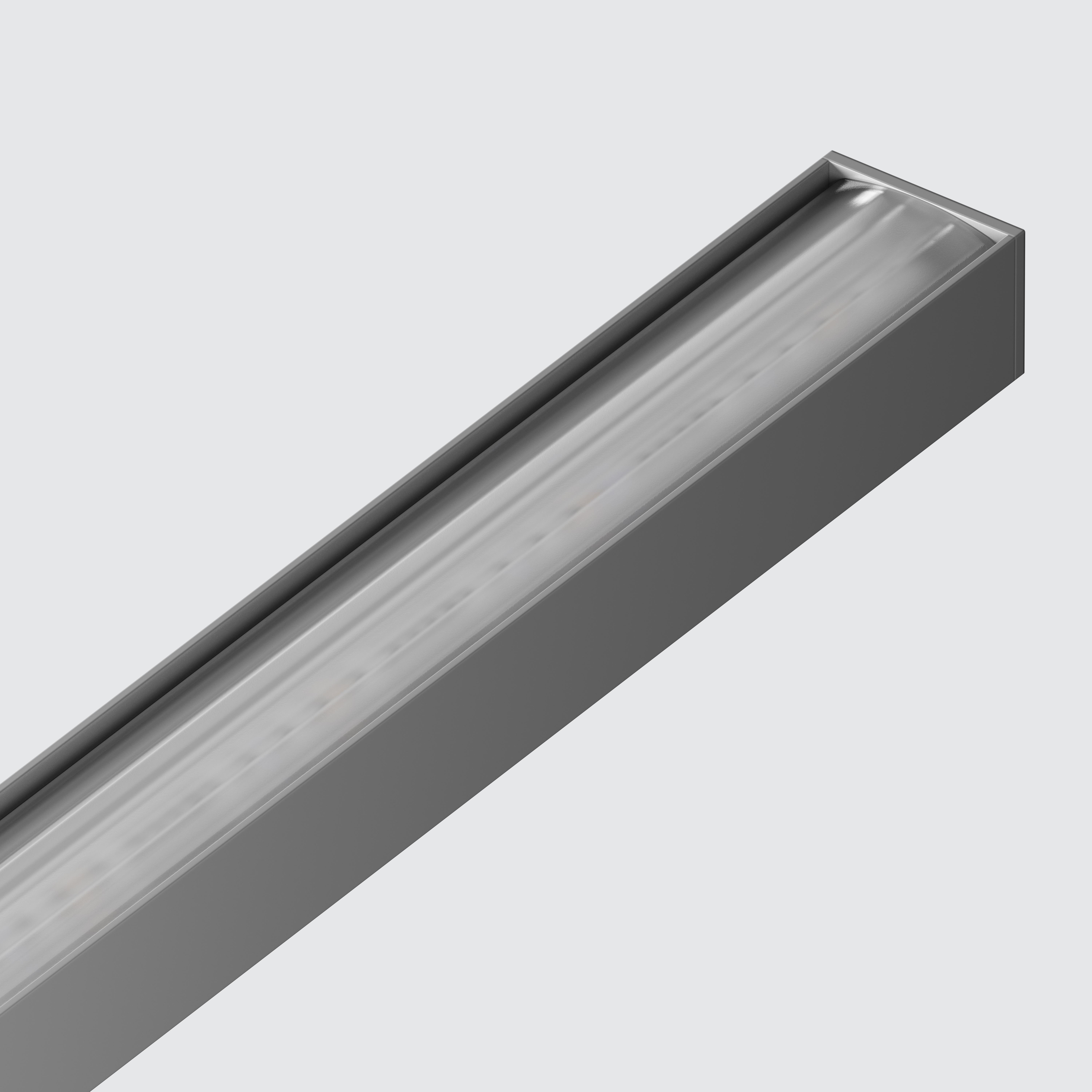

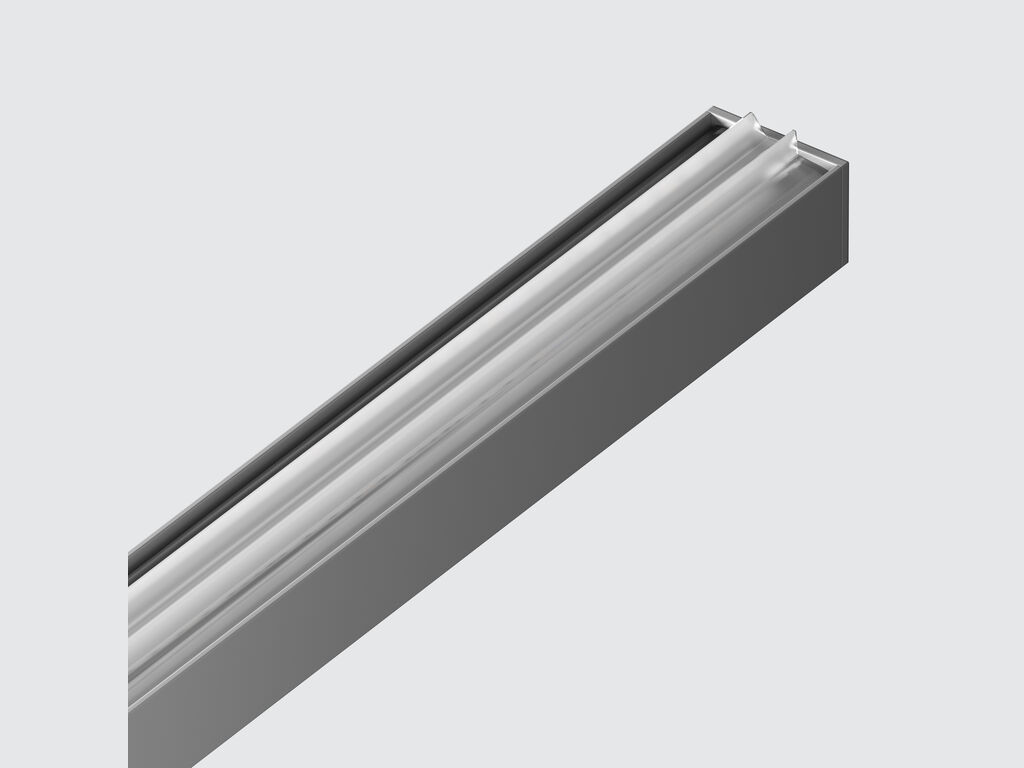

    S   Single Batwing
    CRI CCT
    93   90+ 3000K
    935   90+ 3500K
    94   90+ 4000K
    927   95+ 2700K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Housing colour
    W   White
    B   Black
    X   Custom

    Colour Options

    Housing colour
    White
    W
    Black
    B
    Custom
    X

    Technical Specifications

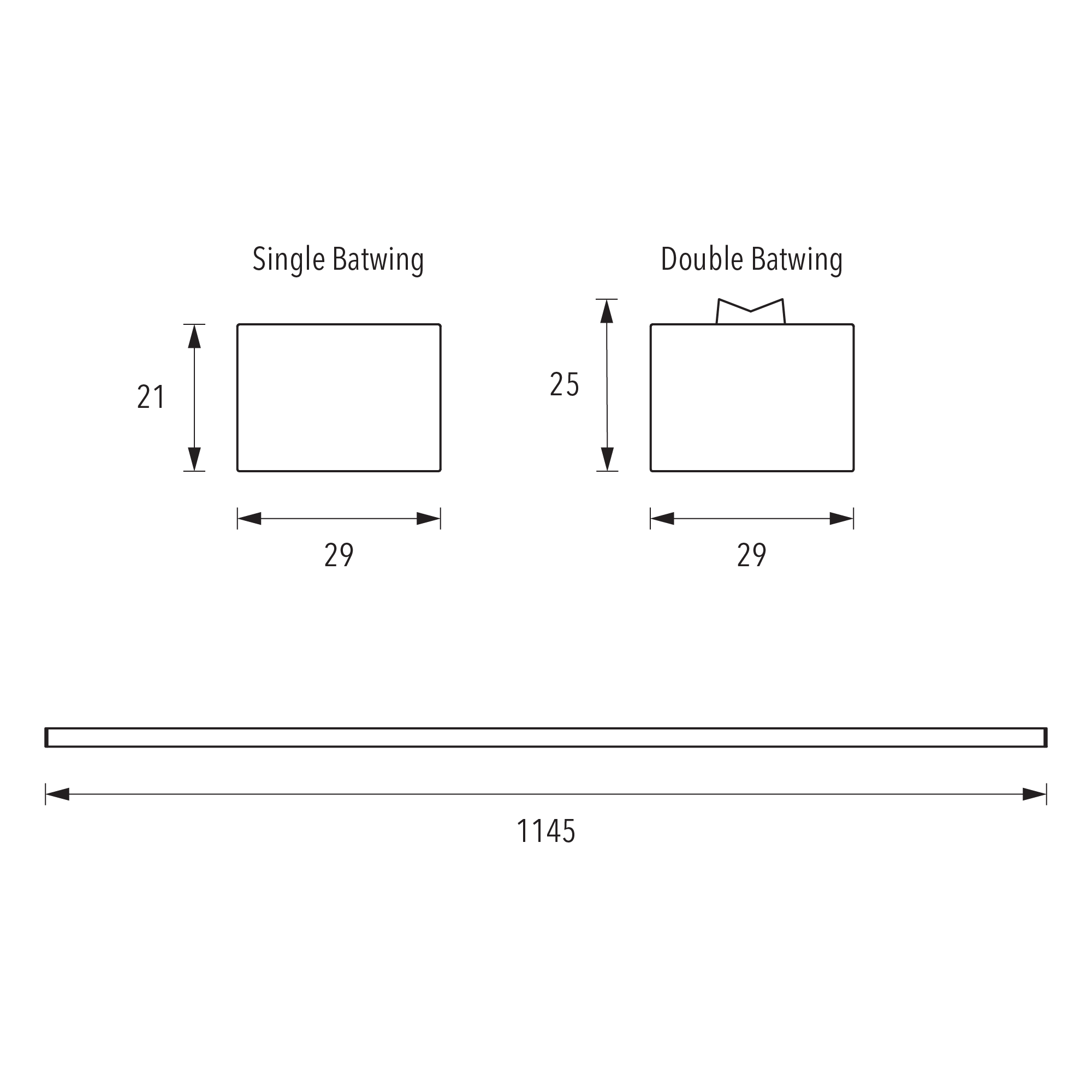

    Dimensions
