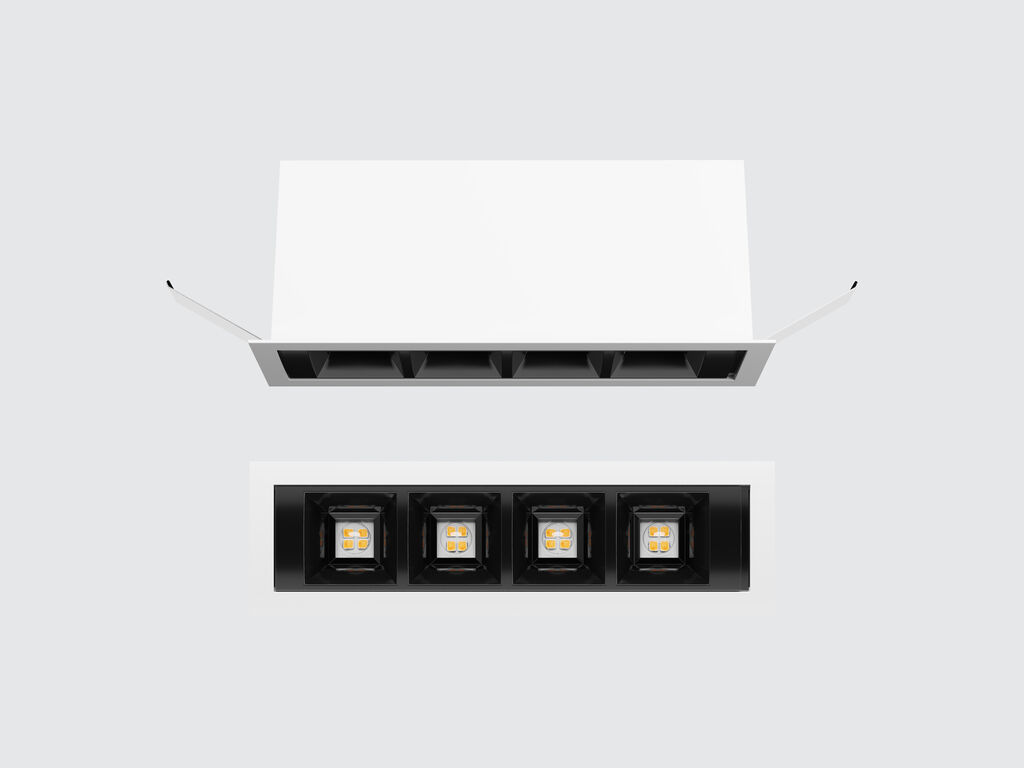

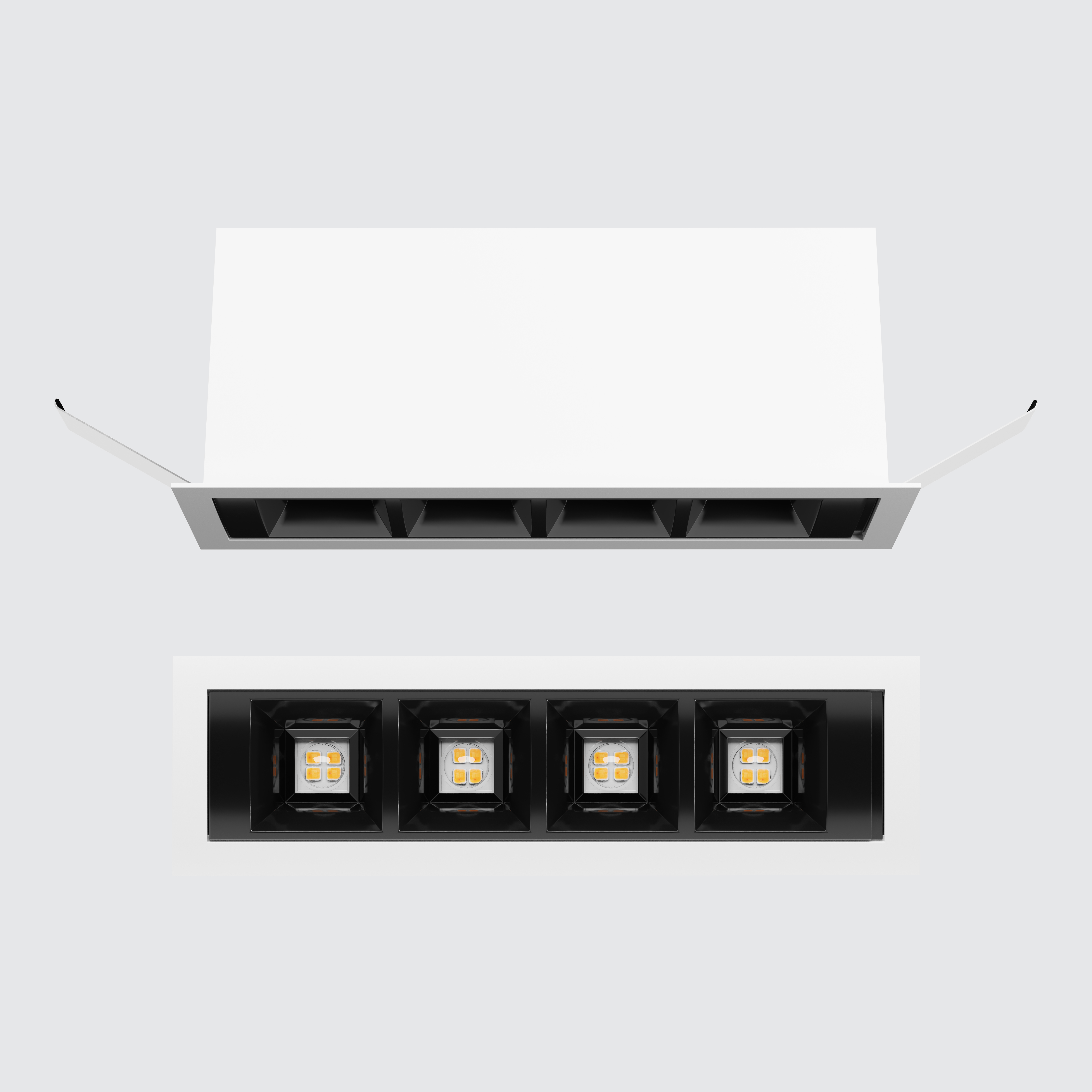

NIGHTFALL 404 Recessed
NFR404
Product Details
Absolute luminous flux (lm)
584 - 863 lm
Power (W)
6.5 - 9.5W
Optic options
65° / 80°
CRI
90+
CCT
3000K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / Trailing Edge / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L80B10 >75,000 hours
Driver
Remote
Input voltage
240v
Housing material
Aluminium
Optic material
PMMA Clear Lens / Polycarbonate Louvre
Warranty
7 years
Country of origin
Australia

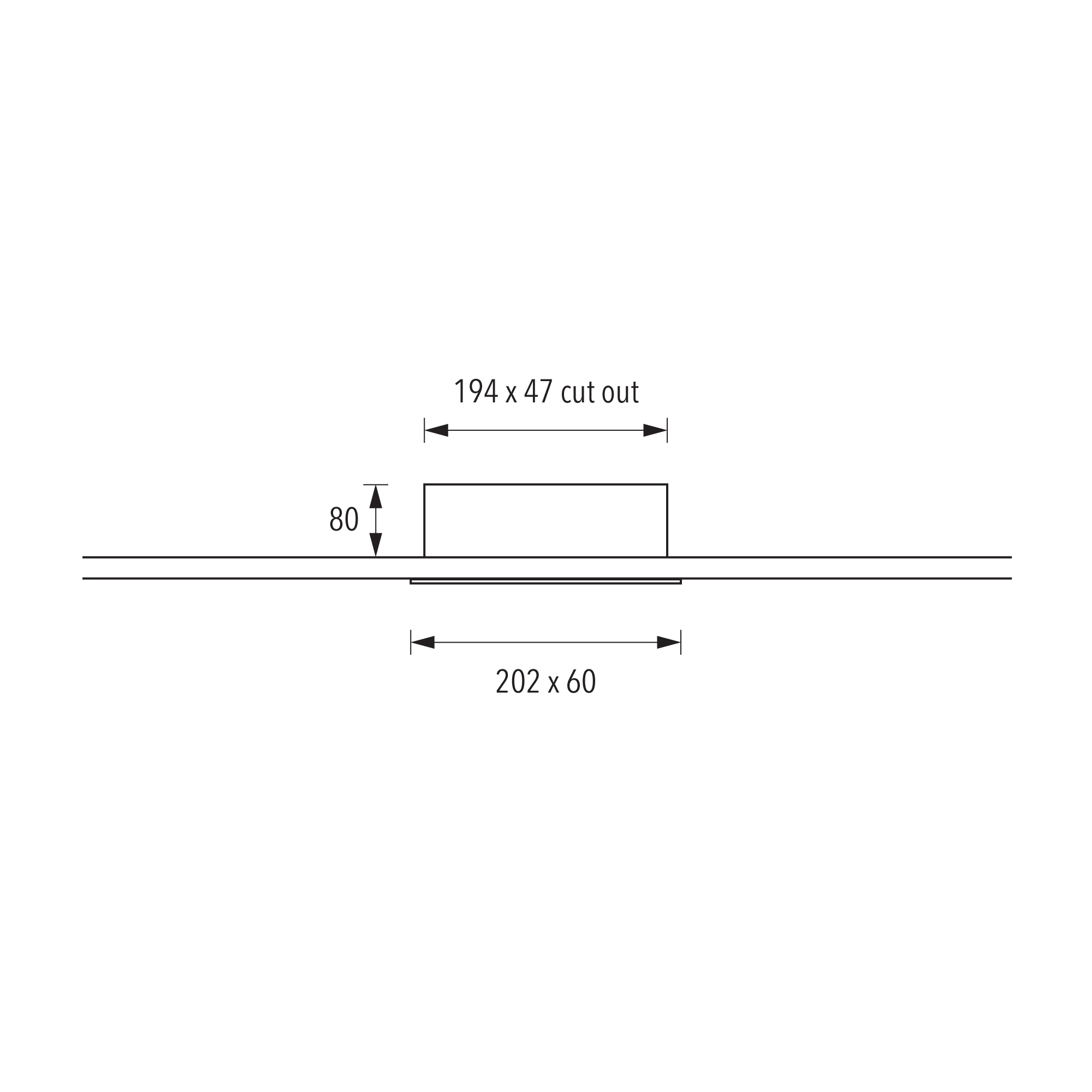

Cut out size
194 x 47 mm
Configurator
How to specify
Select from the available options to configure luminaire
NFR404.___.___.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Output
200
6.5W
584 - 590 lm
250
8W
700 - 723 lm
300
9.5W
836 - 863 lm
Optic
65 65°
80 80°
CRI CCT
93 90+ 3000K
94 90+ 4000K
Dimming
61 Non Dim
63 Trailing Edge
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
X Custom
Options
W White Louvre
B Black Louvre
Colour Options
Housing colour
White
W
Black
B
Custom
X
Options

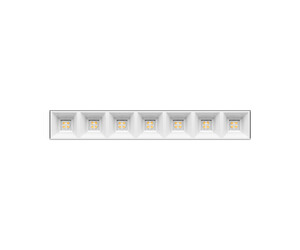

White Louvre
W

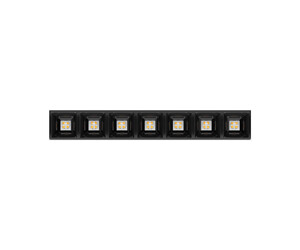

Black Louvre
B
Technical Specifications
Dimensions
