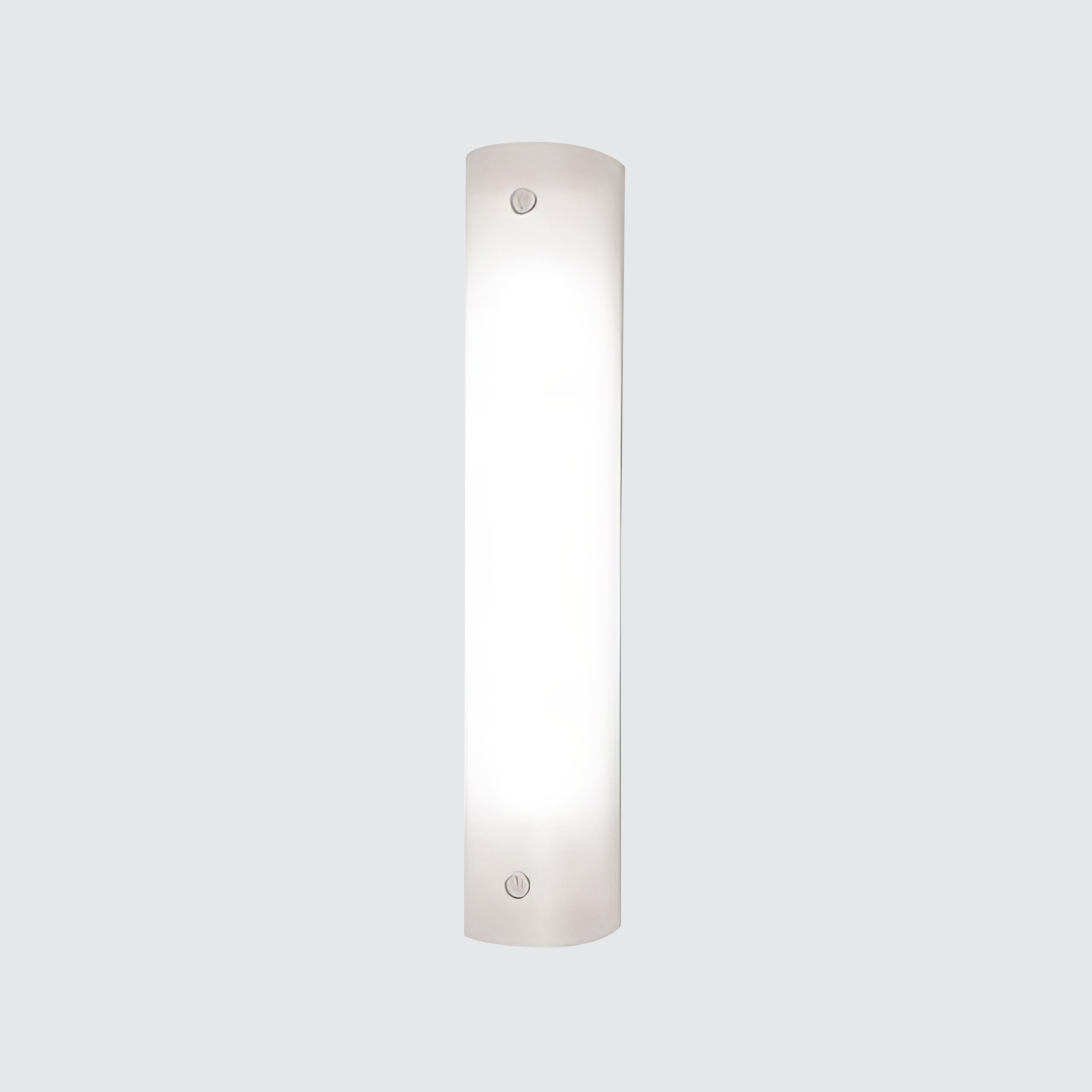

    ROYALE 400 Curved

    RYC400

    Product Details

    Absolute luminous flux (lm)
    946 - 1100 lm
    Power (W)
    13W
    CRI
    90+
    CCT
    3000K / 4000K
    Colour deviation
    3 SDCM
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L80B10 > 72,000 hours
    Driver
    Integral
    Input voltage
    240v
    Housing material
    Aluminium
    Optic material
    Opal Acrylic
    Warranty
    7 years
    Country of origin
    Australia

    Configurator

    How to specify

    Select from the available options to configure luminaire

    RYC400.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Output
    13
      13W
      946 - 1100 lm
    25
    CRI CCT
    93   90+ 3000K
    94   90+ 4000K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Housing colour
    W   White
    B   Black
    X   Custom
    Options
    IP
    IP   IPX4

    Colour Options

    Housing colour
    Black
    B
    White
    W
    Custom
    X

    Technical Specifications

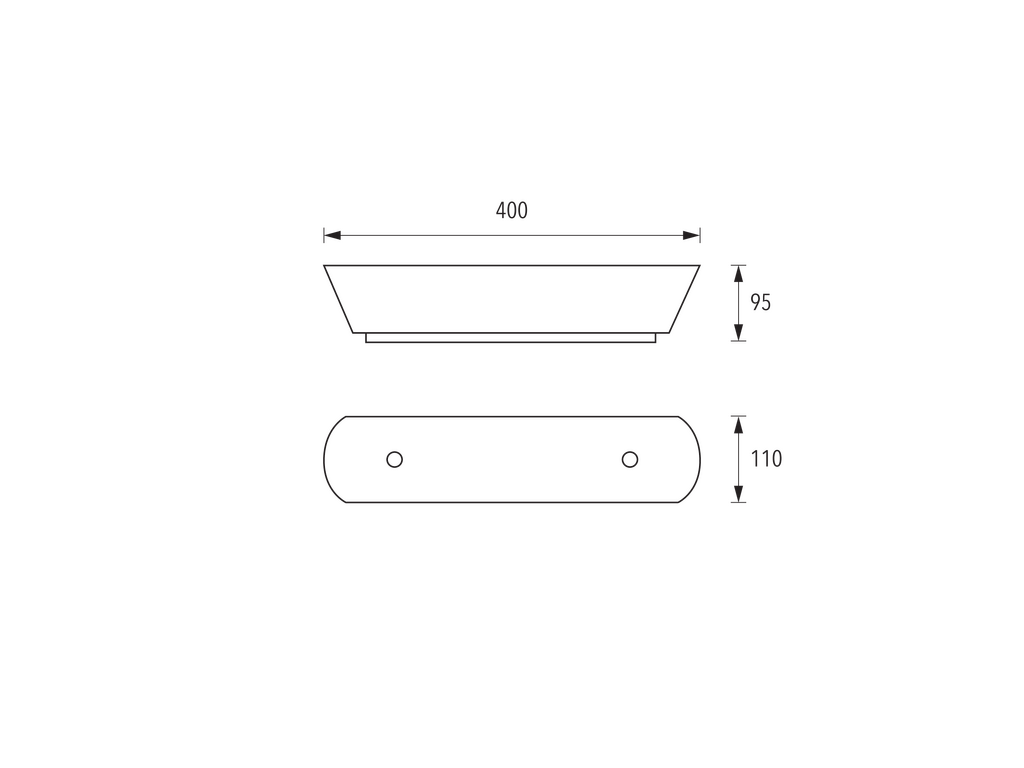

    Dimensions
