SYSTEM 60
SK60
Product Details
Absolute luminous flux (lm)
1712 - 3317 lm
Power (W)
18 - 28W
Optic options
65° / 80° / Flat Diffuser
CRI
90+
CCT
3000K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L80B10 > 72,000 hours
Driver
Integral
Input voltage
240v
Housing material
Aluminium
Optic material
Opal Polycarbonate
Warranty
7 years
Country of origin
Australia
Configurator
How to specify
Select from the available options to configure luminaire
SK60.___.___.___.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Height & Length
1120 1120 mm
XXXX Custom Length divisible by 280 mm
Output
18
18W
1712 - 2256 lm
23
23W
2148 - 2743 lm
28
28W
3119 - 3317 lm
Optic
65 65°
80 80°
F Flat Diffuser
CRI CCT
93 90+ 3000K
94 90+ 4000K
Dimming
61 Non Dim
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
X Custom
Options
W White Louvre
B Black Louvre
Colour Options
Housing colour
Black
B
White
W
Custom
X
Options
White Louvre
W
Black Louvre
B
Technical Specifications

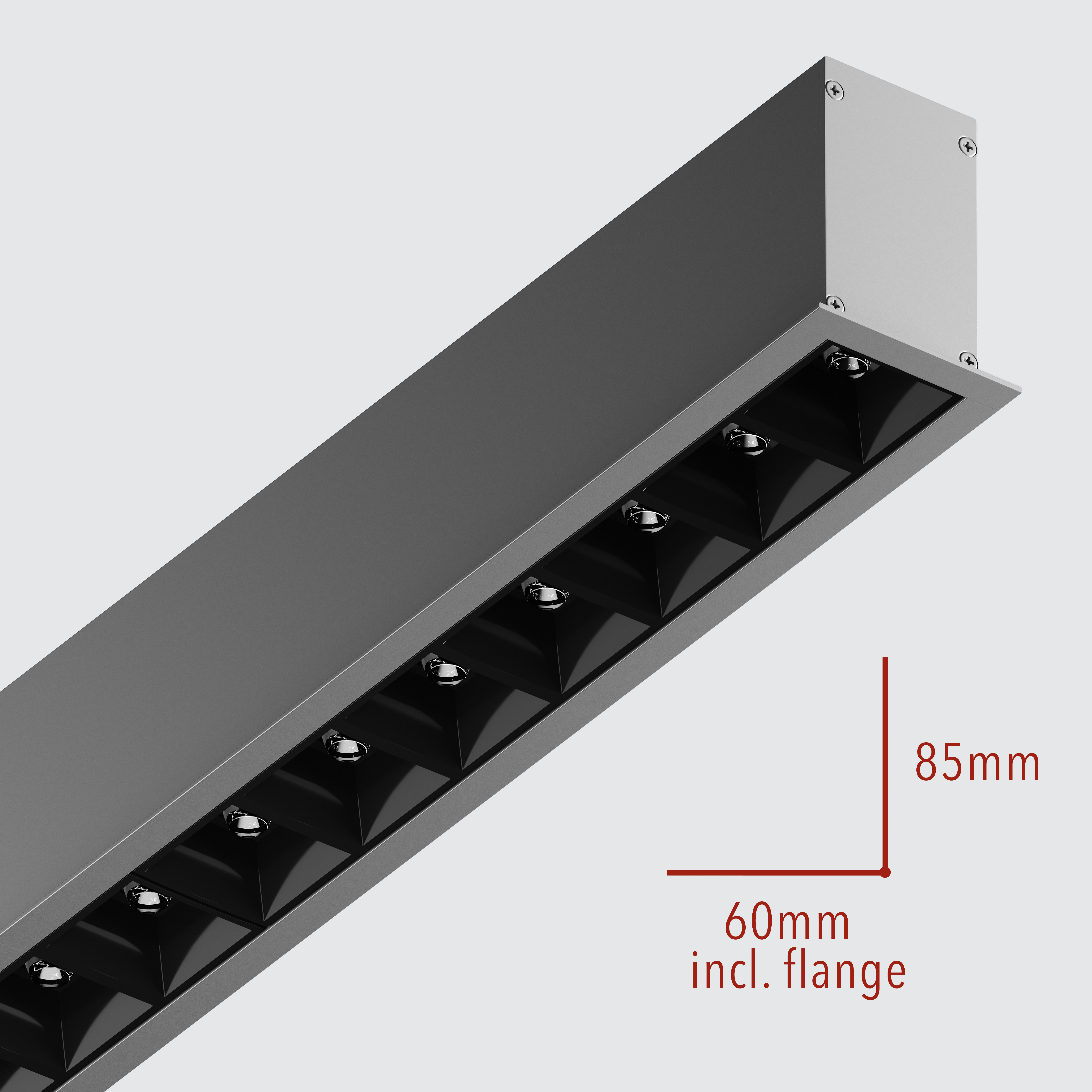

Dimensions
