SYSTEM 66
SK66
Product Details
Absolute luminous flux (lm)
791 - 2949 lm
Power (W)
9 - 30W
Optic options
Flat Diffuser / U Diffuser
CRI
90+
CCT
3000K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L80B10 > 72,000 hours
Driver
Integral
Input voltage
240v
Housing material
Aluminium
Optic material
Opal Polycarbonate
Warranty
7 years
Country of origin
Australia
Configurator
How to specify
Select from the available options to configure luminaire
SK66.___.___.___.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Height & Length
980 980 mm
XXXX Custom Length divisible by 140 mm
Output
9
9W
791 - 937 lm
12
12W
1091 - 1292 lm
17
17W
1523 - 1801 lm
21
21W
1796 - 2146 lm
26
26W
2250 - 2666 lm
30
30W
2487 - 2949 lm
Optic
F Flat Diffuser
U U Diffuser
CRI CCT
93 90+ 3000K
94 90+ 4000K
Dimming
61 Non Dim
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
X Custom
Options
IP IPX4
Colour Options
Housing colour
Black
B
White
W
Custom
X
Technical Specifications

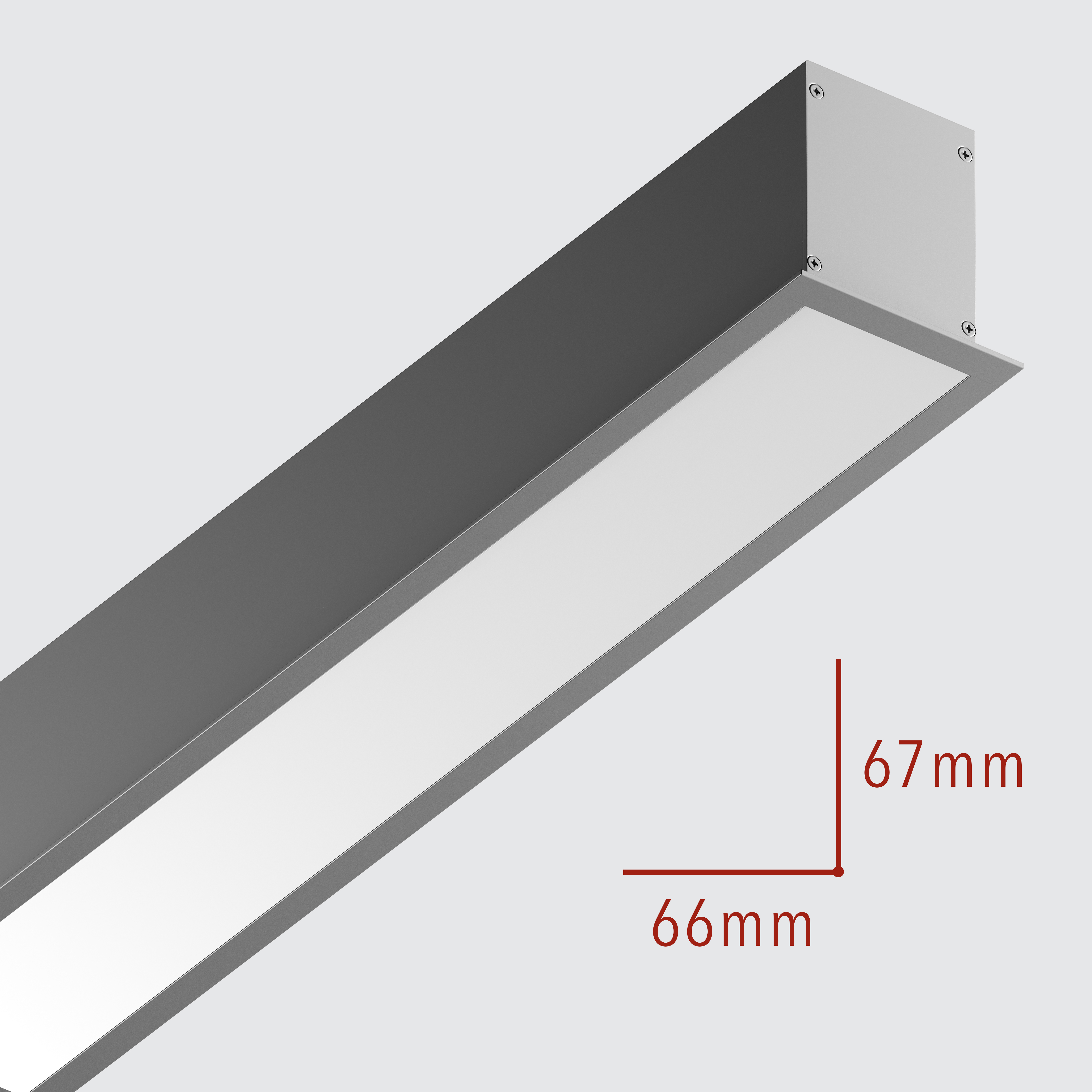

Dimensions
