    TITAN 4

    TN4

    Product Details

    Absolute luminous flux (lm)
    22042 - 33311 lm
    Power (W)
    145 - 214W
    Optic options
    30° / 90° / Asymmetric
    CRI
    80+
    CCT
    3000K / 4000K
    Colour deviation
    3 SDCM / 4 SDCM
    Dimming methods
    Non Dim / DALI
    Lumen maintenance (hours)
    L80B10 > 70,000 hours
    Driver
    Remote
    Input voltage
    240v
    Housing material
    Aluminium
    Optic material
    Aluminium Reflector
    IP rating
    IP65
    Warranty
    7 years
    Country of origin
    Australia
    IK rating
    IK10

    Configurator

    How to specify

    Select from the available options to configure luminaire

    TN4.___.___.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Output
    900
      145W
      22042 - 23419 lm
    1100
      179W
      26728 - 28403 lm
    1300
      214W
      31342 - 33311 lm
    Optic
    30   30°
    90   90°
    AS   Asymmetric
    CRI CCT
    83   80+ 3000K
    84   80+ 4000K
    Dimming
    61   Non Dim
    66   DALI
    Housing colour
    W   White
    B   Black
    X   Custom
    Options
    ME   Maintained Emergency
    IP
    IP20   IP20

    Colour Options

    Housing colour
    White
    W
    Black
    B
    Custom
    X

    Technical Specifications

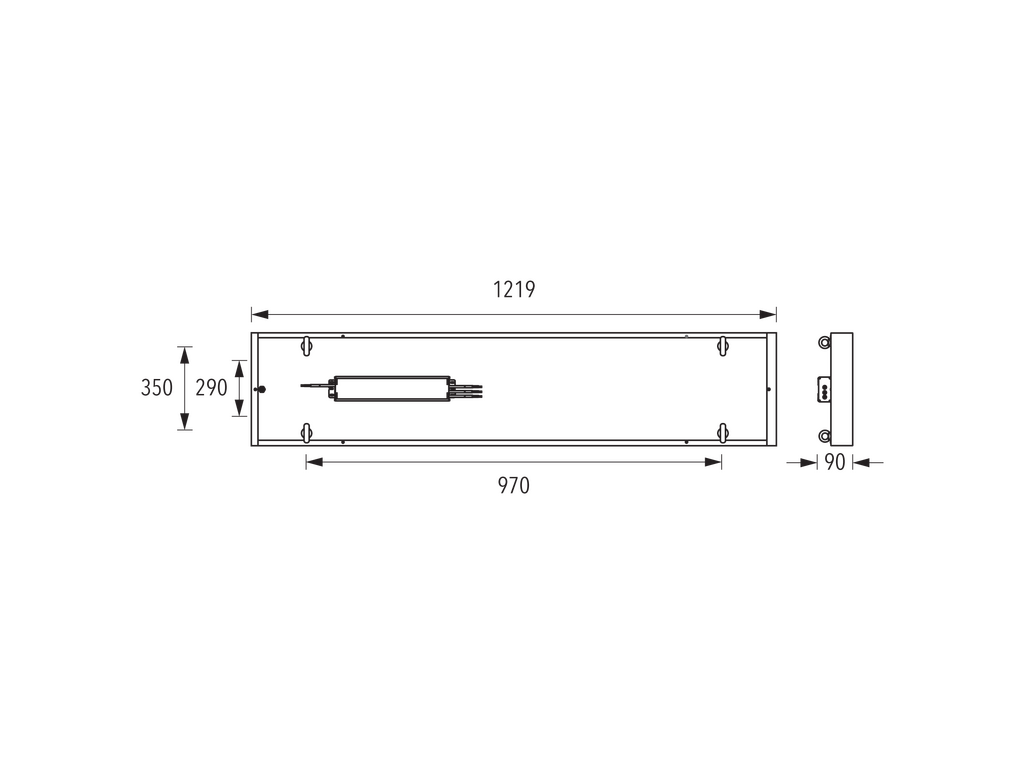

    Dimensions
