SYSTEM 45
UD45
Product Details
Absolute luminous flux (lm)
1550 - 3317 lm / 477 - 509 lm (UP)
Power (W)
18 - 28W / 6W (UP)
Optic options
65° / 80° / Asymmetric / Flat Diffuser
CRI
90+
CCT
3000K / 4000K
Colour deviation
3 SDCM
Dimming methods
Non Dim / DALI / Bluetooth (Casambi)
Lumen maintenance (hours)
L80B10 > 72,000 hours
Driver
Integral
Input voltage
240v
Housing material
Aluminium
Optic material
PMMA Clear Lens / Polycarbonate Louvre
Suspension
Wire suspension 3m
Warranty
7 years
Country of origin
Australia
Configurator
How to specify
Select from the available options to configure luminaire
UD45.___.___.___.___.___.___.___.___.___.___
Project name:
Type number:
Quantity:
Date:
Type
P Pendant
S Surface Mount
W Wall Mount
Height & Length
1120 1120 mm
XXXX Custom Length divisible by 280 mm
Output
18
18W
1550 - 2254 lm
23
23W
1830 - 2795 lm
28
28W
2116 - 3317 lm
Output - UP
5
6W
477 - 509 lm
Optic
65 65°
80 80°
AS Asymmetric
F Flat Diffuser
Optic - UP
F Flat Diffuser
CRI CCT
93 90+ 3000K
94 90+ 4000K
Dimming
61 Non Dim
66 DALI
68 Bluetooth (Casambi)
Housing colour
W White
B Black
X Custom
Options
W White Louvre
B Black Louvre
Colour Options
Housing colour
White
W
Black
B
Custom
X
Options
White Louvre
W
Black Louvre
B
Technical Specifications

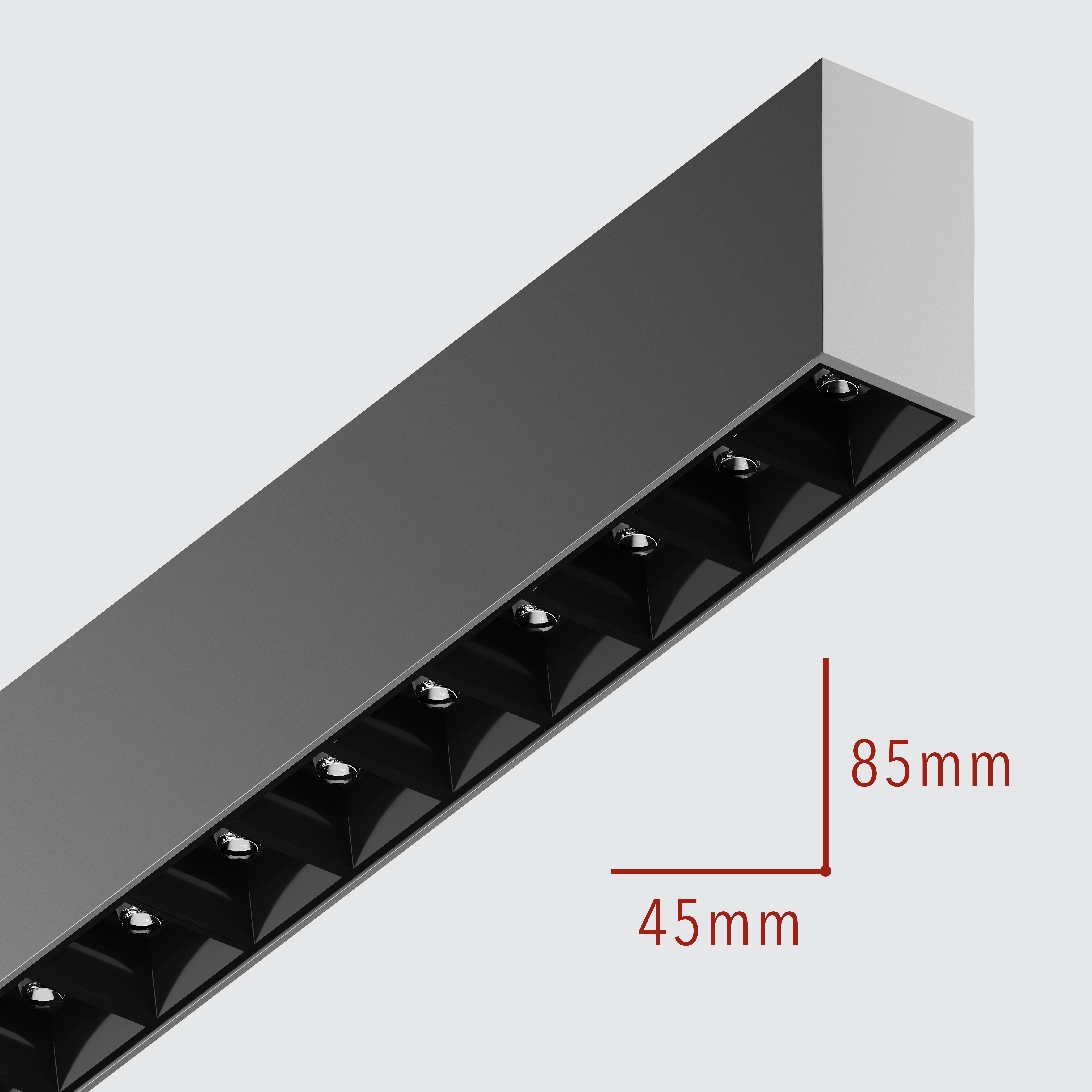

Dimensions
