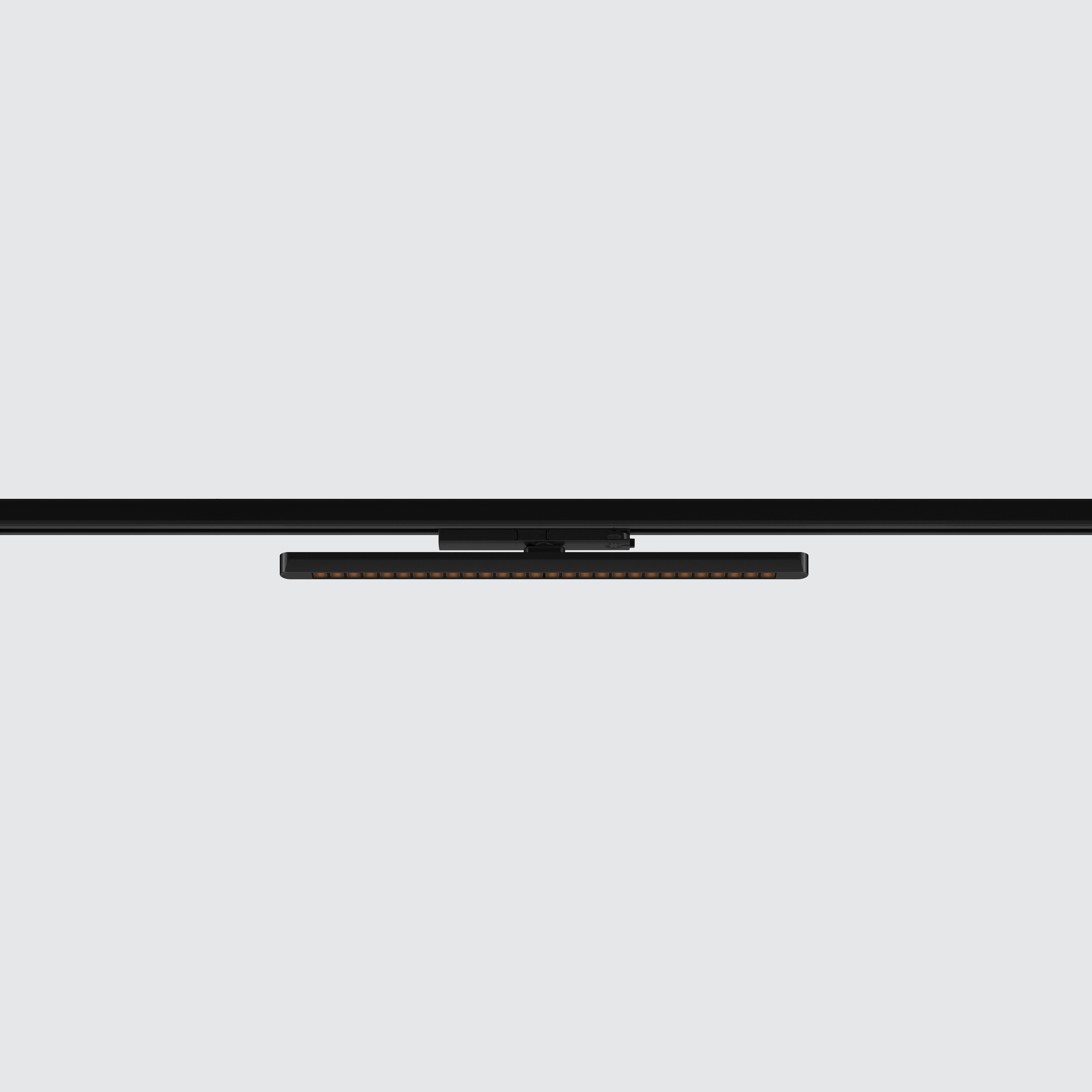

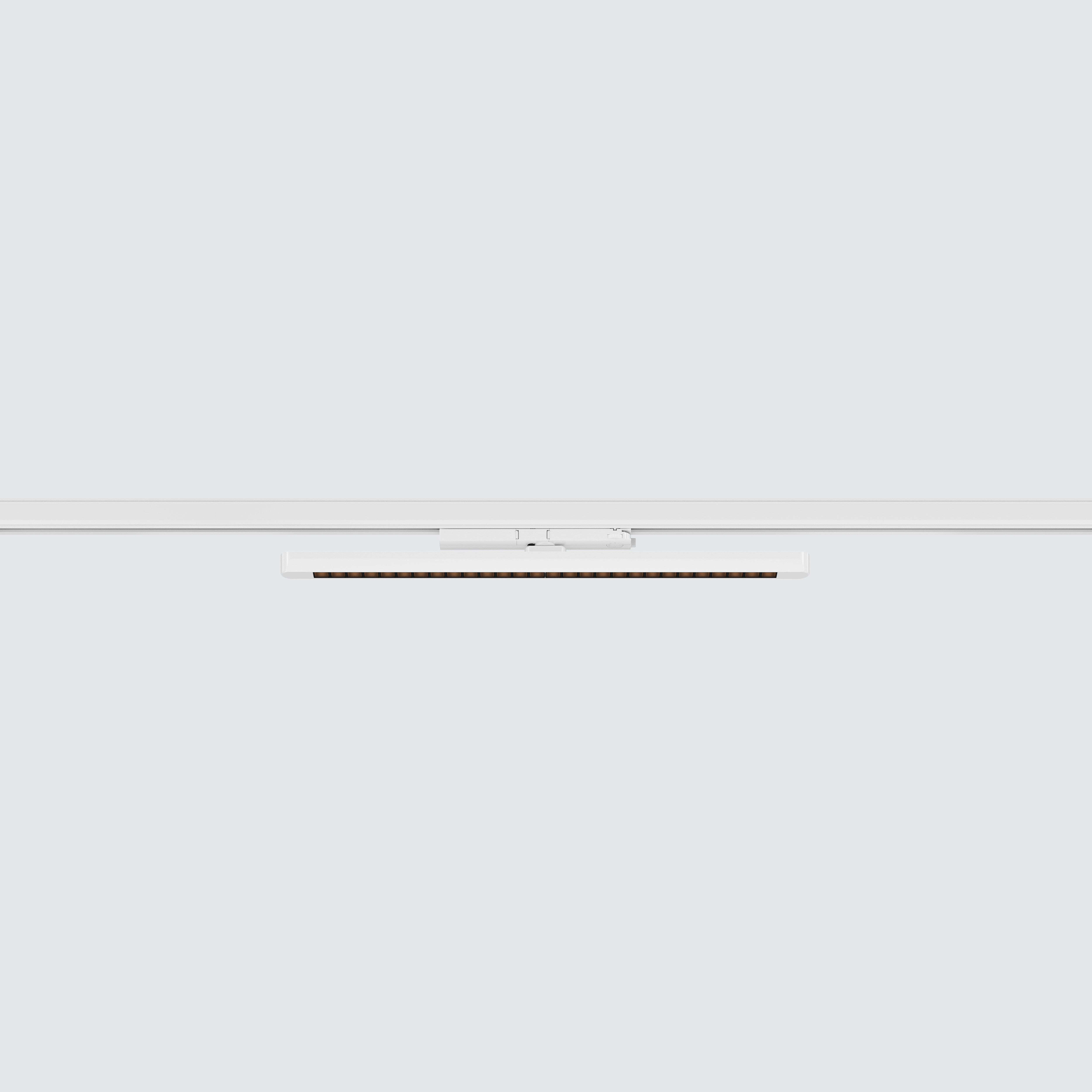

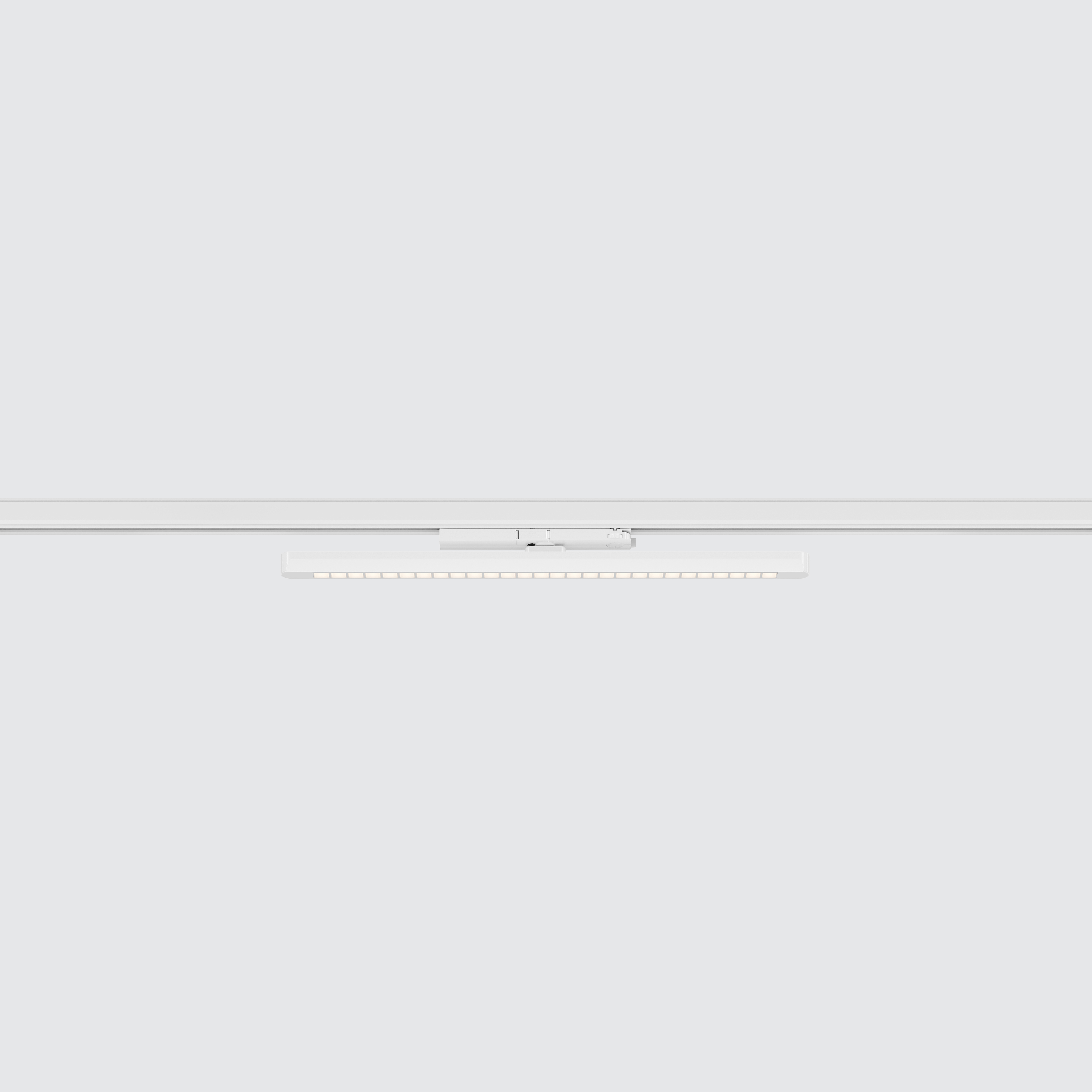

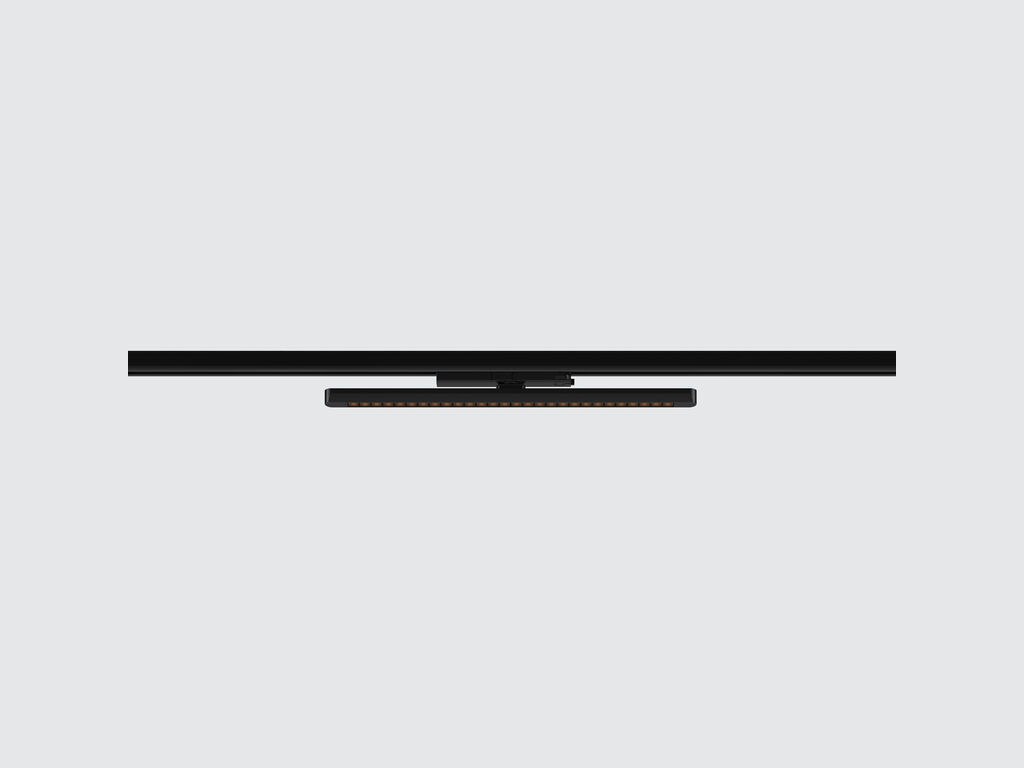

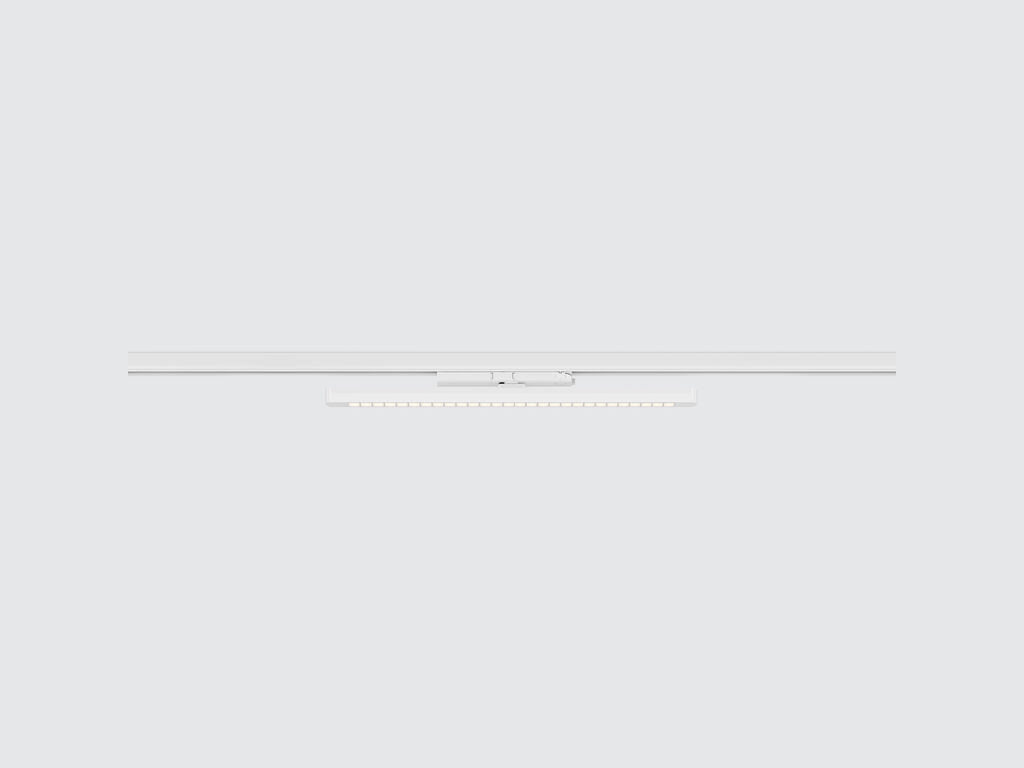

    VERSALINE 638 Track luminiare
    NEW

    VLT27-638

    Product Details

    Absolute luminous flux (lm)
    1321 - 2273 lm
    Power (W)
    14 - 22W
    Optic options
    58°
    CRI
    90+
    CCT
    2700K / 3000K / 3500K / 4000K
    Colour deviation
    3 SDCM
    Dimming methods
    Non Dim / DALI / Bluetooth (Casambi)
    Lumen maintenance (hours)
    L80B10 > 60,000 hours
    Driver
    Integral
    Input voltage
    240v
    Housing material
    Aluminium
    Optic material
    PMMA Clear Lens / Polycarbonate Louvre
    Warranty
    7 years
    Country of origin
    Australia

    Configurator

    How to specify

    Select from the available options to configure luminaire

    VLT27.638.___.___.___.___.___.___
      Configured IES files
      Configured Datasheet
      Download all
    Reset
    Select configuration
    No IES file
    Project name:
    Type number:
    Quantity:
    Date:
    Output
    300
      14W
      1321 - 1442 lm
    400
      18W
      1722 - 1907 lm
    500
      22W
      2084 - 2273 lm
    Optic
    58   58°
    CRI CCT
    927   90+ 2700K
    93   90+ 3000K
    935   90+ 3500K
    94   90+ 4000K
    Dimming
    61   Non Dim
    66   DALI
    68   Bluetooth (Casambi)
    Housing colour
    W   White
    B   Black
    X   Custom
    Options
    Louvre
    W   White Louvre
    B   Black Louvre

    Colour Options

    Housing colour
    White
    W
    Black
    B
    Custom
    X

    Options

    White Louvre
    W
    Black Louvre
    B

    Technical Specifications

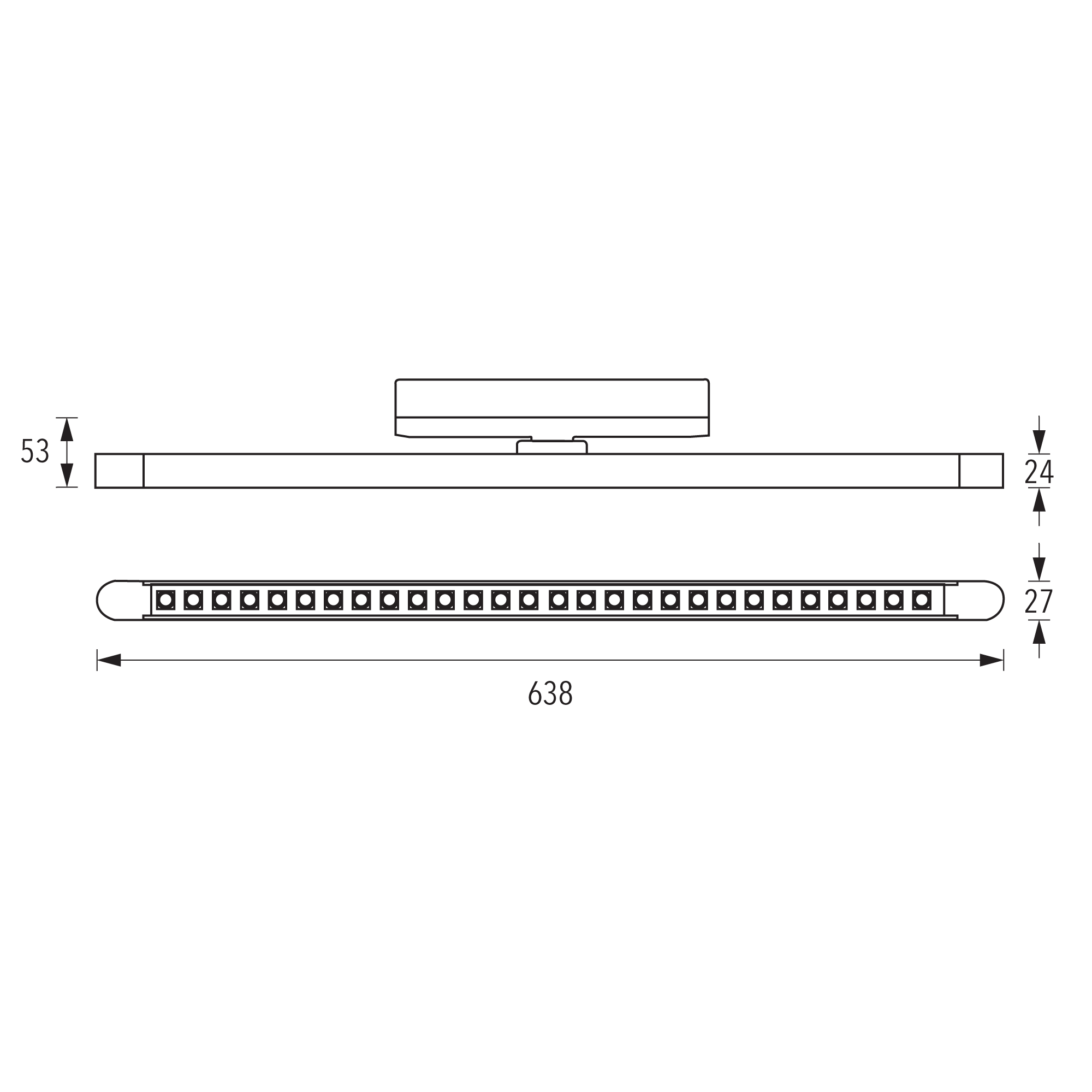

    Dimensions
