Overview

Product Description

Flex by name and Flex by design. The Fuji Akari Range re imagines the concept of acoustic ceiling systems through incorporating high quality luminaires.

Beautifully designed and made in Australia the Fuji System allows for the ultimate in lighting

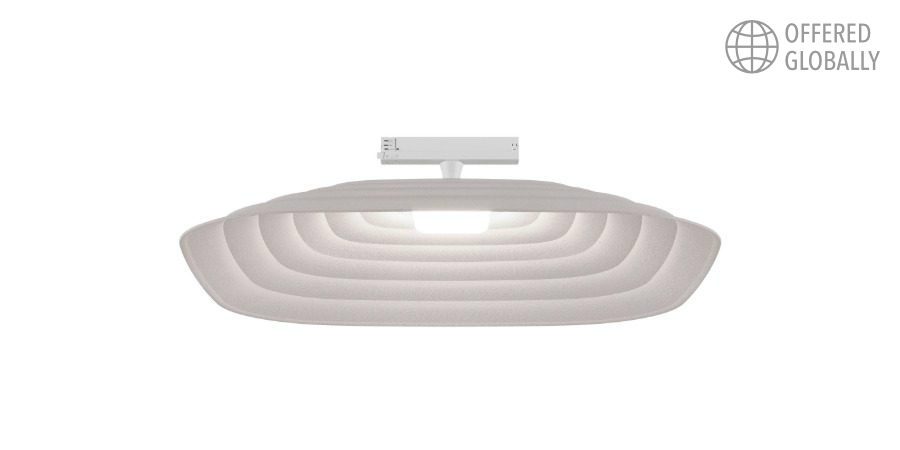

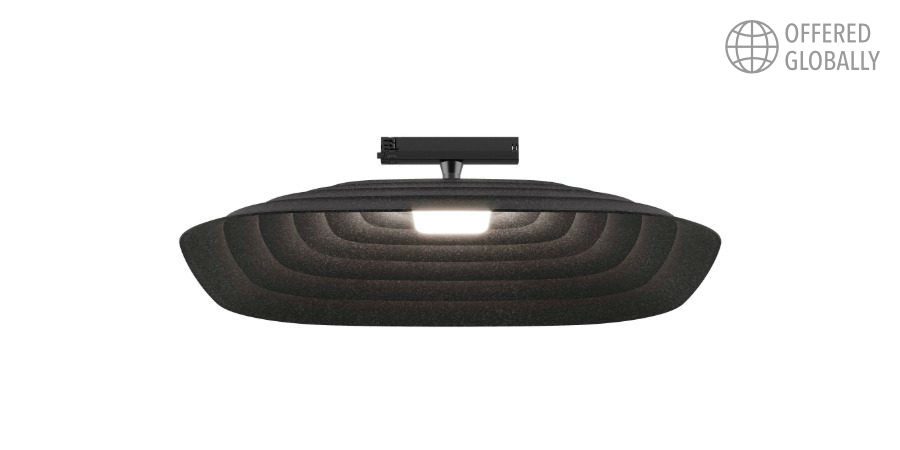

customisation while combining acoustic properties to assist in unwanted sound reverberation. The Fuji Ku Akari features a shallow diffused luminaire providing a perfect solution for general ambient illumination.

The Fuji Ku Akari can be mounted singularly or as a large group, either with suspended or surface mounted 3 circuit track.

Product Details

Absolute luminous flux up to 1153 lm
System watts5.5W / 8W / 10W
Luminaire efficacyup to 115lm/W
Colour deviation3 SDCM
Colour rendition Index>90
Correlated colour temperature2700K / 3000K / 3500K / 4000K
Lumen maintenanceL80B10 72,000hours
Dimming methodDALI / Casambi
Compatible trackCompatible with Global 3-circuit track
DiffuserFrosted acrylic diffuser
Luminaire housingAluminium
Luminaire housing colourBlack / White / Custom
Luminaire baffle colourBlack
Custom body finishesCustom powdercoat colour
Acoustic coverPET, 60% post consumer recycled PET
Acoustic cover colourBlack/Black, Black/Cream, Cream/Cream
Warranty7 years
Country of origin Australia

Optional Accessories

Blanking plates are used in place of luminaires when a luminaire is not required

Fuji Blanking Cover White
BLANKING COVER WH
FUJI.BLANK.WH
Fuji Blanking Cover Black
BLANKING COVER BL
FUJI.BLANK.BL

Panel Colour Options

Fuji Panel Cover Options : Black Upper / Cream Lower
BLACK UPPER /
CREAM LOWER
Fuji Panel Cover Options : Black Upper / Black Lower
BLACK UPPER /
BLACK LOWER
Fuji Panel Cover Options : Cream Upper / Cream Lower
CREAM UPPER /
CREAM LOWER

TECHNICAL SPECIFICATIONS

Dimensions

Complete with 3-circuit track adaptor – Track and track accessories sold separately

Fuji hood sound absorption

Fuji Hood dimenions mm
(+ / — 3mm)
o.d.s*mm
(+ / — 3mm)
Performance indicies
awClassSAANRC
KU 840mm x 840mm x 132mm2410.8B0.740.75

*o.d.s = overall depth of system

Fuji hood fire test

BS EN 13501.1: Classification B – s1, d0
ISO 9705: Group 2
GB 8624 B1
ASTM E84 Unadhered: Class 1 or A

Fuji hood emissions

FUJI ROKU, JUNI, KU and HACHI achieves:
ASTM D5116: TVOC Emissions Rate: <0.046mg/m²/hr (7 days)
CDPH Standard Method v1.2: TVOC Emissions Rate: <0.020mg/m³
Formaldehyde Emissions Rate: <1?g/m³

Fuji hood composition

Fuji Hood: 100% PET (64% post-consumer recycled)

Product Variants
HOW TO SPECIFY

FIXED CCT
Select from the available options to configure luminaire

Lumen outputs listed based on 4000K option in cream cover.

For more details, download the FUJI KU AKARI | CEILING SYSTEM Information Sheet
