Overview

Product Description

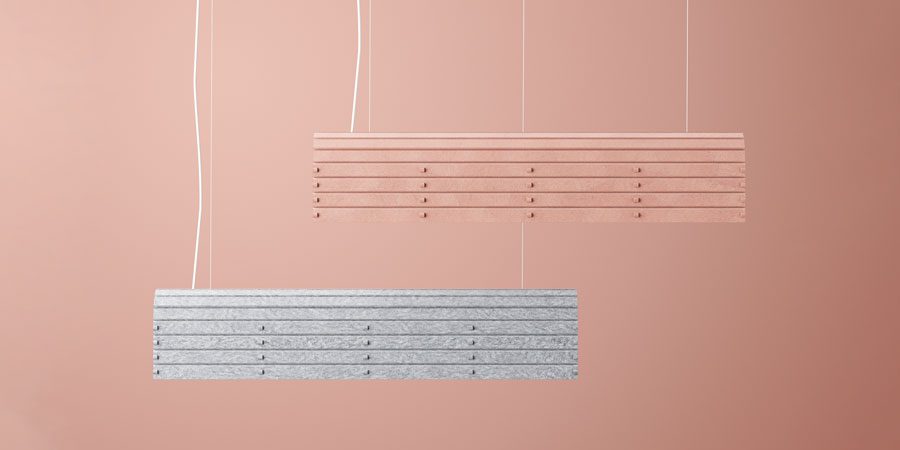

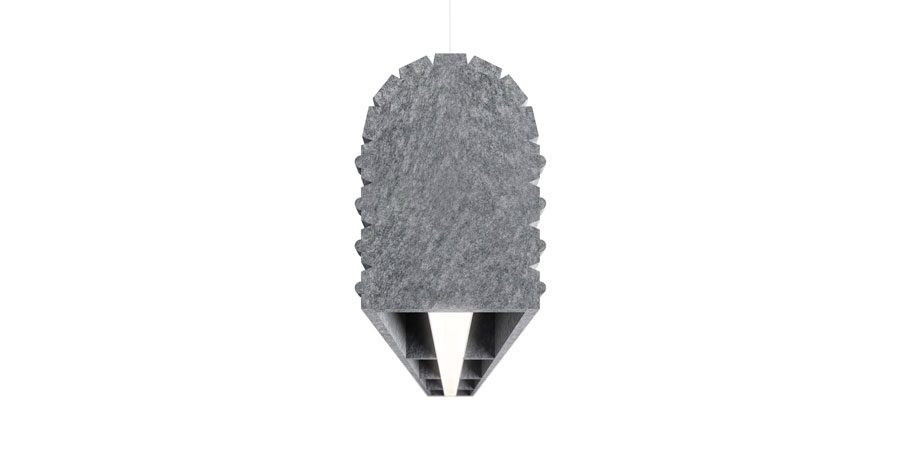

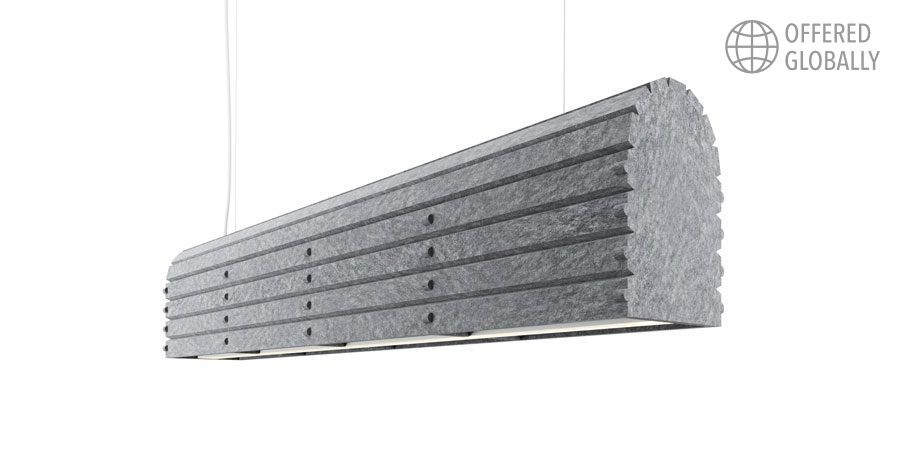

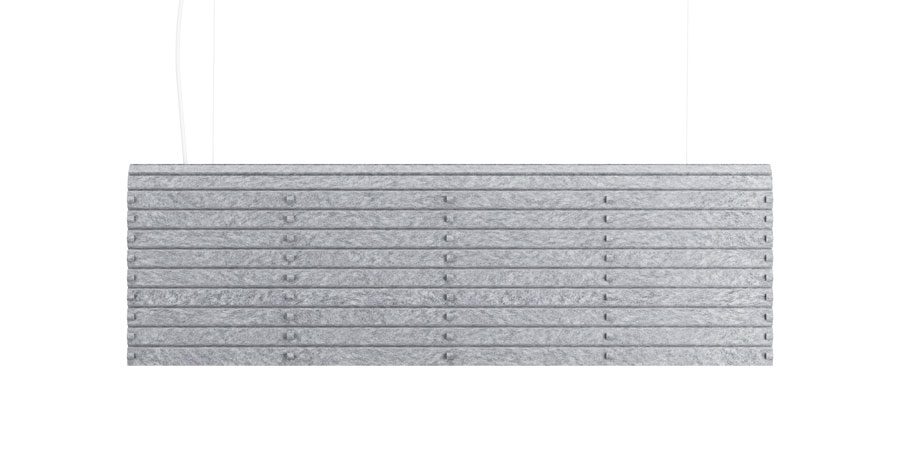

Turn up the light, turn down the sound. The new Fuse Linear Range combines exceptional lighting performance with acoustic properties to assist with reducing sound reverberation.

Not only does the Fuse range push the boundaries with light and sound performance but also it’s sustainability footprint. Manufactured in Australia the shade is made from 60% post consumer recycled PET.

Available as fully customisable continuous lengths the Fuse linear range has a range or optics available as well as dynamic colour.

Product Details

Absolute luminous flux 2010lm – 3491lm
System watts18W / 23W / 28W
Colour deviation3 SDCM
Colour rendition Index>90
Correlated colour temperature3000K / 4000K / White tunable / RGBW
Lumen maintenanceL80B10 75,000hours
Dimming methodNon dimm / DALI / Casambi
DriverIntegral
OpticPMMA Lens & PC Louvre / Diffused
Beam Angle65° / 80° / Asymmetrical
Luminaire housingAluminium powdercoated
Acoustic coverPET – 60% recycled component
Acoustic cover colourSee colour swatches below
SuspensionWire suspended, Clear flex 1m
LengthCustom length made to order
Warranty7 years
Country of origin Australia

Acoustic Properties

Frequency HzSound Absorption Coefficient
2500.92
5001.43
10001.42
20001.78
40001.95

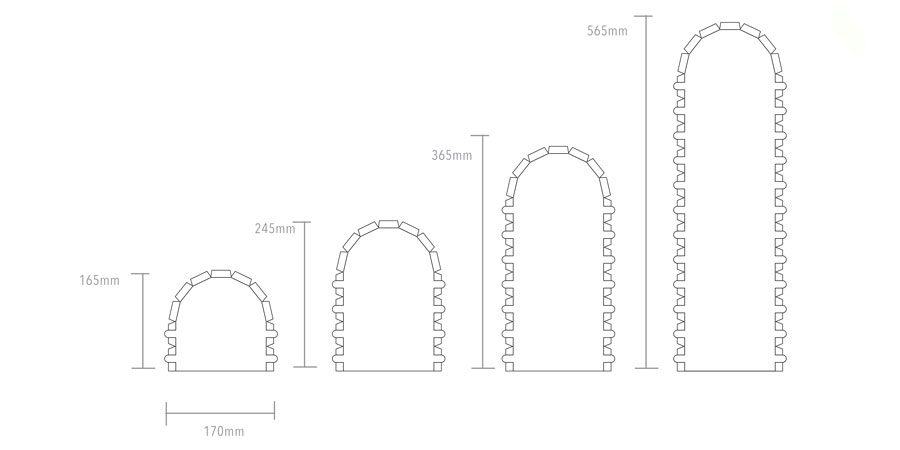

Testing based on largest size – 170mm X 565mm X 1155mm long

All testing carried out is compliant to the following Australian Standards

AS ISO 354-2006 (R2016) Acoustics—Measurement of sound absorption in a reverberation room
AS ISO 11654—2002 Rating of sound absorption—Materials and systems
ASTM C423-17 Standard Test Method for Sound Absorption and Sound Absorption Coefficients by the Reverberation Room Method
ASTM E795-16 Standard Practices for Mounting Test Specimens During Sound Absorption Tests
ISO 20189 Screens, furniture and single objects intended for interior use – Rating of sound absorption and sound reduction of elements based on laboratory measurements.

Louvre Examples

BLACK LOUVRE

WHITE LOUVRE

Colour Options

Product Variants
HOW TO SPECIFY

#1 SKU – SPECIFY THE ACOUSTIC QUALITIES
Select from the available options to configure luminaire

#2 SKU – SPECIFY THE LUMINAIRE QUALITIES
Select from the available options to configure luminaire

*Outputs listed based on 4000K version

For more details, download the FUSE LINEAR 170 – 45 | PENDANT Information Sheet
