CIRCULITE 550 SURFACE MOUNT

Overview

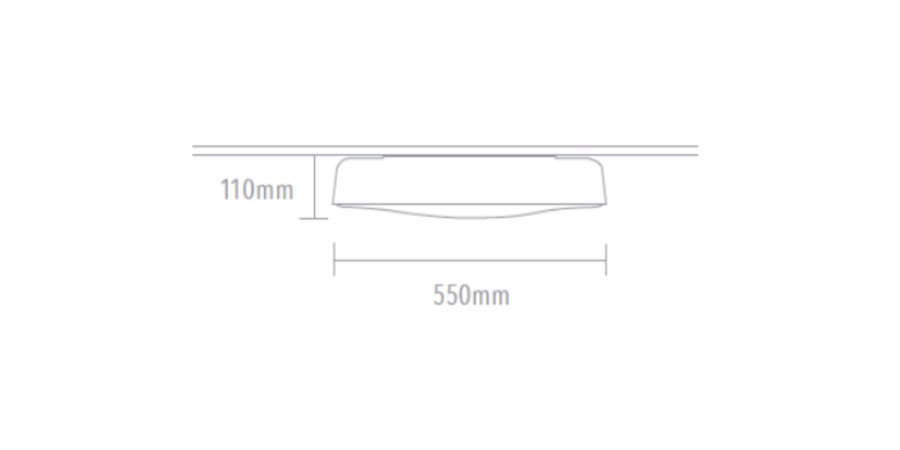

DISPLAY TRACKLIGHT diagram

Product Description

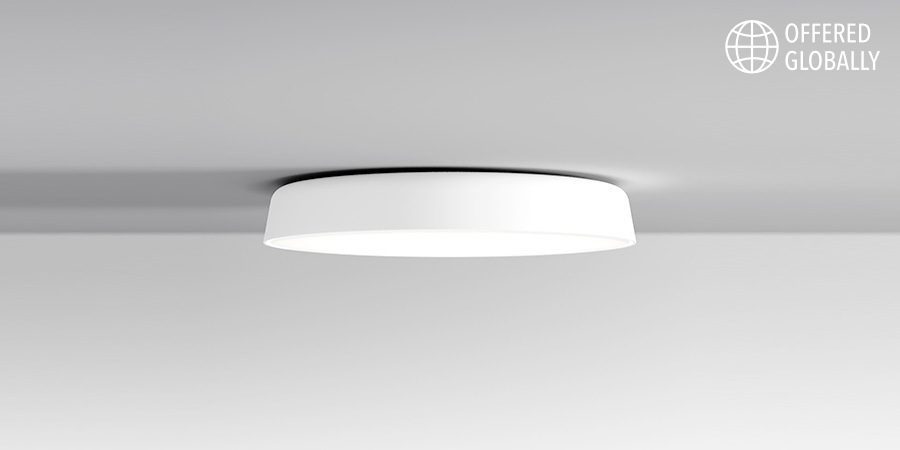

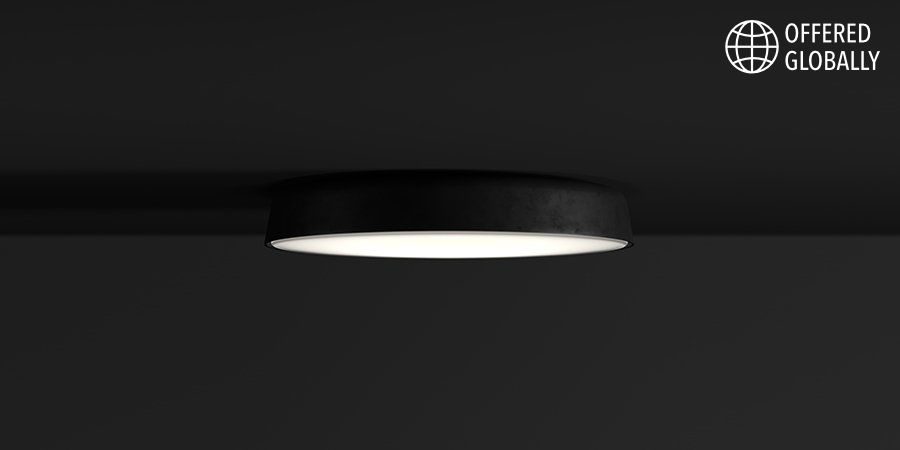

A new addition to the popular Circulite Range, the Circulite 550 Surface Mount is one of the most versatile luminaires designed and made by ELS. Simple, clean lines of the circular presentation makeit a beautiful option where lighting performance isas important as the room aesthetic.

The Circulite 550 Surface Mounted is available with Variable Output Technology and is finished in ELS standard powdercoat colours or can be finished as per specification.

Product Details

Absolute luminous flux 4732lm – 8468lm
System watts 47W / 63W / 80W
Luminaire efficacy up to 105lm/W
Colour deviation 3 SDCM
Colour rendition Index >90
Correlated colour temperature 3000K / 4000K
Lumen maintenance L80B10 72,000hours
Dimming method DALI / Casambi
Lens Opal
Luminaire housing Aluminium
Luminaire housing colour Black / White / Silver / Custom
Country of origin Australia

Codes & Downloads

Non Dimmable DALI Dimmable Casambi Dimmable CCT Lumens Watts
CL550.300.93.61 CL550.300.93.66 CL550.300.93.68 3000K 4732 47
CL550.300.94.61 CL550.300.94.66 CL550.300.94.68 4000K 4938 47
CL550.400.93.61 CL550.400.93.66 CL550.400.93.68 3000K 6276 63
CL550.400.94.61 CL550.400.94.66 CL550.400.94.68 4000K 6550 63
CL550.500.93.61 CL550.500.93.66 CL550.500.93.68 3000K 7842 80
CL550.500.94.61 CL550.500.94.66 CL550.500.94.68 4000K 8186 80

For more details, download the CIRCULITE 550 SURFACE MOUNT Information Sheet
