Overview

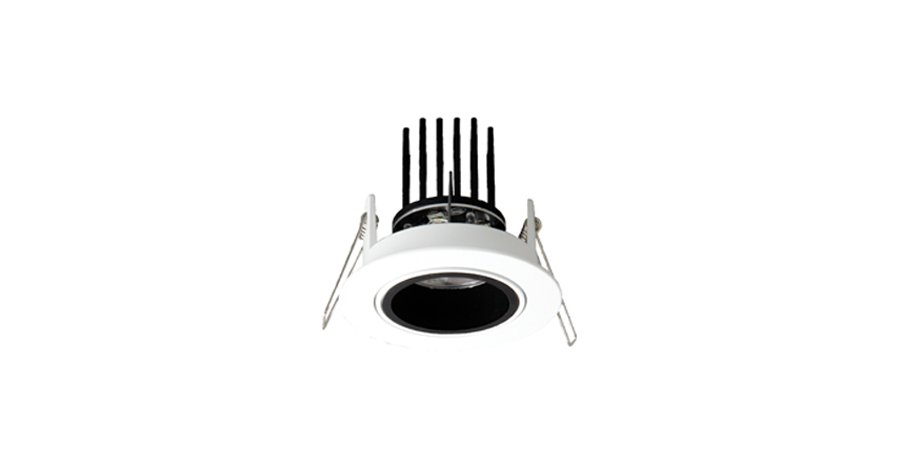

9525B DOWNLGHT
9525B DOWNLGHT diagram

Lighting Effects

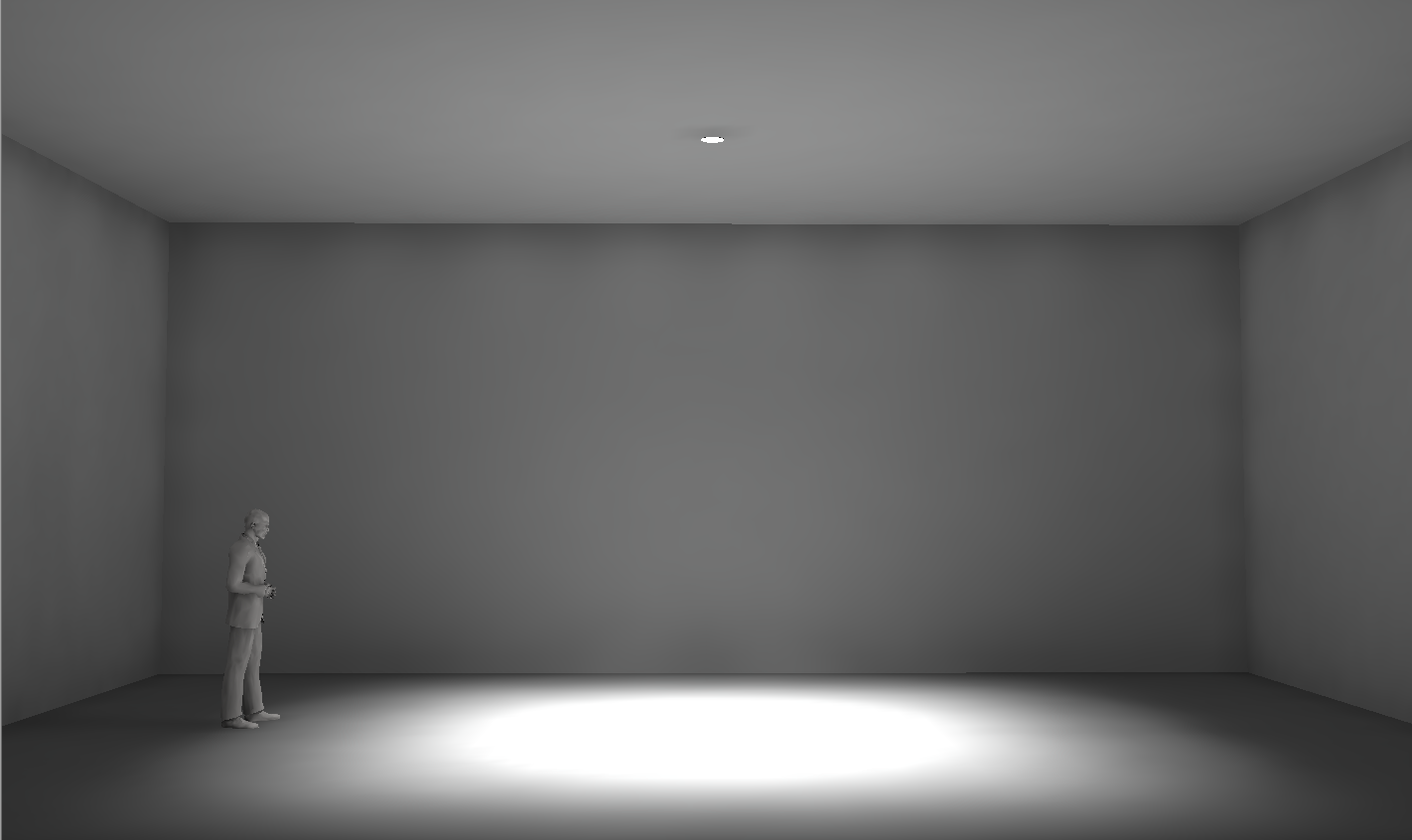

9525B XIM Downlight Lighting Effects 9525B XIM Downlight Lighting Effects

Product Details

  • Xicato XTM technology
  • Standard CRI 83+ or Artist high CRI 98
  • 3000K or 4000K
  • Black baffle low glare 25° shielding angle
  • White painted trim
  • Tilt adjustable to 20°
  • Excellent colour consistency from luminaire to luminaire
  • 5 year colour consistency warranty – no colour shift
  • L70B0 at 55,000 hours

Colour Finish

  • white WH

Codes & Downloads

XTM 240V – 83+ CRI

Non Dimmable Trailing Edge Dimmable DALI Dimmable CCT Lumens Watts
9525B.XTM5.8030.61 9525B.XTM5.8030.63 9525B.XTM5.8030.66 3000K 623 8
9525B.XTM5.8040.61 9525B.XTM5.8040.63 9525B.XTM5.8040.66 4000K 623 8
9525B.XTM7.8030.61 9525B.XTM7.8030.63 9525B.XTM7.8030.66 3000K 845 12.5
9525B.XTM7.8040.61 9525B.XTM7.8040.63 9525B.XTM7.8030.66 4000K 845 12.5

XTM 240V – 98 CRI

Non Dimmable Trailing Edge Dimmable DALI Dimmable CCT Lumens Watts
9525B.XTM5.9530.61 9525B.XTM5.9530.63 9525B.XTM5.9530.66 3000K 623 11.5
9525B.XTM5.9540.61 9525B.XTM5.9540.63 9525B.XTM5.9540.66 4000K 623 11.5
9525B.XTM7.9530.61 9525B.XTM7.9530.63 9525B.XTM7.9530.66 3000K 845 16.5
9525B.XTM7.9540.61 9525B.XTM7.9540.63 9525B.XTM7.9540.66 4000K 845 16.5

For more details, download the 9525B DOWNLIGHT Information Sheet

Download the IES file for 9525B DOWNLIGHT
