Overview

ADL150 PENDANT

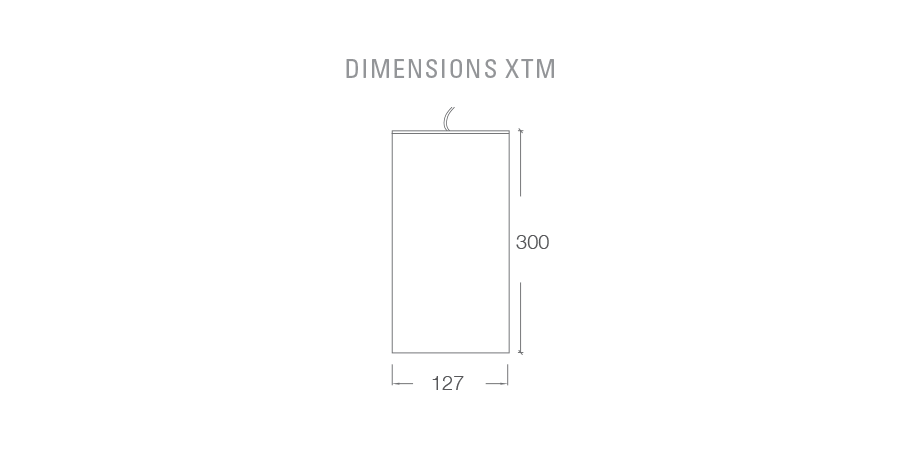

ADL150 PENDANT XTM diagram

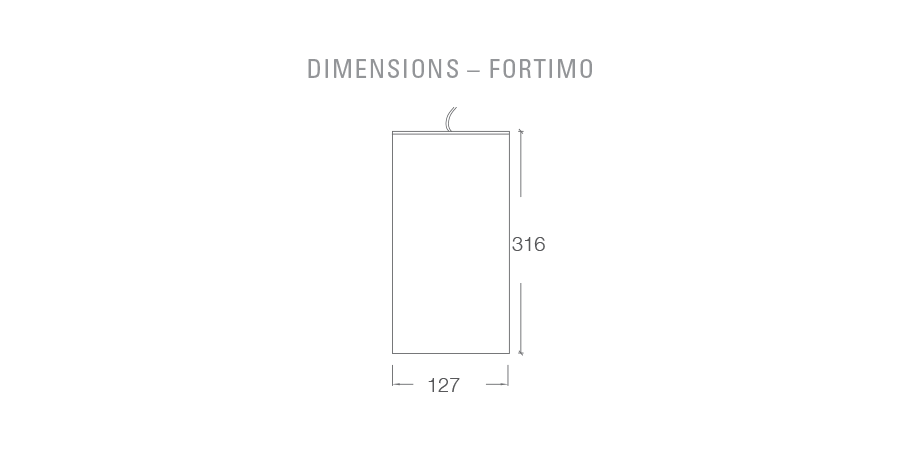

ADL150 PENDANT FORTIMO diagram

Product Details

  • Philips Fortimo or Xicato XTM technology
  • Standard CRI 83+ or Artist high CRI 98
  • 3000K or 4000K
  • High quality, mirror finish low glare reflector
  • Excellent colour consistency from luminaire to luminaire
  • 5 year colour consistency warranty – no colour shift (Xicato)
  • Made in Australia
  • 1mtr standard drop
  • L70B0 at 55,000 hours (Xicato)
  • L70B10 at 50,000 hours (Fortimo)
  • Available in a Bluetooth dimmable version refer to Smart Lighting Catalogue

Coloured Flex

  • pink
  • white
  • black
  • green
  • blue
  • red
  • orange
  • yellow

Colour Finish

  • white WH
  • silver SIL
  • black BLK
  • custom powdercoat colour

Codes & Downloads

PHILIPS FORTIMO – 83+ CRI

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL150.1100.61.3000P ADL150.1100.66.3000P 60° 3000K 882 11.5
ADL150.2000.61.3000P ADL150.2000.66.3000P 60° 3000K 1489 20.5
ADL150.3000.61.3000P ADL150.3000.66.3000P 60° 3000K 2232 29
ADL150.1100.61.4000P ADL150.1100.66.4000P 60° 4000K 882 10.5
ADL150.2000.61.4000P ADL150.2000.66.4000P 60° 4000K 1489 18.5
ADL150.3000.61.4000P ADL150.3000.66.4000P 60° 4000K 2232 27

XTM 240V – 83+ CRI

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL150.XTM14.8030.61P ADL150.XTM14.8030.66P 55° 3000K 3868 47
ADL150.XTM14.8040.61P ADL150.XTM14.8040.66P 55° 4000K 3868 47
ADL150.XTM10.8030.61P ADL150.XTM10.8030.66P 55° 3000K 2960 34
ADL150.XTM10.8040.61P ADL150.XTM10.8040.66P 55° 4000K 2960 34
ADL150.XTM7.8030.61P ADL150.XTM7.8030.66P 55° 3000K 2080 23
ADL150.XTM7.8040.61P ADL150.XTM7.8040.66P 55° 4000K 2080 23

XTM 240V – 98 CRI

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL150.XTM10.9530.61P ADL150.XTM10.9530.66P 55° 3000K 2300 35
ADL150.XTM10.9540.61P ADL150.XTM10.9540.66P 55° 4000K 2300 35
ADL150.XTM7.9530.61P ADL150.XTM7.9530.66P 55° 3000K 1640 23
ADL150.XTM7.9540.61P ADL150.XTM7.9540.66P 55° 4000K 1640 23

For more details, download the ADL150 PENDANT Information Sheet

Download the IES file forADL150 PENDANT
