Overview

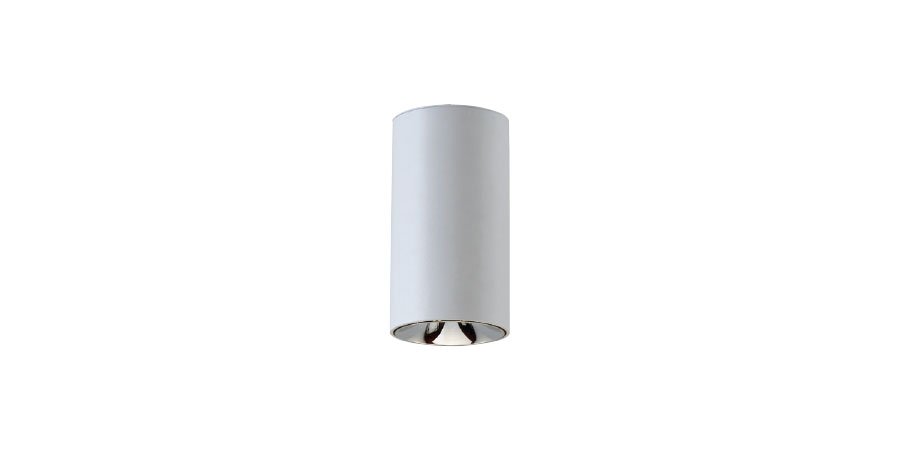

ADL150 SURFACE DOWNLIGHT

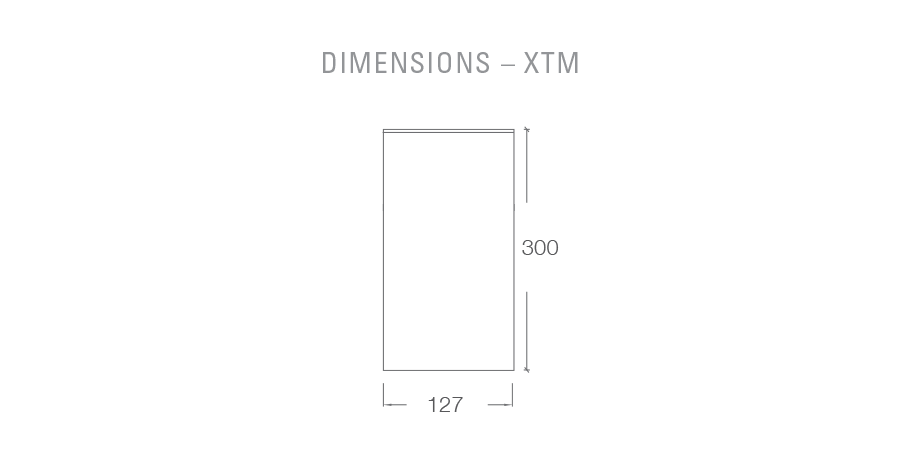

ADL150 SURFACE XTM diagram

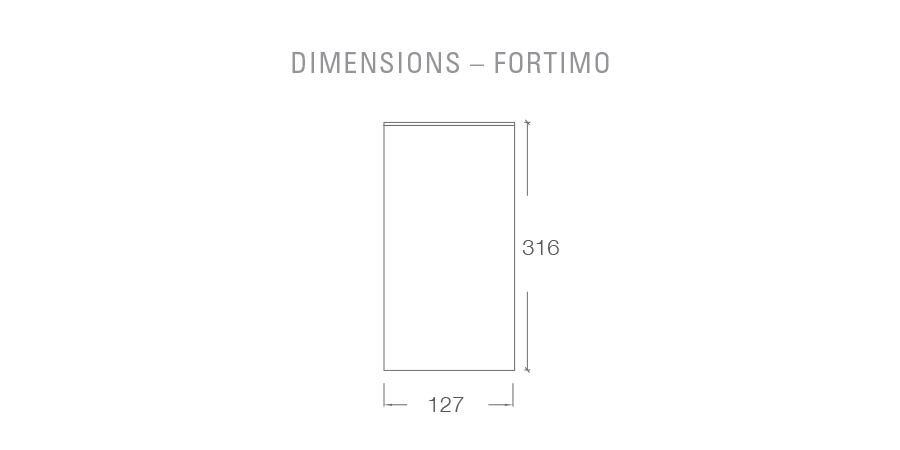

ADL150 SURFACE FORTIMO diagram

Product Details

  • Philips Fortimo or Xicato XTM technology
  • Standard CRI 83+ or Artist high CRI 98
  • 3000K or 4000K
  • High quality, mirror finish low glare reflector
  • Excellent colour consistency from luminaire to luminaire (Xicato)
  • 5 year colour consistency warranty – no colour shift (Xicato)
  • Made in Australia
  • L70B0 at 55,000 hours (Xicato)
  • L70B10 at 50,000 hours (Fortimo)
  • UGR<19
  • Available in a Bluetooth dimmable version refer to Smart Lighting Catalogue

Colour Finish

  • white WH
  • silver SIL
  • black BLK

Codes & Downloads

FORTIMO – 83+ CRI

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL150.1100.61.3000S ADL150.1100.66.3000S 60° 3000K 882 11.5
ADL150.2000.61.3000S ADL150.2000.66.3000S 60° 3000K 1489 20.5
ADL150.3000.61.3000S ADL150.3000.66.3000S 60° 3000K 2232 29
ADL150.1100.61.4000S ADL150.1100.66.4000S 60° 4000K 882 10.5
ADL150.2000.61.4000S ADL150.2000.66.4000S 60° 4000K 1489 18.5
ADL150.3000.61.4000S ADL150.3000.66.4000S 60° 4000K 2232 27

XTM 240V – 83+ CRI

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL150.XTM7.8030.61S ADL150.XTM7.8030.66S 55° 3000K 2080 23
ADL150.XTM7.8040.61S ADL150.XTM7.8040.66S 55° 4000K 2080 23
ADL150.XTM10.8030.61S ADL150.XTM10.8030.66S 55° 3000K 2860 34
ADL150.XTM10.8040.61S ADL150.XTM10.8040.66S 55° 4000K 2860 34
ADL150.XTM14.8030.61S ADL150.XTM14.8030.66S 55° 3000K 3868 47
ADL150.XTM14.8040.61S ADL150.XTM14.8040.66S 55° 4000K 3868 47

XTM 240V – 98 CRI

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL150.XTM7.9530.61S ADL150.XTM7.9530.66S 55° 3000K 1640 23
ADL150.XTM7.9540.61S ADL150.XTM7.9540.66S 55° 4000K 1640 23
ADL150.XTM10.9530.61S ADL150.XTM10.9530.66S 55° 3000K 2300 35
ADL150.XTM10.9540.61S ADL150.XTM10.9540.66S 55° 4000K 2300 35

For more details, download the ADL150 SURFACE DOWNLIGHT Information Sheet

Download the IES file for ADL150 SURFACE DOWNLIGHT
