Overview

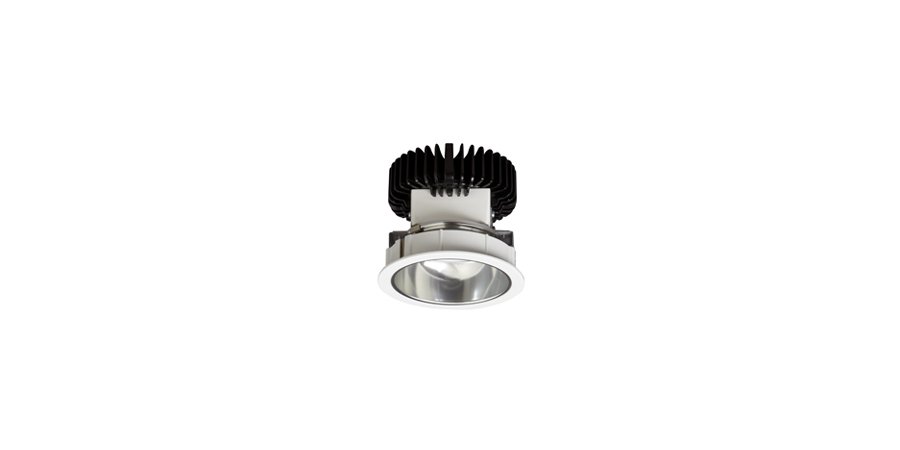

ADL150 WIDE BEAM DOWNLIGHT

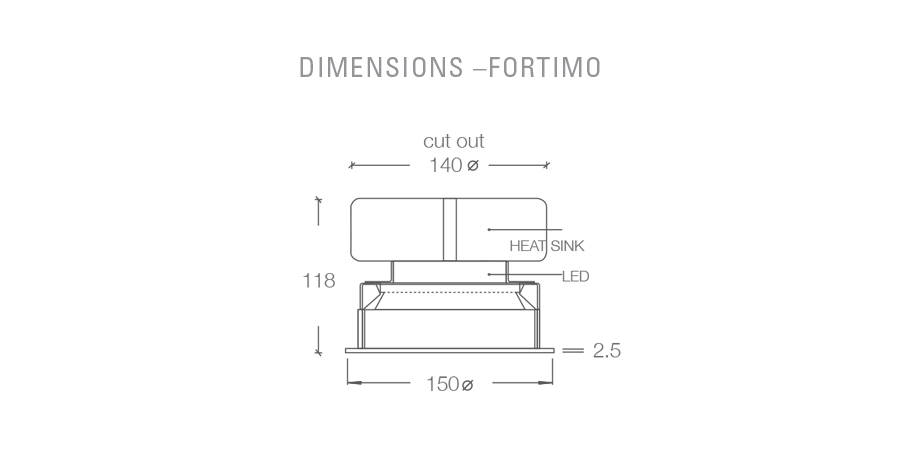

ADL150 WIDE BEAM FORTIMO

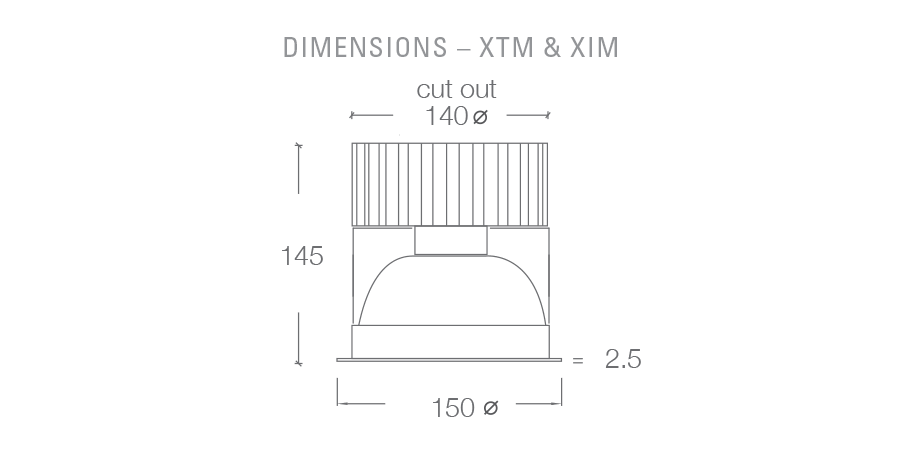

ADL150 WIDE BEAM XIM XTM

Product Details

  • Philips Fortimo or Xicato XTM technology
  • Standard CRI 83+ or Artist high CRI 98
  • 3000K or 4000K
  • High quality, mirror finish low glare reflector
  • Excellent colour consistency from luminaireto luminaire (Xicato)
  • 5 year colour consistency warranty -no colour shift (Xicato)
  • Thin 1.3mm white polycarbonate trim
  • Made in Australia
  • L70B0 at 55,000 hours (Xicato)
  • L70B10 at 50,000 hours (Fortimo)
  • UGR<19
  • Available in a Bluetooth dimmable version refer to Smart Lighting Catalogue

Colour Finish

  • white WH
  • silver SIL
  • black BLK

Optional Accessories

Frosted glass inlay IP44** – Order code – SDL150–G4
Frosted glass inlay IP44 - SDL125-G4

Clear glass inlay IP44** – Order code – SDL150–G5
Clear glass inlay IP44 - SDL125-G5
Vandal resistant lens – Order code – SDL150–VR

Vandal resistant lens - SDL125-VR
**IP Rating is from below the ceiling only

Codes & Downloads

PHILIPS FORTIMO

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL150.1100.90.30.61 ADL150.1100.90.30.66 90° 3000K 972 11.5
ADL150.2000.90.30.61 ADL150.2000.90.30.66 90° 3000K 1877 20.5
ADL150.3000.90.30.61 ADL150.3000.90.30.66 90° 3000K 2486 29
ADL150.5000.90.30.61 ADL150.5000.90.30.66 90° 3000K 4814 51.7
ADL150.1100.90.40.61 ADL150.1100.90.40.66 90° 4000K 972 10.5
ADL150.2000.90.40.61 ADL150.2000.90.40.66 90° 4000K 1877 18.5
ADL150.3000.90.40.61 ADL150.3000.90.40.66 90° 4000K 2486 27
ADL150.5000.90.40.61 ADL150.5000.90.40.66 90° 4000K 4814 49

XTM 240V – 83+ CRI

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL150.XTM7.90.83.61 ADL150.XTM7.90.83.66 90° 3000K 2240 23
ADL150.XTM7.90.84.61 ADL150.XTM7.90.84.66 90° 4000K 2240 23
ADL150.XTM10.90.83.61 ADL150.XTM10.90.83.66 90° 3000K 3190 34
ADL150.XTM10.90.84.61 ADL150.XTM10.90.84.66 90° 4000K 3190 34
ADL150.XTM14.90.83.61 ADL150.XTM14.90.83.66 90° 3000K 4151 47
ADL150.XTM14.90.84.61 ADL150.XTM14.90.84.66 90° 4000K 4151 47

XTM 240V – 98 CRI

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL150.XTM7.90.93.61 ADL150.XTM7.90.93.66 90° 3000K 1650 23
ADL150.XTM7.90.94.61 ADL150.XTM7.90.94.66 90° 4000K 1650 23
ADL150.XTM10.90.93.61 ADL150.XTM10.90.93.66 90° 3000K 2490 35
ADL150.XTM10.90.94.61 ADL150.XTM10.90.94.66 90° 4000K 2490 35

For more details, download the ADL150 WIDE BEAM DOWNLIGHT Information Sheet

Download the IES file for ADL150 WIDE BEAM DOWNLIGHT
