Overview

ADL150 SURFACE DOWNLIGHT

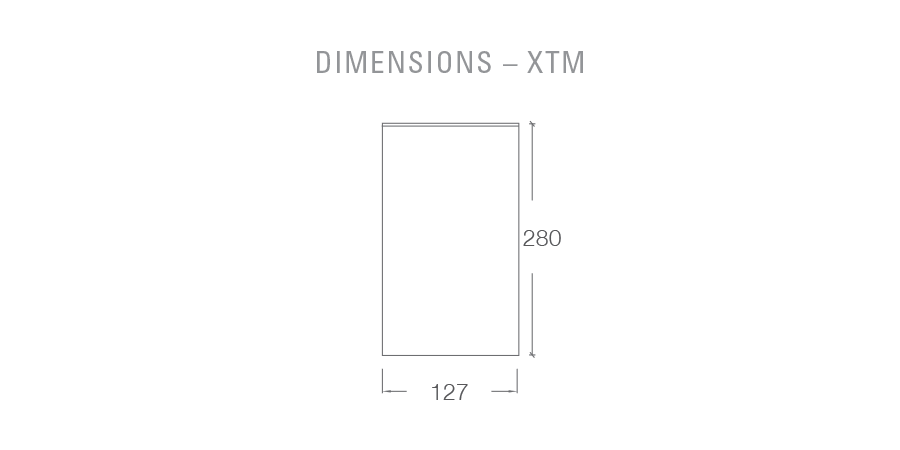

ADL150 WIDE BEAM SURFACE XTM diagram

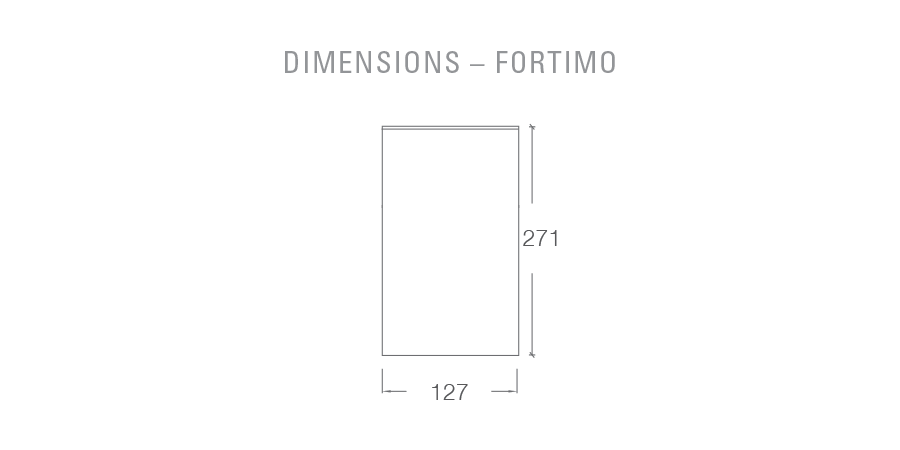

ADL150 WIDE BEAM SURFACE FORTIMO diagram

Product Details

  • Fortimo or Xicato XTM technology
  • Standard CRI 83+ or Artist high CRI 98
  • 3000K or 4000K
  • High quality, mirror finish low glare reflector
  • Excellent colour consistency from luminaire to luminaire (Xicato)
  • 5 year colour consistency warranty – no colour shift (Xicato)
  • Made in Australia
  • L70B0 at 55,000 hours (Xicato)
  • L70B10 at 50,000 hours (Fortimo)
  • UGR<19
  • Available in a Bluetooth dimmable version refer to Smart Lighting Catalogue

Colour Finish

  • white WH
  • silver SIL
  • black BLK

Codes & Downloads

FORTIMO

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL150.1100.90.30.61S ADL150.1100.90.30.66S 90° 3000K 972 11.5
ADL150.2000.90.30.61S ADL150.2000.90.30.66S 90° 3000K 1877 20.5
ADL150.3000.90.30.61S ADL150.3000.90.30.66S 90° 3000K 2486 29
ADL150.1100.90.40.61S ADL150.1100.90.40.66S 90° 4000K 972 10.5
ADL150.2000.90.40.61S ADL150.2000.90.40.66S 90° 4000K 1877 18.5
ADL150.3000.90.40.61S ADL150.3000.90.40.66S 90° 4000K 2486 27

XTM 240V – 83+ CRI

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL150.XTM7.90.83.61S ADL150.XTM7.90.83.66S 90° 3000K 2240 23
ADL150.XTM7.90.84.61S ADL150.XTM7.90.84.66S 90° 4000K 2240 23
ADL150.XTM10.90.83.61S ADL150.XTM10.90.83.66S 90° 3000K 3190 34
ADL150.XTM10.90.84.61S ADL150.XTM10.90.84.66S 90° 4000K 3190 34
ADL150.XTM14.90.83.61S ADL150.XTM14.90.83.66S 90° 3000K 4115 47
ADL150.XTM14.90.84.61S ADL150.XTM14.90.84.66S 90° 4000K 4115 47

XTM 240V – 98 CRI

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL150.XTM7.90.93.61S ADL150.XTM10.90.93.66S 90° 3000K 1650 23
ADL150.XTM7.90.94.61S ADL150.XTM10.90.94.66S 90° 4000K 1650 23
ADL150.XTM10.90.93.61S ADL150.XTM7.90.93.66S 90° 3000K 2490 35
ADL150.XTM10.90.94.61S ADL150.XTM7.90.94.66S 90° 4000K 2490 35

For more details, download the ADL150 WIDE BEAM SURFACE DOWNLIGHT Information Sheet

Download the IES file for ADL150 WIDE BEAM SURFACE DOWNLIGHT
