Overview

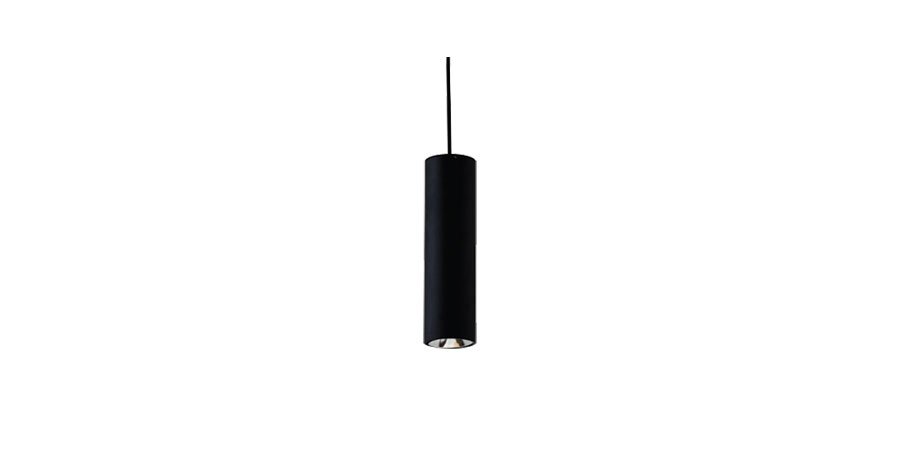

ADL90 PENDANT

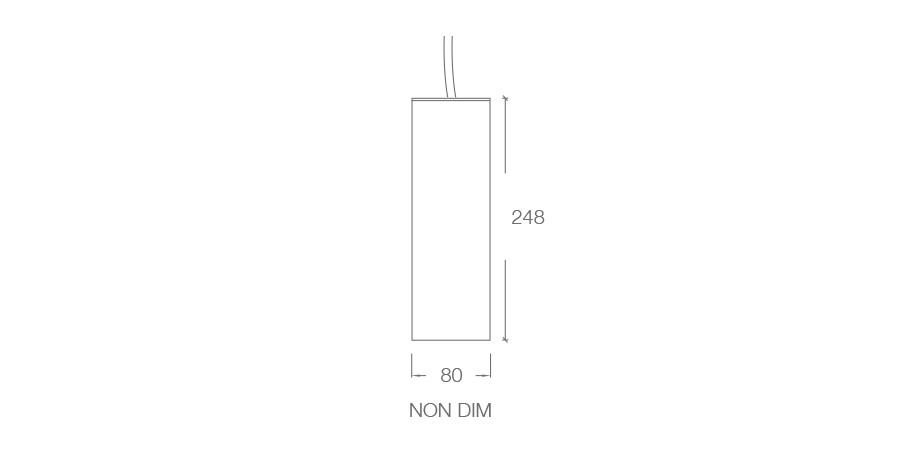

ADL90 PENDANT NON DIM diagram

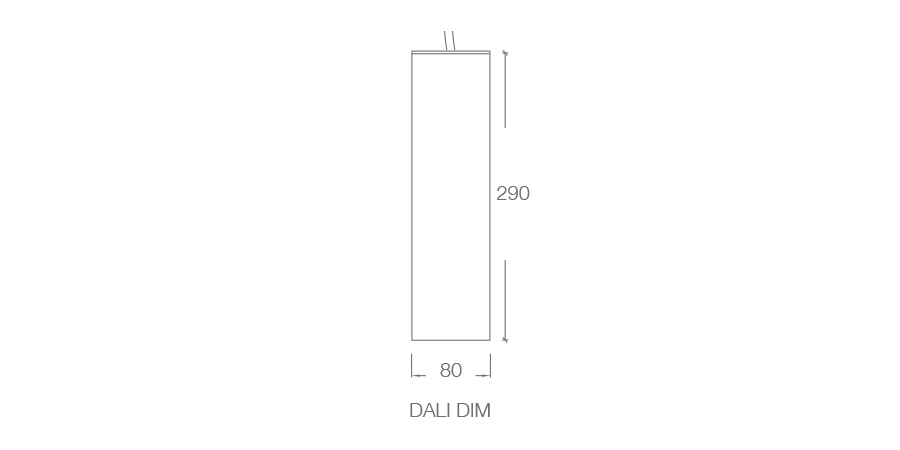

ADL90 PENDANT DALI DIM diagram

Product Details

  • Xicato XTM technology
  • Standard CRI 83+ or Artist high CRI 98
  • 3000K, 4000K or 2700K upon request
  • Aluminium body, powdercoated
  • High quality, mirror finish low glare reflector
  • Excellent colour consistency from luminaire to luminaire
  • 5 year colour consistency warranty – no colour shift
  • Made in Australia
  • 1mtr standard drop
  • L70B0 at 55,000 hours
  • Available in a Bluetooth dimmable version refer to Smart Lighting Catalogue

Coloured Flex

  • pink
  • white
  • black
  • green
  • blue
  • red
  • orange
  • yellow

Colour Finish

  • white WH
  • silver SIL
  • black BLK
  • custom powdercoat colour

Codes & Downloads

XTM 240V – 83+ CRI – LOW OUTPUT

Non Dimmable Trailing Edge Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL90.XIM5N.8030.61P ADL90.XIM5N.8030.63P ADL90.XIM5N.8030.66P 21° 3000K 832 8
ADL90.XIM5N.8040.61P ADL90.XIM5N.8040.63P ADL90.XIM5N.8040.66P 21° 4000K 832 8
ADL90.XIM5M.8030.61P ADL90.XIM5M.8030.63P ADL90.XIM5M.8030.66P 35° 3000K 795 8
ADL90.XIM5M.8040.61P ADL90.XIM5M.8040.63P ADL90.XIM5M.8040.66P 35° 4000K 795 8
ADL90.XIM5W.8030.61P ADL90.XIM5W.8030.63P ADL90.XIM5W.8030.66P 55° 3000K 797 8
ADL90.XIM5W.8040.61P ADL90.XIM5W.8040.63P ADL90.XIM5W.8040.66P 55° 4000K 797 8

XTM 240V – 83+ CRI – HIGH OUTPUT

Non Dimmable Trailing Edge Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL90.XIM7N.8030.61P ADL90.XIM7N.8030.63P ADL90.XIM7N.8030.66P 21° 3000K 1125 12.5
ADL90.XIM7N.8040.61P ADL90.XIM7N.8040.63P ADL90.XIM7N.8040.66P 21° 4000K 1125 12.5
ADL90.XIM7M.8030.61P ADL90.XIM7M.8030.63P ADL90.XIM7M.8030.66P 35° 3000K 1074 12.5
ADL90.XIM7M.8040.61P ADL90.XIM7M.8040.63P ADL90.XIM7M.8040.66P 35° 4000K 1074 12.5
ADL90.XIM7W.8030.61P ADL90.XIM7W.8030.63P ADL90.XIM7W.8030.66P 55° 3000K 1065 12.5
ADL90.XIM7W.8040.61P ADL90.XIM7W.8040.63P ADL90.XIM7W.8040.66P 55° 4000K 1065 12.5

XTM 240V – 98 CRI – LOW OUTPUT

Non Dimmable Trailing Edge Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL90.XIM5N.9530.61P ADL90.XIM5N.9530.63P ADL90.XIM5N.9530.66P 21° 3000K 878 11.5
ADL90.XIM5N.9540.61P ADL90.XIM5N.9540.63P ADL90.XIM5N.9540.66P 21° 4000K 878 11.5
ADL90.XIM5M.9530.61P ADL90.XIM5M.9530.63P ADL90.XIM5M.9530.66P 35° 3000K 836 11.5
ADL90.XIM5M.9540.61P ADL90.XIM5M.9540.63P ADL90.XIM5M.9540.66P 35° 4000K 836 11.5
ADL90.XIM5W.9530.61P ADL90.XIM5W.9530.63P ADL90.XIM5W.9530.66P 55° 3000K 822 11.5
ADL90.XIM5W.9540.61P ADL90.XIM5W.9540.63P ADL90.XIM5W.9540.66P 55° 4000K 822 11.5

XTM 240V – 98 CRI – HIGH OUTPUT

Non Dimmable Trailing Edge Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL90.XIM7N.9530.61P ADL90.XIM7N.9530.63P ADL90.XIM7N.9530.66P 21° 3000K 1186 16.5
ADL90.XIM7N.9540.61P ADL90.XIM7N.9540.63P ADL90.XIM7N.9540.66P 21° 4000K 1186 16.5
ADL90.XIM7M.9530.61P ADL90.XIM7M.9530.63P ADL90.XIM7M.9530.66P 35° 3000K 1130 16.5
ADL90.XIM7M.9540.61P ADL90.XIM7M.9540.63P ADL90.XIM7M.9540.66P 35° 4000K 1130 16.5
ADL90.XIM7W.9530.61P ADL90.XIM7W.9530.63P ADL90.XIM7W.9530.66P 55° 3000K 1111 16.5
ADL90.XIM7W.9540.61P ADL90.XIM7W.9540.63P ADL90.XIM7W.9540.66P 55° 4000K 1111 16.5

For more details, download the ADL90 PENDANT Information Sheet

Download the IES file for ADL90 PENDANT
