Overview
Product Details
- Australian Made
- 80+ CRI or 90+ CRI versions
- Extruded aluminium body | polycarbonate diffuser
- Flat opal diffuser
- 5 year warranty
- Surface mounted | Suspended
- 3000K, 4000K or custom 2700K and RGB on request
- Optional end caps | joiners | suspension
- Custom lengths made to order divisible as per below
Colour Finish
- white WH
- black BLK
- custom powdercoat colour
Mounting Styles
S – Surface mounted
P – Pendant – down only

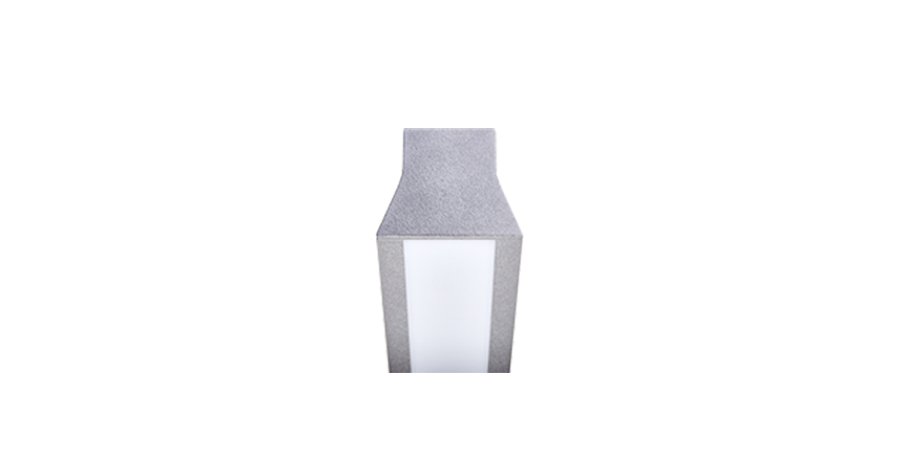

BELL77
| Direct Illumination | Delivered Lumens per meter | System watts per meter | CRI | LED’s divisable by |
|---|---|---|---|---|
| 1170 | 16 | 80+ | 100mm | |
| 1864 | 34 | 90+ | 50mm | |
| 2560 | 24 | HO 80+ | 140mm | |
| 3150 | 31 | H0 80+ | 140mm |
Codes & Downloads
